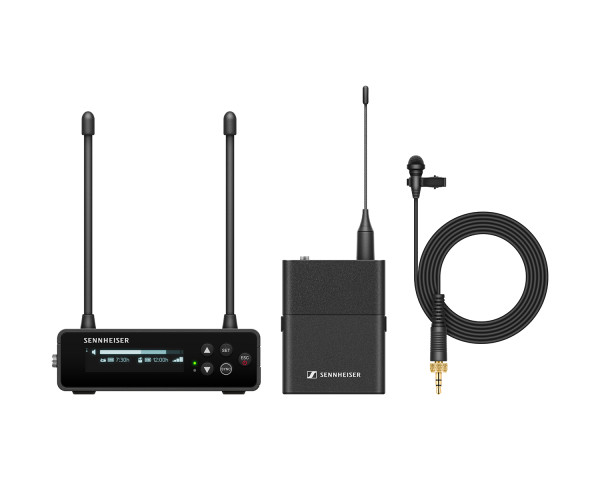

EW-DP ME2 SET Portable Wireless Lapel Mic System (S1-7) CH38

Product Features

• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetically stackable components for versatile mounting
• Industry leading 134 dB dynamic range for distortion free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control
• Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only

Product Specifications

System

• Audio link frequency ranges:
  • Q1-6:  470.2 - 526 MHz
  • R1-6:  520 - 576 MHz
  • R4-9:  552 - 607.8 MHz
  • S1-7:  606.2 - 662 MHz
  • S4-7:  630 - 662 MHz
  • S7-10:  662 - 693.8 MHz
  • U1/5:  823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4:  925.2 - 937.3 MHz
  • Y1-3:  1785.2 - 1799.8 MHz
• Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
• Audio frequency response:  20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Audio THD:  ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Dynamic range:  134 dB
• System latency:  1.9 ms
• Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity:  5 - 95 % (non-condensing)

EW-DP EK

• Input voltage:  ~ 1.8 - 4.35 V
• Input current:
  • Typ. < 250 mA / Max. < 400 mA (BA 70)
  • Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
  • < 300 mA@5 V (USB-C standalone)
• Power Supply:
  • 2x AA batteries 1.5V or BA70  rechargeable battery pack or USB-C PD power supply (max.):
    • 5V / 1500mA
    • 9V / 900mA
    • 12V / 700mA
• Transmit power (radiated):  BLE: max. 10 mW EIRP
• Audio output power:  < 2 dBV max. (high level) / < 4dBU max (high level)
• Headphone Output < 50 mW into 16 Ohms
• Dimensions:  86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
• Weight (without antennas and power supply):  approx. 140g (0.31  lbs)

EW-D SK (Bodypack Transmitter)

• Input voltage:  2.0 - 4.35 V
• Input current:  < 300 mA
• Power supply:
• 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth:  200 kHz
• Transmit power (radiated):
• Audio link: 10 mW ERP
• (Range Y1-3: 12 mW ERP)
• BLE: max. 10 mW EIRP
• Dimensions: (without antenna):  63 x 80 x 20 mm (2.48" x 3.15" x 0.79")
• Weight (without batteries):  approx. 120 g (0.26  lbs)

ME 2 (Lavalier Microphone)

• Transducer principle:  pre-polarized condenser microphone
• Pick-up pattern:  omni-directional
• Sensitivity (free field, no load) (1 kHz):  17 mV/Pa
• Max. SPL:  at 1 kHz 130 dB
• Frequency response:  50 to 18,000 Hz
• Equivalent noise level A-weighted:  32 dB
• Connector:  3.5 mm jack
• Cable length:  approx. 1.60 m (62.99")
• Supply voltage:  7.5 V

What's in the Box?

• EW-DP EK digital portable single channel receiver
• EW-D SK digital bodypack transmitter
• ME 2 omnidirectional lavalier microphone
• Mounting kit (Mounting plate, cold shoe, belt clip & screws)
• BA 70 li-ion battery & (2) AA battery
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
