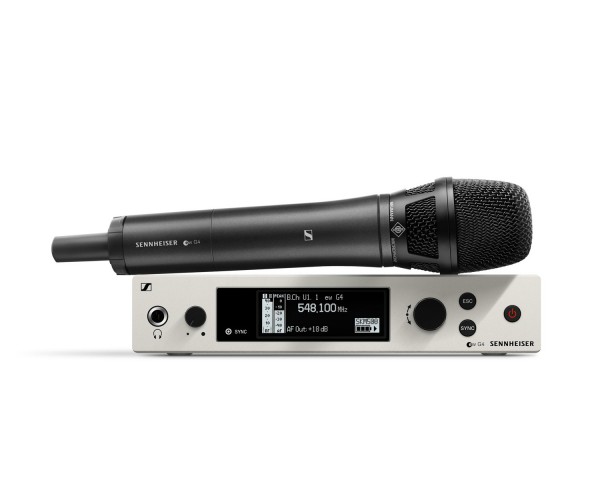

EW500 G4-KK205-GBW Handheld Vocal Set with Neumann KK205 CH38

Product Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
• Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems

Product Specifications

EM 300-500 G4

• Dimensions:  Approx. 202 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion:  ≤ 0.9 %
• Weight:  Approx. 980 g
• Audio output:
  • 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
• Signal-to-noise ratio:  ≥ 115 dBA
• Switching bandwidth:  up to 88 MHz
• Peak deviation:  ±48 kHz
• Nominal deviation:  ±24 kHz
• Modulation:  Wideband FM
• Power supply:  12 V DC
• Current consumption:  350 mA
• Adjacent channel rejection: Typically ≥ 75 dB
• Intermodulation attenuation:  Typically ≥ 70 dB
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity:  < 2.5 μV for 52 dBA eff S/N
• Squelch: 5 to 25 dBμV in steps of 2 dB
• Equaliser
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
• Antenna Connector:  2 BNC sockets
• Temperature Range:  -10 °C to +55 °C
• Receiver Principle:  True diversity
• Blocking:  ≥ 75 dB

SKM 500 G4

• Dimensions:  Approx. Ø 50 x 265 mm
• Compander:  Sennheiser HDX
• THD, total harmonic distortion:  ≤ 0.9 %
• Weight (incl. batteries):  approx. 450 g
• Signal-to-noise ratio:  ≥ 115 dBA
• RF output power:
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW
• Switching bandwidth:  up to 88 MHz
• Peak deviation:  ±48 kHz
• Nominal deviation:  ±24 kHz
• Operating time:  Typically 8 h
• Modulation:  Wideband FM
• Power supply:  2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption
• at nominal voltage: typ. 180 mA
• with transmitter switched off: ≤ 25 µA
• Powering:  3 V battery / 2.4 V rechargeable battery
• Transmission frequency:  Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response:  80 – 18,000 Hz
• Temperature Range:  -10 °C to +55 °C
• Frequency stability:  ≤ ±15 ppm

KK 205

• Max. sound pressure level:  150 dB
• Pick-up pattern:  supercardioid
• Signal-to-noise ratio:  70 dB
• Sensitivity:  2.8 mV/Pa

What's in the Box?

• EM 300-500 G4 rackmount receiver
• SKM 500 G4 handheld transmitter
• KK 205 super-cardioid condenser capsule
• NT 2-3 power supply
• GA3 rack kit set
• Microphone clamp
