Main Features
Low-profile for rich sound in tight spaces
Ported enclosure for extended bass response
Waveguide-coupled 1-inch titanium-coated tweeter
Full-bandwidth overload protection
Safe, easy installation with included tile bridge and mounting ring

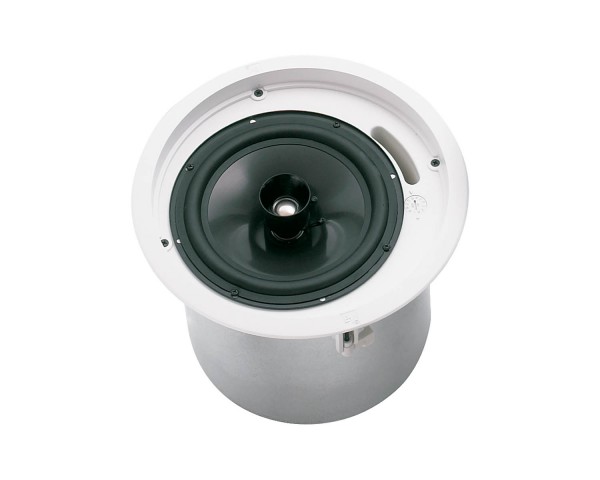

The Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilises a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
Product Features
Low Profile 8" coaxial two-way
Waveguide coupled Ti Tweeter
Full bandwidth overload protection
Front baffle wattage tap adjustment
Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
Includes tile bridge and mounting ring for easy installation
Integrated ported enclosure for extended bass response
Ideal for ceiling spaces with tight clearance
UL and CE listed
Product Specifications
General
Freq. Response (-10 dB): 50 Hz - 20 kH
Coverage (Conical): 110°
Power Handling: 75 W Cont. / 300 W Peak
Sensitivity (SPL 1W/1m): 91 dB
Max Calculated SPL: 110 dB Cont. / 116 dB Peak
Impedance: 8 Ohms nominal (transformer bypass)
Network: Network and transducers protected 12 dB/oct 2.6 kHz
LF Transducer: 8 in. (200 mm) Polypropylene cone
HF Transducer: 1 in (25 mm) Ti Mylar laminate
T W ransformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30W 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
Connectors: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
Enclosure Material: Baffle- UL 94V-O rated AB Backcan-Zinc plated steel
