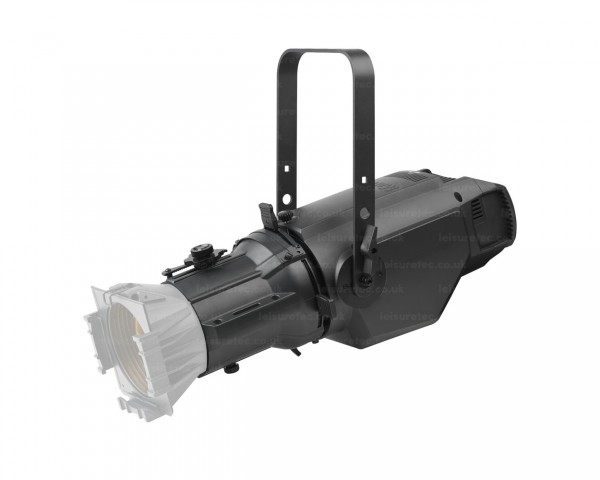

ELP-CL Full Colour RGBLA LED Ellipsoidal Profile Body Only

Product Features

• Impressive light output rating of 6,900 lumens (in High Output mode)
• Superior CRI rating of 90 (in High Quality mode)
• Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more
• Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
• 15-30 degree and 25-50 degree beam Zoom lenses available in black and white

Product Specifications

PHYSICAL

• Length: 648 mm (25.5 in.)
• Width: 259 mm (10.2 in.)
• Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
• Weight: 7.7 kg (17 lbs)

DYNAMIC EFFECTS

• Electronic shutter effect: Instant open and blackout
• Electronic dimming: 0 - 100%
• Strobe and pulse effects: Variable speed and action, random strobe
• Colour mixing: RGBLA
• Colour Temperature Range: 2000-10000K
• Colour selection: 26 colour presets

CONTROL AND PROGRAMMING

• Control options: DMX, stand-alone
• 16-bit control: Intensity, CTC, RGBLA
• Setting and addressing: Control panel with OLED display or via RDM
• DMX channels: 1/10/17
• PWM: 600-2400 Hz
• Standalone programming: Control panel with OLED display
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: Opto-isolated RS-485

OPTICS

• Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
• Colour temperature: 2000-10000K
• Lens tube options: 19°, 26°, 36°, 50°
• Minimum LED lifetime: 30,000 hours (to >70% luminous output)*

^{*Figure obtained under manufacturer's test conditions}

PHOTOMETRIC DATA

• High Quality mode @ 6000K:
• Light Engine luminous output: 20000 lumen
• Fixture luminous output: 5900 lumen
• CRI (Colour Rendering Index): >90 @ 6000K
• CQS (Colour Quality Scale): >87
• TM-30 Rf (IES TM-30-15 Fidelity Index): >84
• TM-30 Rg (IES TM-30-15 Gamut Index): >106
• TLCI (Television Lighting Consistency Index): >87
• High Output mode @ 5500K:
• Light Engine luminous output: 20000 lumen
• Fixture luminous output: 6900 lumen
• CRI (Colour Rendering Index): >85
• CQS (Colour Quality Index): >90
• TM-30 Rf (IES TM-30-15 Fidelity Index): >84
• TM-30 Rg (IES TM-30-15 Gamut Index): >111
• TLCI (Television Lighting Consistency Index): >85

CONSTRUCTION

• Housing: Die-cast aluminium
• Colour: Black or white variant
• Protection rating: IP20

GOBOS AND COLOUR FRAME

• Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
• Colour frame size: 159 X 159 mm (6.25 X 6.25 in.)

^{*Gobo holder not included}

INSTALLATION

• Mounting: Adjustable bracket
• Location: Indoor use only
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m (0.7 ft.)
• Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

CONNECTIONS

• AC power in, thru: Neutrik PowerCON TRUE1
• DMX and RDM data in/out: 5-pin locking XLR

ELECTRICAL

• AC power: 100-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Idle power (zero intensity): 5 W
• Half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
• Fixture link via PowerCON at 100-120 V: Up to 4 fixtures
• Fixture link via PowerCON at 200-240 V: Up to 9 fixtures

^{Power consumption figures are typical, not maximum. Allow for +/- 10% variation}

TYPICAL POWER AND CURRENT

• 110 V, 60 Hz: 2.4 A, 259 W, PF 0.99
• 208 V, 60 Hz: 1.3 A, 250 W, PF 0.96
• 230 V, 50 Hz: 1.3 A, 249 W, PF 0.95
• 240 V, 50 Hz: 1.1 A, 249 W, PF 0.95

^{Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.}

THERMAL

• Cooling: Forced air (temperature-regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)
• Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)

APPROVALS

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
• US safety: UL 1573
• US EMC: FCC Part 15 Class B
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM

INCLUDED ITEMS

• Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
• Mounting bracket
• User manual

ACCESSORIES

• Cables, 16 A, for connection to power in chains:
• Power input cables
  • Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
  • Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
  • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
  • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
• Power relay cables
  • Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 0.45 m (1.5 ft.): P/N 91611784
  • Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 1.2 m (3.9 ft.): P/N 91611785
  • Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611786
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172
• Connectors:
  • Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
  • Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
• Installation hardware:
  • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  • Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  • Half-coupler clamp: P/N 91602005
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

RELATED ITEMS

• Martin™ RDM 5.5 Splitter: P/N 90758150
• Martin Companion Cable: P/N 91616091

ORDERING INFORMATION

• Martin ELP CL (Body Only): P/N 9045107780
• Martin ELP CL (Body Only), White: P/N 9045115164
• Martin ELP Lens Tube 19°: P/N 9045107782
• Martin ELP Lens Tube 26°: P/N 9045107783
• Martin ELP Lens Tube 36°: P/N 9045107784
• Martin ELP Lens Tube 50°: P/N 9045107785
• Martin ELP Lens Tube 19° White : P/N 9045115166
• Martin ELP Lens Tube 26° White : P/N 9045115167
• Martin ELP Lens Tube 36° White : P/N 9045115168
• Martin ELP Lens Tube 50° White : P/N 9045115170

What's in the Box?

• Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
• Mounting bracket
• User manual
