EK100 G4-E 100-Series Camera Receiver CH70

« return to previous page

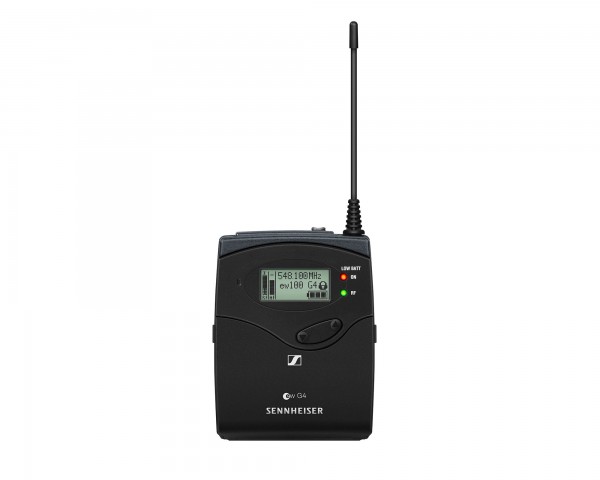

Sennheiser EK100 G4-E 100-Series Camera Receiver CH70 - Main Image
Sennheiser EK100 G4-E 100-Series Camera Receiver CH70 - Image 1
Sennheiser EK100 G4-E 100-Series Camera Receiver CH70 - Image 2
Price:
RRP: £370.80 inc VAT
Code:
SENEK10070
Manufacturer Code:
509874 / 507650
Brand:
Sennheiser

Quantity required:

Main Features

  • EK100 G4 Camera Receiver
  • Powerful camera receiver, easily mounted on any kind of camera
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Up to 8 hours of operation time
Share:

EK100 G4-E 100-Series Camera Receiver CH70

Powerful camera receiver with a lightweight aluminum housing and  for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

Product Features

  • Powerful camera receiver, easily mounted on any kind of camera
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 meters / 330 feet
  • Up to 8 hours of operation time

Product Specifications

General

  • Modulation: Wideband FM
  • Frequency ranges:
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Receiving frequencies:
    • Max. 1680 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: Adaptive diversity
  • Sensitivity (with HDX, peak deviation): < 1.6 μV for 52 dBA eff S/N
  • Adjacent channel selection: ≥ 65 dB
  • Intermodulation attenuation: ≥ 65 dB
  • Blocking: ≥ 70 dB
  • Squelch
  • low: 5 dBμV
  • middle: 15 dBμV
  • high: 25 dBμV
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF): 3.5 mm jack socket: +12 dBu  (mono, unbalanced)
  • Adjustment range of audio output level: 42 dB, adjustable in steps of 6 dB
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 μA
  • Operating time: Typically 8 h

Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

What's in the Box?

  • EK 100 G4 camera receiver
  • 2 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
