EFX12 12:2 Mixer 12-Mic 2-Stereo i/p + Effects Inc Rack Kit

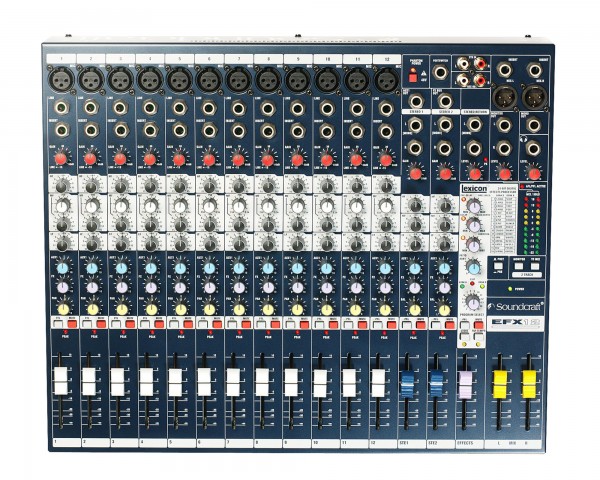

Soundcraft EFX12 12:2 Mixer 12-Mic 2-Stereo i/p + Effects Inc Rack Kit - Main Image

Soundcraft EFX12 12:2 Mixer 12-Mic 2-Stereo i/p + Effects Inc Rack Kit - Image 1

Soundcraft EFX12 12:2 Mixer 12-Mic 2-Stereo i/p + Effects Inc Rack Kit - Image 2

Price:: RRP: £835.00 inc VAT
Code:: SOUEFX12
Manufacturer Code:: SCR0675
Brand:: Soundcraft

Main Features

Built-in 24 bit Lexicon digital effects processor
Tap Tempo and FX setting store function
1 FX send on each channel
Ten-segment LED output metering
Intuitive and comprehensive solo system
Easily rack mountable

The Soundcraft EFX™ Series combines all the features of the popular Soundcraft EPM™ mixer with a built-in 24-bit, digital Lexicon® effects processor, expanding the Soundcraft low-cost, multipurpose compact range.

The Soundcraft EFX mixer uses the same AudioDNA® processor featured in many of the Digitech® and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects not usually found in a console at this price level.

The Effects section fits neatly into the mixers compact framework which is available in 8 or 12 mono input variants, both with 2 stereo channels and an effects send on each channel. There are 32 effects to choose from with a tap tempo function, 3 effects parameter controls and a user effects setting store facility. An effects channel level clip LED and Mute function gives the user even more flexibility.

The emphasis with the Soundcraft EFX is very firmly on quality build and audio performance, with an easy to understand control surface in line with the Soundcraft professional range. The Soundcraft EFX uses the highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series professional consoles).The Soundcraft EFX also offers all the features of the Soundcraft EPM most notably a configurable aux send, XLR and ¼" metal jack connector sockets, RCA phono stereo playback inputs and record outputs, 3-band EQ with a swept mid on the mono inputs, 3-band EQ on the 2 stereo inputs, TRS insert sockets, inserts on all mono inputs, ten-segment LED output metering and a headphone output.

Product Features

12+2 channel frame size
Built-in 24 bit Lexicon digital effects processor
32 FX settings
Tap Tempo and FX setting store function
1 FX send on each channel
1 configurable auxiliary bus
XLR-type and ¼” metal jack connector sockets
RCA phono stereo playback inputs and record outputs
3-band EQ with a swept mid on mono inputs
3-band EQ on stereo inputs
TRS insert sockets and inserts on all mono inputs
Ten-segment LED output metering
Intuitive and comprehensive solo system
Headphone output
Easily rack mountable
Custom Karaoke preset

Product Specifications

General

Frequency Response
- Mic / Line Input to any Output: +/-1.5dB, 20Hz – 20kHz
T.H.D.
- Mic Sensitivity -30dBu, +14dBu @ Mix output: < 0.02% @ 1kHz
Noise
- Mic Input E.I.N. (maximum gain): -127dBu (150Ω source)
- Aux, Mix and Masters (@ 0dB, faders down): < -84dBu
Crosstalk (@ 1kHz)
- Channel Mute: > 90dB
- Fader Cut-off (rel +10 mark): > 90dB
Aux Send Pots Offness: > 83dB
EQ (Mono inputs)
- HF: 12kHz, +/-15dB
- MF (swept): 150Hz – 3.5kHz, +/-15dB
- LF: 80Hz, +/-15dB
- Q: 1.5
EQ (Stereo inputs)
- HF: 12kHz, +/-15dB
- MF: 720Hz, +/-15dB
- LF: 80Hz, +/-15dB
Power Consumption: Less than 35W
Operating Conditions
- Temperature Range: 5°C to 40°C
Input & Output Levels
- Mic Input: +15dBu max
- Line Input: +30dBu max
- Stereo Input: +30dBu max
- Mix Output: +20dBu max
- Headphones (@150Ω): 300mW
Input & Output Impedances
- Mic Input: 2kΩ
- Line Input: 10kΩ
- Stereo Input: 65kΩ (stereo), 35kΩ (mono)
- Outputs: 150Ω (balanced), 75Ω (unbalanced)
