Main Features
2,000 W amplifier carrying 4 flexible output channels in a high power density 1 rack unit
Delivering 4 x 500 W on any channel for all loads (2, 4, 8 or 16 Ohms or Hi-Z 70 V or 100 V)
Energy efficient
High efficiency amplifier with low power consumption

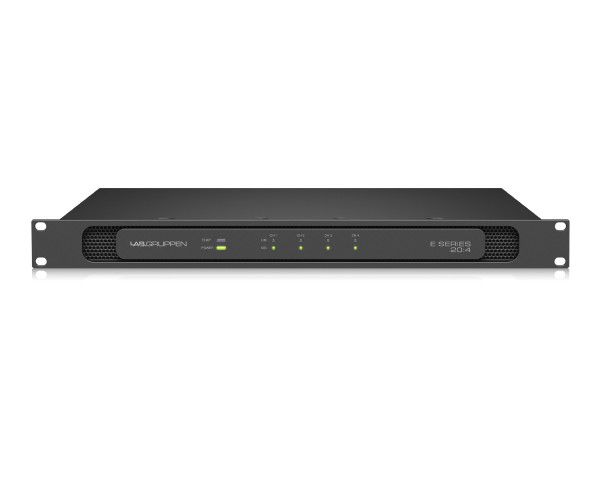

E 20:4 Energy Efficient Class-D Amplifier 4x500W 19" 1U
The E 20:4 has smart green credentials delivering low lifetime cost of ownership.
Building on Lab Gruppen’s touring reputation for sonic excellence and rock-solid durability, E Series brings a competitive edge to the installation market by adding ultra-compact size, high operating efficiency, output configuration flexibility, and an unprecedented cost-benefit ratio.
At the heart of E Series is Lab Gruppen’s IDEEA (IntelliDrive Energy Efficient Amplifier) technology. Based around a patented Class D variant output stage, IDEEA produces high power levels with very low distortion while drawing minimal mains current.
Lab Gruppen’s proprietary Rail Sensing Limiter (RSL™), also exclusive to E Series, greatly reduces signal clipping to ensure high quality audio output at all times. User configurable for Hi-Z (70 V or 100 V) or Lo-Z, RSL senses rail voltages and optimizes each output for instantaneous load conditions. RSL settings also facilitate asymmetric loading of the channels to optimize performance and efficiency. Total available output power can be allocated among the channels as required by the application. This makes it possible, for example, to drive a small sub on one channel, a number of 70 V ceiling loudspeakers on the second channel.
Product Features
2,000 W amplifier carrying 4 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost
Energy efficient for supreme green credentials and exceptionally low lifetime running costs
Flexible IntelliDrive permits delivering the 4 x 500 W on any channel for all loads (low impedance 2, 4, 8 or 16 Ohms or Hi-Z 70 V or 100 V)
Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization
High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' mains distribution and cooling systems
IDEEA outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance
Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions
Auto-standby and auto-power on reduces power consumption in non-operating cycles
Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads
Built in 50 Hz high pass filter selectable per channel available on rear panel switch
Per-channel attenuation knob and signal LED on rear panel for simple commissioning
Efficient cooling with temperature-controlled fan with front to back airflow
Aluminium front panel with power and temperature LEDs and per-channel signal and limit LEDs
GPIO connector with power control and indication for further system integration
Balanced high-quality analogue inputs and amplifier outputs on detachable screw terminals
Product Specifications
General
Number of powered channels: 4
Total output all channels driven: 2000 W
Max output voltage per channel: 141 Vp / 100 Vrms
Max output current per channel: 16.3 Arms
Asymmetric load operation: Units are capable of delivering extra power to one channel while sending significantly less to the other
Performance
THD (20 Hz - 20 kHz @ 1 W into 8 Ω): <0.1%
THD @ 1 kHz, 1 dB below clipping: <0.05%
Signal-to-noise ratio: >106 dBA
Channel separation (crosstalk) @ 1 kHz: >70 dB
Frequency response: 2 Hz - 40 kHz
Input impedance: 20 kΩ
Input common mode rejection, CMR: 50 dB
Output impedance: 25 mΩ
Power
Nominal voltage: 100 - 240 VAC
Power consumption: 600 W
Standby consumption: <2.5 W
Mains connector: Standard IEC receptacle
Physical
Dimensions (HWD): 44 x 483 x 417 mm (1.7 x 19 x 16.4")
Weight: 7.9 kg (17.4 lbs)
Finish: Dark grey aluminium front and black steel chassis
