Main Features
Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
CRBI™ technology for consistent 110° coverage across the listening area
Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input

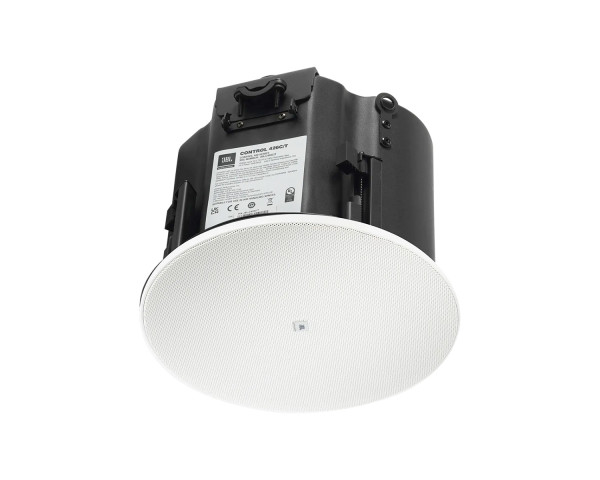

Control 426C/T 6.5" 2-Way Ceiling Loudspeaker 110W 100V
The JBL Control 426C/T is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T includes a transformer to support both 70V/100V and low impedance applications.
Product Features
Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
CRBI™ technology for consistent 110° coverage across the listening area
Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
Full-face, easily paintable magnetic grilles
Top and side exit cable entry options
Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated
Product Specifications
Frequency Range (-10 dB): 72 Hz – 19 kHz
Power Capacity: 220 W Continuous Program (2 hrs) 110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity: 89 dB
Coverage Angle: 110° conical
Maximum SPL (1m): 109 dB continuous pink noise (115 dB peak)
Nominal Impedance: 12 ohms
Transformer Taps: 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W
LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1.0 in)
Dimensions: 190 mm (7.4 in) H x 253 mm (9.9 in) dia. 181 mm (7.1 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
Ceiling Cutout Size: 223 mm (8.8 in)
Safety Agency Rating: Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849.
Environmental: Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
Optional Accessories: JBL-MTC-426BG black (RAL9004) magnetic round grille with tether JBL-MTC-426SG white (RAL9003) magnetic square grille with tether JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket
Colour: Stock grille is white (RAL9003), paintable.
