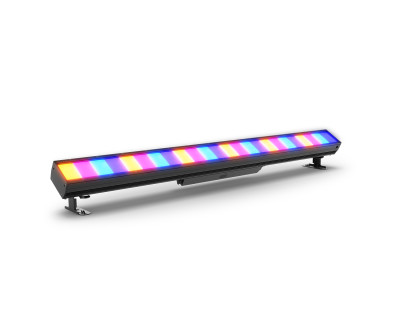

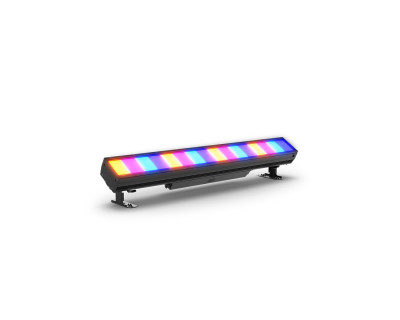

COLORado Batten Q15 RGBW LED Wash Batten IP65

Product Features

• Quad-Colour RGBW LED Batten for touring, rental, and production, indoors or out
• All environment operation with IP rated power and DMX connections
• Unique end-cap and back plate mounting options
• Colour temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• Built for touring, live event, television, and theatrical productions
• Large, easy to navigate display with password protection

Product Specifications

OPTICAL

• Light Source: 15LEDs (quad-colour RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
• Colour Temperature (range): 3200 to 10,000 K
• Installed Optics: 16°
• Beam Angle (Horizontal): 15.5°
• Beam Angle w/Filter (Horizontal): 41.9°
• Beam Angle (Vertical): 14.7°
• Beam Angle w/Filter (Vertical): 15.3°
• Field Angle (Horizontal): 28.6°
• Field Angle w/Filter (Horizontal): 77.9°
• Field Angle (Vertical): 28.1°
• Field Angle w/Filter (Vertical): 32.1°
• Lumens: 6,324
• Lumens w/Filter: 5,547
• Illuminance (total): 2399 lux @ 5 m
• Illuminance w/Filter (total): 653 lux @ 5 m
• Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customisable Programs: Yes
• Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)
• Weight: 28.8 lb (13 kg)
• Exterior Colour: Black
• Housing Material: Aluminium alloy

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1 Cell: 4, 6, 8, 10
• 15 Cell: 45, 60, 64, 66, 76
• Modes/Personalities: 9 personalities

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
• Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
• Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
• Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s in the Box?

• Colorado Batten Quad X
• Seetronic powerKON® IP65 power cord
• 2 Omega Bracket
• Base Plate
• 2 Retaining Pins
• 2 Safety Cable
• Glare Shield
• Filter
