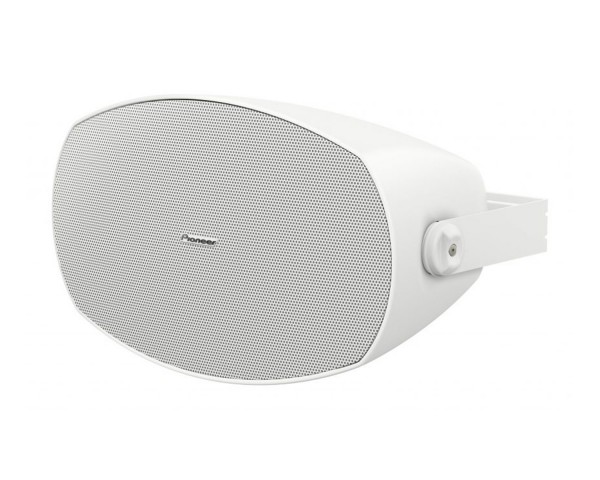

CM-S58T-W 8" Surface Mount Speaker 100V 100x100° EACH White

Product Features

Soft Dome Tweeter

• The newly developed 1-inch soft dome tweeter is the perfect component to deliver short-throw high-definition high frequencies. Deploy fewer boxes with the conical dispersion available throughout the range. The CM-S54T disperses at 120×120°, the CM-S56T disperses at 110×110° and the CM-S58T disperses at 100×100°.

Newly Developed Vortex Bass Accelerator

• Discover warm bass with the newly developed Vortex Bass Accelerator. The bass-reflex port has been constructed with ribs to ensure that air flows without distortion, to maximise low frequencies and eliminate any unwanted vibrations.

Flexible 8 Ohms Impedance

• Built-in transformer taps provide flexible impedance options. Whether you’re using 70v/100v line systems or if the situation calls for premium audio quality, you’ll find the CM-S Series versatile and easy to use.

Dust and Water-Resistant

• The CM-S54T, CM-S56T and CM-S58T are IP54 rated. The tough plastic enclosure and included protective terminal cover enable you to cover every inch of space with sound – even in some outdoor areas.

U-Bracket

• Rigid notches inside the U bracket make it easy to adjust the direction of the sound. Fix the directivity by hand and, for extra security, fix with an Allen key or screwdriver. If you need an alternative deployment, you can use the 60mm pitched holes on the rear of the speakers to fit them into challenging spaces.

Original Curved Enclosure Design

• The CM-S speakers fit neatly into the design of any room thanks to their unique shape. Because they’re neither square nor round, they always look at home – whether they’re mounted on a flat or curved surface.

Product Specifications

Hardware

• Loudspeaker Type:  Two-way passive, reflex-loaded
• Rigging and Hardware
  • 1 × U-bracket
  • 2 × M6 threaded mounting points on rear
• Grille:  Punched Aluminum
• Enclosure:  PP

System data

• Frequency response (- 10 dB, Typical):  53 Hz - 20 kHz
• Sensitivity (1W/1m):  91 dB
• Nominal Impedance:  8 Ω

Loudspeaker data

• Power Handling (RMS/Program):  90 W / 180 W * IEC60268-5
• Transformer taps
  • 70 V: 60 W / 30 W / 15 W / 7.5 W
  • 100 V: 60 W / 30 W / 15 W
• Dispersion:  100 °H × 100 °V
• Maximum SPL:  117 dB (peak) * Calculated from the power handling and sensitivity
• Driver Configuration
  • LF: 8" (200 mm) cone
  • HF: 1" (25 mm) silk dome tweeter
• Connectors:  Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)

Dimensions / Weight

• Dimensions ( W x H x D)
  • 282.0 x 457.8 x 252.4 mm
  • (11.10" x 18.02" x 9.94")
• Weight/piece
  • 7.5 kg
  • 16.5 lbs.

Other

• Environmental:  IP54
• Colour

  • CM-S58T-K: Black
  • CM-S58T-W: White
• Packaging Type:  1 Piece per package
