Cirrus 6.1 6.5" 2-Way Ceiling Speaker 100W 100V White

« return to previous page

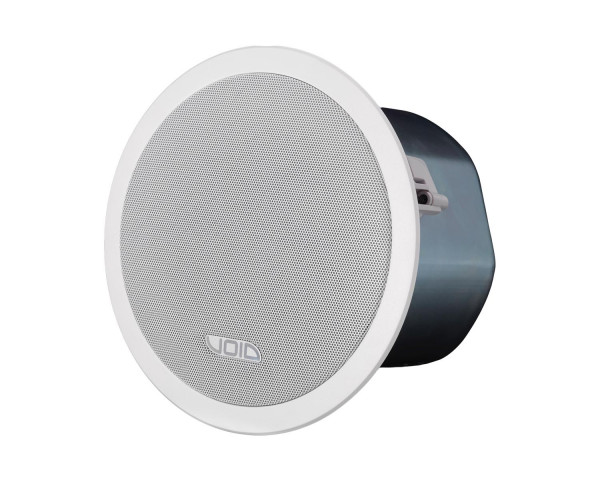

Void Acoustics Cirrus 6.1 6.5 2-Way Ceiling Speaker 100W 100V White - Main Image
Void Acoustics Cirrus 6.1 6.5 2-Way Ceiling Speaker 100W 100V White - Image 1
Void Acoustics Cirrus 6.1 6.5 2-Way Ceiling Speaker 100W 100V White - Image 2
Void Acoustics Cirrus 6.1 6.5 2-Way Ceiling Speaker 100W 100V White - Image 3
Price:
RRP: £202.80 inc VAT
Code:
VOICIR61W
Manufacturer Code:
IT2264
Brand:
Void Acoustics

Quantity required:

Main Features

  • Internal 100V/70V line transformer
  • Selectable voltage taps and low impedance setting
  • Wide conical 110° dispersion pattern
  • Paintable white ABS enclosure
  • 6.5” low frequency driver
  • 0.75” coaxially mounted high frequency driver
Share:

Cirrus 6.1 6.5" 2-Way Ceiling Speaker 100W 100V White

The Cirrus 6.1 is a two-way, full-range passive ceiling speaker, contained within a white powder-coated ceiling mount frame. Suitable for hotel, restaurant, leisure and retail environments requiring high fidelity performance, discerning clients will be impressed with its performance.

Half-turn, spring-loaded retention clips make installing this discreet, space-saving package lightning-fast and easy. With a flat, wide response of up to 20 kHz and uniform 110° dispersion over an expansive area, this is a dependable product for commercial installations. This product includes load-spreading installation brackets for ease of use with false ceilings.

Product Features

  • Internal 100V/70V line transformer
  • Selectable voltage taps and low impedance setting
  • Wide conical 110° dispersion pattern
  • Paintable white ABS enclosure
  • 6.5” low frequency driver
  • 0.75” coaxially mounted high frequency driver
  • Quick and easy ceiling mount fixings

Applications

  • Hotel, restaurant

Product Specifications

  • Frequency Response:  96Hz ~ 18KHz (-3dB) / 62Hz ~ 20KHz (-10dB)
  • Efficiency:  90 dB 1W/1m
  • Crossover Points:  3.3 kHz passive
  • Nominal Impedance:  8 Ω
  • Power Handling:  100 W AES
  • Voltage Taps
    • 100 V - 30 W, 15 W, 7.5 W
    • 70 V - 30 W, 15 W, 7.5 W and 3.8 W
  • Maximum Output:  107 dB cont, 110 dB peak
  • Driver Configuration:  1 x 6.5” LF, 1 x 0.75” HF
  • Dispersion:  110°
  • Connectors:  Removable locking connector with screw-down terminals. Two input terminals and two loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
  • Weight:  3.5 kg (7.7 lbs)
  • Enclosure:  ABS baffle
  • Mounting:  Backing plate and tiles rails (included)
  • Colour:  White
  • Construction Note:  Mounting hole 224 mm (8.8”) diameter
