BP40 Large Diaphragm Dynamic Hypercardioid Broadcast Mic

« return to previous page

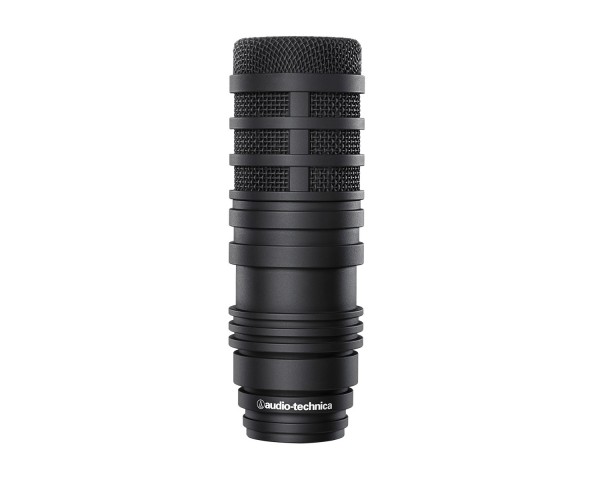

Audio Technica BP40 Large Diaphragm Dynamic Hypercardioid Broadcast Mic - Main Image
Audio Technica BP40 Large Diaphragm Dynamic Hypercardioid Broadcast Mic - Image 1
Audio Technica BP40 Large Diaphragm Dynamic Hypercardioid Broadcast Mic - Image 2
Audio Technica BP40 Large Diaphragm Dynamic Hypercardioid Broadcast Mic - Image 3
Price:
RRP: £331.20 inc VAT
Code:
AUDBP40
Manufacturer Code:
BP40
Brand:
Audio Technica

Quantity required:

Main Features

  • Large-diaphragm dynamic microphone
  • Hypercardioid directivity with excellent off-axis rejection
  • Very sensitive to plosives ("P", "T") and soft on transitories
  • Conceived and designed for professional broadcast applications. Ideal for radio and post-production studios
  • Its Humbucking voice coil prevents the risk of electromagnetic interference (EMI)
  • Optimized positioning of the capsule to keep an impressive vocal presence
Share:

BP40 Large-Diaphragm Dynamic Hypercariod Broadcast Mic

The BP40 Dynamic voice microphone provides natural sound reproduction for a variety of applications - radio, recording, post-production ... thanks to its hypercardioid providing optimal isolation of the sound source and excellent off-axis rejection. The 37mm capsule with a patented "floating edges" design optimizes the surface of the membrane and maximizes performance, while the humbucking coil (for noise compensation) prevents the risk of electromagnetic interference (EMI) (generated by the video monitors, power supplies, etc). Due to its robust, all metal construction, the BP40 will be ideal in broadcast environments.

Product Features

  • Rich, natural condenser-like sound
  • Large diameter diaphragm with patented floating-edge construction for optimal performance
  • Humbucking coil prevents electromagnetic interference (EMI)
  • Optimized capsule placement for commanding vocal presence even at a distance
  • Hypercardioid polar pattern provides maximum feedback rejection and isolation of desired sound source
  • Switchable 100 Hz high-pass filter
  • Multistage windscreen provides superior internal pop filtering
  • Rugged, all-metal construction for dependable use in professional broadcast environments

Product Specifications

  • Element:  Dynamic
  • Polar Pattern:  Hypercardioid
  • Frequency Response:  50 - 16,000 Hz
  • Low Frequency Roll Off:  100 Hz, 6 dB/octave
  • Open Circuit Sensitivity:  -48 dB (3.9 mV) re 1V at 1 Pa
  • Switches:  Flat, roll-off
  • Weight:  632g
  • Dimensions:  164.0 mm long, 56.0 mm diameter
  • Output Connector:  Integral 3-pin XLRM-type

What's in the Box?

  • BP40
  • AT8483 mounting clamp for 5/8”-27 threaded stands
  • 5/8”-27 to 3/8”-16 threaded adapter
  • Soft protective pouch
