BLX4R Wireless Single Channel Half-Rack Receiver K3E 606-630MHz

« return to previous page

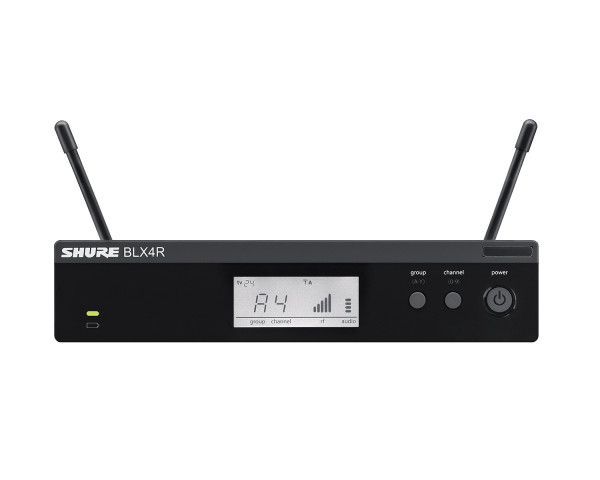

Shure BLX4R Wireless Single Channel Half-Rack Receiver K3E 606-630MHz - Main Image

Shure BLX4R Wireless Single Channel Half-Rack Receiver K3E 606-630MHz - Image 1

Shure BLX4R Wireless Single Channel Half-Rack Receiver K3E 606-630MHz - Image 2

Shure BLX4R Wireless Single Channel Half-Rack Receiver K3E 606-630MHz - Image 3

Shure BLX4R Wireless Single Channel Half-Rack Receiver K3E 606-630MHz - Image 4

Price:: RRP: £283.20 inc VAT
Code:: SHUBLX4RUKK3E
Manufacturer Code:: BLX4RUK=-K3E
Brand:: Shure

Main Features

One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Removable antennas for quick antenna distribution
XLR and ¼” output connectors
Two-colour audio status indicator LED
LC Display with detailed RF and audio metering
Rack mount kit included

BLX4R Wireless Rackmount Receiver for BLX-R System K3E 606-630MHz

Rack mount analogue wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include frequency QuickScan, adjustable output levels, and two-colour audio status indicator LED.

Product Features

One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
XLR and ¼” output connectors
Two-colour audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)
Adjustable output level
Removable antennas for quick antenna distribution
LC Display with detailed RF and audio metering
Rack mount kit included

Product Specifications

System Specifications

Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX4R Specifications

Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: –20.5 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
Weight without antennas: 2.2 lbs (998 g)
Housing: Molded ABS, steel
Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
