Bias Q3 4-Channel Power Amp with DSP 4x2000W @ 4Ω DANTE 2U

« return to previous page

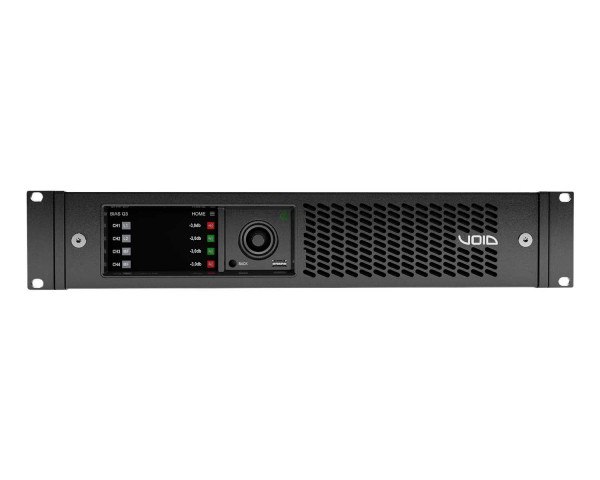

Void Acoustics Bias Q3 4-Channel Power Amp with DSP 4x2000W @ 4Ω DANTE 2U  - Main Image
Price:
RRP: £4,590.00 inc VAT
Code:
VOIBIASQ3D
Manufacturer Code:
IT3752
Brand:
Void Acoustics

Quantity required:

Main Features

  • Innovative power supply design
  • Flexible routing and mixing
  • 4.3” touch screen display and rotary encoder for intuitive control
  • Four input channels with physical analogue and digital AES3 link in/out connectors
  • Customisable input backup policy to automatically switch input source in case of signal failure
  • Analogue to Dante conversion and forwarding for ease of signal distribution
Share:

Bias Q3 4ch Power Amplifier with DSP 4x2000W @ 4Ω 2U

The four-channel Bias Q3 DSP touring amplifier provides reliable premium-grade power with intuitive front panel control. The Q3 offers ample power, allowing for high SPL even with 8 or 16 Ω loads, and is capable of delivering 4 x 2000 W output on 4 Ω loads, increasing to 2300 W when driven asymmetrically. This amplifier has been designed with versatility and ease of use in mind, and is suitable for high-power, full-range systems in any configuration. As with all other Bias amplifiers, it offers total integration with the Armonia Pro Audio Suite™ enabling extended control on smart phones and tablets.

Product Features

  • Innovative power supply design
  • Flexible routing and mixing
  • 4.3” touch screen display and rotary encoder for intuitive control
  • Four input channels with physical analogue and digital AES3 link in/out connectors for maximum flexibility
  • Analogue to Dante conversion and forwarding for ease of signal distribution
  • Customisable input backup policy to automatically switch input source in case of signal failure for improved reliability
  • Complete user interface integrated into Armonia Pro Audio Suite™
  • Top-grade DSP with high dynamic range and extensive feature set
  • Multi-stage signal processing
  • Input and output IIR, FIR, IIR+FIR equalizers and raised-cosine filters
  • Complete sets of limiters (peak, RMS voltage, RMS current, and TruePower™)
  • Speaker cable loss compensation with Active DampingControl™
  • Full protection circuitry: over/under AC voltage; troublesome signals (clipping, VHF, long-term RMS); DC; thermal; short circuit; and mute at power on/off

Applications

  • Small to medium-scale touring
  • Corporate and AV
  • Festivals & Events
  • Live music venues
  • Nightclubs & Bars

Product Specifications

  • Number of Channels: 4
  • Output: 2000 W @ 2 Ω, 2000 W @ 4 Ω, 1400 W @ 8 Ω
  • Output bridged: 4000 W @ 4 Ω, 4000 W @ 8 Ω
  • Height: 88.9 mm (3.5”)
  • Width: 483 mm (19”)
  • Depth: 381 mm (15”)
  • Weight: 11.5 kg (25.4 lb)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
