AKR1 Waiting Room Loop Kit (PDA200E, APL Outreach Plate)

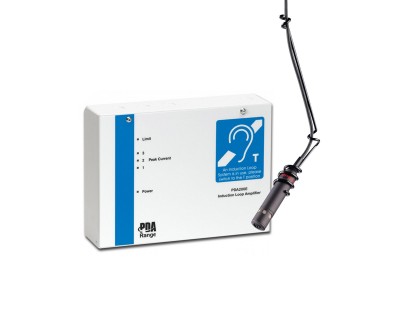

SigNET AKR1 Waiting Room Loop Kit (PDA200E, APL Outreach Plate) - Main Image

SigNET AKR1 Waiting Room Loop Kit (PDA200E, APL Outreach Plate) - Image 1

SigNET AKR1 Waiting Room Loop Kit (PDA200E, APL Outreach Plate) - Image 2

Price:: RRP: £281.50 inc VAT
Code:: SIGAKR1
Manufacturer Code:: AKR1
Brand:: SigNET

Main Features

A powerful and very cost-effective induction loop amplifier
Designed for waiting rooms
Up to 200 metres (metal free) coverage
Metal compensation control
Fully compliant with BS 7594, clause 10 A3 and BS EN 60118-4 when correctly installed
Includes: PDA200E amplifier; APL outreach plate (paging system input); ‘AFILS fitted’ sticker

AKR1 Loop Kit for Waiting Rooms

The AKR1 is a powerful and very cost-effective induction loop kit, designed specifically for waiting rooms. The AKR1 includes the PDA200E amplifier, which can cover up to 200 square metres of open space.

The kit is Fully compliant with BS 7594, clause 10 A3 and BS EN 60118-4 when correctly installed and feature two balanced/unbalanced line level inputs. In addition, the system also features one microphone input with phantom power for electret microphones.

The AKR1 kit includes the PDA200E amplifier, APL outreach plate (paging system input) and an ‘AFILS fitted’ sticker

Product Features

A powerful and very cost-effective induction loop amplifier designed to drive a perimeter loop of up to 200 square metres
Fully compliant with BS 7594, clause 10 A3 and BS EN 60118-4 when correctly installed
Also available in a wide range of kit formats – suitable for use in meeting rooms, waiting rooms, TV lounges, health and fitness suites, churches, etc
Up to 200 metres (metal free) coverage – ideal for most ‘free space’ applications
Features TWO balanced/unbalanced line level inputs and one microphone input with phantom power for electret microphones
Ideal for electrical contractors – no audio connectors or experience required
Metal compensation control to improve intelligibility in rooms with high metal content

Product Specification

General

Induction Loop Type: Wall mounting, requires fixed mains wiring
Coverage: 200m2 approx.
Inputs: 1 x Microphone, 2 x Line/Outreach
Indicators: Input level; Power; Compression; Peak Current (3,2,1)
Controls: Metal Compensation, Input level, loop drive
Includes: PDA200E amplifier; APL outreach plate (paging system input); ‘AFILS fitted’ sticker

Physical & Dimensions

Dimensions: W 273 x H 200 x D 77mm (amplifier only)
Weight: 2.82kg

Alternative Systems

AKT1 TV / music lounge kit: PDA200E amplifier; AMH handheld mic.; APS scart lead; APJ outreach plate; APL outreach plate; ‘AFILS fitted’ sticker.
AKM1 Meeting room kit: PDA200E amplifier; APM plated mic.; ‘AFILS fitted’ sticker
AKL1 Lecture room kit: PDA200E amplifier; AMT tie/desk mic.; AML lectern mic.; 2 x APJ outreach plates; ‘AFILS fitted’ sticker.
AKW1 Place of worship kit 1: PDA200E amplifier; AML lectern mic.; APJ outreach plate; APL outreach plate (audio input for CD/tape deck); ‘AFILS fitted’ sticker.
