Main Features
Adds both AES/EBU and DanteTM inputs to NXAMPmk2 Powered Controllers
4 channels of DanteTM inputs with Switched/Redundant mode and 44.1 kHz to 96 kHz digital audio support
2 channels of AES/EBU inputs with buffered outputs and 44.1 kHz to 96 kHz digital audio support
Highly flexible 4 ports gigabit switch with 4 different configuration modes
Remote control ports configurable as separate network or from the DanteTM network

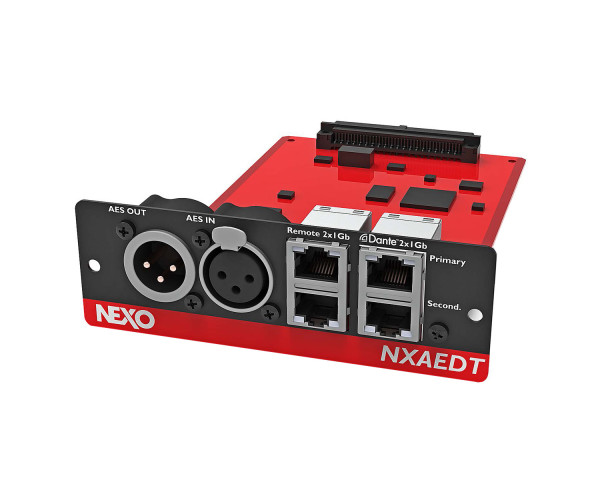

AEDT Dante and AES Extension Card for NXAMPMK2 Amp/Controller
This extension card is compatible with NXAMPmk2 Powered Digital controllers NEXO. The heart of the NXAEDT is its network connectivity compatible with the industry standard DanteTM (or AES67) digital audio over IP network protocol. The NXAEDT can receive up to four different network streams from the same or different DanteTM sources, using 24 bits resolution. The DanteTM network sampling frequency can be 44.1, 48, 88.2 or 96 kHz for maximum compatibility.
Product Features
Adds both AES/EBU and DanteTM inputs to NXAMPmk2 Powered Controllers
4 channels of DanteTM inputs with Switched/Redundant mode and 44.1 kHz to 96 kHz digital audio support
2 channels of AES/EBU inputs with buffered outputs and 44.1 kHz to 96 kHz digital audio support
Highly flexible 4 ports gigabit switch with 4 different configuration modes
Remote control ports configurable as separate network or from the DanteTM network
Product Specifications
Digital Audio 1 Input Format
Digital Audio type: DanteTM networks
Media type: Standard TCP/IP over 1minimum 100 Mb / recommended 1 Gb ethernet network
Number of channels: 4 channels from up to 4 different DanteTM devices
Resolution: 24 bits
Sample Rate: 44.1, 48, 88.2 or 96 kHz
Latency: 0.25 ms to 5.0 ms (typical 1 ms)
Digital Audio 2 Input Format
Digital Audio type: AES/EBU
Media type: 110 Ohms 3 wires twisted pair with XLR connector
Number of channels: 2
Resolution: 24 bits
Sample Rate: 44.1, 48, 88.2 or 96 kHz
Latency: <0.07 ms
Remote Control Format
Network format: Standard TCP/IP
Device addressing: Automatic, based on IP address with Zeroconf
