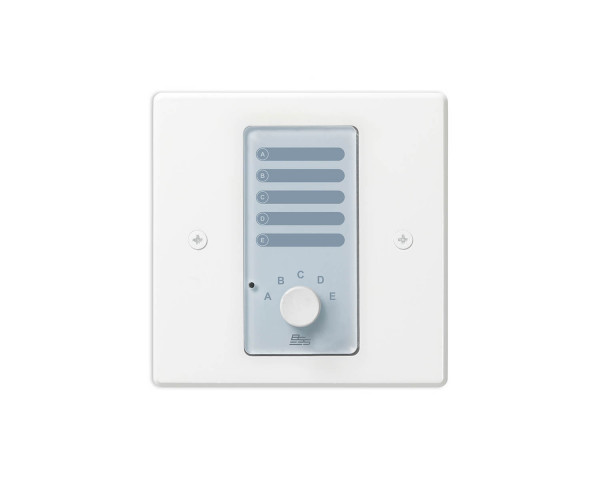

AC-5S Analogue Controller with 5 Position Source Selector Wht

BSS AC-5S Analogue Controller with 5 Position Source Selector Wht - Main Image

Price:: RRP: £162.00 inc VAT
Code:: BSSAC5SW
Manufacturer Code:: BSS0147
Brand:: BSS

Main Features

The AC-5S Analog Controller with 5-Position Source Selector
A simple analog wall controller designed for use with BSS Audio Soundweb London devices
Contains a single five-position resistor ladder which is useful for source selection or preset recall
Up to 12 AC-V controllers can connect to a single Soundweb London device, and up to 36 AC-V controllers can connect to a single BLU-GPX
Contains a single 47k Ohm logarithmic potentiometer which is useful for volume control
Available in Black or White

AC-5S Analog Controller with 5-Position Source Selector White

The Soundweb Contrio AC-V and AC-5S are simple analog wall controllers designed for use with BSS Audio Soundweb London devices. Both the AC-V and AC-5S are available in black or white, and in single-gang US Decora or single-gang EU form factor.

The AC-V and AC-5S are designed to connect to General Purpose Inputs (GPI) (also known as “Control Inputs”) found on Soundweb London devices. Most Soundweb London devices contain 12 GPI. The Soundweb London BLU-GPX contains 36 GPI.

The AC-V contains a single 47k Ohm logarithmic potentiometer which is useful for volume control. The AC-V requires one GPI. Therefore, up to 12 AC-V controllers can connect to a single Soundweb London device, and up to 36 AC-V controllers can connect to a single BLU-GPX.

The AC-5S contains a single five-position resistor ladder which is useful for source selection or preset recall. The AC-5S requires one GPI. Therefore, up to 12 AC-5S controllers can connect to a single Soundweb London device, and up to 36 AC-5S controllers can connect to a single BLU-GPX.

The AC-V and AC-5S are configured using HiQnet London Architect or HiQnet Audio Architect via simple drag and drop operations. While almost any parameter can be mapped to the physical controls, the AC-V is most commonly used for volume control, and the AC-5S is most commonly used for source selection or preset recall.
