Main Features
AB 4 is fully compatible with all legacy evolution wireless systems
Boosts filtered signal by typ. 12dB
No power supply necessary
Compact full metal housing
Includes BNC cable
Power supply via antenna cable from ASA 214 or EM 2050

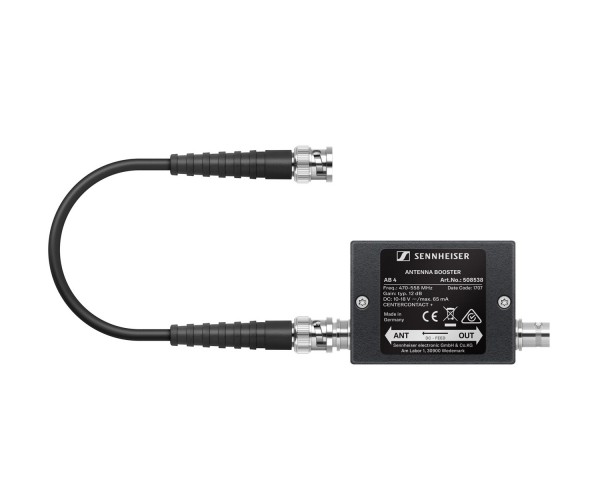

The AB 4 is a filtered, inline antenna booster module with BNC connectors, designed to offer typ. +12dB of boost to compensate for signal losses created by long antenna cable runs.
The AB 4 is fully compatible with all legacy evolution wireless systems. Additionally, the AB 4's filters have been expanded to support the bandwiths up to 88 Mhz.
Product Features
AB 4 is fully compatible with all legacy evolution wireless systems
Boosts filtered signal by typ. 12dB
No power supply necessary
Compact full metal housing
Includes BNC cable
Power supply via antenna cable from ASA 214 or EM 2050
Product Specifications
General
Power supply (DC-coupled): 10–18 V DC/50 mA, powered via antenna cable (max. 200 mA); centre contact +
Frequency ranges:
AB 4-DW: 790-865
AB 4-CW: 718-790 MHz
AB 4-BW: 626-698 MHz
AB 4-GBW: 606-678 MHz
AB 4-GW: 558-626 MHz
AB4-AW+: 470-558 MHz
Gain: approx. 12 dB
Power supply: via antenna cable from ASA 214 or EM 2050
