A-3248DM 480W Digital Mixer Amplifier with MP3 and Bluetooth

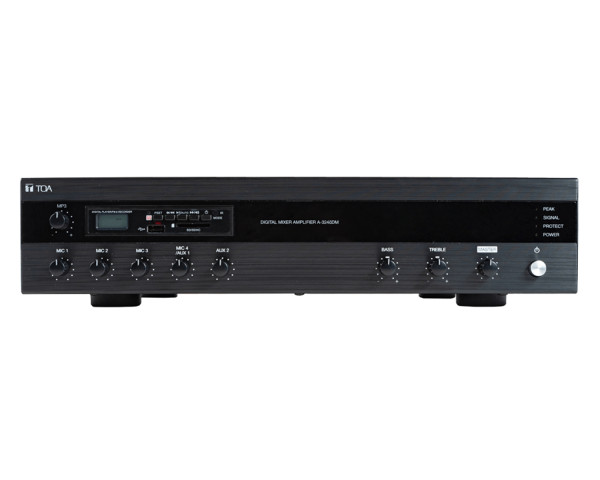

TOA A-3248DM 480W Digital Mixer Amplifier with MP3 and Bluetooth - Main Image

Price:: RRP: £718.80 inc VAT
Code:: TOAA3248DM
Manufacturer Code:: A-3248DM
Brand:: TOA

Main Features

High durability, high reliability and high performance.
Four (Five microphone on A-324DME-AS) microphone inputs, two AUX inputs and one recording output.
Speaker output of constant voltage distribution system (100V) & low impedance (4 ohms).
Operates on AC power.
Muting function.
Independent input volume control and master volume control.

A-3248DM is a high performance yet cost-effective mixer power amplifier equipped with MP3 and Bluetooth function. Ideal for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

Product Features

High durability, high reliability and high performance.
Four (Five microphone on A-324DME-AS) microphone inputs, two AUX inputs and one recording output.
Speaker output of constant voltage distribution system (100V) & low impedance (4 :).
Operates on AC power.
Muting function.
Independent input volume control and master volume control.
Independent tone control of boost and cut type for both high and low frequency.
MIC 1 equipped with phantom power for condenser microphone and also option for Chime Microphone.
Current limiter circuitry protects the transistor and thermal protection circuitry prevent a failure due to overheat.
All MIC inputs are electronically-balanced input.
Additional features such as built-in MP3 Player, zone Selector and 5 Bands equalizer.

Product Specifications

Power Source: 100 - 240 V AC, 50/60Hz
Rated Output: 480 W
Power Consumption: 99 W (AC operation at 1/8 maximum output without clip)
Frequency Response: 50 - 20,000 Hz
Input MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45
MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record
Output Speaker out: Speaker Output in screw type terminal
Direct line (selectable): 21 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power: DC +21 V (MIC 1)
S/N Ratio: Over 60 dB
Total Harmonic Distortion: Under 1% at 1 kHz, 1/3 rated power
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1: Mutes other input signals by 0-30 dB attenuation
Indicator: Power, Signal , Peak, Protect
Ventilation: Fan Cooling
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions: 420 (W) × 100.9 (H) × 357 (D) mm
Weight: 5.0 kg
Accessory: Antenna FM radio (1m) x 1
