WELL Com Battery Powered Wireless WDMX Transmitter

« return to previous page

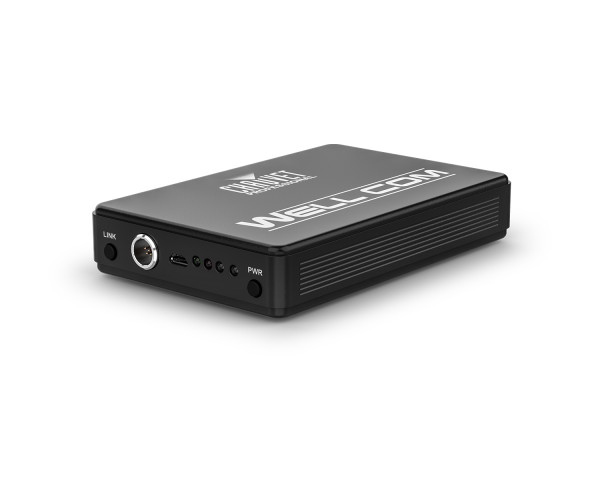

CHAUVET Professional WELL Com Battery Powered Wireless WDMX Transmitter - Main Image
CHAUVET Professional WELL Com Battery Powered Wireless WDMX Transmitter - Image 1
CHAUVET Professional WELL Com Battery Powered Wireless WDMX Transmitter - Image 2
Price:
RRP: £564.00 inc VAT
Code:
CHAWELLCOM
Manufacturer Code:
WELLCOM
Brand:
CHAUVET Professional

Quantity required:

Main Features

  • 8 hours of usage on a full charge
  • Compatible with Android and iOS on both smartphones and tablets
  • Output can be used in wireless WDMX or wired DMX protocols
  • Full universe of DMX available for programming larger events
  • Built in colour picker and colour macros for use with RGB, RGBA, and RGBW
  • Line-of-sight distance up to 200 m
Share:

WELL Com Battery Powered Wireless WDMX Transmitter

W-DMX Transmitter works with W-DMX wireless wash lights, including WELL Fit, and all Maverick fixtures to generate a wireless control signal. It features auto-ranging power from 100 to 240V, a locking IEC power connector and 3- and 5-pin XLR DMX input-only data connector.

Product Features

  • Compact, easy-to-use battery powered Wi-Fi™ receiver and wireless WDMX™ transmitter combined with an Android™ or iOS® based control app
  • 8 hours of usage on a full charge
  • Compatible with Android™ and iOS® on both smartphones and tablets
  • Output can be used in wireless WDMX™ or wired DMX protocols
  • Full universe of DMX available for programming larger events
  • Built in colour picker and colour macros for use with RGB, RGBA, and RGBW wash fixtures
  • Program up to 24 steps per scene with selectable fade and hold times for building chases and cues
  • A total of 18 scenes available for playback
  • Easy to navigate user interface
  • Line-of-sight distance up to 200 m

Product Specifications

DYNAMIC EFFECTS

  • Standalone Colour Mixing: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 5.13 x 3.34 x 0.98 in (130.4 x 85 x 25 mm)
  • Weight: 0.6 lb (0.3 kg)
  • Exterior Colour: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Input: Micro USB-B Male
  • Data Connectors: 5-pin XLR
  • Cable Length (Dmx): 17 in (0.43 m)
  • Cable Length (power): 3 ft (0.91 m)

CONTROL

  • Control Protocol: DMX, W-DMX™, Wi-fi
  • DMX Channels: 512

ELECTRICAL

  • Input Voltage: 5 VDC, 1600 mA (external power supply: 100-240 VAC 47/63 Hz)
  • Power and Current: 7 W, 0.125 A @ 120 V, 60 Hz
  • Power and Current: 6 W, 0.078 A @ 208 V, 60 Hz
  • Power and Current: 6 W, 0.075 A @ 230 V, 50 Hz

BATTERY

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 8 hours
  • Battery Life: 8 hours
  • Battery Power: 3.7 V, 6,000 mAh

CERTIFICATIONS / QUALIFICATIONS

  • CE, FC
  • CIP Rating: IP20, dry location

WHAT'S INCLUDED

  • WELL COM
  • USB-A Male to Micro USB-B Male (3 ft)
  • 5-pin DMX adaptor
  • External power supply

REQUIRED ACCESSORIES

  • WELL COM App available for download on iOS or Android store

OPTIONAL ACCESSORIES

  • DMX Cables

What's in the Box?

  • WELL COM
  • USB-A Male to Micro USB-B Male (3 ft)
  • 5-pin DMX adaptor
  • External power supply
