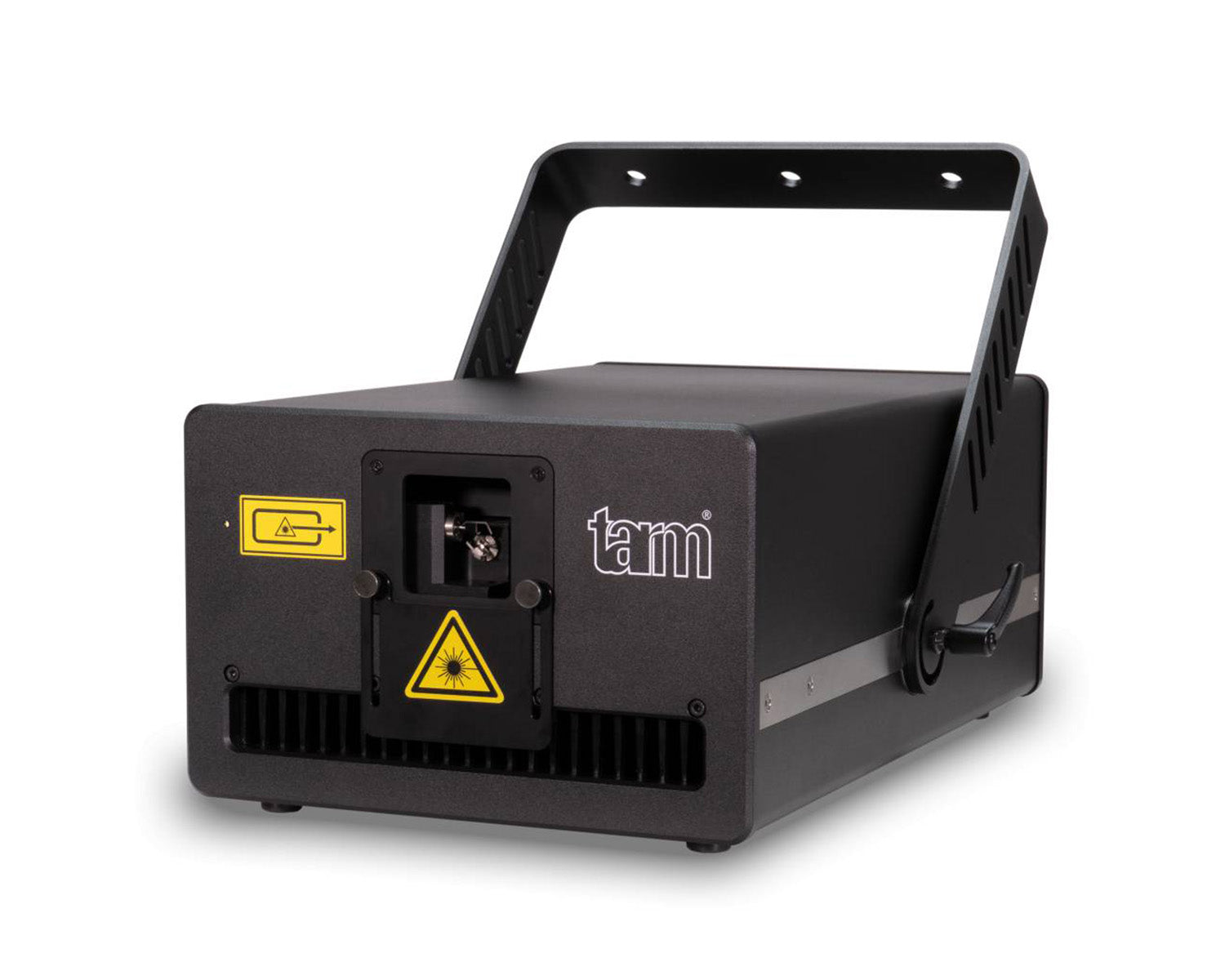

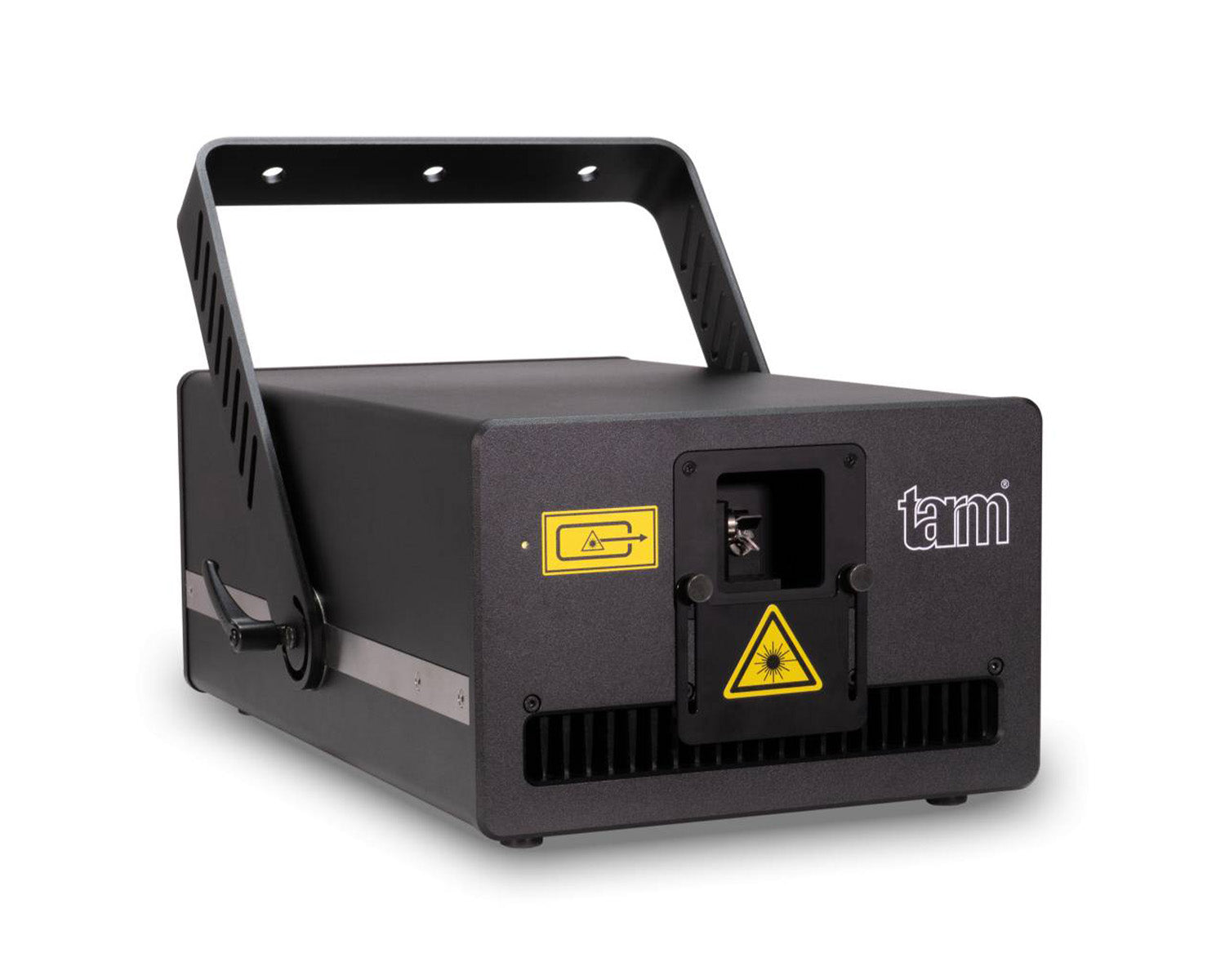

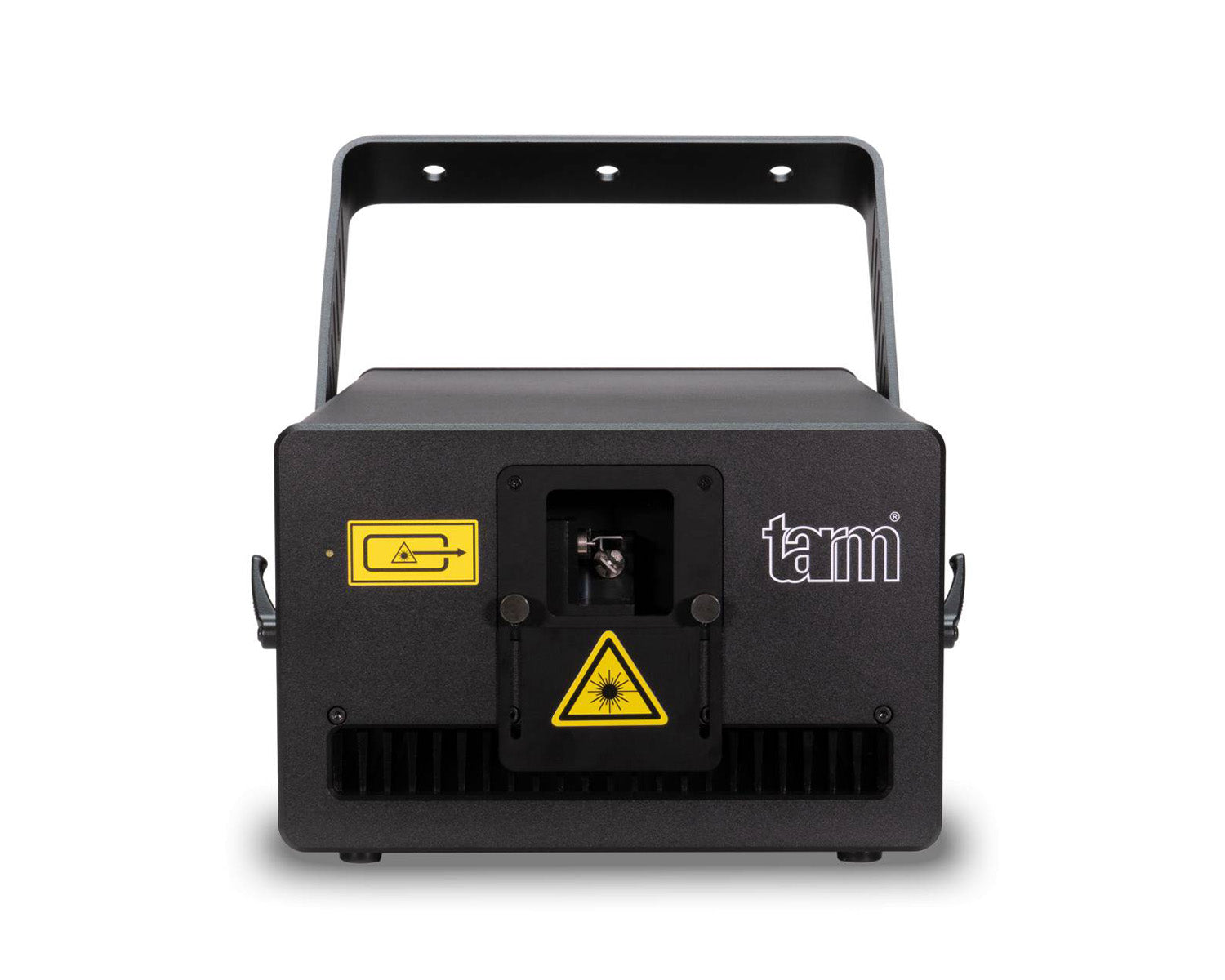

The tarm 25 FB4 IP65 is made in Germany and is a compact show laser system that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the tarm 25 FB4 IP65 are different - the spot size and shape is equal for all colours and on both axis!

The beam specifications of the new tarm 25 FB4 IP65 are given with only ca. 5.0 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small 4.5 mm mirrors, which results in reduced inertia and thus very good scanning performance.

The tarm 25 FB4 IP65 impresses with a guaranteed RGB output power of 25\'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser modules (RSL) with special wavelengths for increased visibility: 8\'000 mW / 637 nm for a very bright red combined with 12\'000 mW / 525 nm green and a strong blue laser module with 10\'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.

Product Features

• 25\'000 mW guaranteed power
• Complex graphics capable - 45kpps @ 8° scanners – upgradable to 60kpps
• Extremely sharp intense beams especially compared to other lasers of this power
• Advanced RTI Semiconductor laser modules for homogenous beam profile and equal divergence of <0.8 mrad on x and y axis
• Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, colour balancing, etc.) and DAC feature
• Integrated network switch for linking the control signal
• Control screen for convenient mode selection
• Rugged tour grade compact housing
• Laser Artists\' choice
• Lighting Designers\' choice
• Incl. waterproof flightcase
• Pangolin FB4 interface

Product Specifications

• Guaranteed Power at aperture: 25\'000 mW
• Power Red: 8\'000 mW / 637 nm
• Power Green: 12\'000 mW / 525 nm
• Power Blue: 10\'000 mW / 455 nm
• Beam Specifications*: ca. 5.0 mm / <0.8 mrad
• Scanner: 45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 kpps@8° ILDA, max. 60°
• Max. Scan Angle: 50°
• Laser Source: RSL modules
• Laser Class: 4
• Operation Modes: ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, master-slave; integrated intelligent ShowNET laser mainboard with display
• Basic Patterns: Available for download
• Accessories: Incl. waterproof flightcase, power cable, manual, key, interlock connector,full version Showeditor software license included
• Power Supply: 85 V - 250 V / AC, 50/60 Hz
• Power Consumption: 450 W
• Dimensions: 441/260/153 mm
• Weight: 18.3 kg

What's in the Box?

• Waterproof flightcase
• Rain cover
• Power cable
• Manual
• Key
• Interlock connector
• Full version Showeditor software license included
