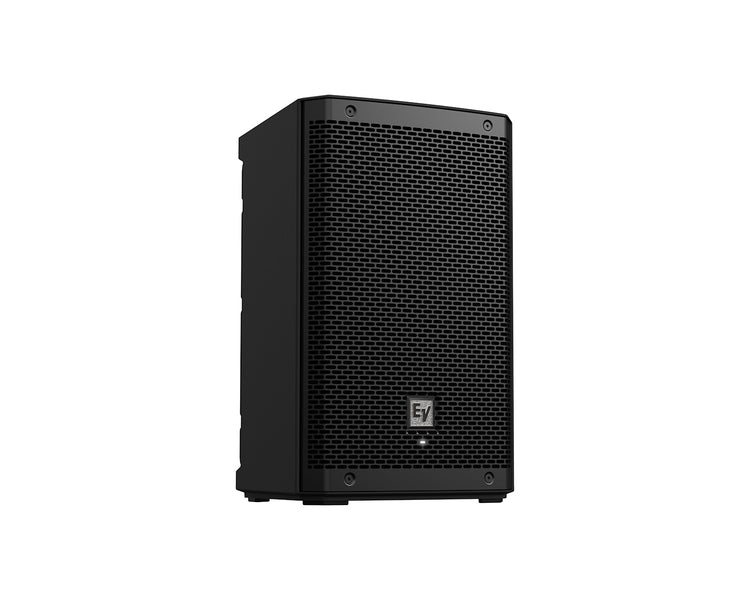

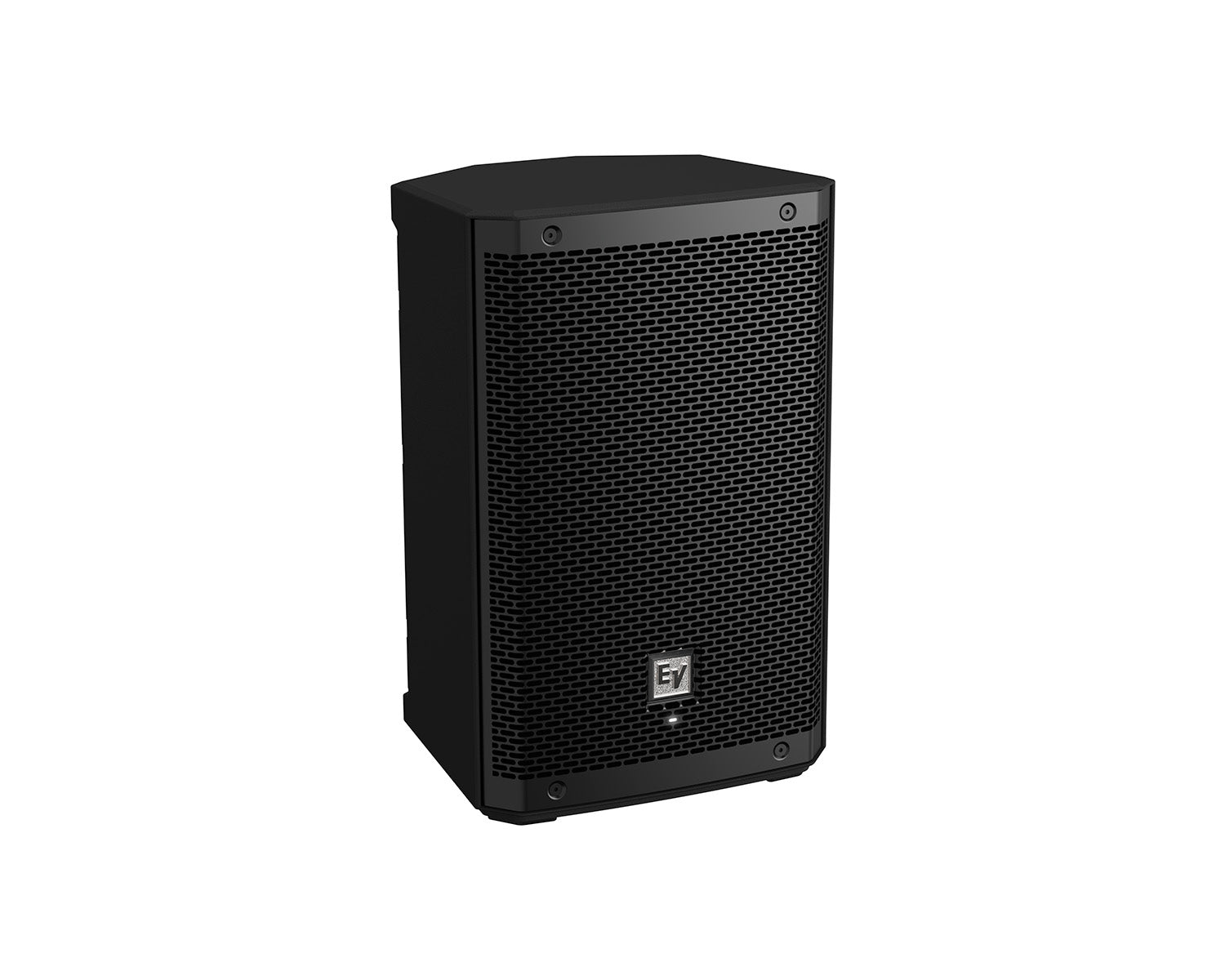

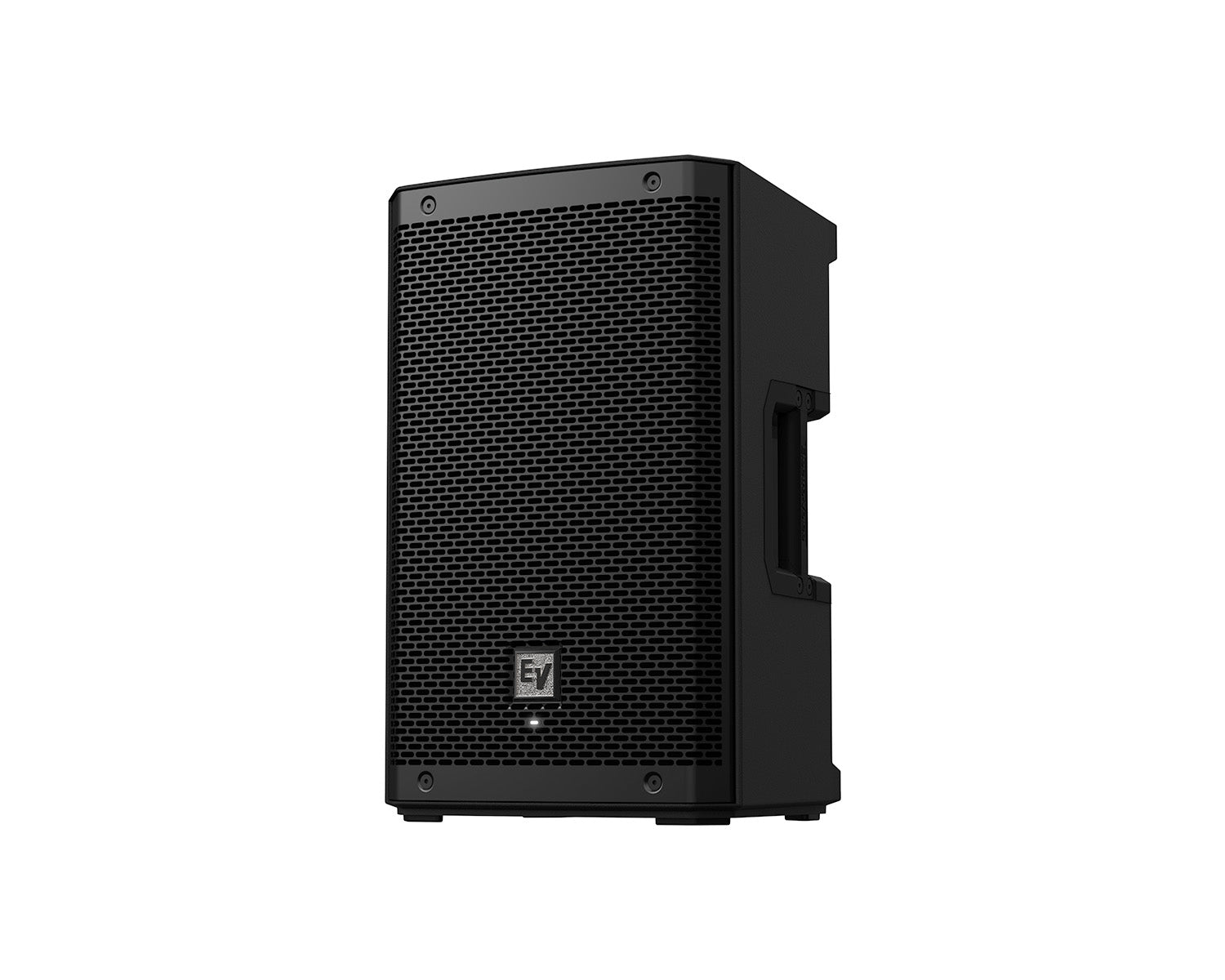

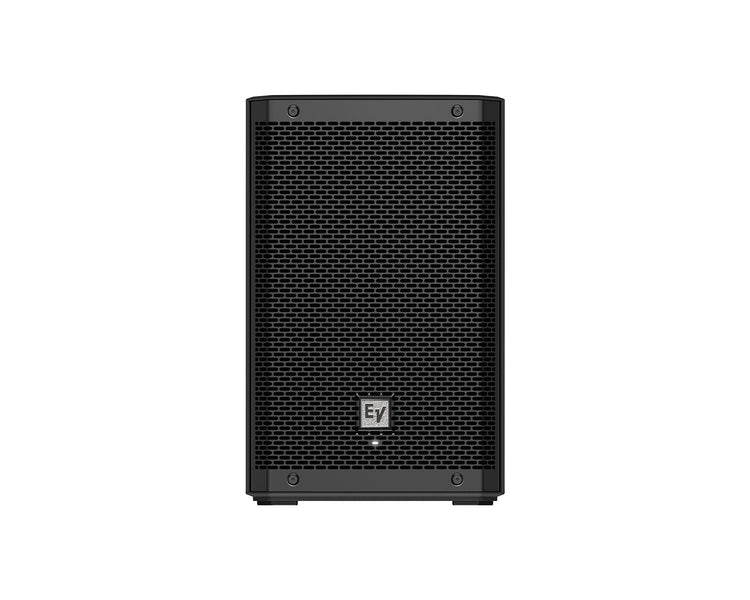

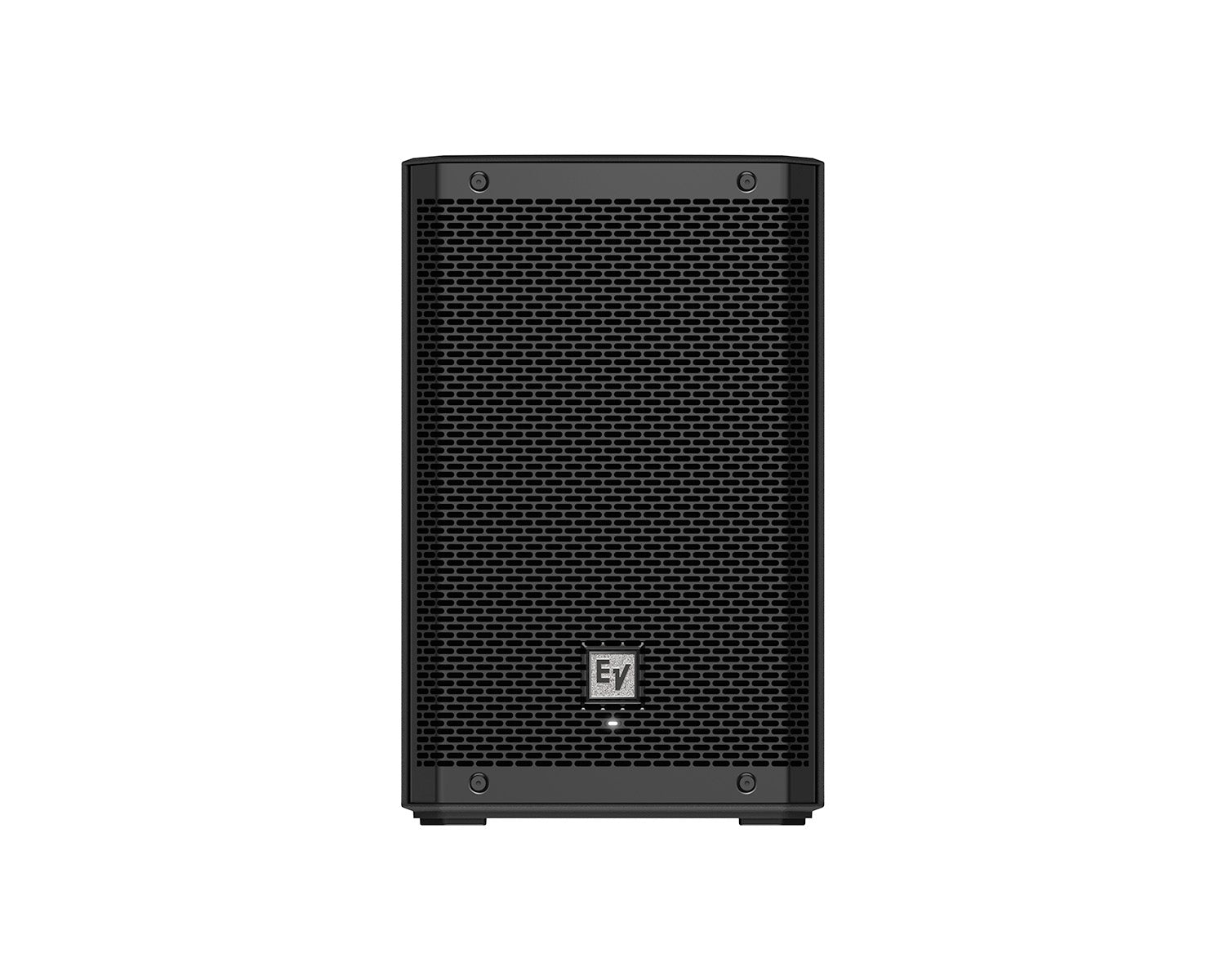

The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.

ZLX-G2 loudspeakers lead with acoustic output and extended frequency range. The Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures enhanced bass response, smaller size and more even coverage across all frequencies. ZLX-G2 is designed with a robust and ergonomic enclosure for day-to-day durability and portability.

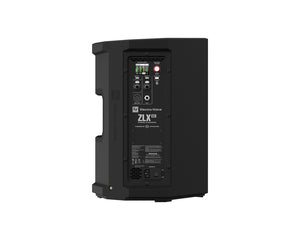

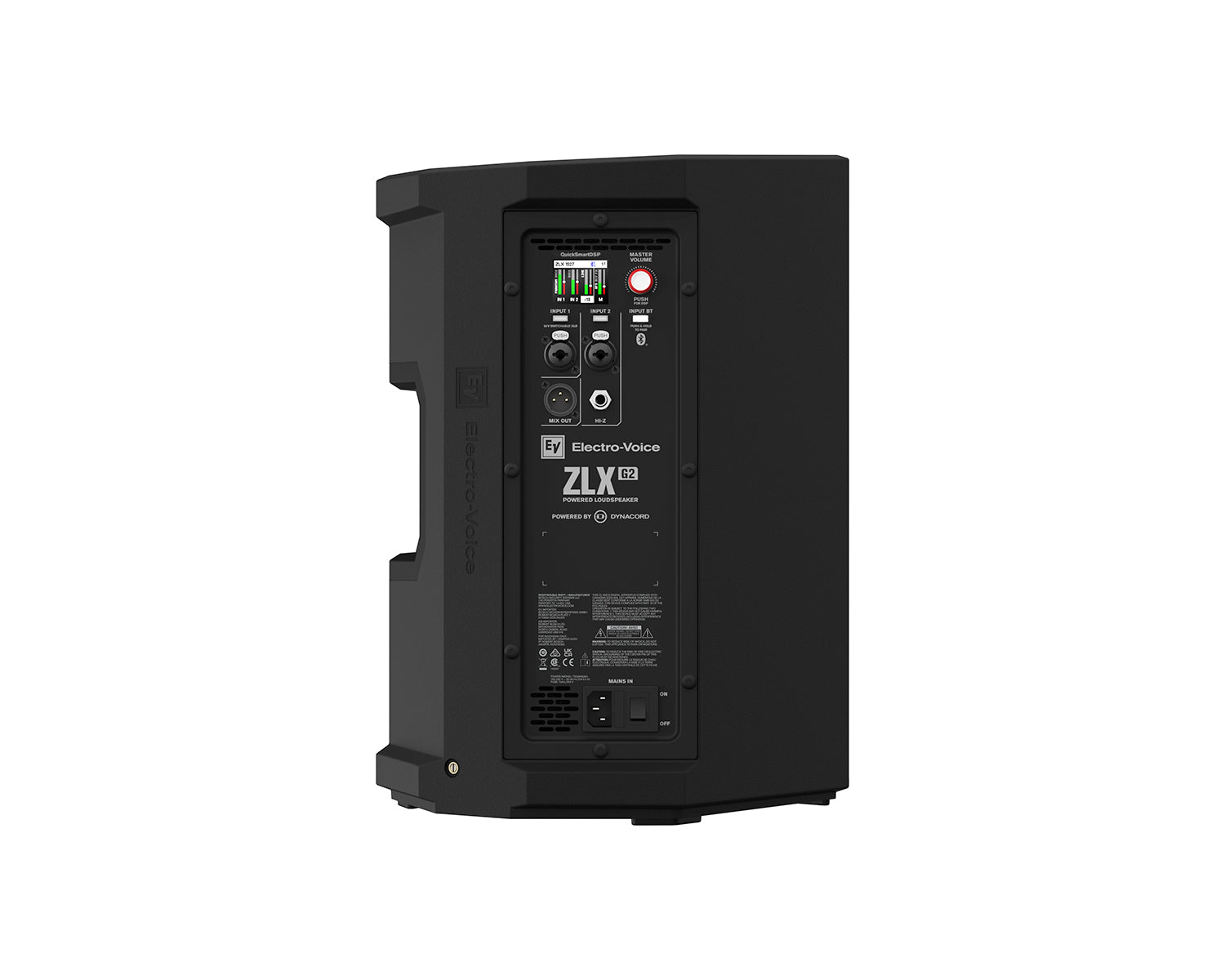

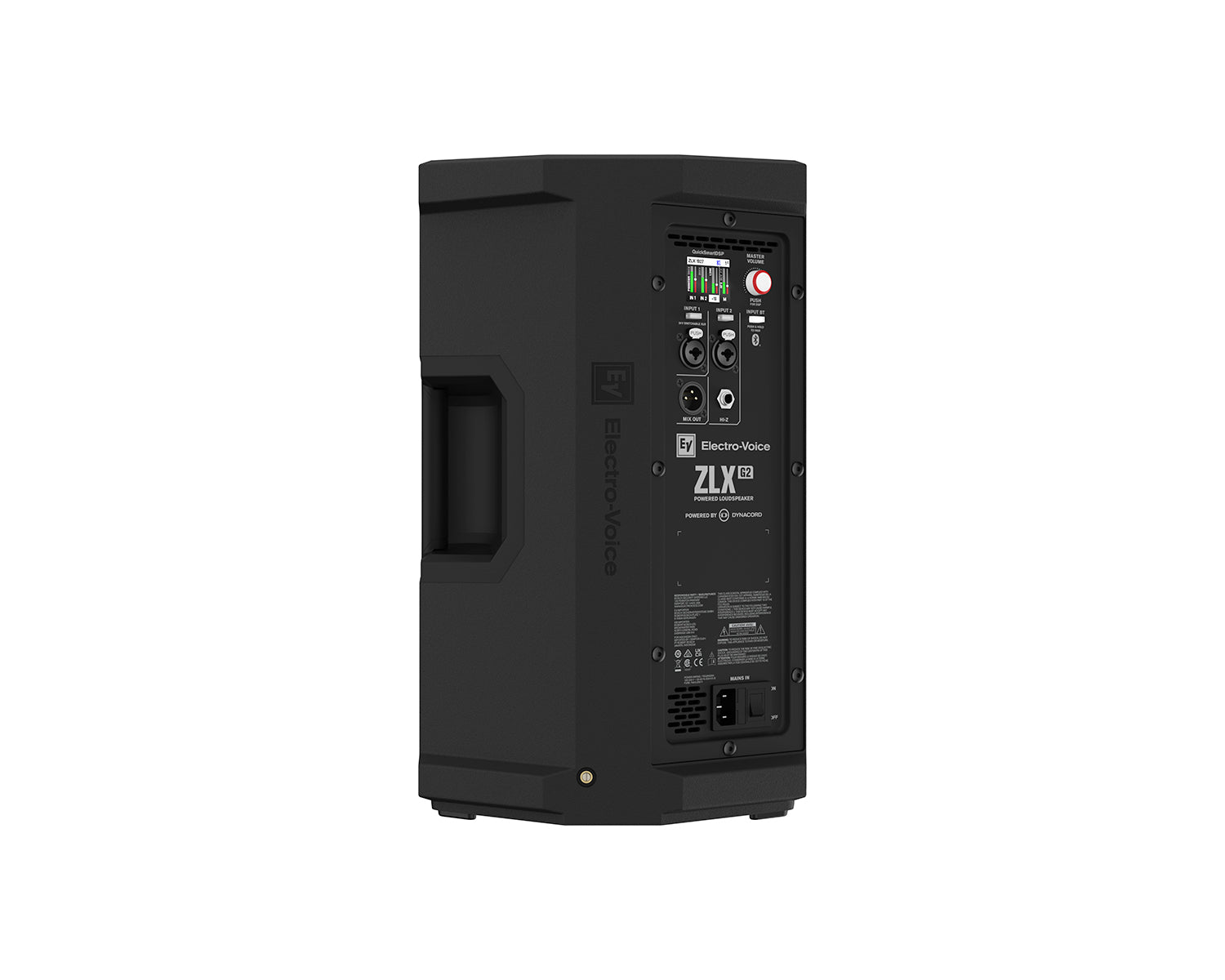

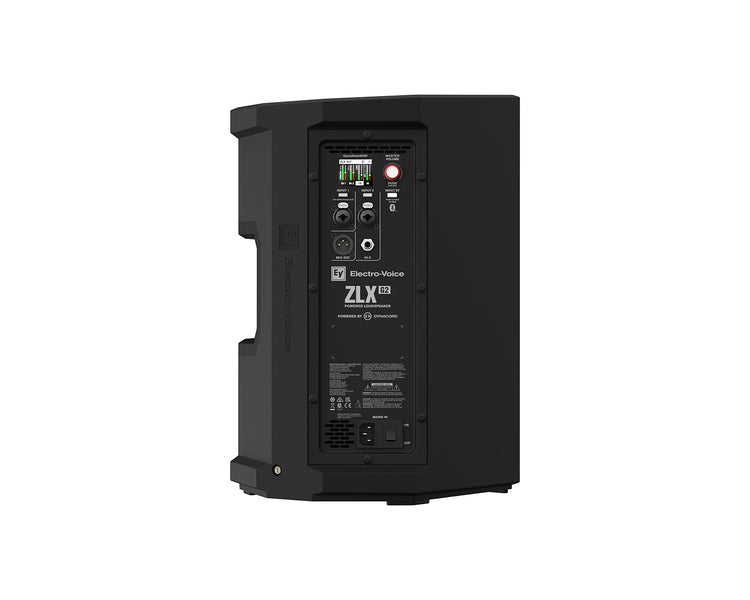

POWERED BY DYNACORD, all powered ZLX-G2 loudspeakers feature a built-in digital mixer with FX, EQ, automatic feedback suppression (AFS) and ducking. The mixer includes two XLR/TRS combo jacks, and provides 24V phantom power and Hi-Z compatibility.

Bluetooth® stereo streaming and linking for true wireless stereo setup are integrated into the ZLX-G2 series. The mixer and all speaker functions are easily controlled from the Electro-Voice QuickSmart Mobile app. The app allows pairing and grouping of up to six loudspeakers, in any combination.

The new larger full-colour LCD display and simple single encoder and push-key interface result in quick setup and more user control. Powered ZLX-G2 loudspeakers contain Electro-Voice-specific subwoofer presets that adjust for both gain and time alignment, resulting in full acoustic optimization. Additional high pass filters (HPF) are available in the DSP for increased compatibility.

Product Features

• 8" LF Driver, 1.4" HF Driver
• Frequency response (-3 dB): 58 Hz – 20,000 Hz
• Max SPL: 126dB

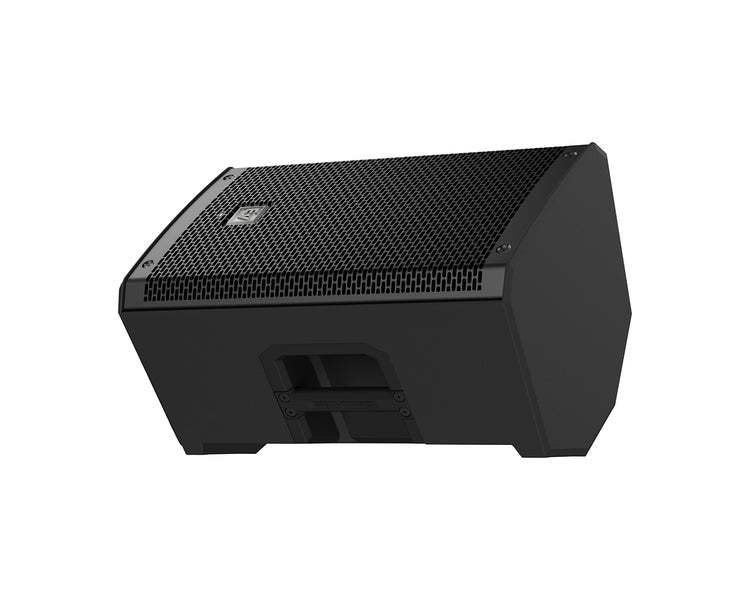

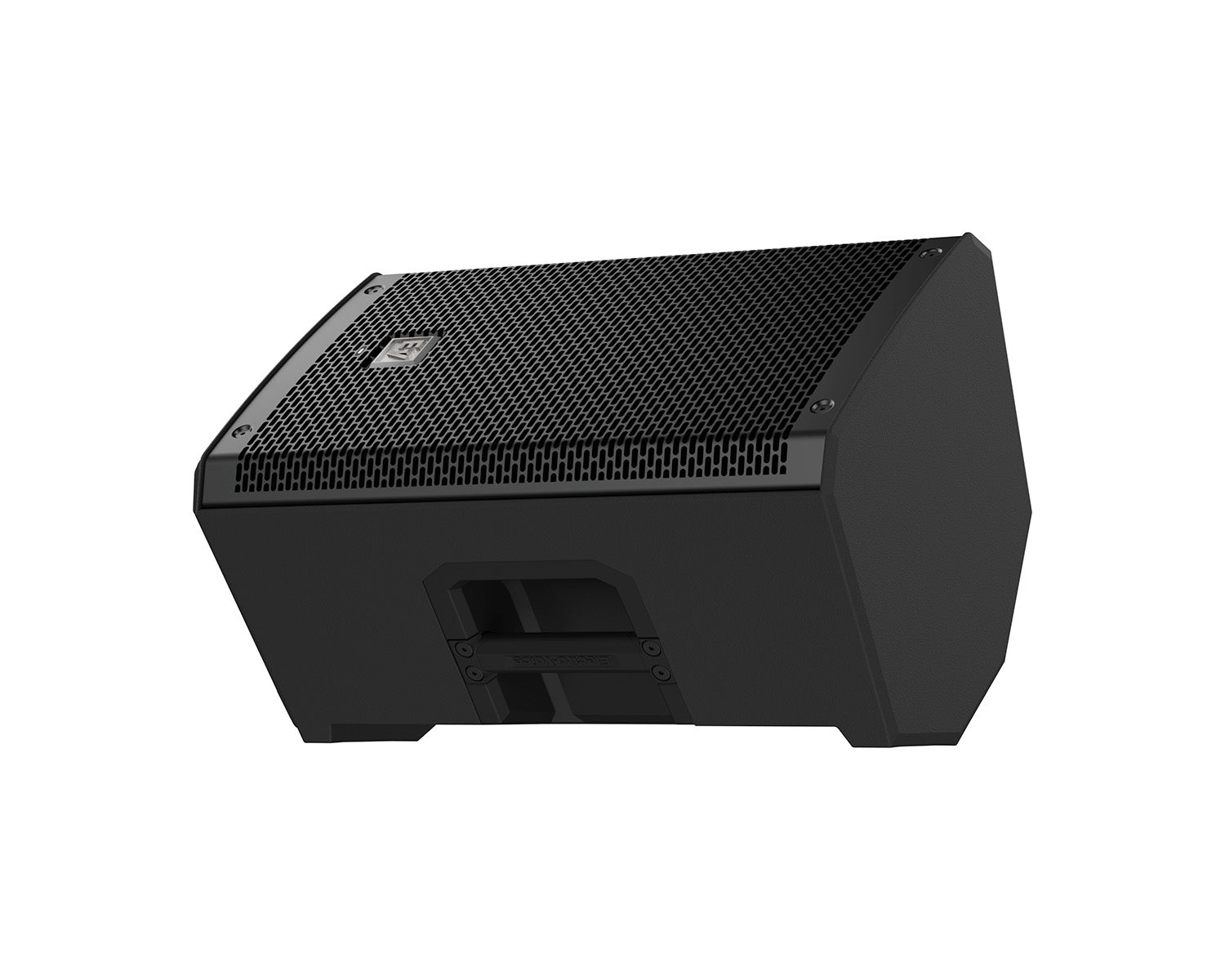

• 55-degree monitor angle
• Full-colour LCD display
• ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
• Increased maximum SPL output and extended frequency response

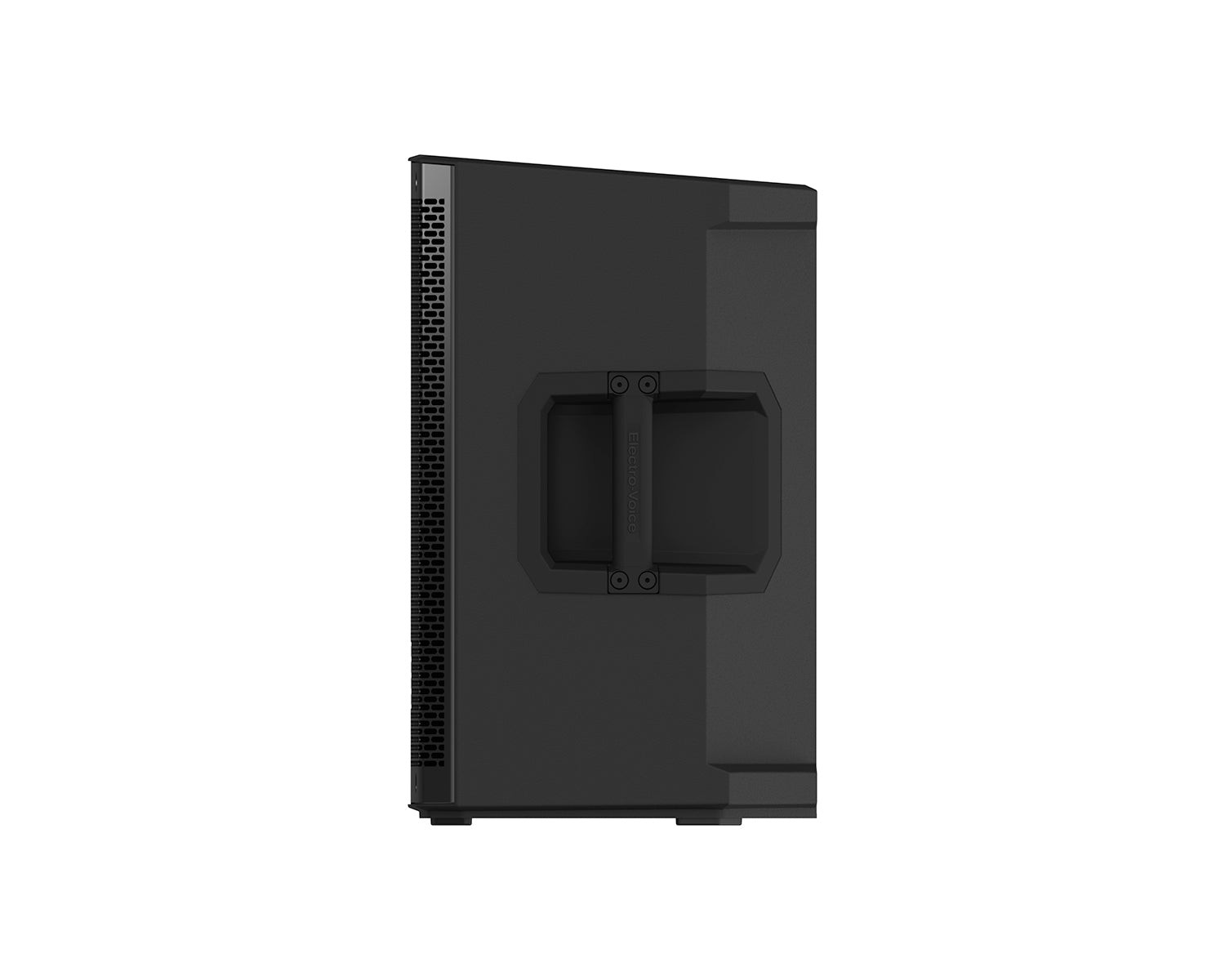

• Robust and ergonomic design for day-to-day durability and portability
• Advanced connectivity with Bluetooth® wireless stereo streaming and QuickSmart Mobile app control
• POWERED BY DYNACORD - built in digital mixer with FX, AFS, ducker, PEQ and more

Product Specifications

• Frequency response (-3 dB) (Hz): 58 Hz – 20,000 Hz
• Frequency range (-10 dB) (Hz): 50 Hz – 20,000 Hz
• Maximum sound pressure level at a distance of 1 m (dB): 126 dB
• Coverage angle HxV (°): 90° x 60°
• Crossover frequency (kHz): 1.40 kHz
• Power rating (W): 1000 W
• Power consumption (V, Hz): 100 - 240 V~, 50 - 60 Hz
• LF transducer: WECA2088
• LF transducer size (in): 8 in
• LF transducer magnet material: Ferrite
• HF transducer: DECA2516
• HF transducer type: Compression driver
• HF transducer size (in): 1.40 in
• HF transducer magnet material: Ferrite
• HF transducer diaphragm material: Titanium
• Connector type: (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
• Material: Polypropylene
• Grille material: Powder coated steel
• Dimensions (H x W x D): 459.6 mm x 289.9 mm x 280.5 mm (18.09 in x 11.41 in x 11.04 in)
• Weight: 10.64 kg (23.46 lb)
