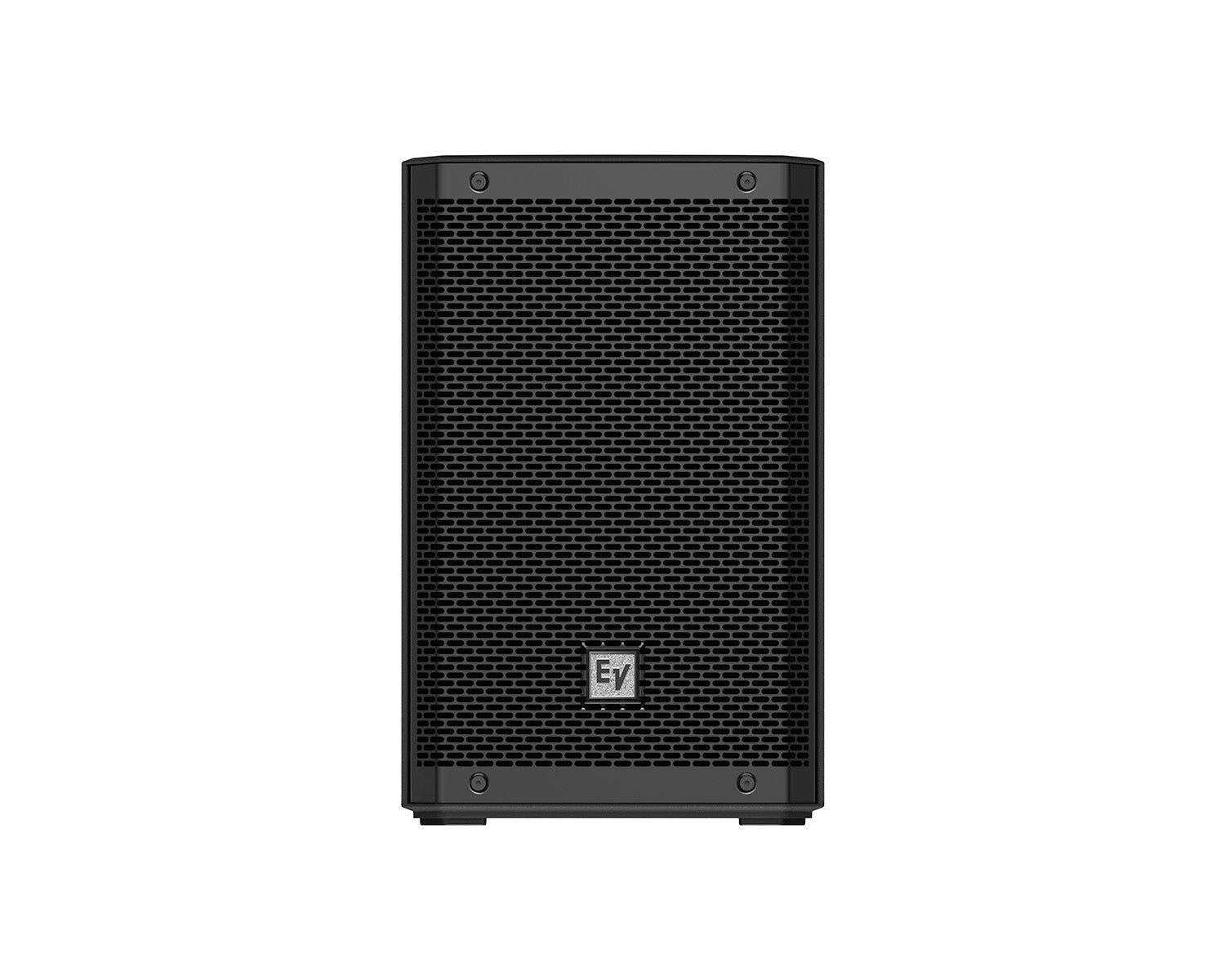

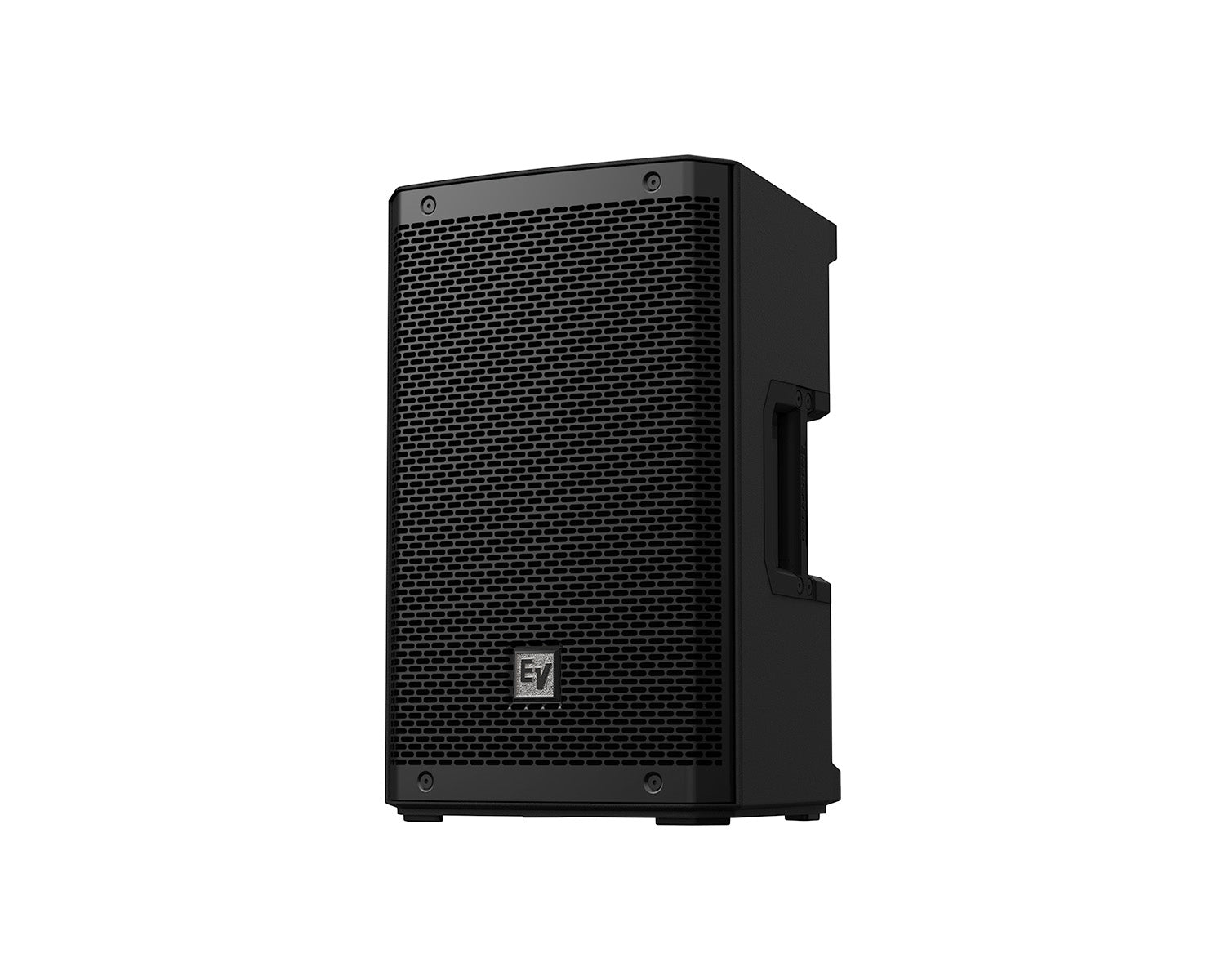

The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.

ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.

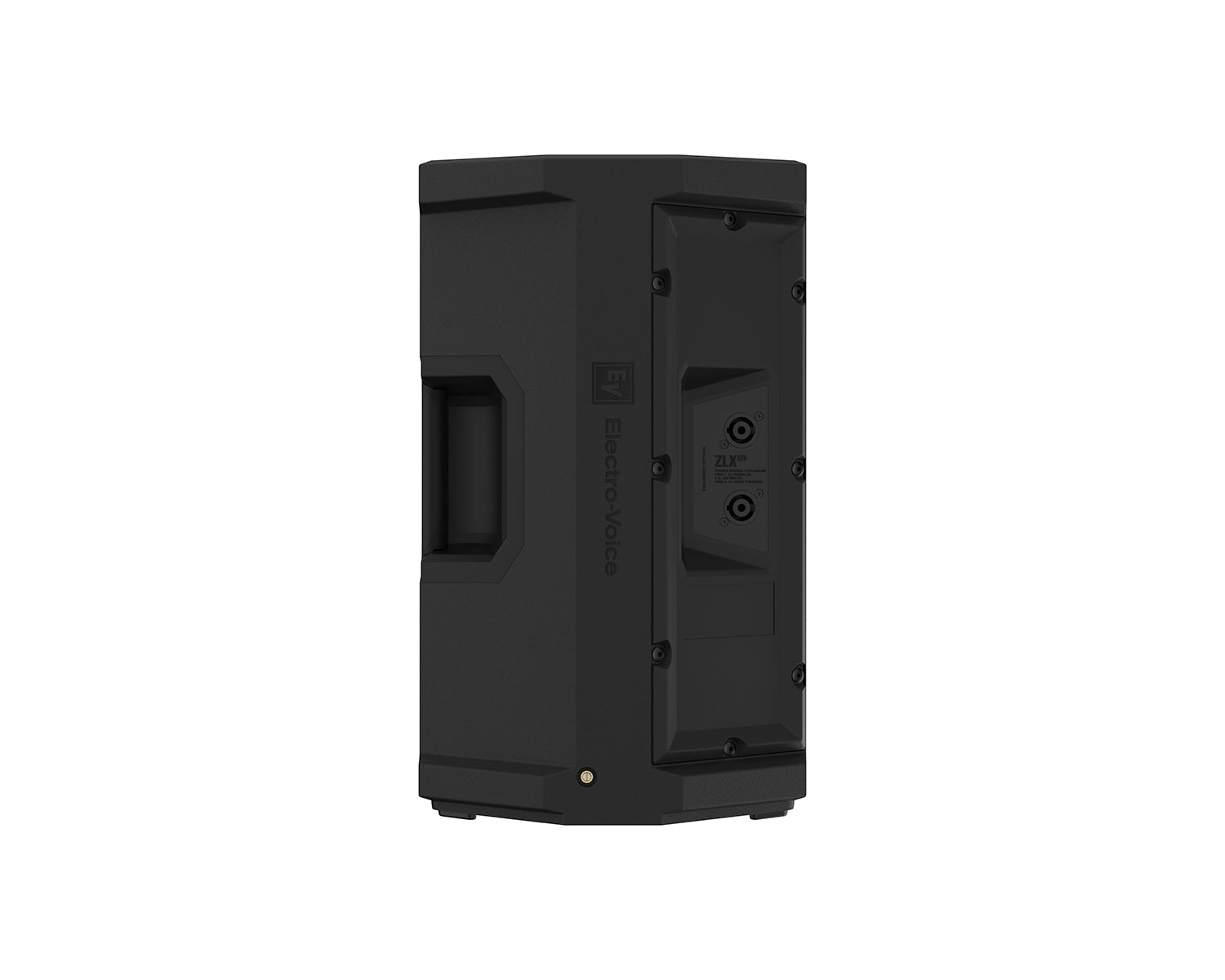

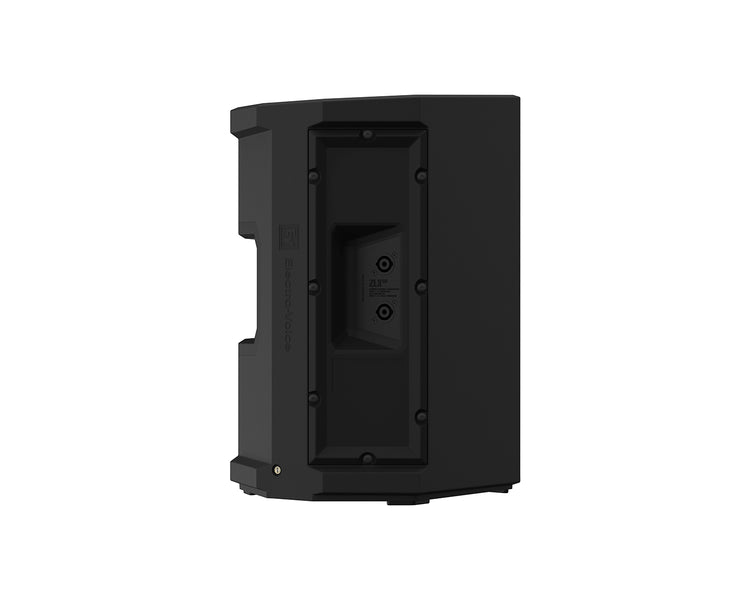

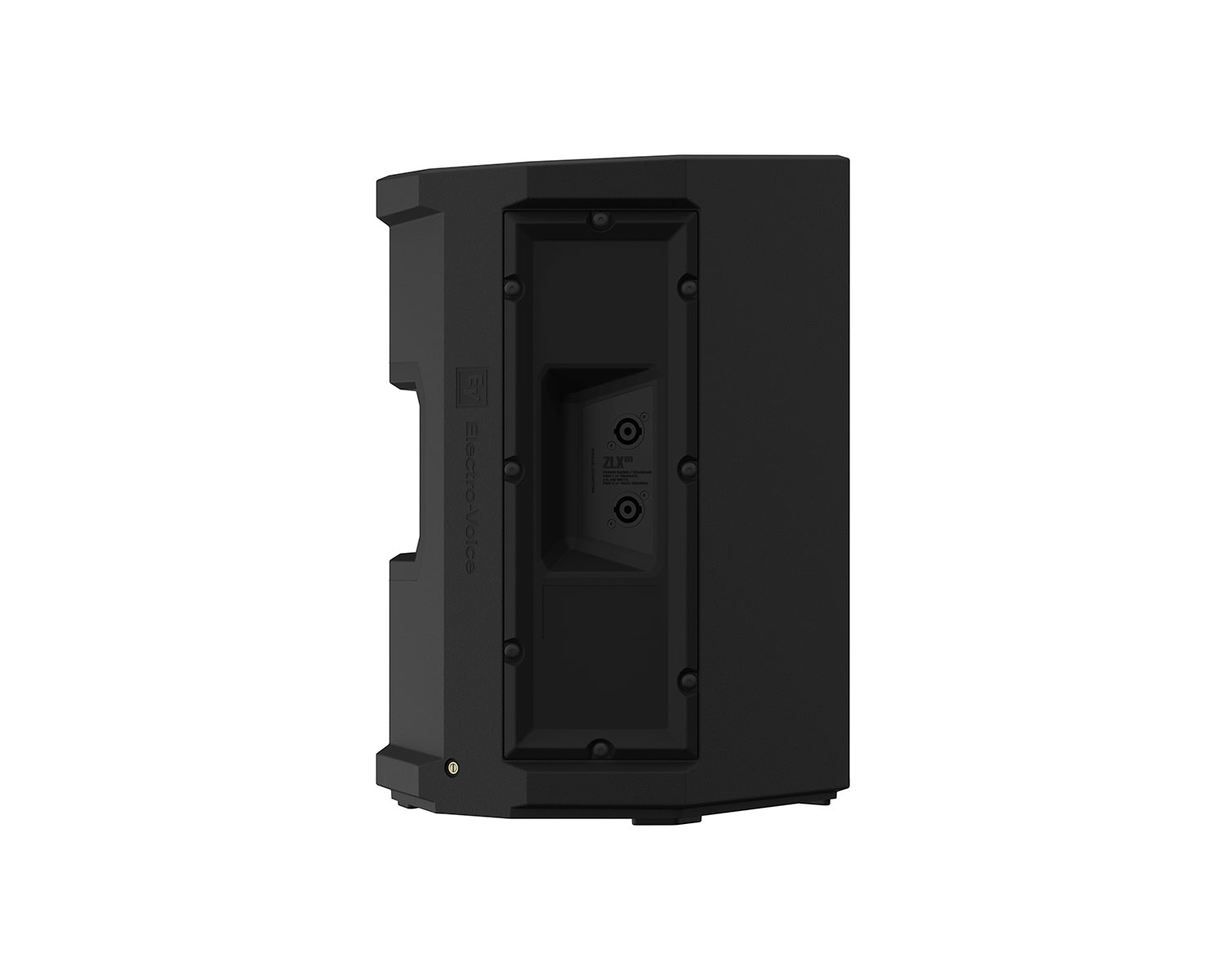

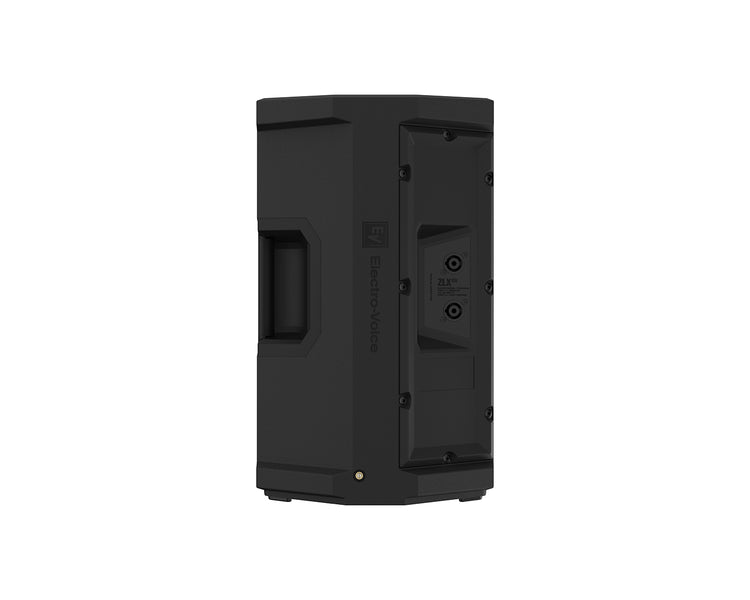

ZLX-8-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.

For optimal acoustics and performance, ZLX-8-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.

Product Features

• ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
• Increased maximum SPL output and extended frequency response

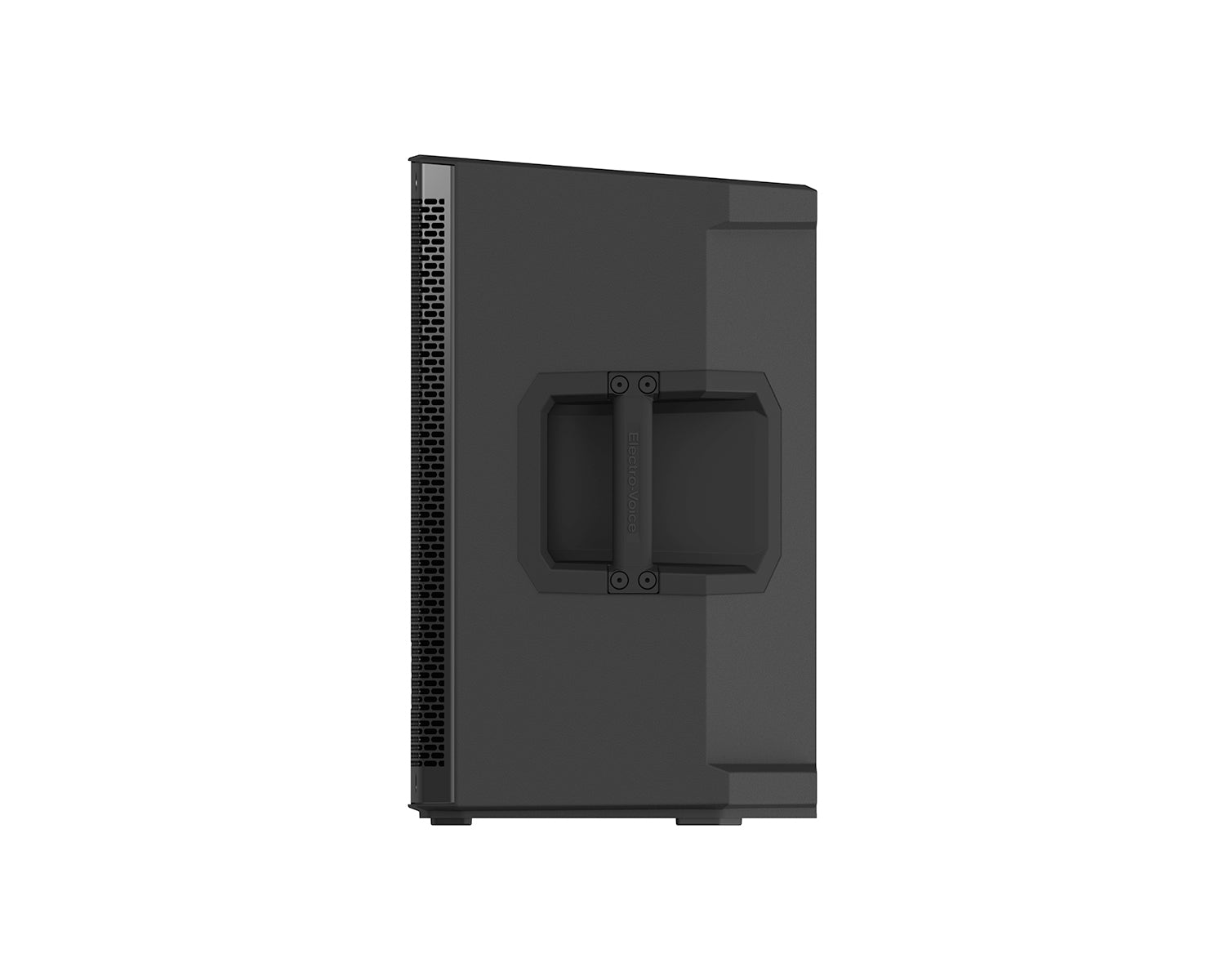

• Robust and ergonomic design for day-to-day durability and portability
• Recommended to use with Dynacord DSP power amplifiers
• SONICUE integration - optimized speaker settings for best performance

Product Specifications

• Frequency response (-3 dB) (Hz): 67 Hz – 20,000 Hz
• Frequency range (-10 dB) (Hz): 55 Hz – 20,000 Hz
• Axial sensitivity (dB SPL 1W/1m): 90 dB SPL 1W/1m
• Maximum sound pressure level at a distance of 1 m (dB): 124 dB
• High pass frequency (Hz): 60 Hz
• Crossover frequency (kHz): 2 kHz
• Coverage angle HxV (°): 90° x 60°
• Power handling (continuous) (W): 250 W
• Power handling (peak) (W): 1,000 W
• Nominal impedance (Ω): 8 Ω
• LF transducer: WECA2088
• LF transducer size (in): 8 in
• LF transducer magnet material: Ferrite
• HF transducer: DH-1K
• HF transducer type: Compression driver
• HF transducer size (in): 1.4 in
• HF transducer diaphragm material: Titanium
• Dimensions (H x W x D): 459.6 mm x 289.9 mm x 280.5 mm (18.09 in x 11.41 in x 11.04 in)
• Weight: 10.15 kg (22.38 lb)
