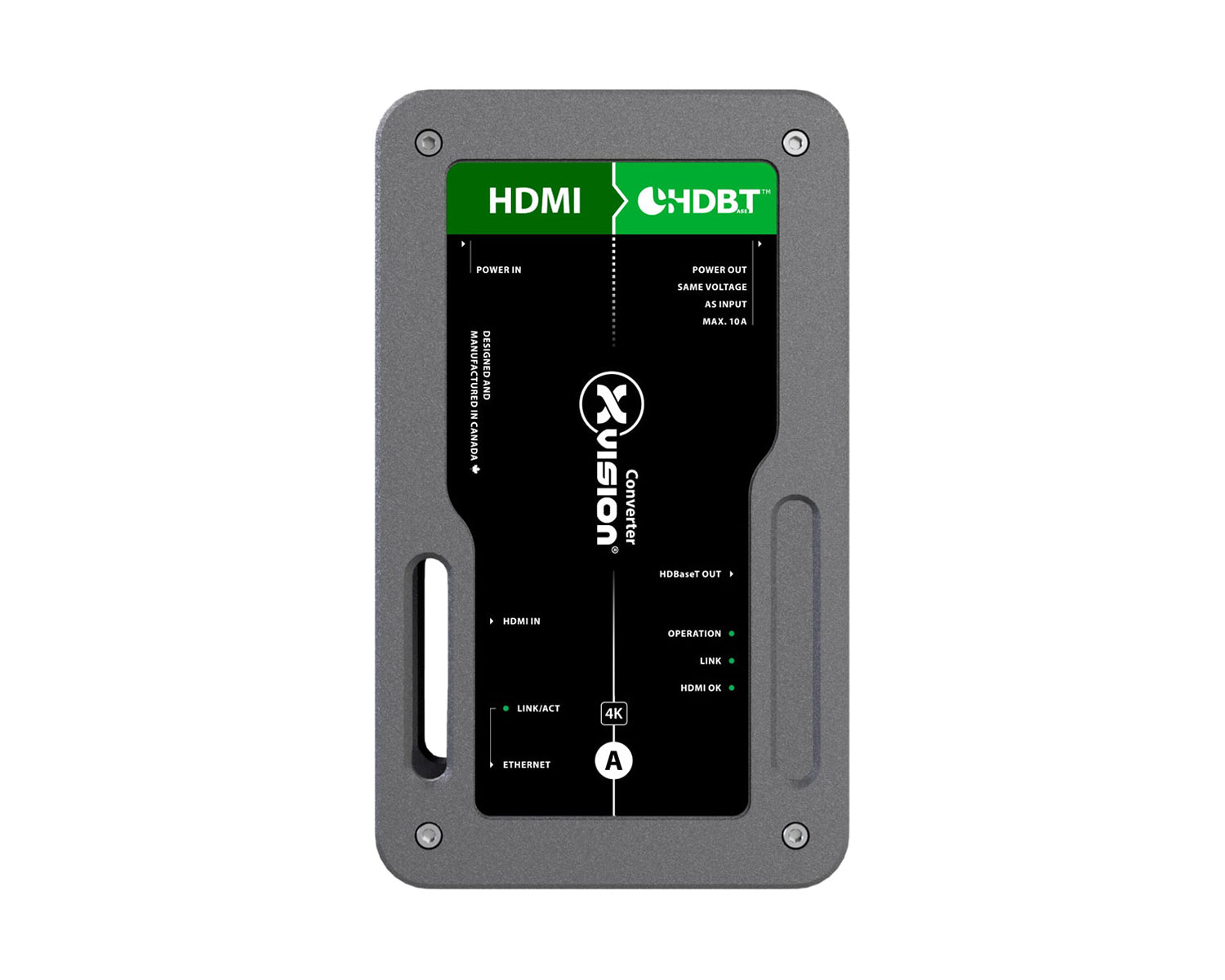

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Product Features

• Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
• Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.

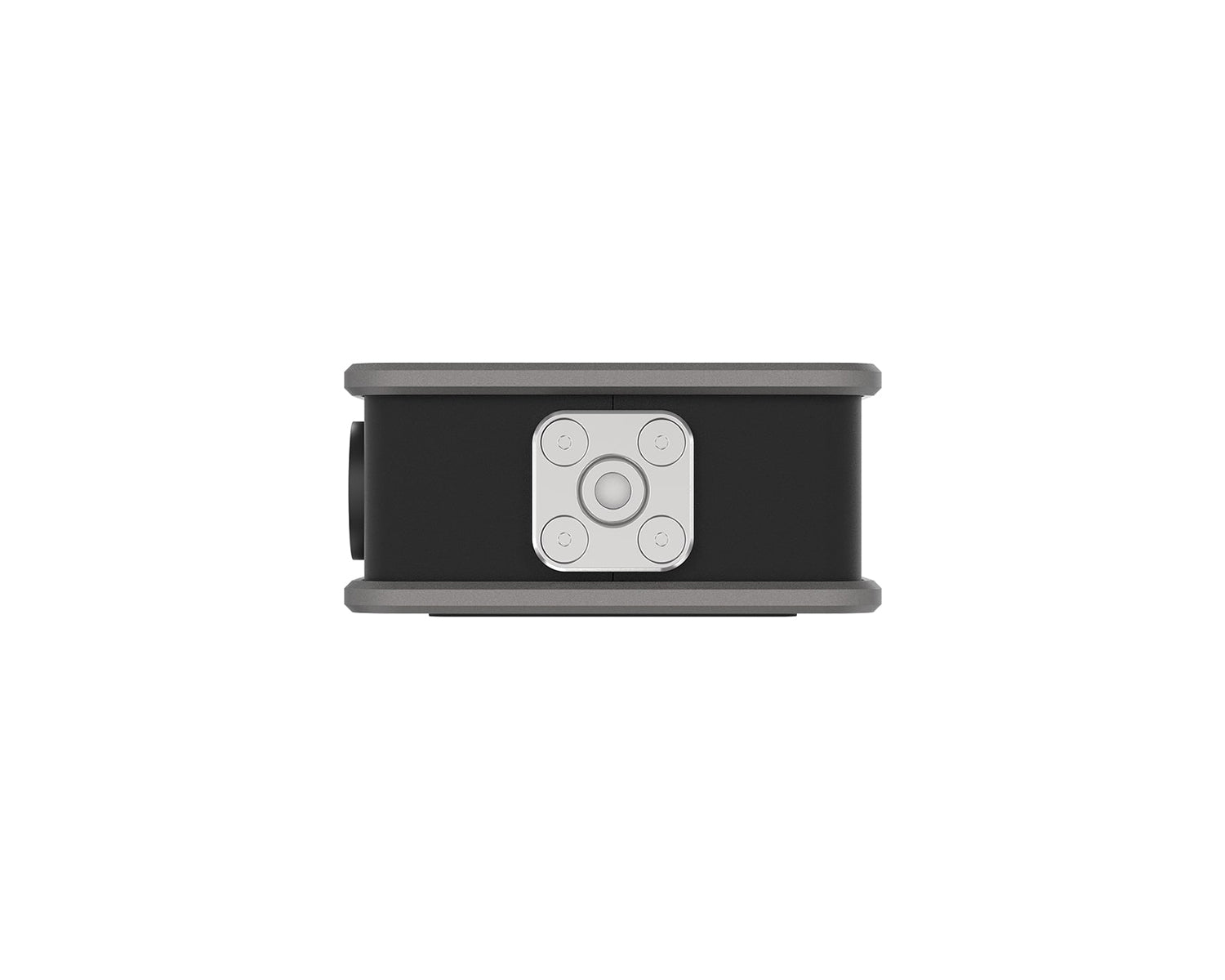

• Magnetic stacking system and non-skid rubber pad for tabletop application. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
• Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• Easy on-the-field identification with unique colour and alphabetic coding system.
• Locking HDMI & EtherCON ports prevent accidental disconnection.
• Fully compliant with HDBaseT 1.0 devices.
• Transmits 4K30P signals over up to 100 meters of CAT6 cable with HDCP support.
• Built-in Ethernet channel for projector control, LAN extension and more.

Product Specifications

Connections

• Video Input: 1 x HDMI 1.4 type A with locking system
• Ethernet Port: 1 x 1 Gbps Ethernet on Neutrik EtherCON
• Video Output: 1 x HDBaseT 1.0 on shielded EtherCON connector
• Recommended cable: UTP CAT6a with EtherCON connectors

Supported Signals

• Video Format Support: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• Ethernet Support: 100 Mpbs

Environmental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

Power Requirements

• Power Supply:
  • Built-in power supply
  • PowerCON True1 input
  • PowerCON True1 output (loop-thru)
• Power Consumption: 15W
• Voltage Range:
  • 100-240V, 50-60Hz
  • (100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
• Courtesy Outlet: Max 10A, same voltage as input

Physical and Dimensions

• Height: 53 mm (2.09 in)
• Depth: 180 mm (7.08 in)
• Width: 107 mm (4.21 in)
• Weight: 1 kg (2.2 lbs)

What's in the Box?

• xVision Converter HDMI to HDBaseT True1
• Locking HDMI male to DVI male (1m)
• AC Mains PowerCON True1 cable
