Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Product Features

• Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
• Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.

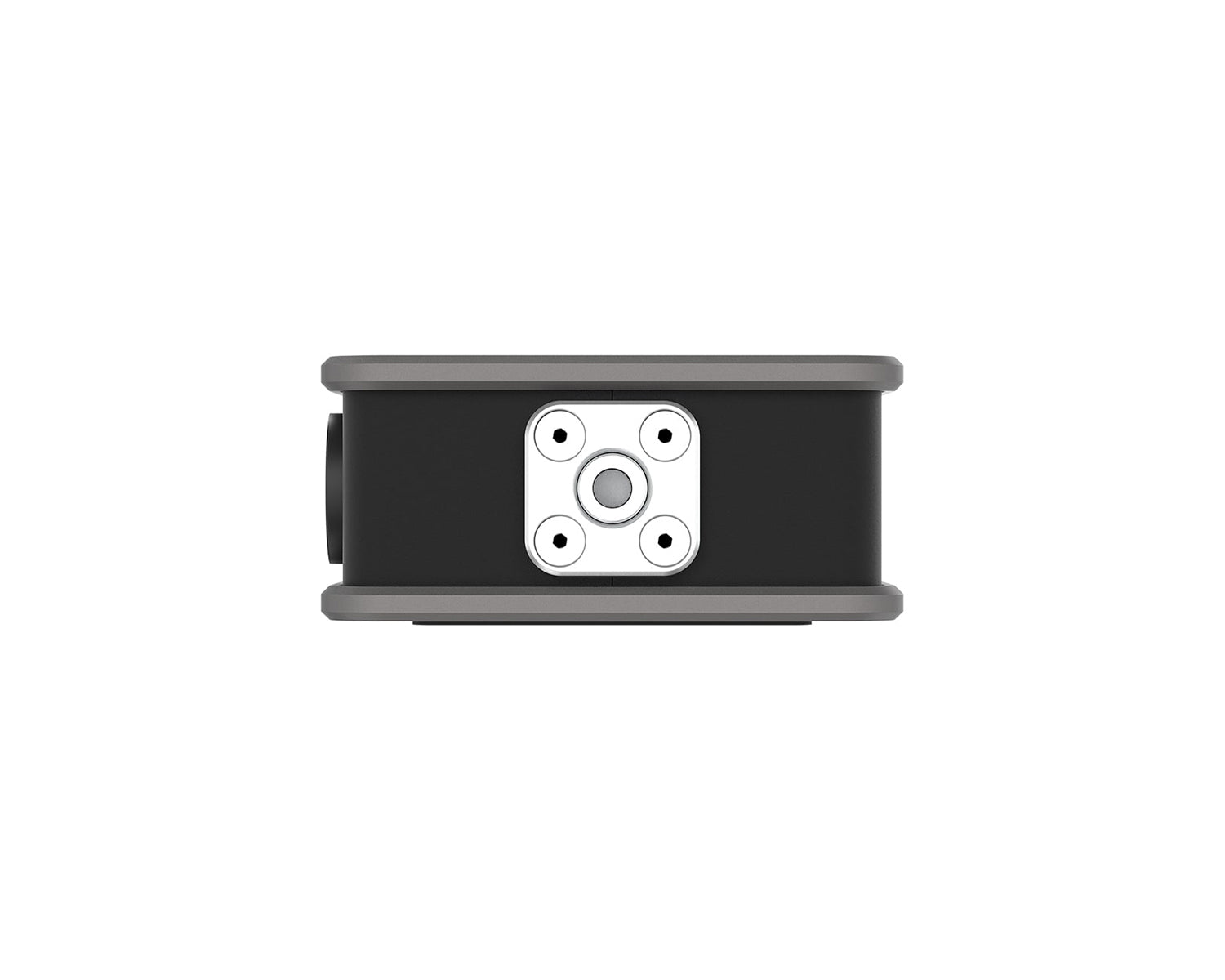

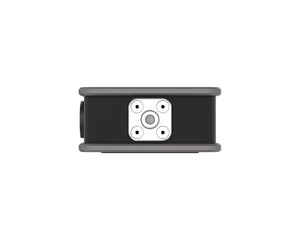

• Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.

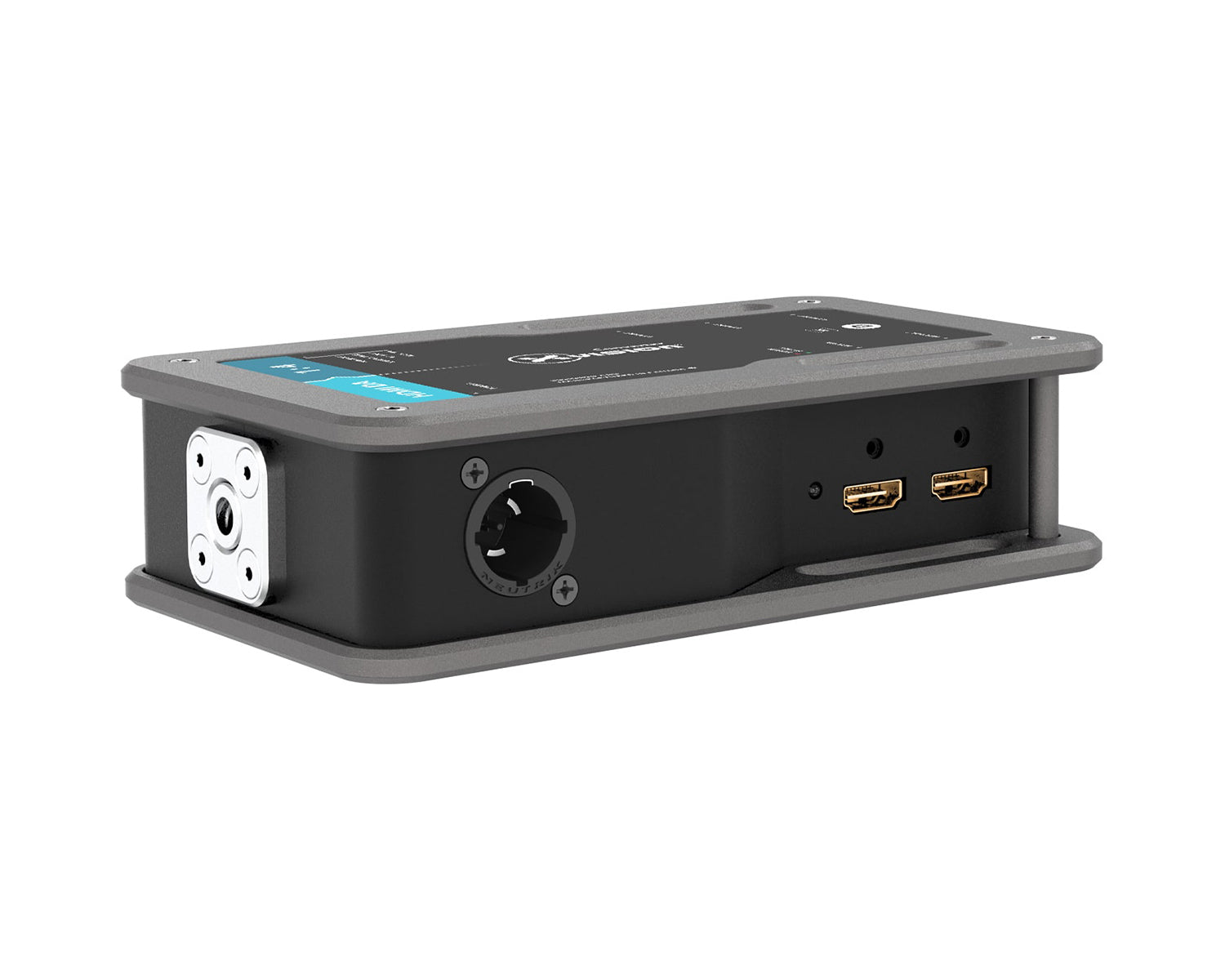

• Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.

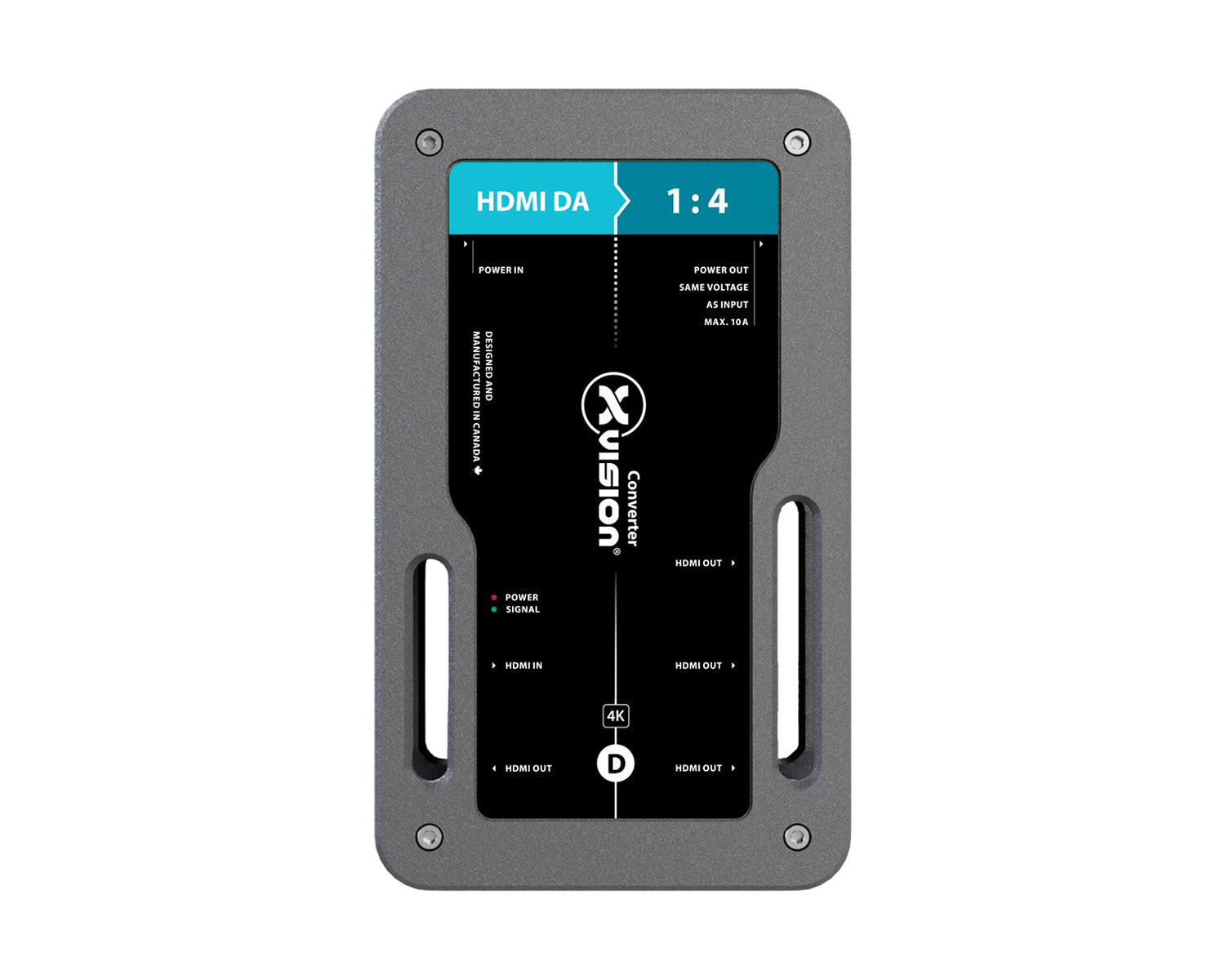

• Clear and ample status LED indicators for quick troubleshooting.
• HDMI input tested and compatible with Apple computers and iPad.
• Easy on-the-field identification with unique colour and alphabetic coding system.
• Locking HDMI port prevents accidental disconnection.
• Automatic downscaling per output – Effortlessly send the same signal to 4K and FullHD displays with a single signal source.
• Proudly designed and assembled in Canada.

Product Specifications

Connections

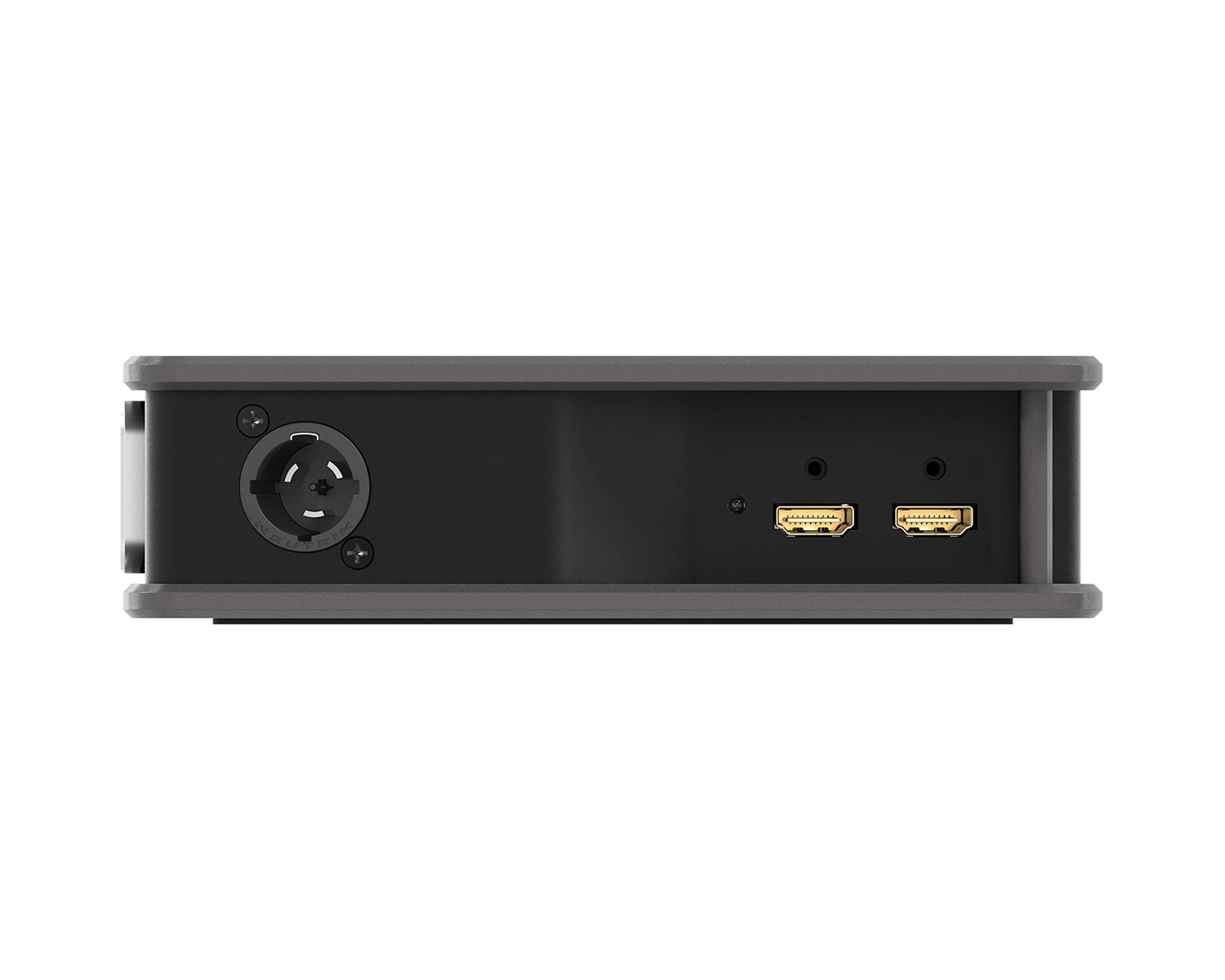

• Video Input: 1 x HDMI 2.0 type A with locking system

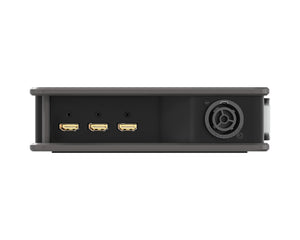

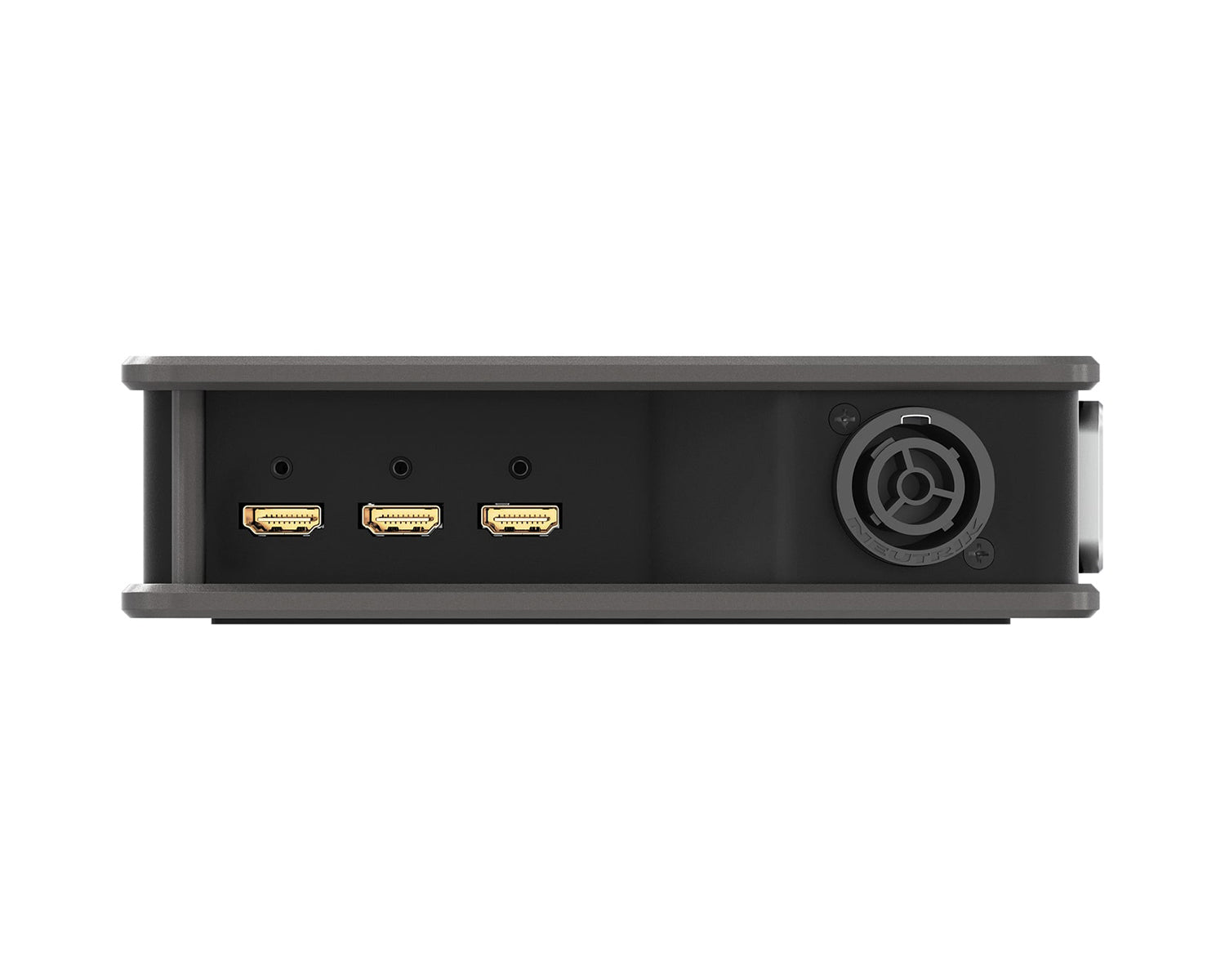

• Video Output: 4 x HDMI 2.0 type A with locking system (Individual downscaling per port)

Supported Signals

• Video Format Support:
  • HDR 4K/2K @ 60 fps (4:2:0 10 bits)
  • 4K/2K @ 60 fps (4:4:4 8 bits)
• HDCP Compliance: HDCP 2.2/1.4
• Video Bandwidth: Single-link 600MHz (18 Gbps)
• Embedded Audio:
  • DTS-HD Master Audio, Dolby
  • True HD Dolby Digital, DTS, LPCM

Environmental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

Power Requirements

• Power Supply:
  • Built-in power supply
  • PowerCON True1 input
  • PowerCON True1 output (loop-thru)
• Power Consumption: 15W
• Voltage Range:
  • 100-240V, 50-60Hz
  • (100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
• Courtesy Outlet: Max 10A, same voltage as input

Physical Specifications

• Height: 50 mm (1.97 in)
• Depth: 180 mm (7.08 in)
• Width: 107 mm (4.21 in)
• Weight: 1 kg (2.2 lbs)

What's in the Box?

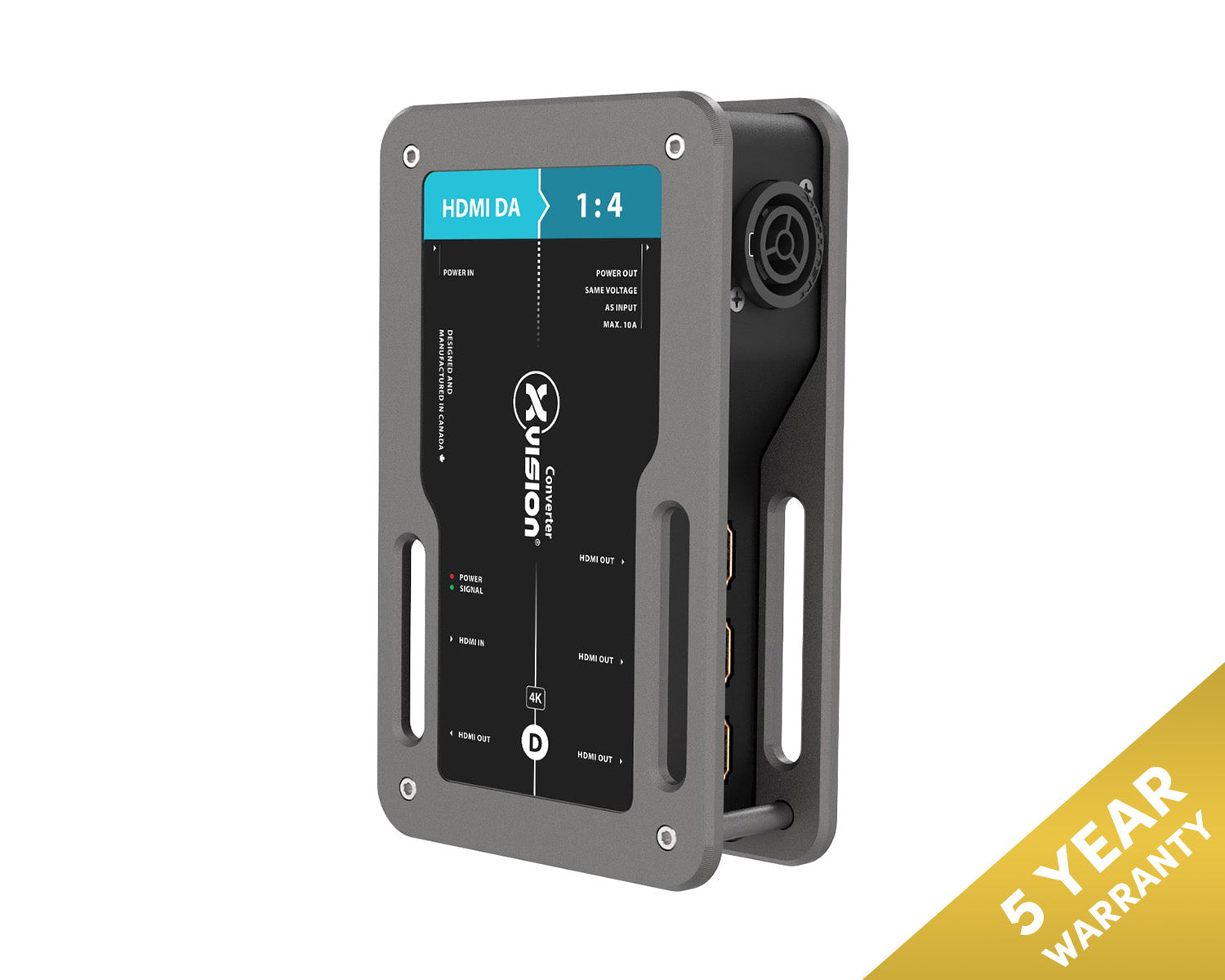

• xVision Converter HDMI Distribution Amplifier 1:4 True1
• Locking premium HDMI male to HDMI male (1m)
• AC Mains to PowerCON True1 cable
