Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Product Features

• Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
• Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.

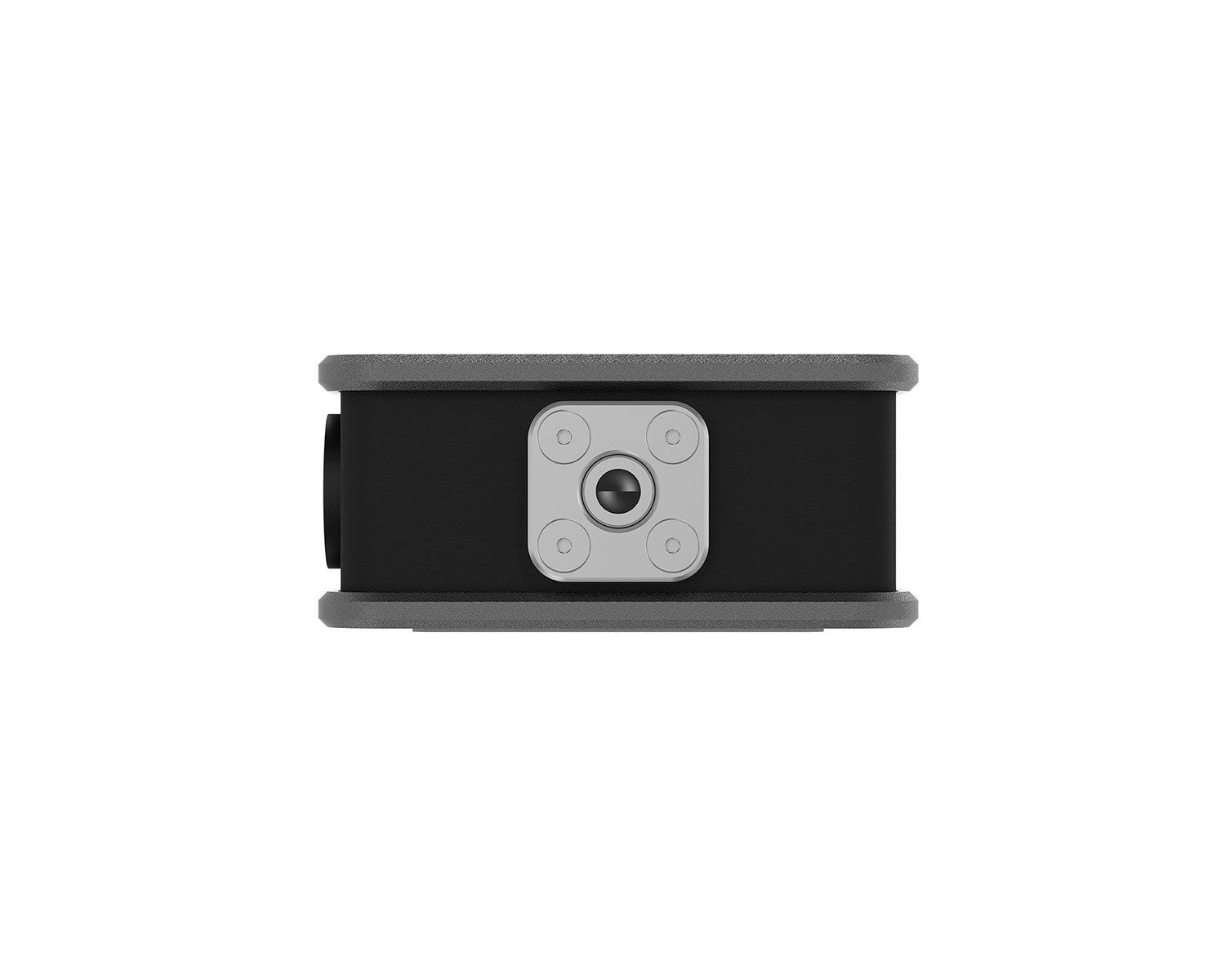

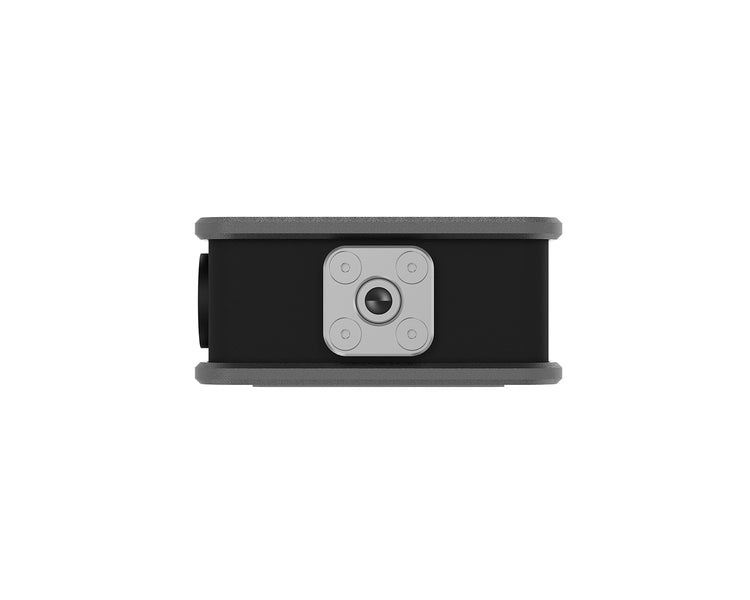

• Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
• Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• Easy on-the-field identification with unique colour and alphabetic coding system.
• Locking HDMI port prevents accidental disconnection.
• Reclocked and amplified SDI loop thru
• Proudly designed and assembled in Canada.

Product Specifications

Connections

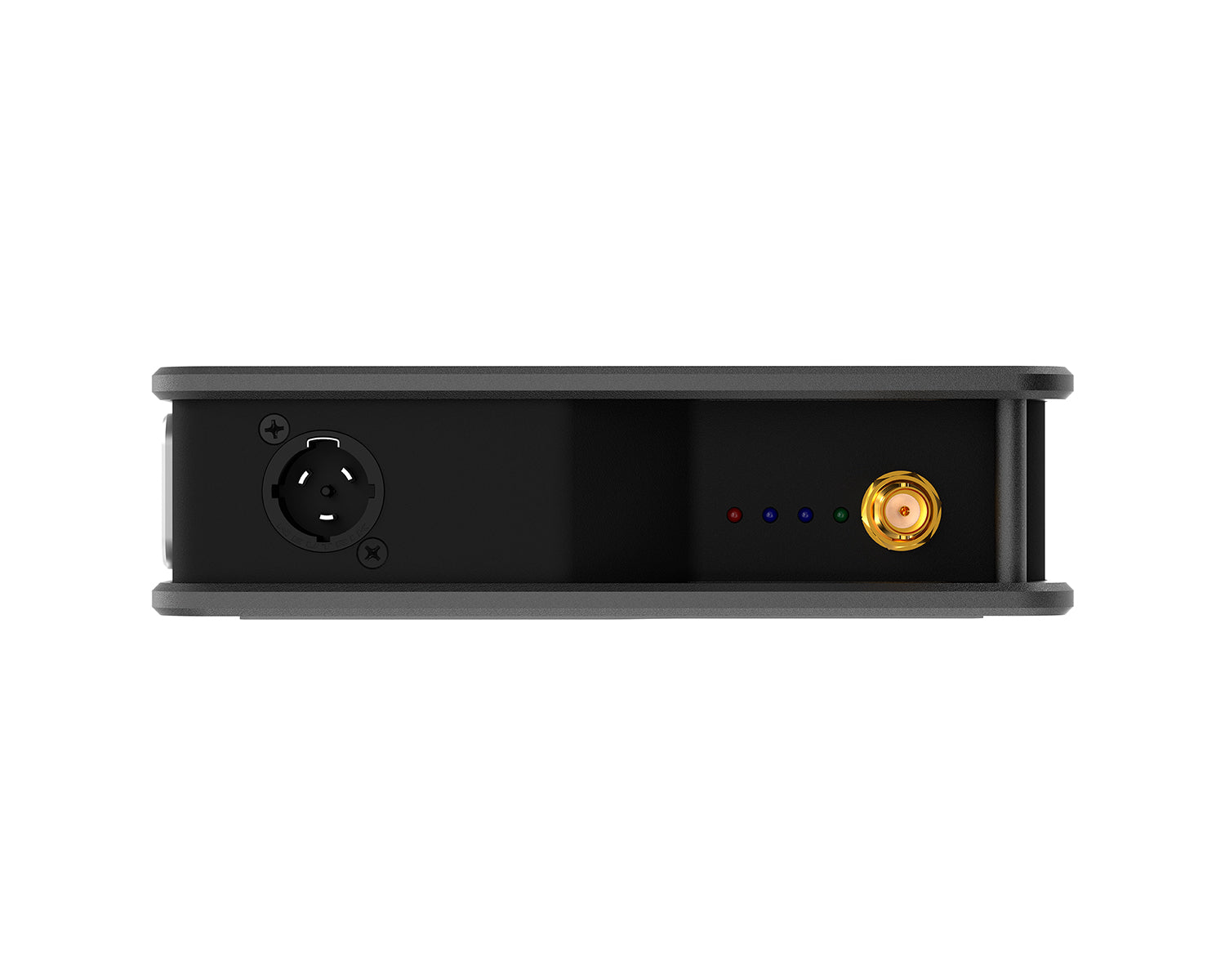

• Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC

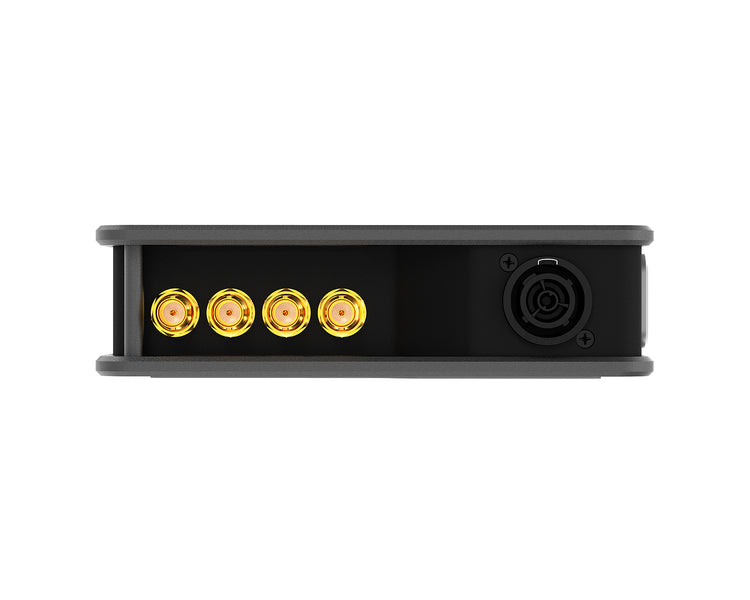

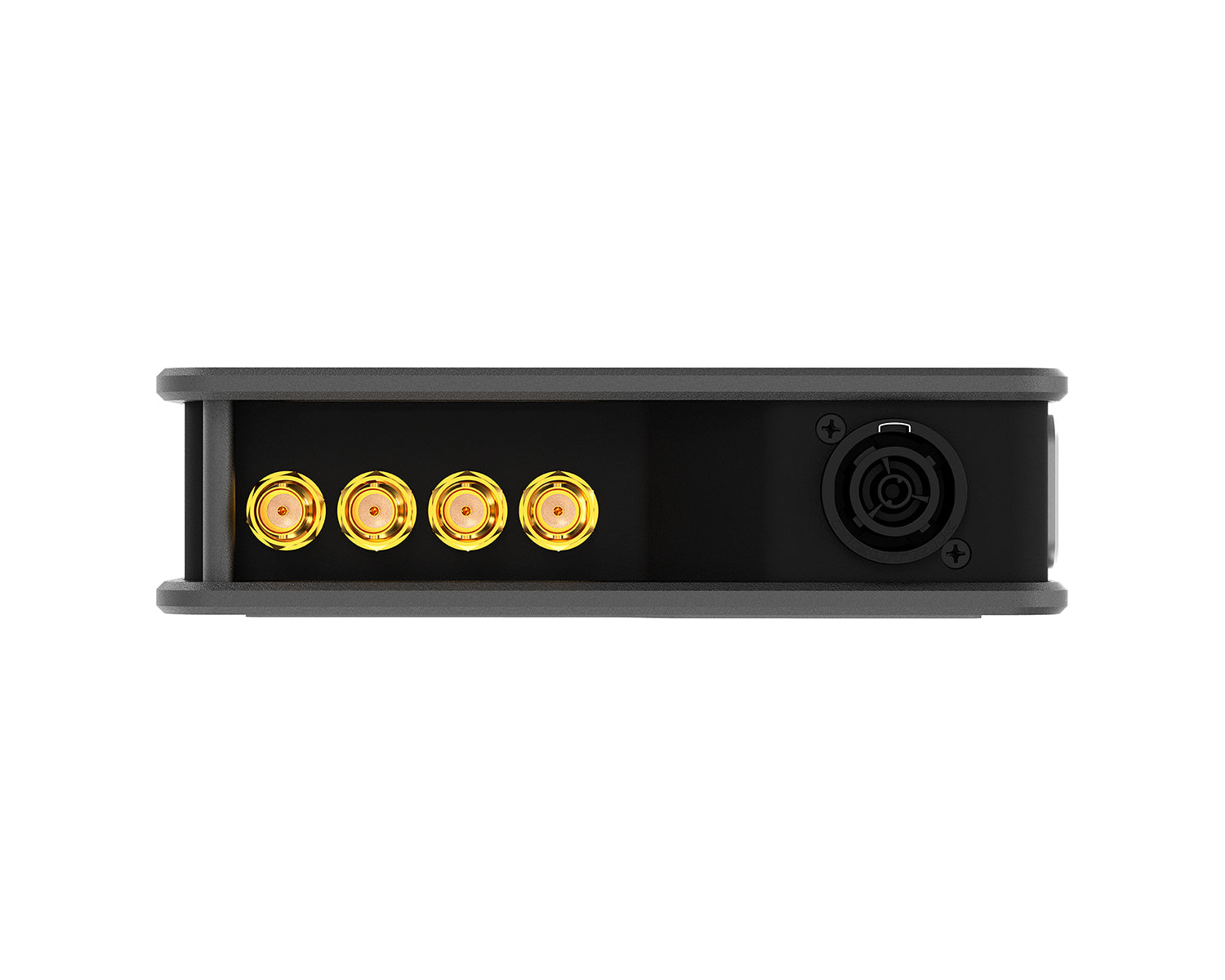

• Video Output: 4 x 12G/6G/3G/HD/SD SDI BNC (reclocked and amplified)

Supported Signals

• 12G Format Support:
  • 4096x2160p60, 4096x2160p59.94,
  • 4096x2160p50, 3840x2160p60,
  • 3840x2160p59.94, 3840x2160p50
• 6G Format Support:
  • 4096x2160p30, 4096x2160p29.97,
  • 4096x2160p25, 4096x2160p23.98,
  • 3840x2160p30, 3840x2160p29.97,
  • 3840x2160p25, 3840x2160p29.97
• 3G Format Support: 1080p50, 1080p59.94, 1080p60.
• HD Format Support:
  • 720p50, 720p59.94, 720p60, 1080i50,
  • 1080i59.94, 1080i60, 1080p23.98,
  • 1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
  • 1080PsF25, 1080p29.97, 1080PsF29.97,
  • 1080p30, 1080PsF30
• SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Sample rate of 48 kHz and 24 bit.
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects incoming signal format.
• SMPTE Standards: 2082-1, 2082-10, 425M Level A & B, 424M, 292M, 259M

Environnemental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

Power Requirements

• Power Supply:
  • Built-in power supply
  • PowerCON True1 input
  • PowerCON True1 output (loop-thru)
• Power Consumption: 15W
• Voltage Range: 100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/Edison Nema-5)
• Courtesy Outlet: Max 10A, same voltage as input

Physical Specifications

• Height: 50 mm (1.97 in)
• Depth: 180 mm (7.08 in)
• Width: 107 mm (4.21 in)
• Weight: 1 kg (2.2 lbs)

What's in the Box?

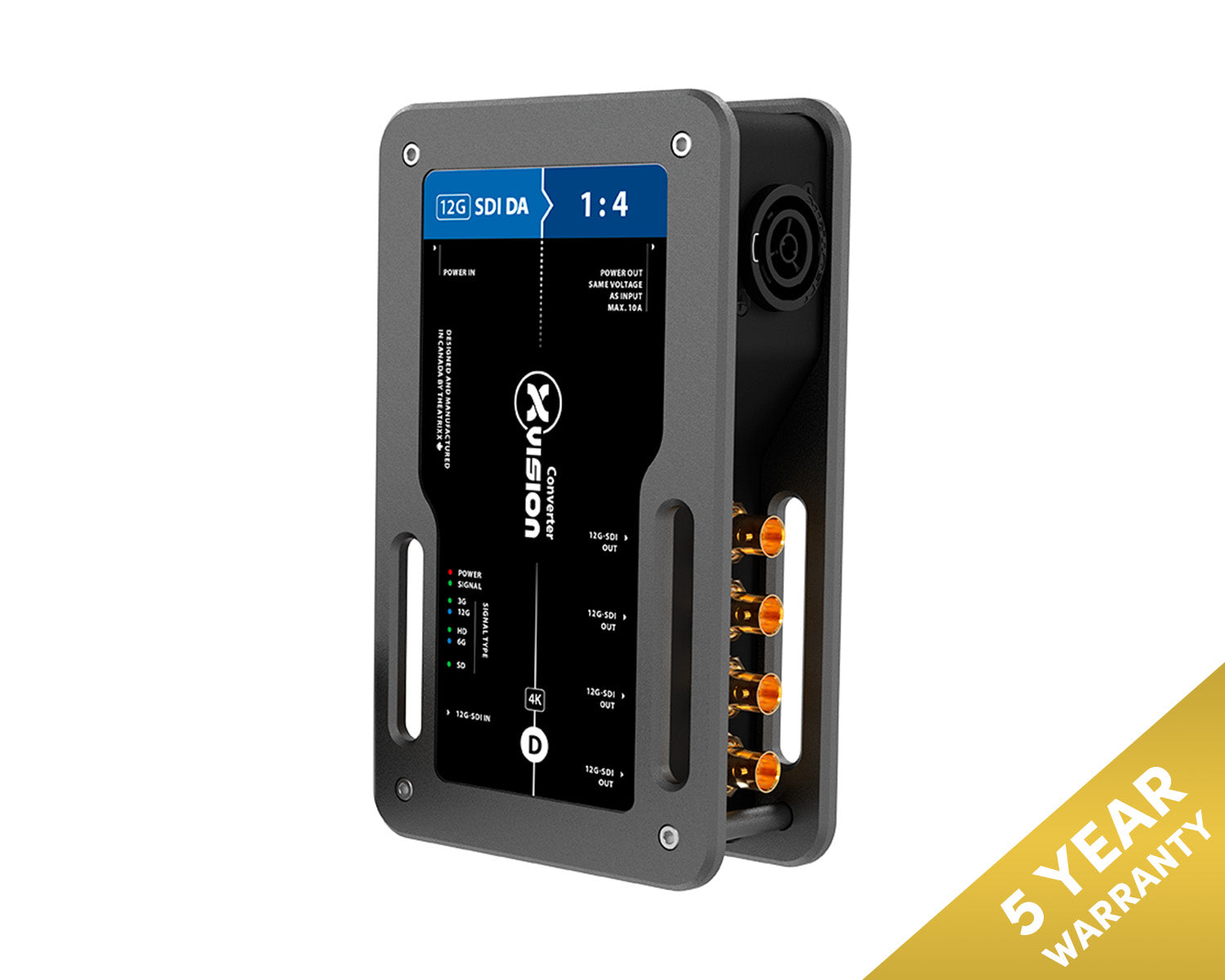

• xVision Converter 12G-SDI Distribution Amplifier 1:4 - True1
• AC Mains to PowerCON cable 1.5m
