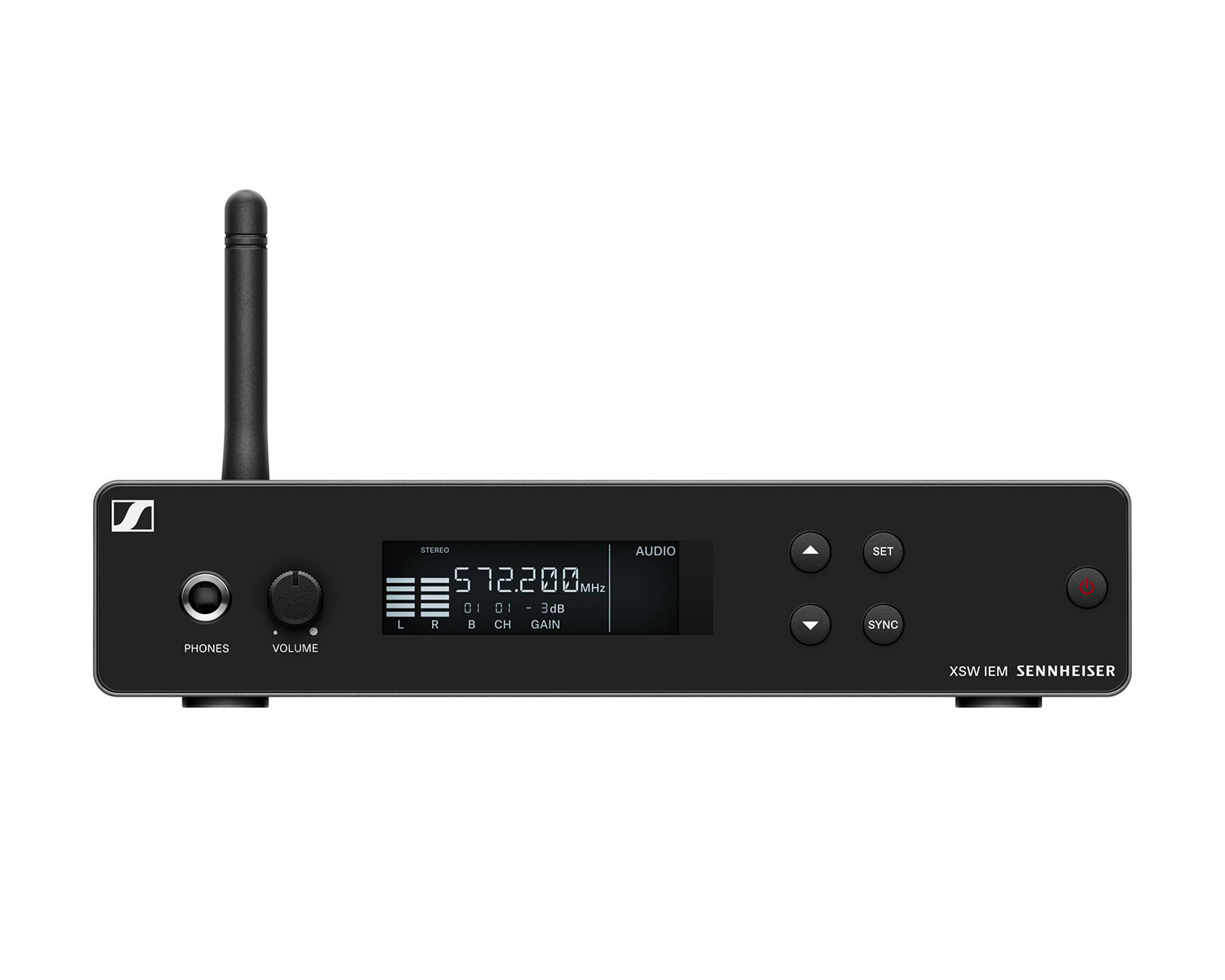

Single half-rack stereo UHF transmitter, rugged metal housing – part of the XS Wireless IEM series. The XS Wireless IEM transmitter features metal housing designed for durability and can be used as part of a rack-mounted system or stand-alone.

The clear, backlit menu allows for easy setups even on dark stages. The XLR combo inputs provide flexible cabling options – you can connect anything with a XLR or 6.3 mm (1/4 inch) plug. You can preview your in-ear mix locally with the headphone output on the front. Setting up gain, mono or stereo options, input sensitivity, or frequency channels takes just a matter of seconds thanks to the clear, simple menu.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Band E - 823.2 – 831.8 MHz (Channel 38 \'Duplex Gap\')
• Single-stereo UHF transmitter for XS Wireless IEM systems
• Rugged metal housing in a standard half-rack size

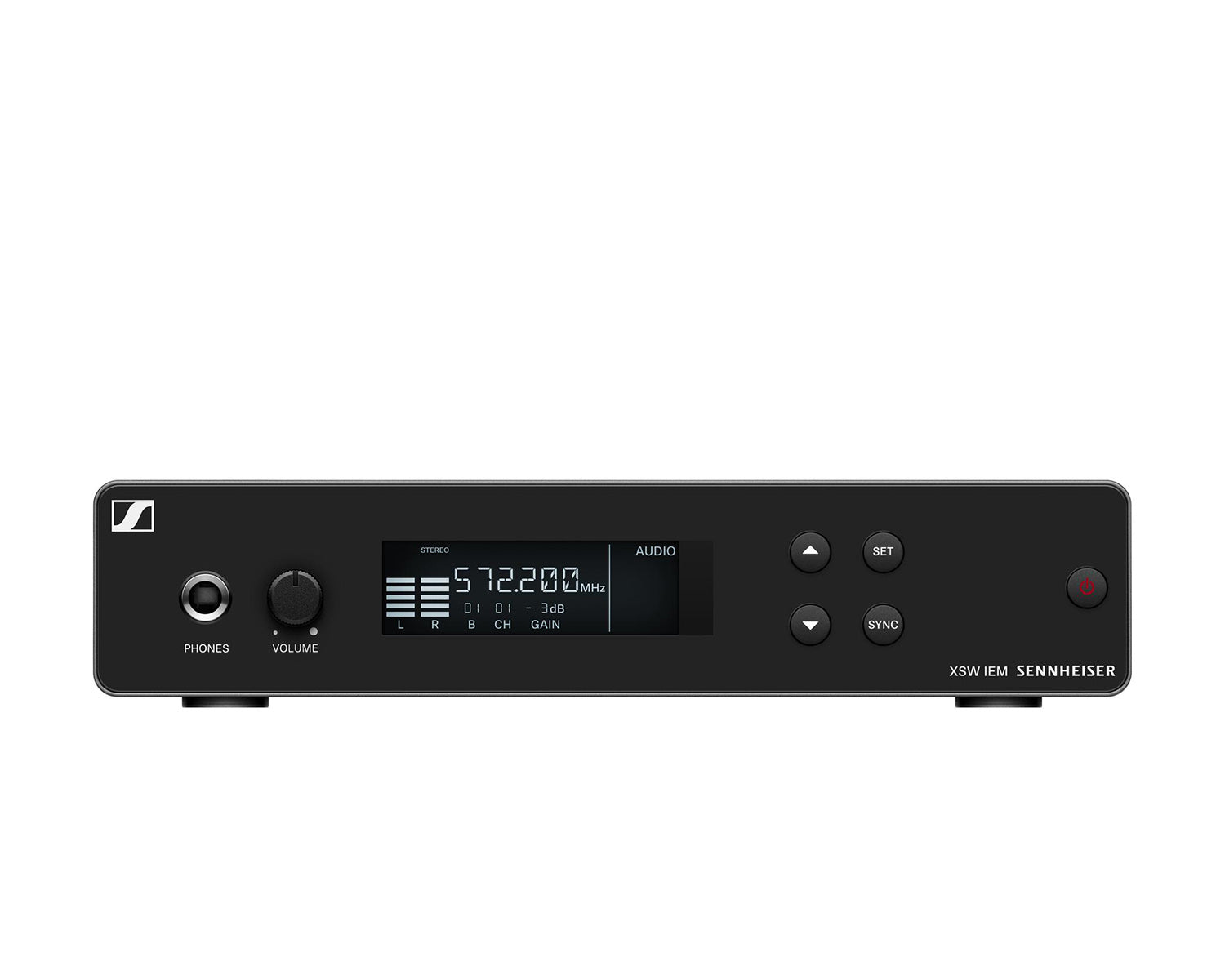

• Backlit front panel to access all key settings

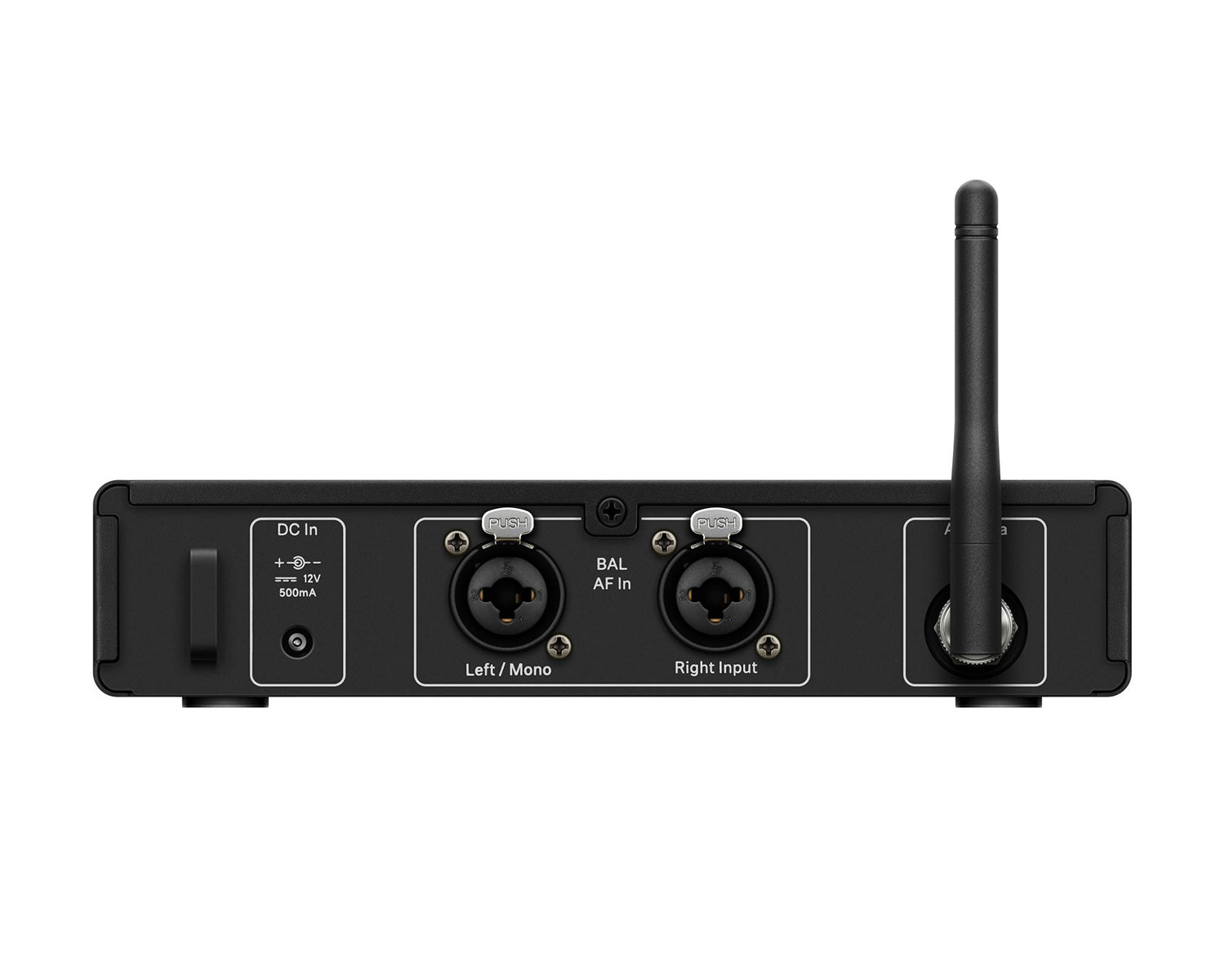

• 2x XLR and 6.3 mm (1/4 inch) TRS combo inputs
• Additional headphone output (6.3 mm / ¼ inch) on front

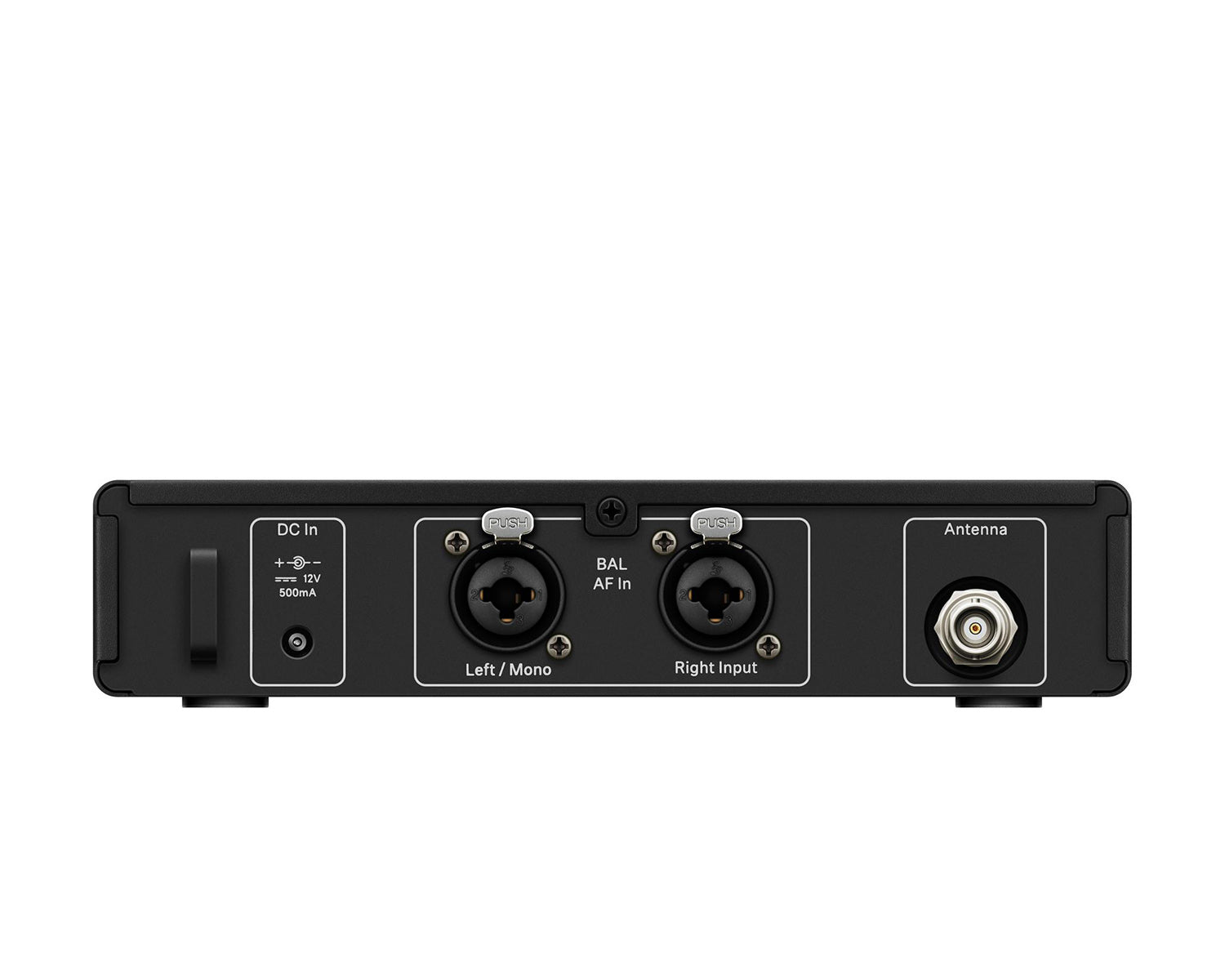

• Removeable BNC antenna for optimal positioning options
• 8 frequency banks with 12 precalculated channels each

Product Specifications

• RF characteristics
  • Modulation: FM stereo
  • Frequency ranges (max. RF output power)
    • A: 476 - 500 MHz (30 mW)
    • B: 572 - 596 MHz (30 mW)
    • C: 662 - 686 MHz (30 mW)
    • E: 823.2 - 831.8 MHz (30 mW)
    • K: 925.2 - 937.3 MHz (10 mW)
  • Switching bandwidth: up to 24 MHz
  • Nominal/peak deviation: ±15 kHz / ±24 kHz
  • Antenna output: BNC socket, 50 Ω
• AF characteristics
  • AF frequency response: 45 Hz to 15 kHz
  • AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
  • Total harmonic distortion (THD): <0.9 %
  • Signal-to-noise ratio (at nominal load and peak deviation): ≥88 dB
• Overall device
  • Temperature range: 0 °C to +40 °C
  • Input rating: +12 V DC
  • Current consumption: Approx. 400mA (depending on volume level)
  • Dimensions: Approx. 200 x 128 x 42 mm
  • Weight: Approx. 700 g

What’s in the Box?

• XSW IEM SR Stereo Transmitter
• XSW BNC Antenna

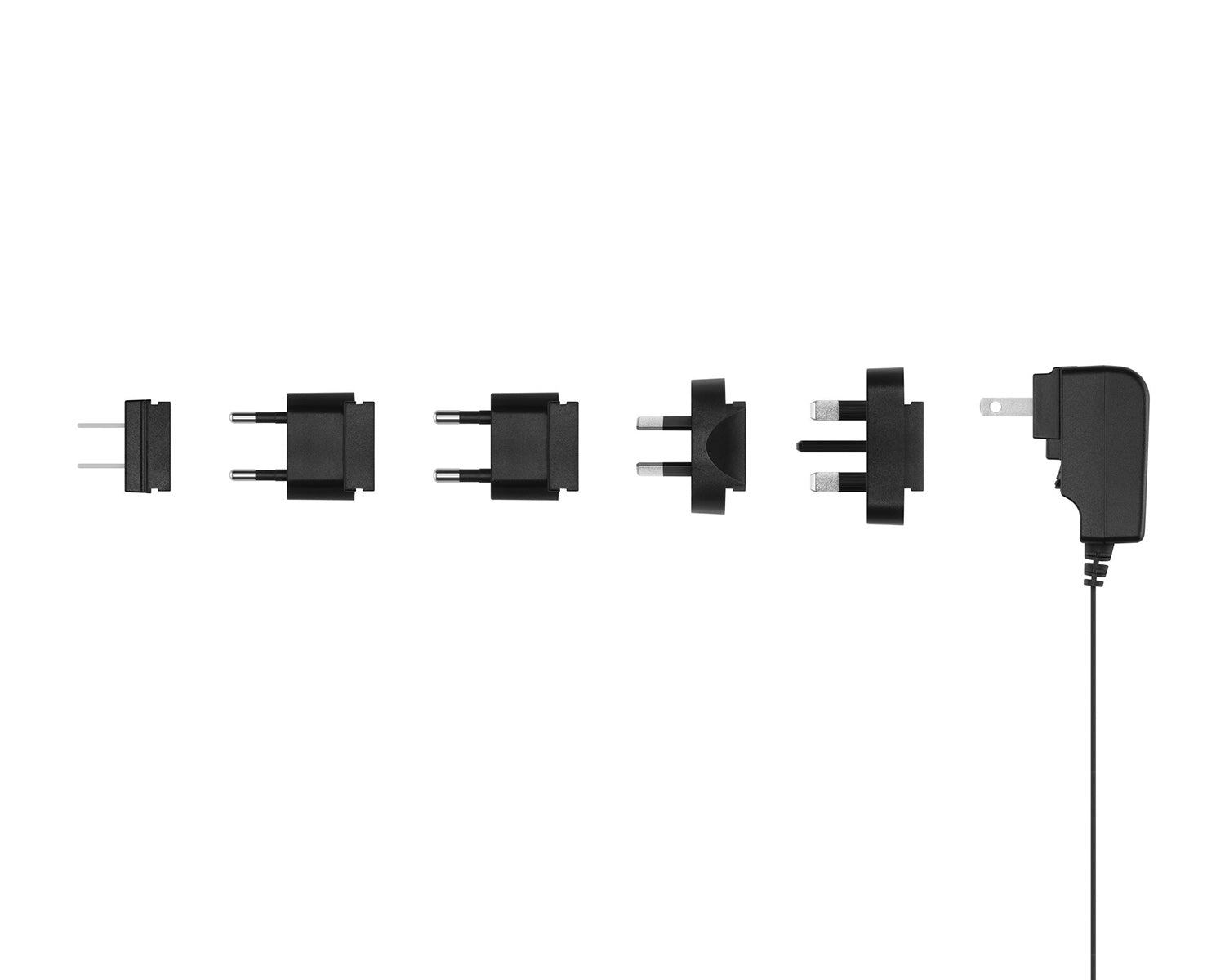

• NT 12-5CW Power Supply + Country Adapter
• Quick Guide
• Safety Guide
• Compliance Sheet
• Frequency Table

Optional Accessories

• XSW Rack Mount Kit - Art. no. 507351
• XSW Front Antenna Cables - Art. no. 507468
• XSW BNC Antenna - Art. no. 522419

Product Variants

• XSW IEM SR (A) 476-500 MHz - Art. no. 509151
• XSW IEM SR (B) 572-596 MHz - Art. no. 509152
• XSW IEM SR (C) 662-686 MHz - Art. no. 509153
• XSW IEM SR (E) 823.2-831.8 MHz - Art. no. 509154
• XSW IEM SR (K) 925.2-937.3 MHz - Art. no. 509155
