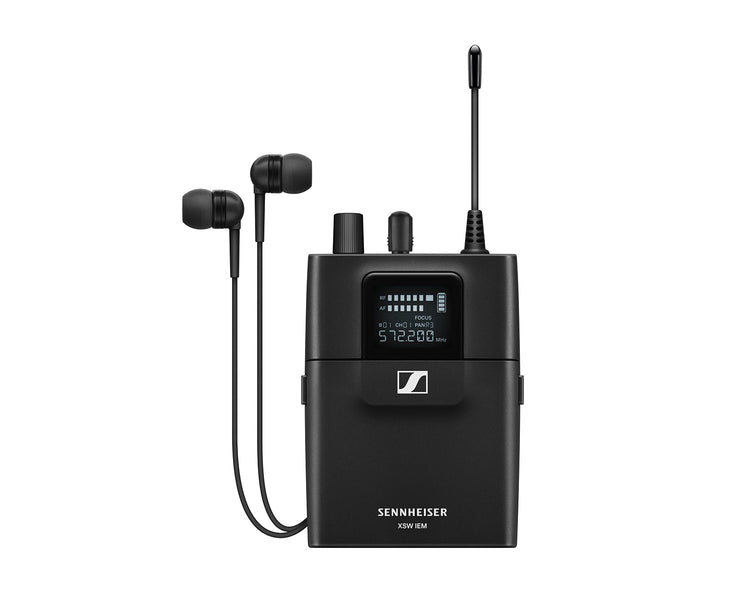

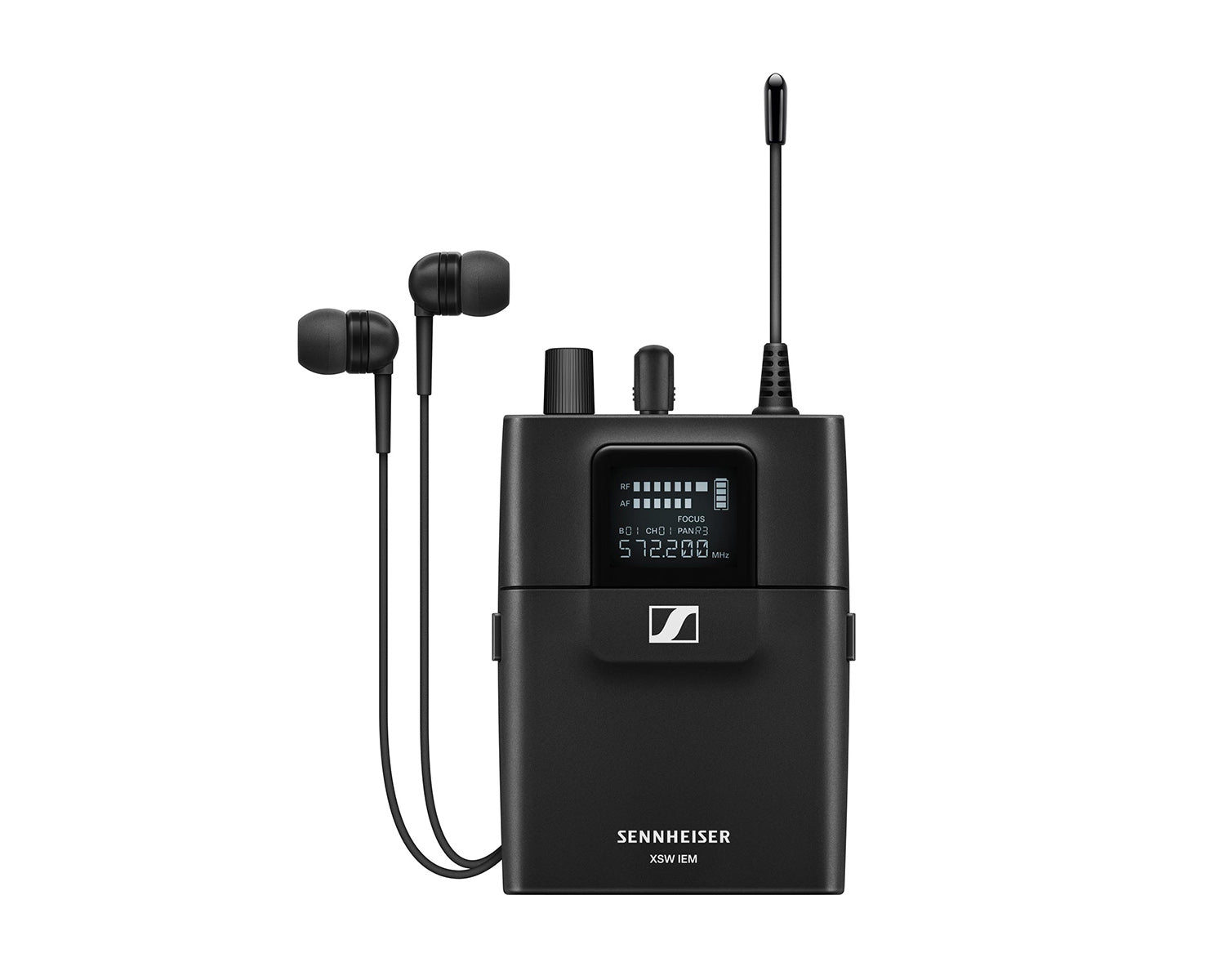

Lightweight in-ear monitoring bodypack – part of the XS Wireless IEM series. With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt.

You can plug in the included IE 4 headphones or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance – while the front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Band E - 823.2 – 831.8 MHz (Channel 38 \'Duplex Gap\')
• UHF bodypack receiver to expand existing XS Wireless IEM setups

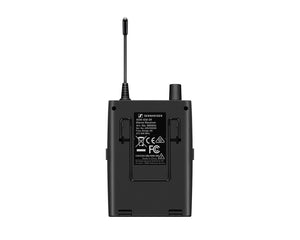

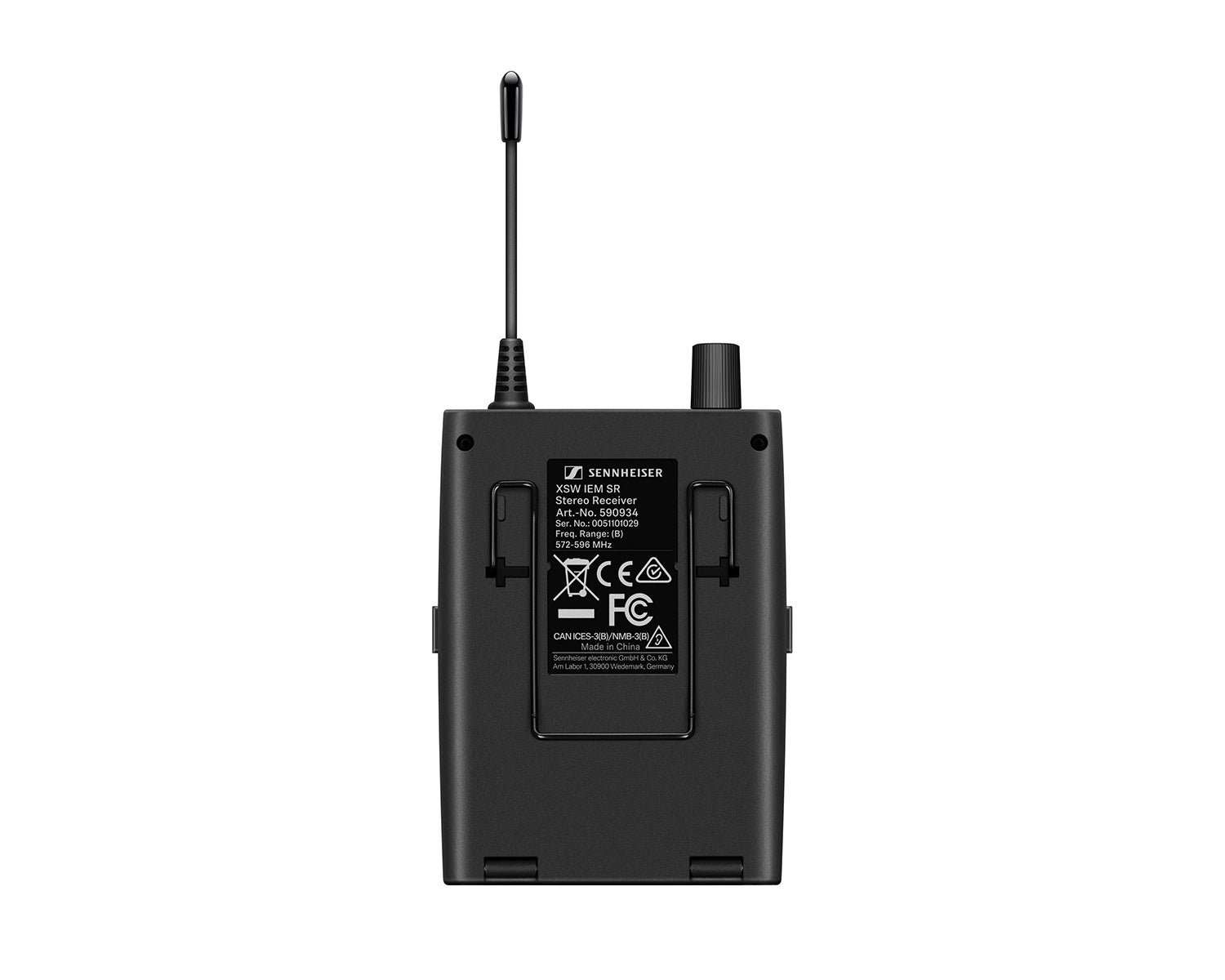

• Lightweight bodypack with rear clamp and stage-proof control panel
• Standard 3.5 mm jack plug for supplied IE 4 headphones or optional in-ear sets

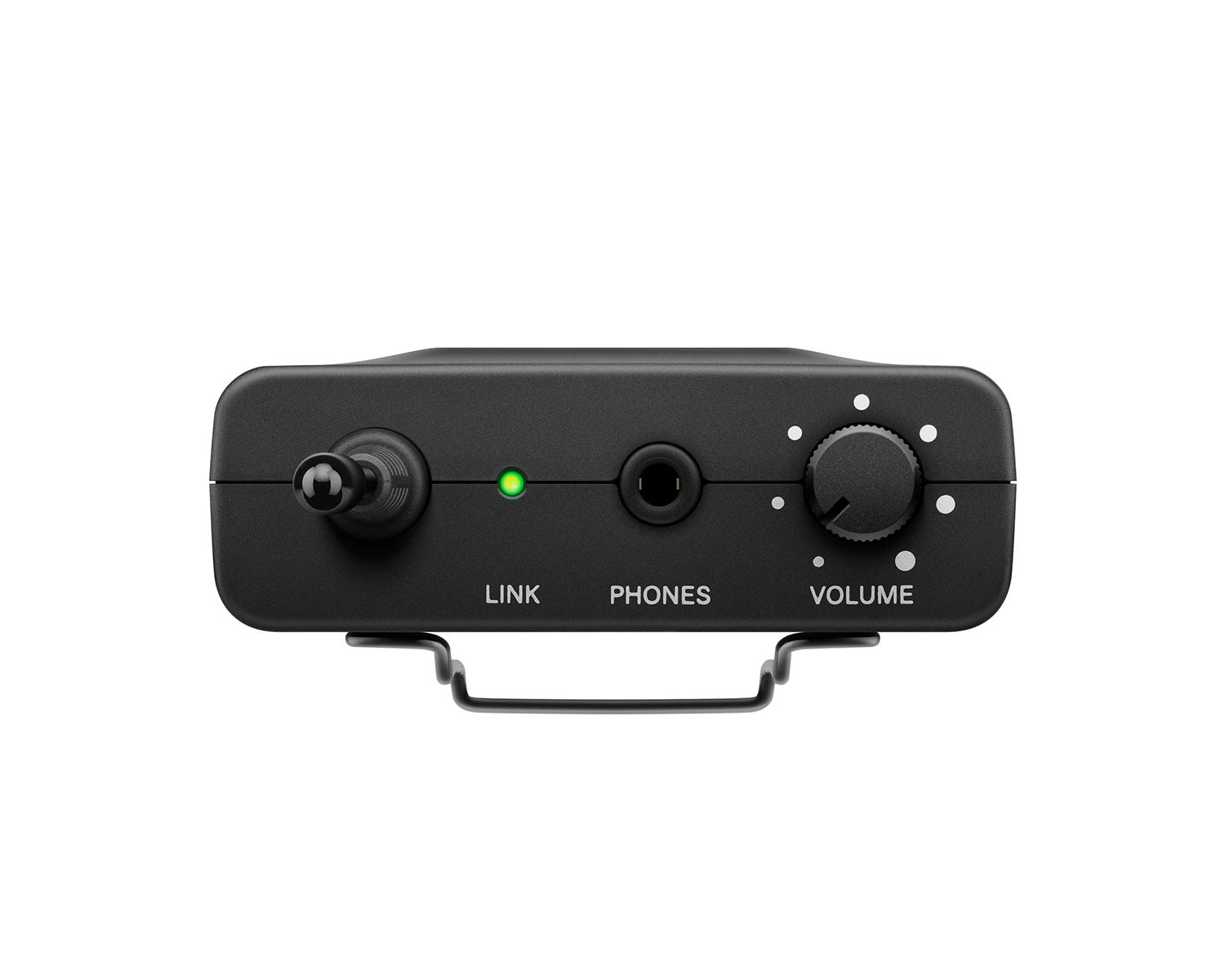

• Backlit front panel and status LED for battery and link status
• Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
• Pan control for individual balance of the input channels

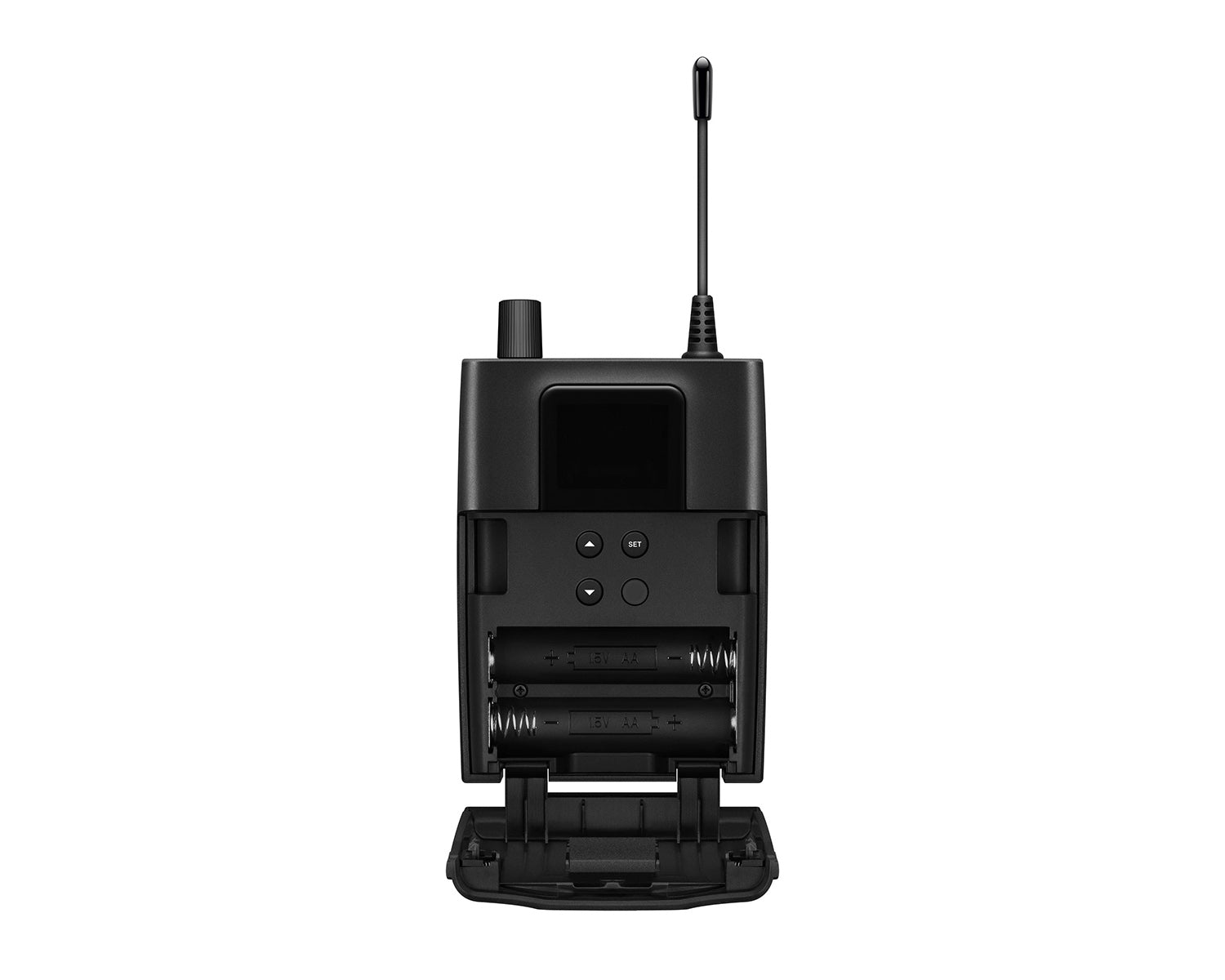

• Operates with 2x AA primary cells or rechargeable batteries

Product Specifications

• RF characteristics
  • Modulation: Wideband FM
  • Frequency ranges
    • A: 476 - 500 MHz
    • B: 572 - 596 MHz
    • C: 662 - 686 MHz
    • E: 823.2 - 831.8 MHz
    • K: 925.2 - 937.3 MHz
  • Switching bandwidth: up to 24 MHz
  • Nominal/peak deviation: ±15 kHz / ±24 kHz
  • Squelch: 10 µV, fixed
• AF characteristics
  • Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
  • Total harmonic distortion (THD): ≤ 1 %
  • AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω
  • High Boost (EQ): +10 dB at 13 kHz
  • Limiter: -10 dB
  • AF frequency response: 45 Hz to 15 kHz
  • Cross talk (50 Hz - 10 kHz): typically 45 dB
• Overall device
  • Temperature range: 0 °C to +40 °C
  • Power supply: 2 AA batteries, 1.5 V
  • Nominal voltage: 3 V battery
  • Operating time: Approx. 6 hrs (depending on volume level)
  • Dimensions: Approx. 95 x 70 x 26 mm
  • Weight (incl. batteries): Approx. 110 g

What's in the Box?

• XSW IEM EK Stereo Receiver

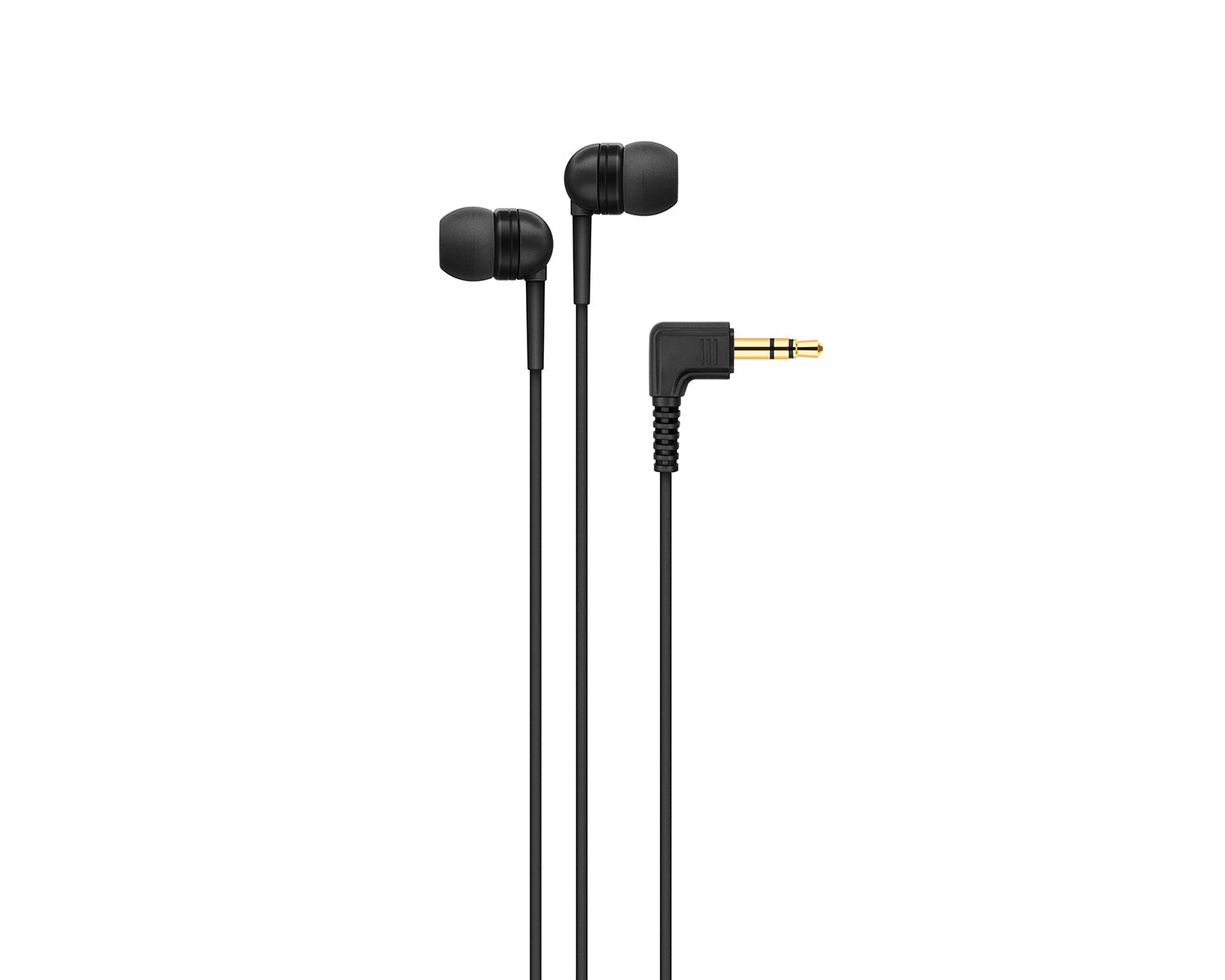

• IE 4 In-ear headphones
• 2 AA batteries
• Quick Guide
• Safety Guide
• Compliance Sheet
• Frequency Table

Optional Accessories

• XSW IEM EK Battery Cover - Art. no. 592583
• XSW BNC Antenna - Art. no. 522419

Product Variants

• XSW IEM EK (A) 476-500 MHz - Art. no. 509156
• XSW IEM EK (B) 572-596 MHz - Art. no. 509157
• XSW IEM EK (C) 662-686 MHz - Art. no. 509158
• XSW IEM EK (E) 823.2-831.8 MHz - Art. no. 509159
• XSW IEM EK (K) 925.2-937.3 MHz - Art. no. 509160
