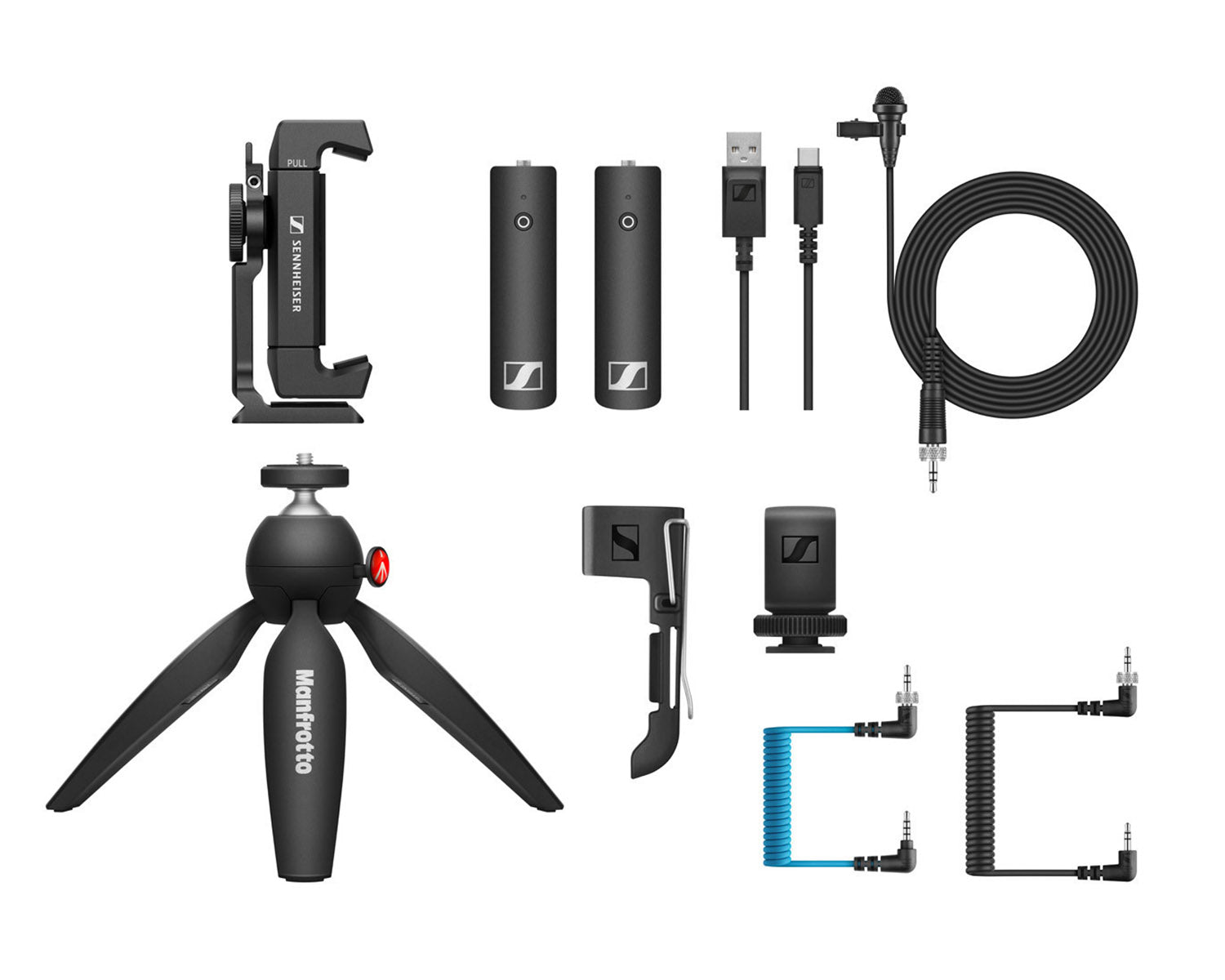

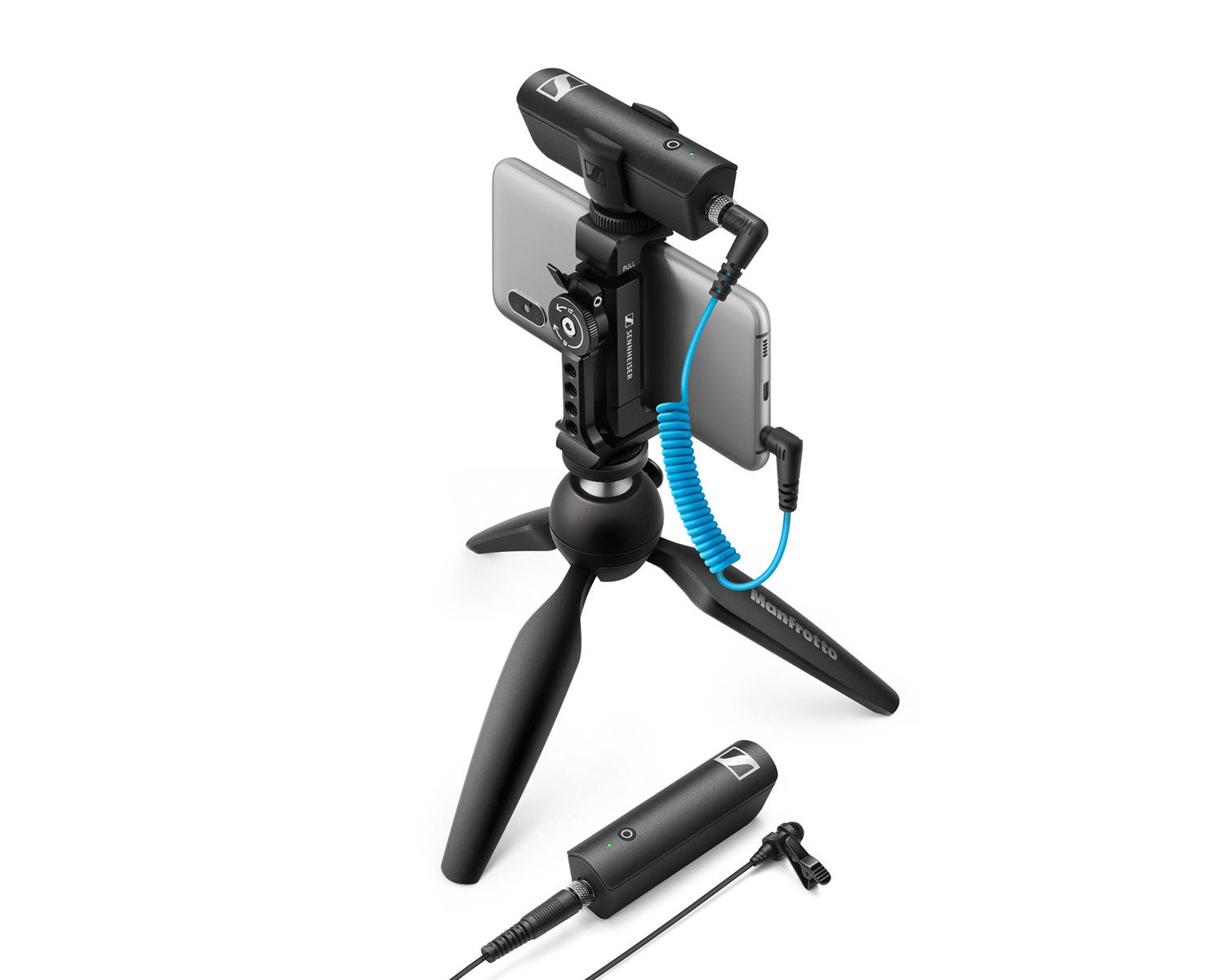

Designed for vloggers and content creators on the move, the XSW-D Portable Lav Mobile Kit includes Sennheiser’s XSW-D Portable Lavalier Set and Smartphone Clamp, as well as the Manfrotto PIXI Mini Tripod. The XSW-D Portable Lavalier Set features a complete 2.4 GHz wireless lavalier system while the Smartphone Clamp allows for both portrait and landscape orientation. The Manfrotto PIXI features a locking ball head which can be adjusted with the push of a button so you can dial in your frame with ease.

The XSW-D Portable Lav Mobile Kit combines functionality with efficiency for the ultimate vlogging experience. Upgrade your audio and your video with these three essential tools.

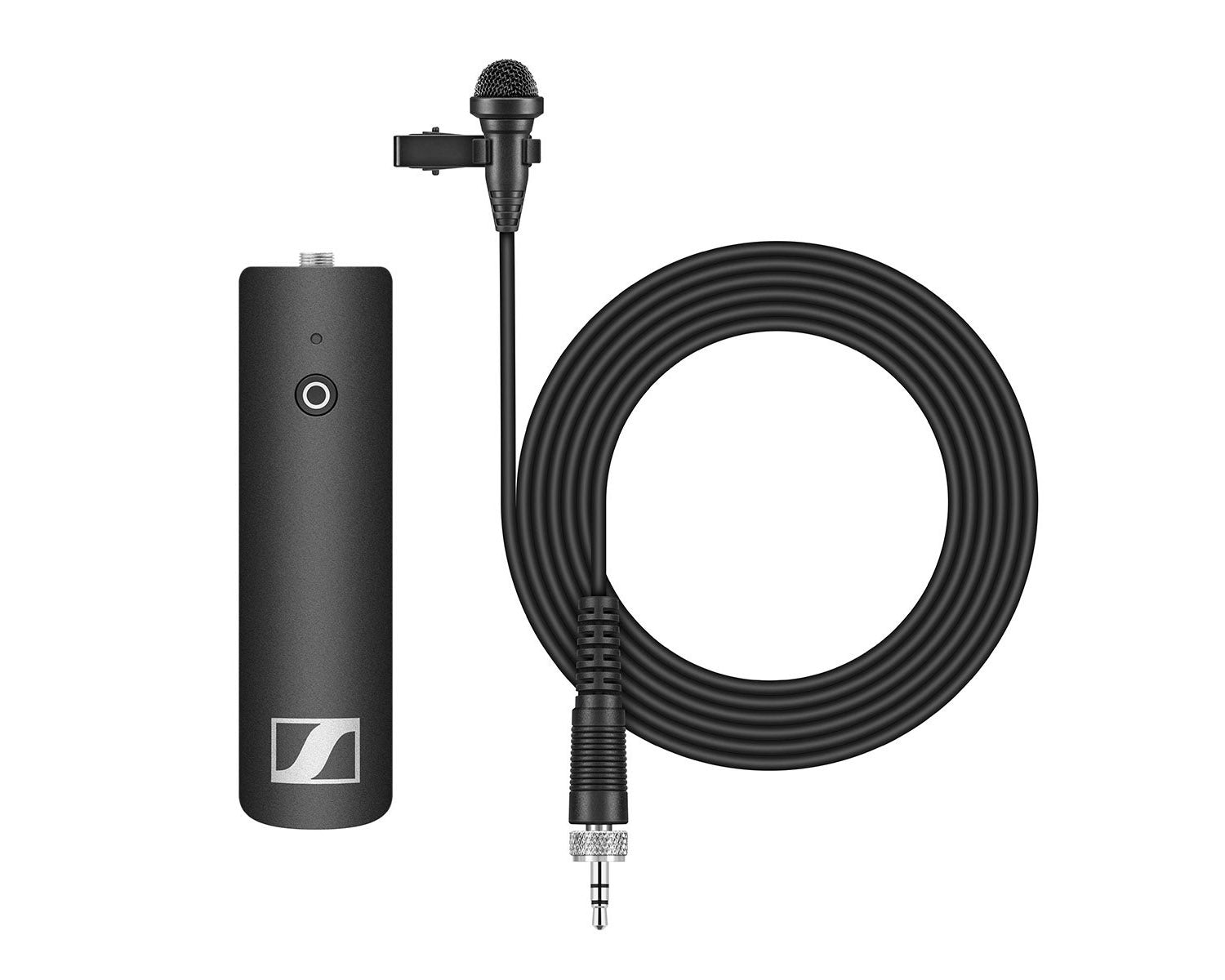

The XSW-D Portable Lavalier Set includes a one-touch ease-of-use wireless audio system that utilizes a digital transmission to seamlessly link audio sources. Equipped with our ME2-II omnidirectional lavalier microphone, this elegant solution makes capturing dialogue on a DSLR/M easier than ever before while maintaining a reliable connection.

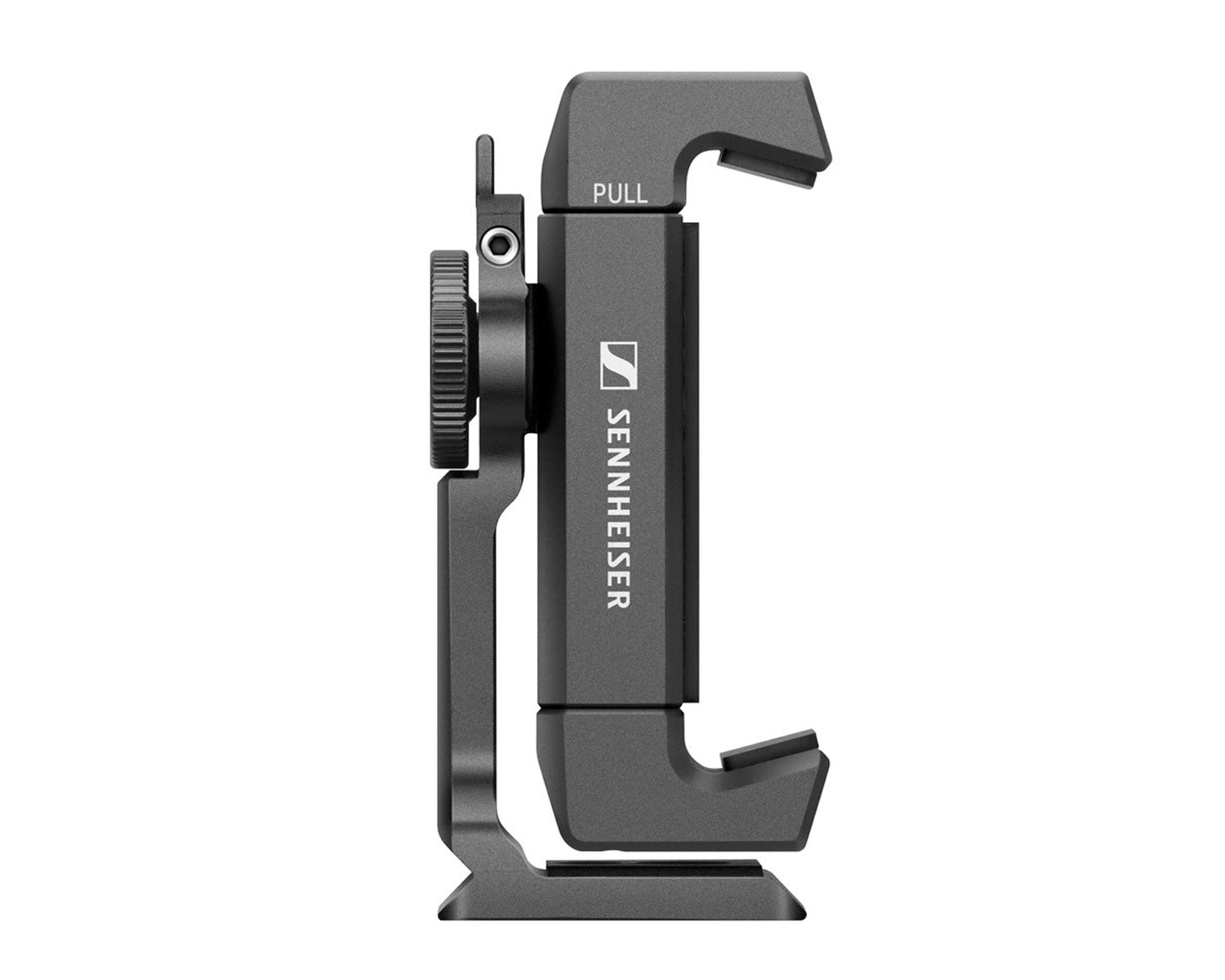

The Smartphone Clamp is made from solid aluminium and features soft rubber grips that provide a secure fit for nearly all mobile phones. A 180-degree locking dial allows for portrait or landscape positioning so you can switch from one aspect ratio to another with ease.

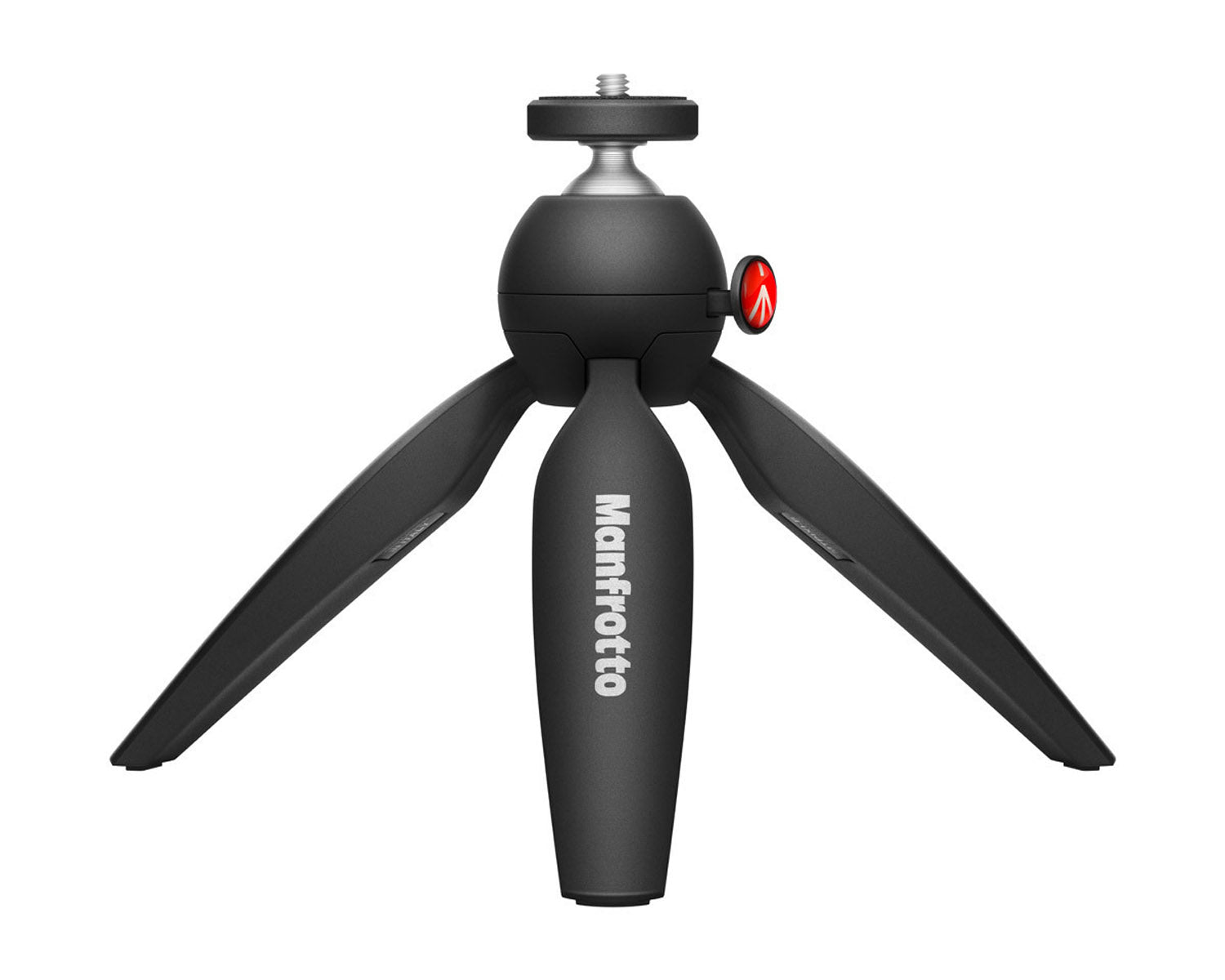

The Manfrotto PIXI is a durably constructed lightweight mini tripod that features a ball-joint head with a push-button locking mechanism that enables you to position and lock the ball head in one fluid, intuitive motion. Rubber feet ensure a slip-free grip on most surfaces and collapsible legs allow for convenient handheld vlogging that adds stability to your videos.

For creators that are looking for a great mobile solution, the XSW-D Portable Lav Mobile Kit provides the right set of tools to elevate your content.

Product Features

• Mobile Kit ideal for vloggers and content creators on the move
• XSW-D Portable Lavalier Set features a complete digital wireless lavalier system
• Smartphone Clamp with cold shoe mount offers portrait or landscape orientation
• Manfrotto PIXI Mini Tripod features a push-button locking ball head for desired placement
• Durably constructed components built to withstand daily use

Product Specifications

USB-C Charging Interface

• Input voltage: typ. 5.0 V
• Charging temperature: 0 °C - 60 °C (32 °F - 140 °F)
• Charging time: typ. 3 h

Battery Pack

• Cell type: Li-Ion
• Nominal voltage: 3.7 V
• Cell capacity: 850 mAh
• Operating time: up to 5 h

AF Characteristics

• Codec: aptX® Live
• Audio frequency response
  • 3.5 mm Jack/XLR: 80 - 18,000 Hz
  • 6.3 mm Jack: 10 - 18,000 Hz
• Audio output: max. 12 dBu
• Signal-to-noise ratio: ≥ 106 dB
• THD: < 0.1 %
• Audio latency: < 4 ms

Product Properties

• Dimensions
  • XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
  • XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
• Weight
  • XSW-D MINI JACK TX: approx. 73 g
  • XSW-D MINI JACK RX: approx. 73 g
• Frequency range: 2,400 - 2,483.5MHz
• Transmission power (EIRP): max. 10 mW
• Modulation: GFSK with TDMA

Environmental Conditions

• Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Relative humidity: 95 % (non-condensing)

What's in the Box?

• XSW-D 3.5 mm (1/8“) transmitter

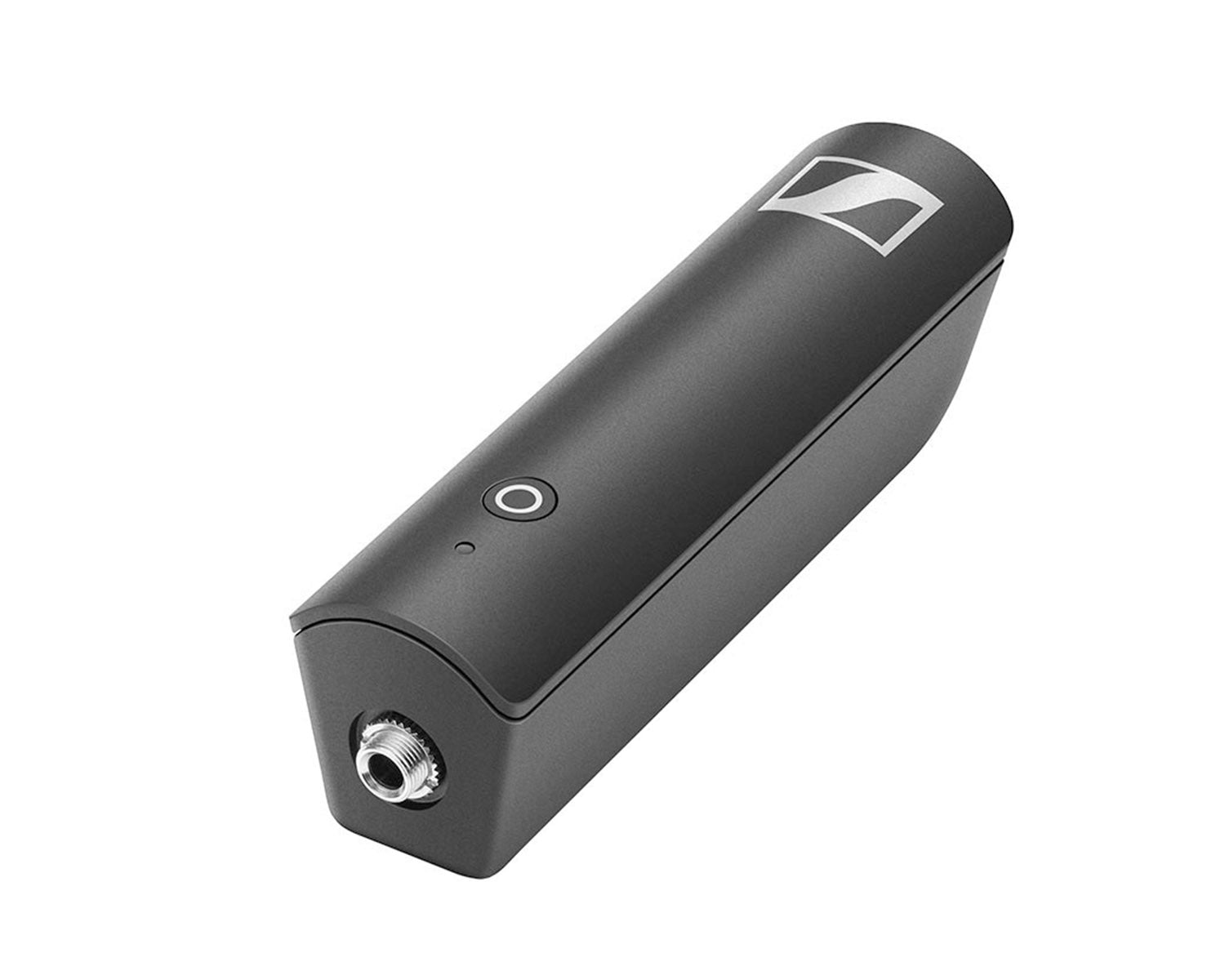

• XSW-D 3.5 mm (1/8“) receiver
• ME 2-II clip-on lavalier mic
• Cold Shoe mount
• Belt clip

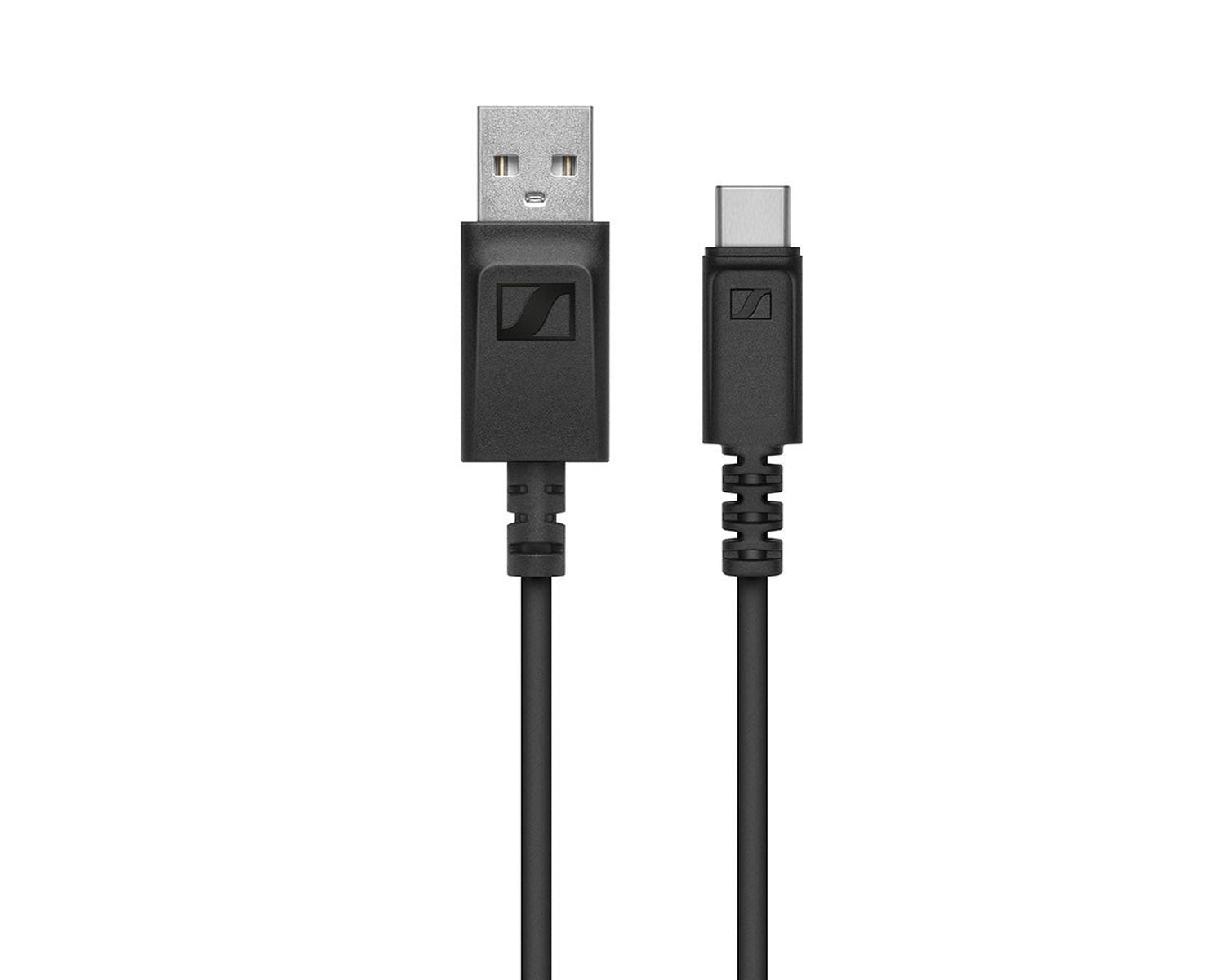

• USB-A to USB-C charging cable
• Manfrotto PIXI Mini Tripod
• Sennheiser Smartphone Clamp

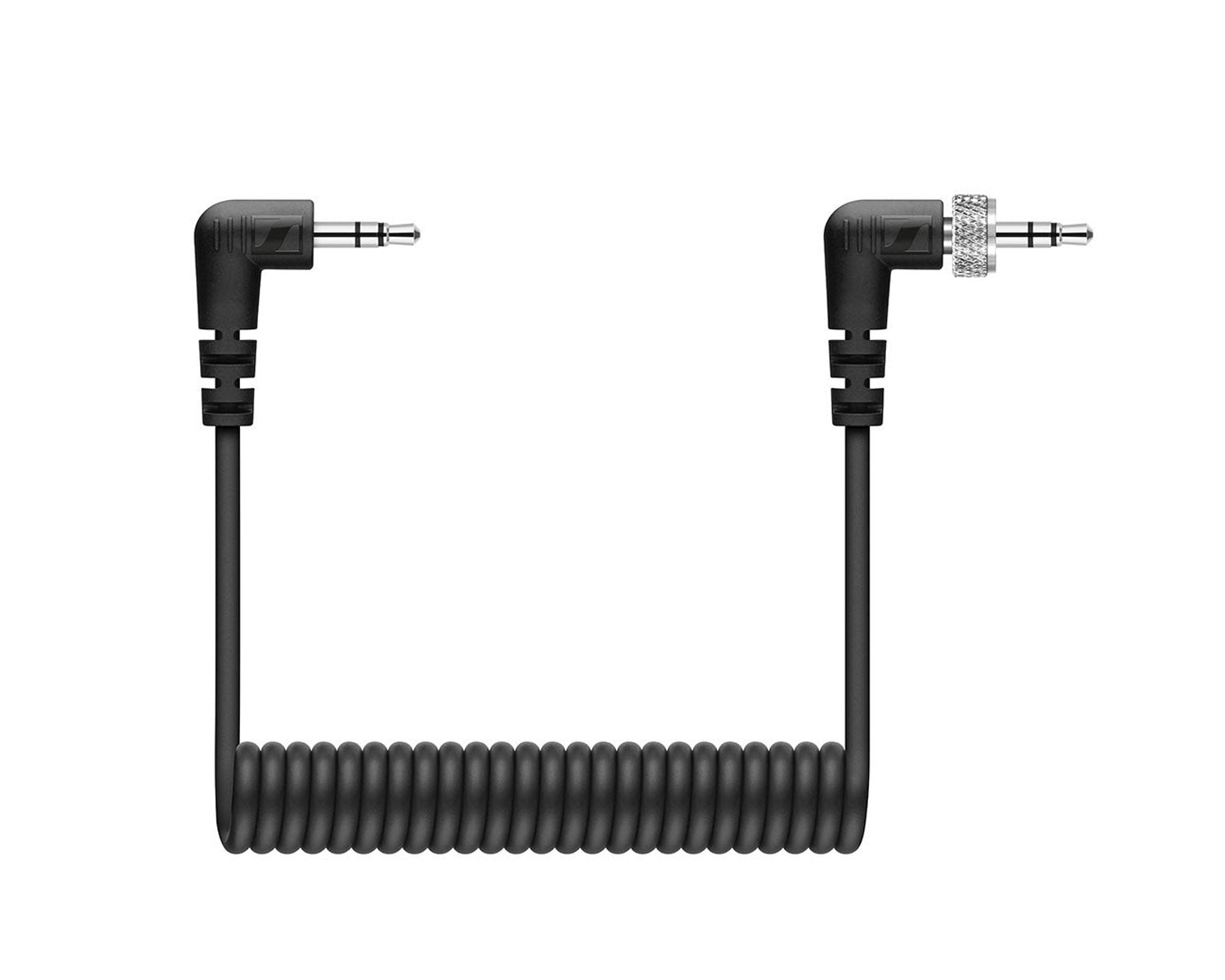

• Locking 3.5 mm TRS to TRS coiled cable
• Locking 3.5 mm TRS to TRRS coiled cable
