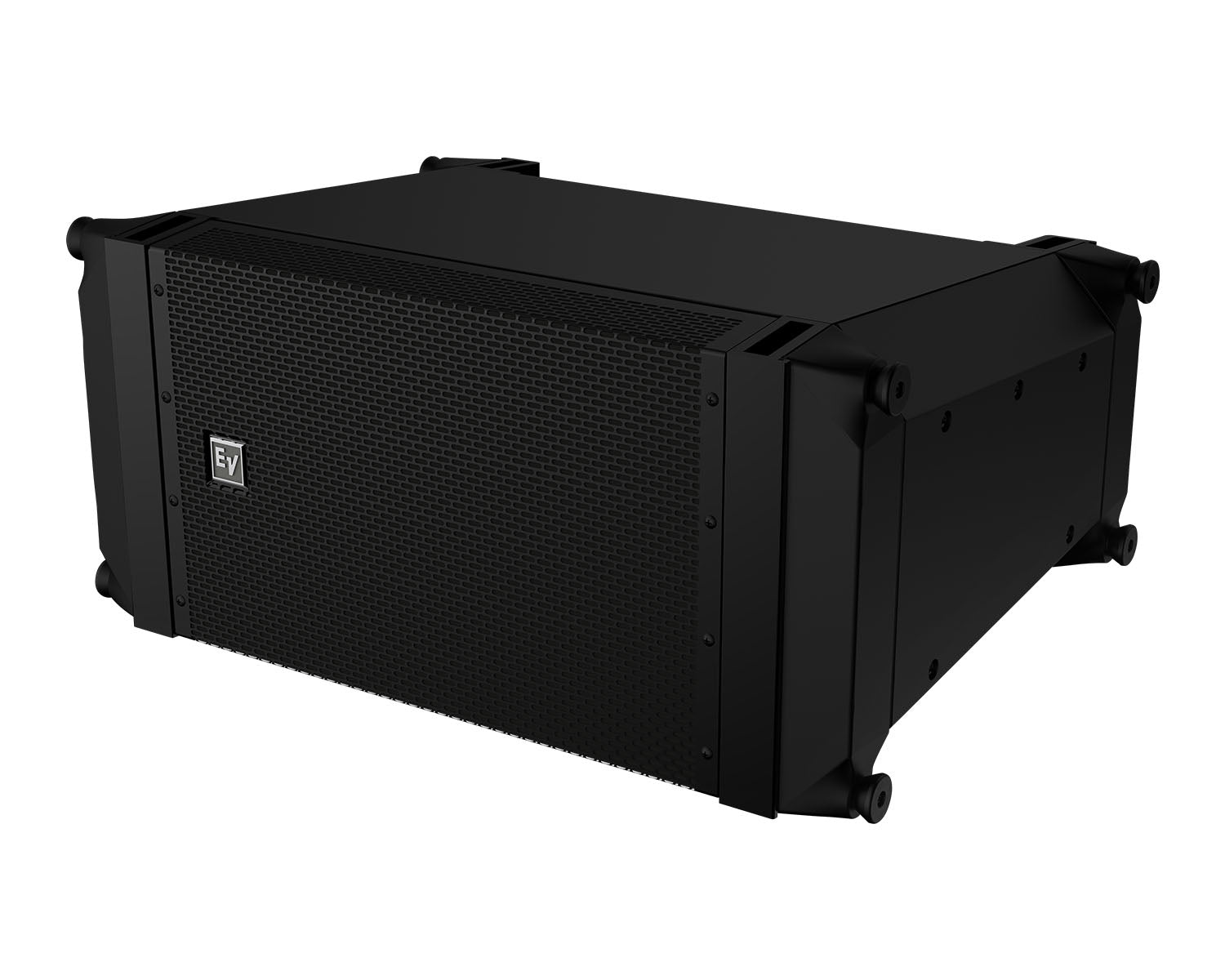

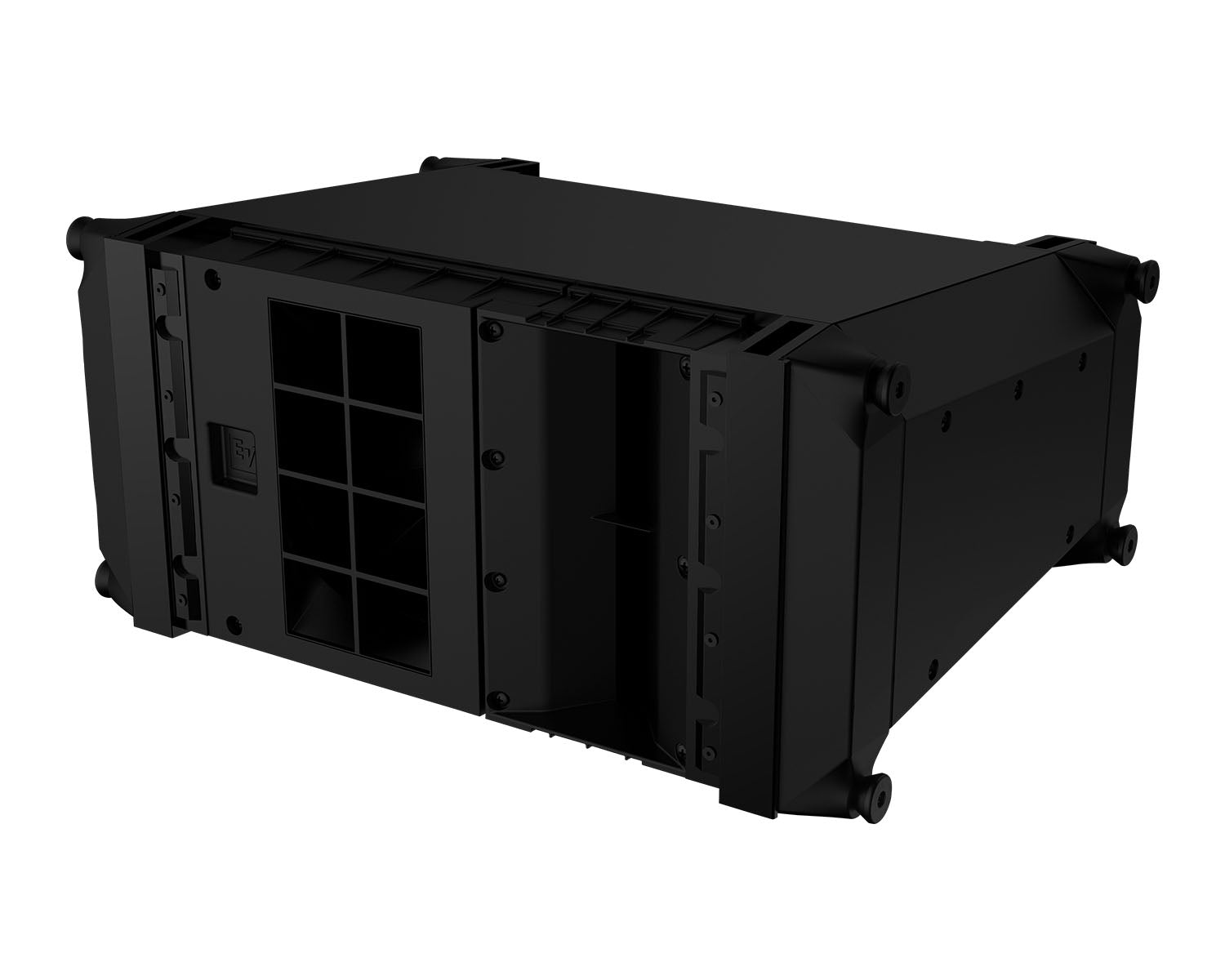

The X1-212/120 is two-way vertical line-array loudspeaker element providing 120-degree horizontal coverage, expanding the flexibility of the X-Line Advance family.

It is ideal for use as a wide-coverage system in permanent installations using all 120-degree elements, or as the near-field element in a combined line array positioned below 90-degree elements in either passive or bi-amplified mode.

The X-Line Advance family is designed for a wide variety of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package.

Product Features

• Integrated Rigging System - (IRS)
• Mid-Band Hydra Line Source Technology - (MBH)
• Wavefront-shaping Circular Hydra - (WCH)
• Proprietary Electro-Voice FIR-Drive settings
• Compatible with all grids and dollies currently available for 90-degree versions
• New IRIS-Net speaker settings, EASE files, EDS documents, and LAPS 3.3 are available

Product Specifications

• Freq. Response (-3 dB): 57 Hz - 16 kHz
• Horizontal Coverage: 120°
• Vertical Coverage: Array dependent
• Recommended High-Pass Freq.: 50 Hz
• Max Calculated SPL: 142 db Peak
• Configuration: Passive, Bi-amp
• Passive Crossover Freq.: 1600 Hz
• Passive Axial Sensitivity: 98 dB (1 W/1 m)
• Passive Power Handling: 500 W Continuous, 2000 Peak
• Passive Impedance: 8 Ω (nominal), 6.4Ω (min)
• LF Transducer: SMX2121, 12-in (305 mm) driver
• LF Axial Sensitivity: 98 dB (1 W/1 m)
• LF Power Handling: 400 W Continuous, 1600 W Peak
• LF Impedance: 8 Ω (nominal), 6.1 Ω (min)
• HF Transducer: 2 x ND2R, 2-in (51 mm) diaphragm compression driver
• HF Axial Sensitivity: 109 dB (1 W/1 m)
• HF Power Handling: 120 W Continuous, 480 W Peak
• HF Impedance: 8 Ω (nominal), 6.0 Ω (min)
• Connectors: Dual NL8 type connector
• Enclosure: 13-ply weather resistant birch with EVCoat
• Grille: 16 GA powder coated galvanneal
• Suspension: IRS — Integrated Rigging System
• Dimensions (H x W x D): 13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4mm)
• Net Weight: 92 lb (41.7 kg)
• Shipping Weight: 106 lb (48 kg)
