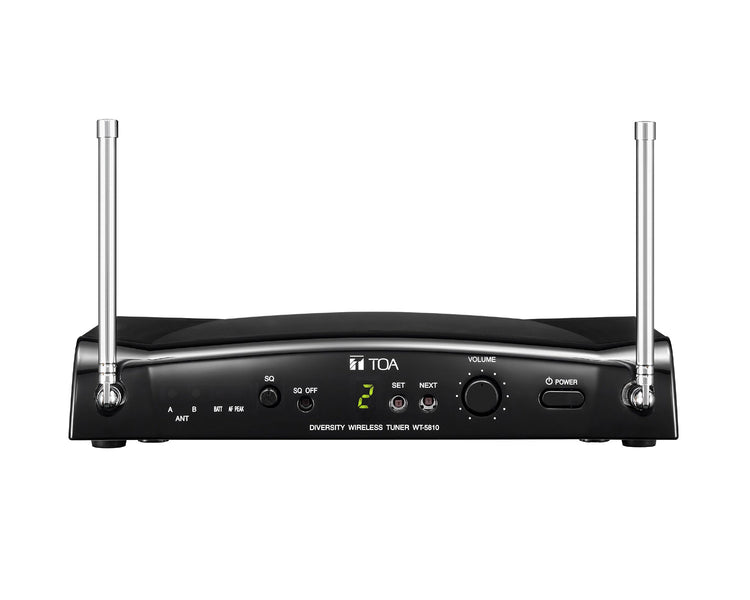

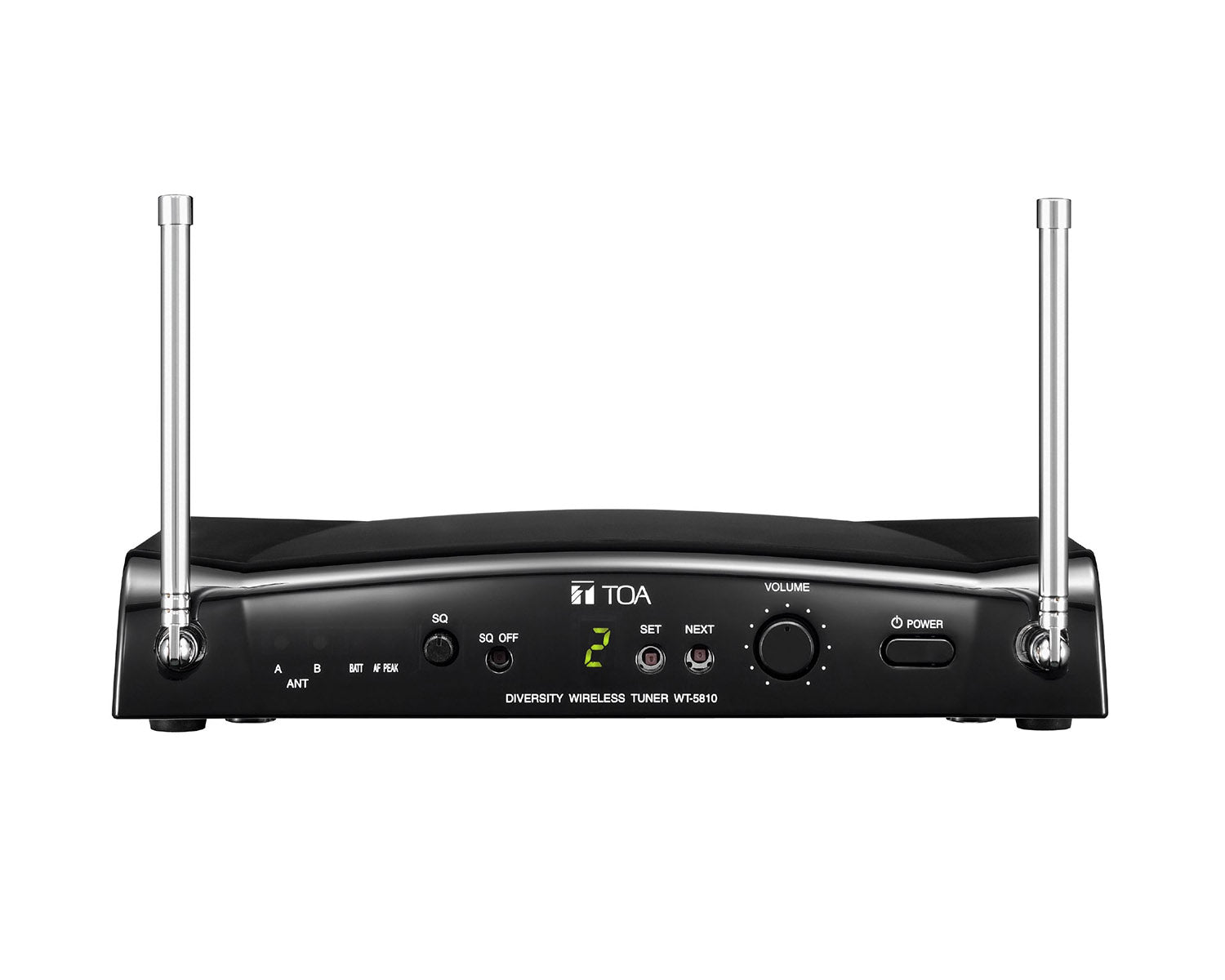

The WT-5810 is a PLL-synthesizer controlled double superheterodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

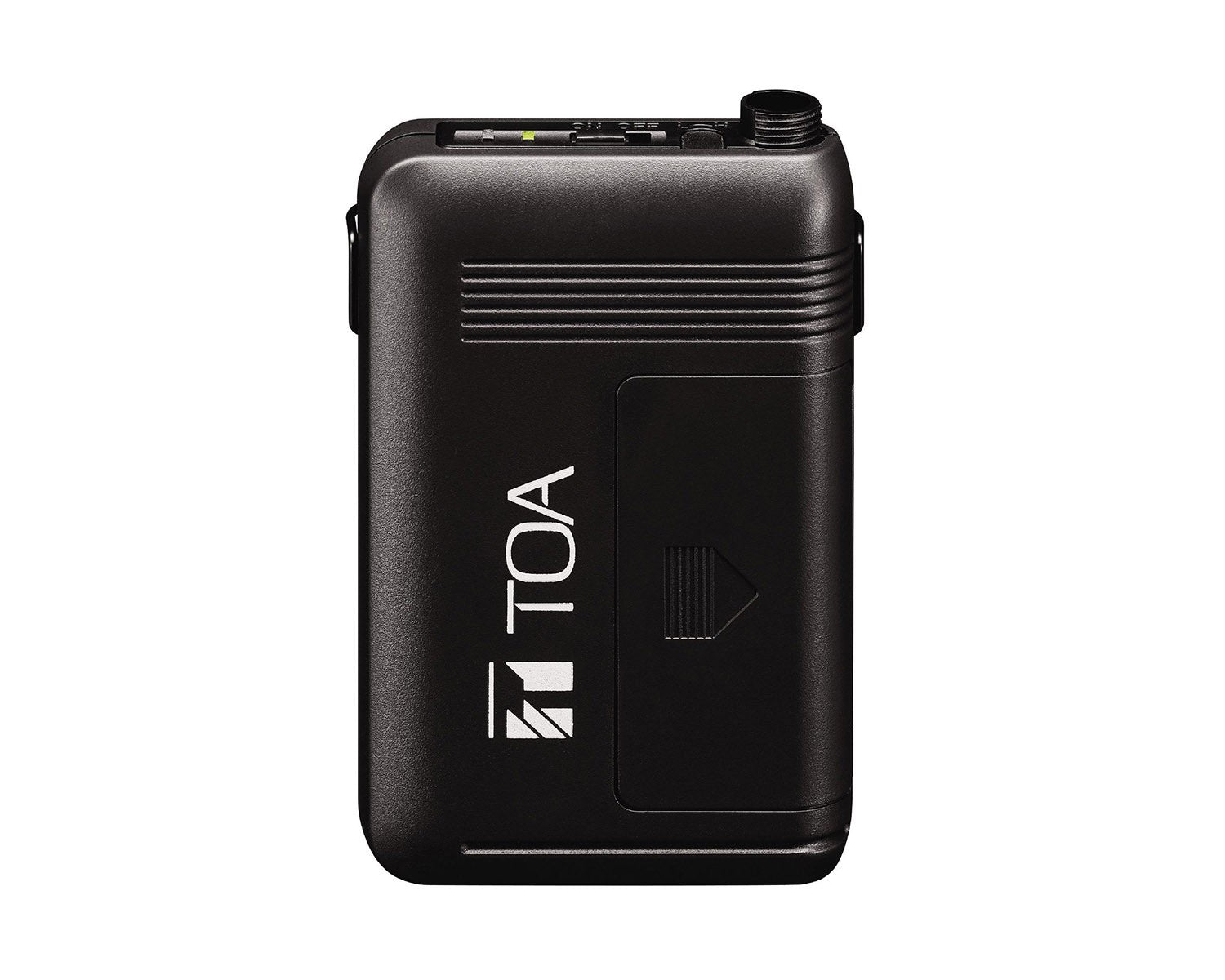

WM-5325 UHF Wireless Bodypack Transmitter

The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

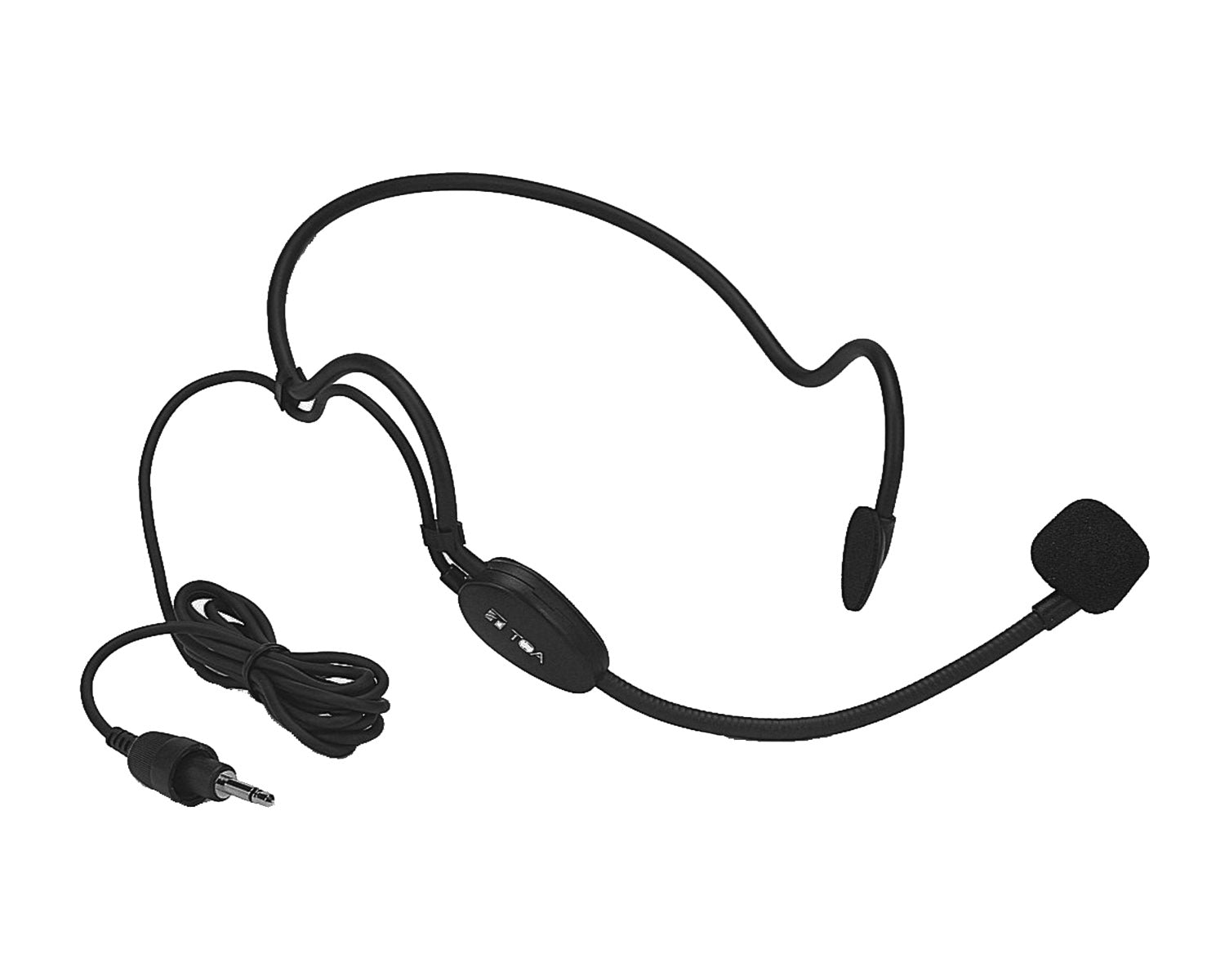

WH-4000H Headworn Microphone

A comfortable headset microphone designed for voice applications

Product Features

WT-5810 D04ER

• Diversity operation
• Automatic frequency scan
• Additional audio mixing input
• Adjustable triple-squelch
• Battery status indicator
• Provides 16 intermodulation-free frequencies
• Allows simultaneous operation for up to 16 WT-5810 units without running the risk of interferences
• Excellent unit to take to every gig or lecture
• Other features: Battery status LED, channel display, AF peak LED, antenna A/B-LED

WM-5325 UHF Wireless Bodypack Transmitter

• UHF bodypack transmitter with excellent range
• Compact and ultra-lightweight and can be carried effortlessly over long periods of time
• Equipped with belt clip and a length-adjustable neck strap
• Wide range coverage and long battery durability
• Specially developed for speech applications

WH-4000H Headworn Microphone

• Comfortable headset
• Designed for voice applications
• Unidirectional characteristics
• Electret condenser capsule
• Max. SPL: 120 dB
• Frequency Response: 80 Hz – 15 kHz ±3 dB
• To use with WM-5325 or WM-D5300 Beltpack

Product Specifications

WT-5810 D04ER

• Power source (combined): AC mains (supplied AC adapter must be used)
• Power supply: 12 V DC, 130 mA
• Diversity principle: Space diversity (antenna switching)
• Frequency response (combined): 100 Hz - 15 kHz
• Receiving frequency: 863 - 865 MHz
• Automatic frequency scan: Yes
• Receiver sensitivity: 20 dBμV (S/N >90 dB, 40 kHz deviation)
• Antenna inputs: No (fixed rod antenna)
• Nominal output level: Mic: -60 dBV, line: -20 dBV
• Audio output: XLR balanced (mic), ¼“ jack unbalanced (line)
• Audio mixing input: ¼“ jack unbalanced
• Indicator: ANT A/B, Audio (peak), Battery alarm, Channel number
• Selectable frequencies (combined): 16
• Simultaneous channels (combined): 16 (16)
• Input sensitivity: Line (-20 dBV)
• S/N ratio (combined): 104 dB (A)
• Dimensions (W x H x D): 206 x 40,6 x 152,7 mm
• Dimensions (ø x D): x 152,7 mm
• Finish: Resin, black
• Operating humidity: 30 % - 85 % RH
• Operating temperature: –10°C to +50°C (14°F to 122°F)

WM-5325 UHF Wireless Bodypack Transmitter

• Power source (combined): Battery (1x AA type, Alkaline, or WB-2000-2)
• Audio input: 3.5 mm mini-jack (with screw-on cap)
• Operating time approx.: 10 h (with AA), 13 h (with WB-2000)
• Frequency range: 863 – 865 MHz
• Selectable frequencies: 64
• Simultaneous channels: 7
• AF response: 100 Hz - 15 kHz
• RF output power: 10 mW
• Weight: 90,0 g
• Dimensions (W x H x D): 62 x 102,5 x 23 mm
• Dimensions (ø x D): x 23 mm
• Gross weight: 0,26 kg
• Finish: Resin, pre-coated, black

WH-4000H Headworn Microphone

• Max. SPL: 120 dB
• Frequency Response: 80 Hz – 15 kHz ±3 dB
