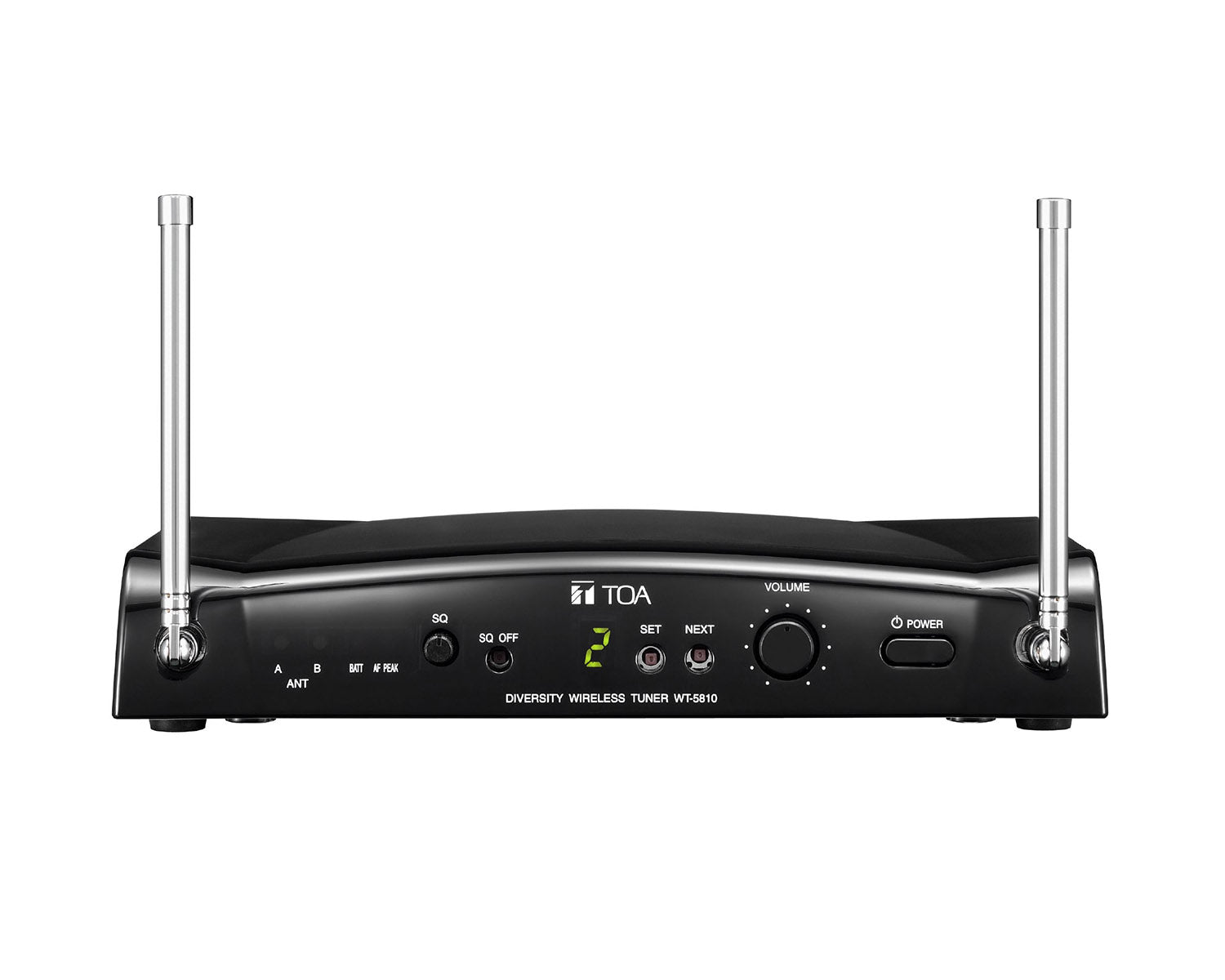

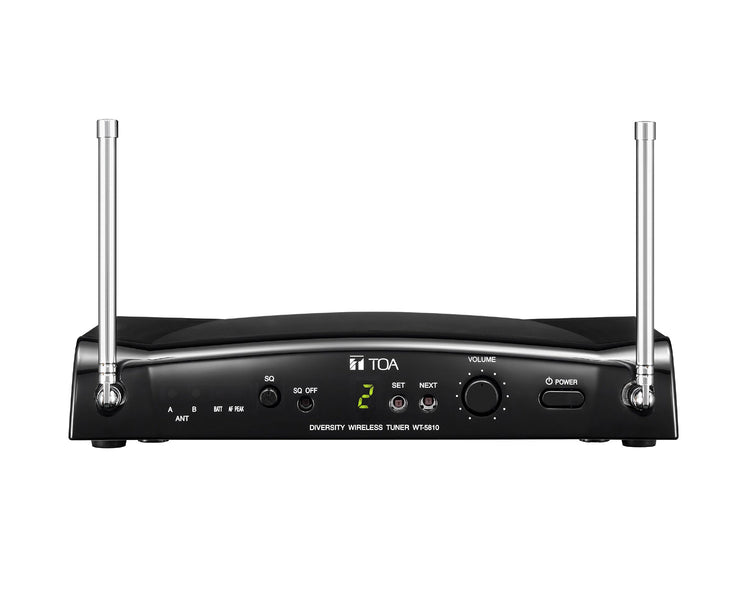

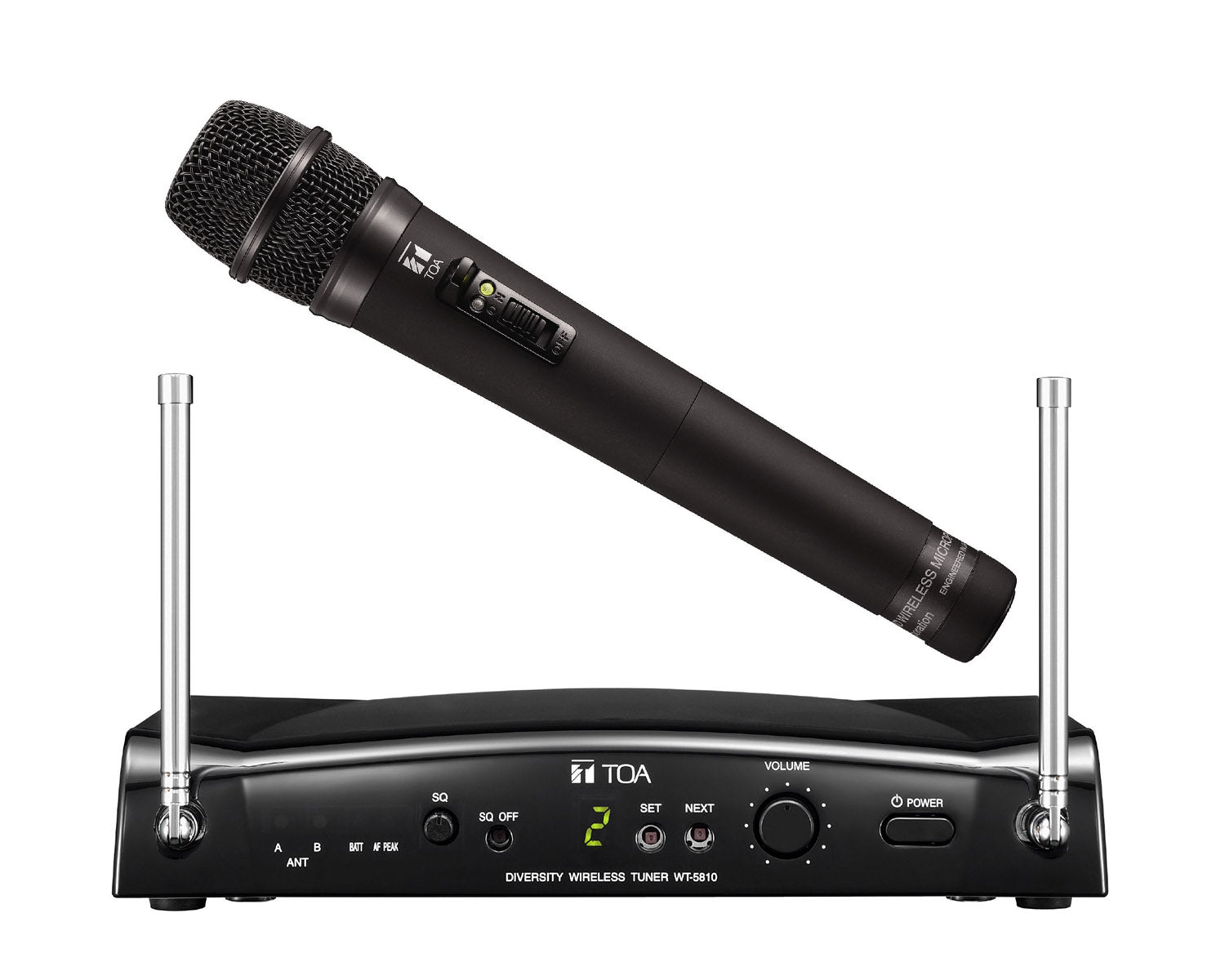

The WT-5810 is a PLL-synthesizer controlled double superheterodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

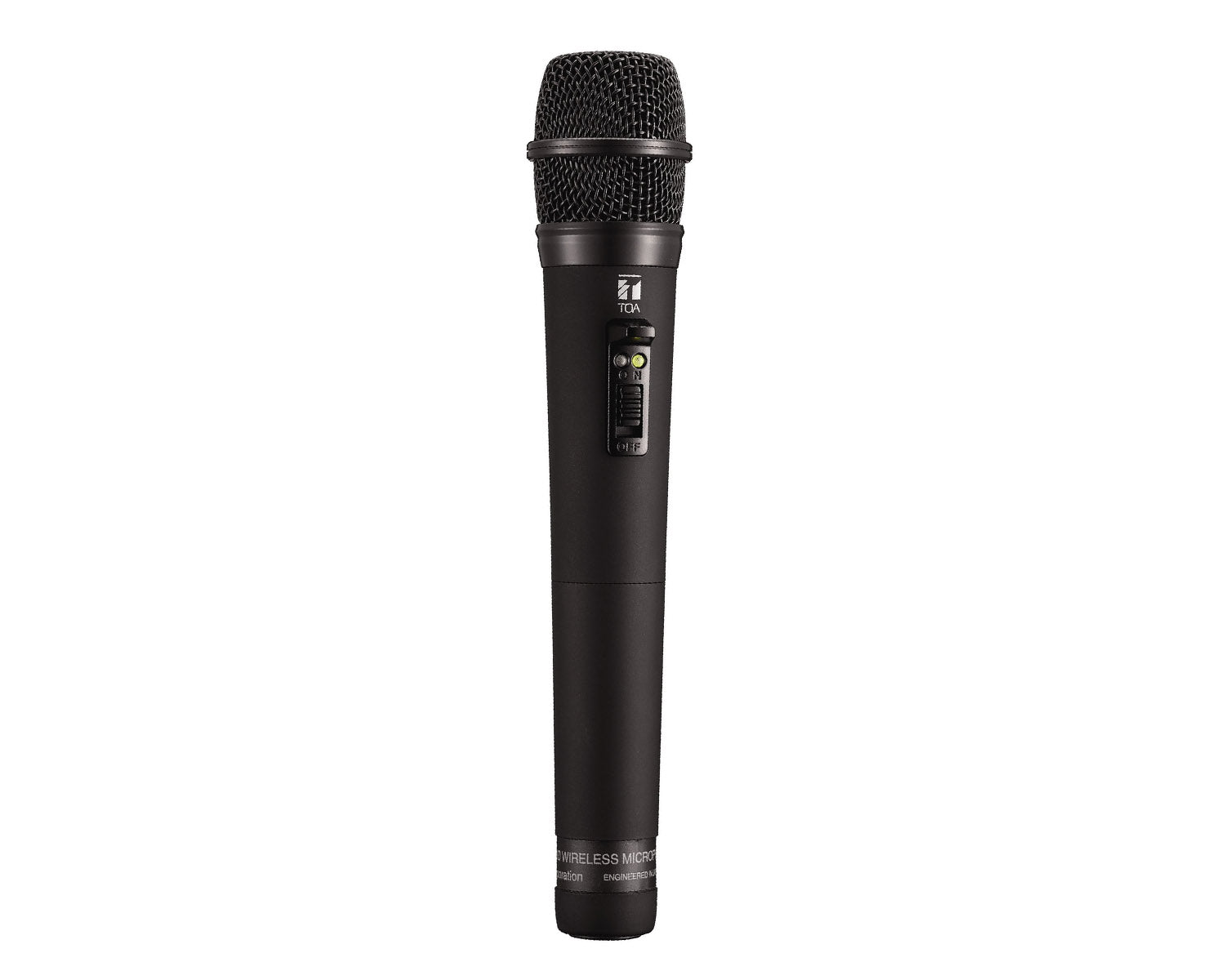

WM-5225 Condenser Handheld Transmitter

The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

Product Features

WT-5810 G01ER

• Diversity operation
• Automatic frequency scan
• Additional audio mixing input
• Adjustable triple-squelch
• Battery status indicator
• Provides 16 intermodulation-free frequencies
• Allows simultaneous operation for up to 16 WT-5810 units without running the risk of interferences
• Excellent unit to take to every gig or lecture
• Other features: Battery status LED, channel display, AF peak LED, antenna A/B-LED

WM-5225 Condenser Handheld Transmitter

• Condenser microphone with high-quality electret condenser capsule, high sensitivity and excellent sound quality
• Slim, extremely lightweight and can be held comfortably and securely
• Comes with an indispensable on/off switch, which at the same time acts as a rolling stopper
• With a maximum SPL of 126 dBSPL it is the right choice for even the most energetic speaker

Product Specifications

WT-5810 G01ER

• Power source (combined): AC mains (supplied AC adapter must be used)
• Power supply: 12 V DC, 130 mA
• Diversity principle: Space diversity (antenna switching)
• Frequency response (combined): 100 Hz - 15 kHz
• Receiving frequency: 606 – 636 MHz
• Automatic frequency scan: Yes
• Receiver sensitivity: 20 dBμV (S/N >90 dB, 40 kHz deviation)
• Antenna inputs: No (fixed rod antenna)
• Nominal output level: Mic: -60 dBV, line: -20 dBV
• Audio output: XLR balanced (mic), ¼“ jack unbalanced (line)
• Audio mixing input: ¼“ jack unbalanced
• Indicator: ANT A/B, Audio (peak), Battery alarm, Channel number
• Selectable frequencies (combined): 16
• Simultaneous channels (combined): 16 (16)
• Input sensitivity: Line (-20 dBV)
• S/N ratio (combined): 104 dB (A)
• Dimensions (W x H x D): 206 x 40,6 x 152,7 mm
• Dimensions (ø x D): x 152,7 mm
• Finish: Resin, black
• Operating humidity: 30 % - 85 % RH
• Operating temperature: –10°C to +50°C (14°F to 122°F)

WM-5225 Condenser Handheld Transmitter

• Power source: Battery (1 AA size alkaline battery, 1.5 V or WB-2000-2)
• Battery life: 10 h
• Microphone type: Electret condenser
• Directivity: Cardioid
• Frequency range: 606 – 636 MHz
• Selectable frequencies: 64
• Simultaneous channels: 16
• AF response: 100 Hz - 15 kHz
• RF output power: 10 mW
• Maximum SPL: 126 dB
• Operating humidity: 30% - 85%
• Operating temperature: -10°C ... +50°C
• Finish: Resin, black
• Dimensions: 43.6 x 231.5 mm (Ø x D)
• Weight: 180 g (with battery)
