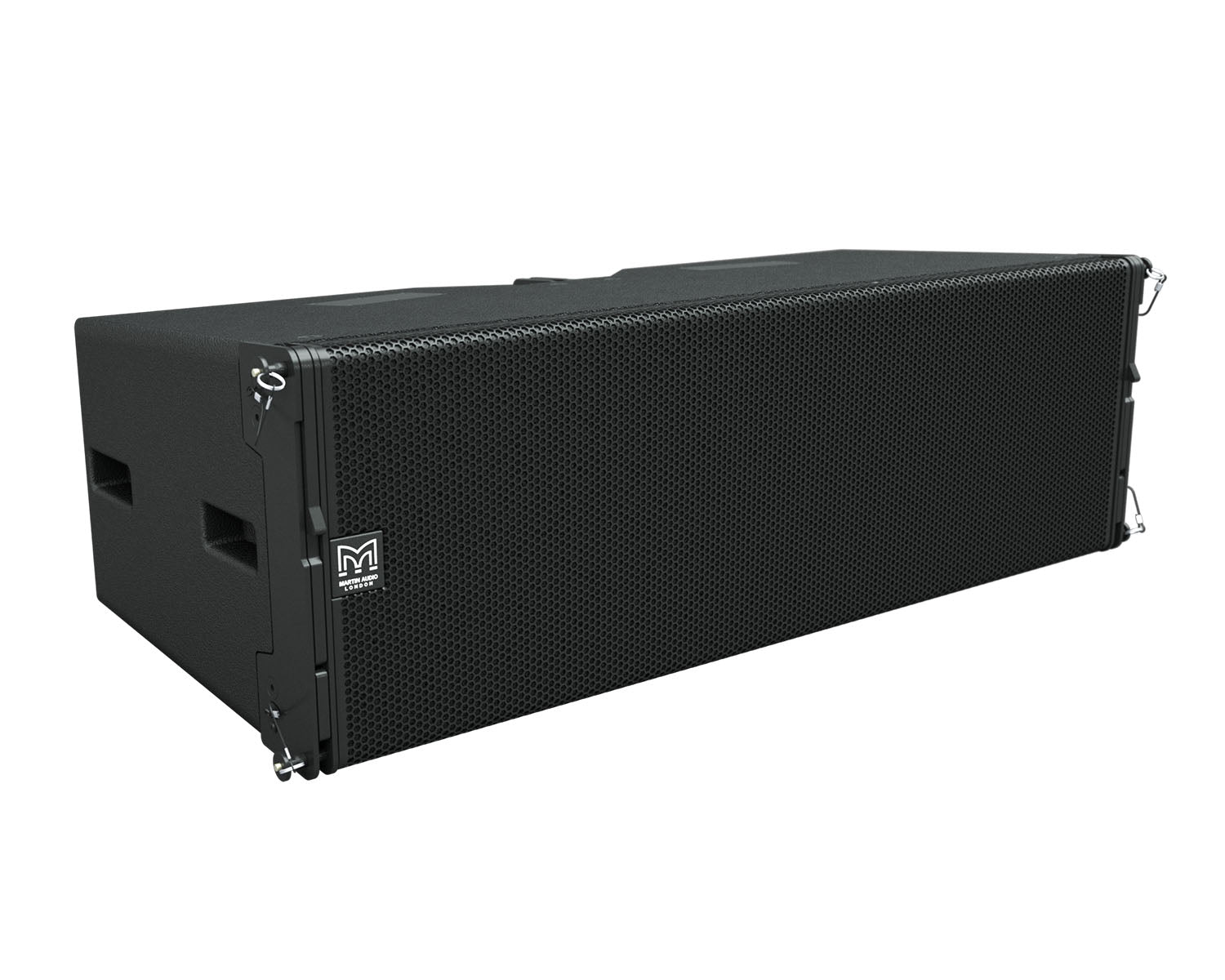

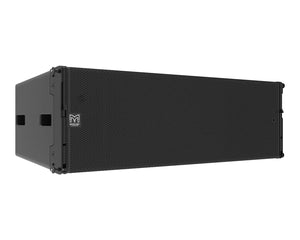

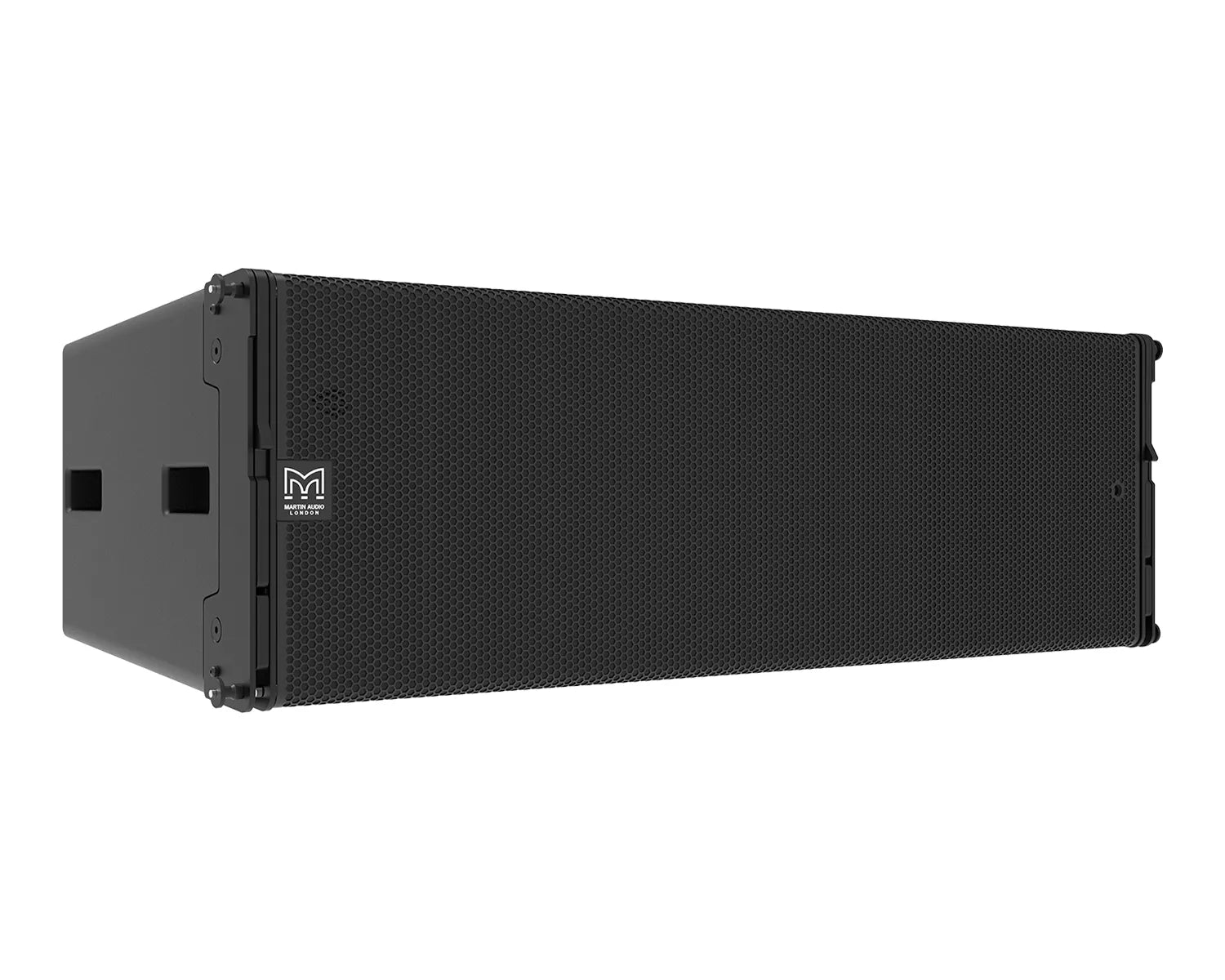

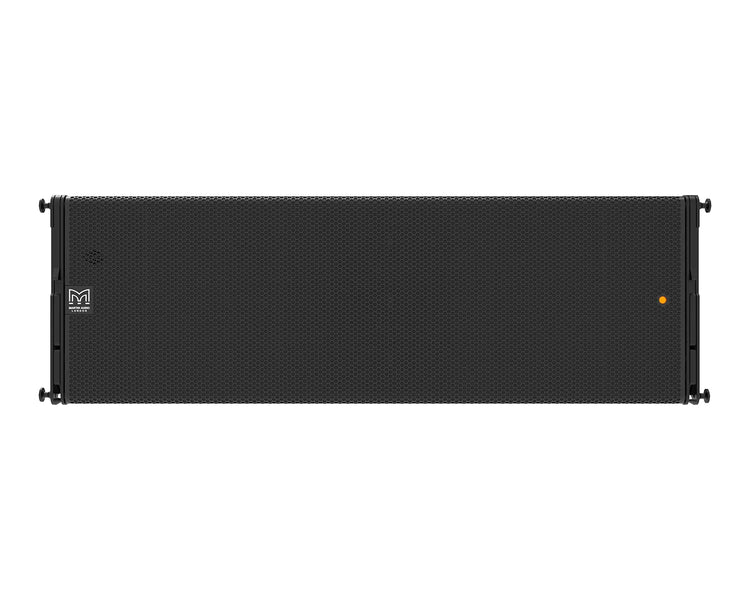

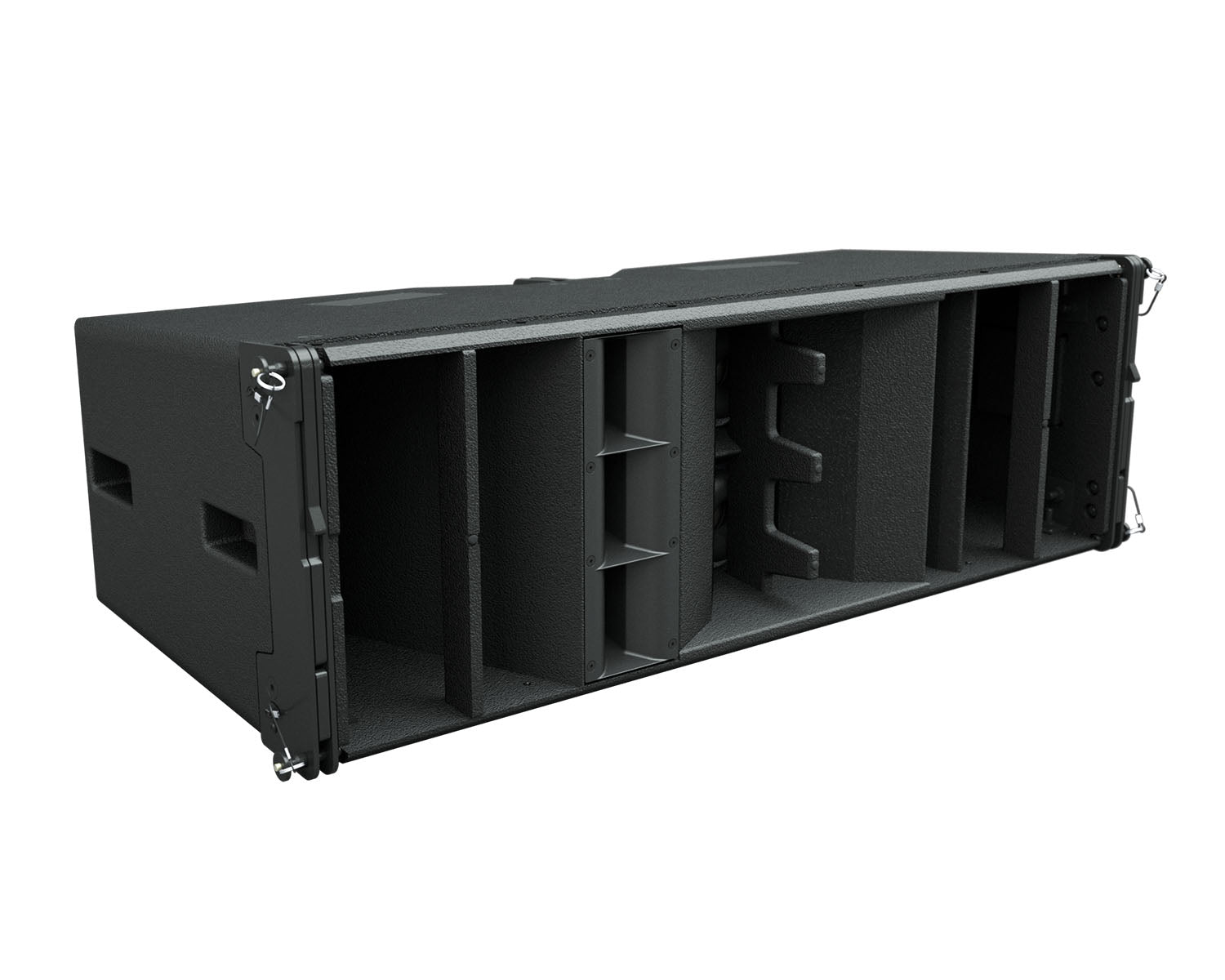

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 1

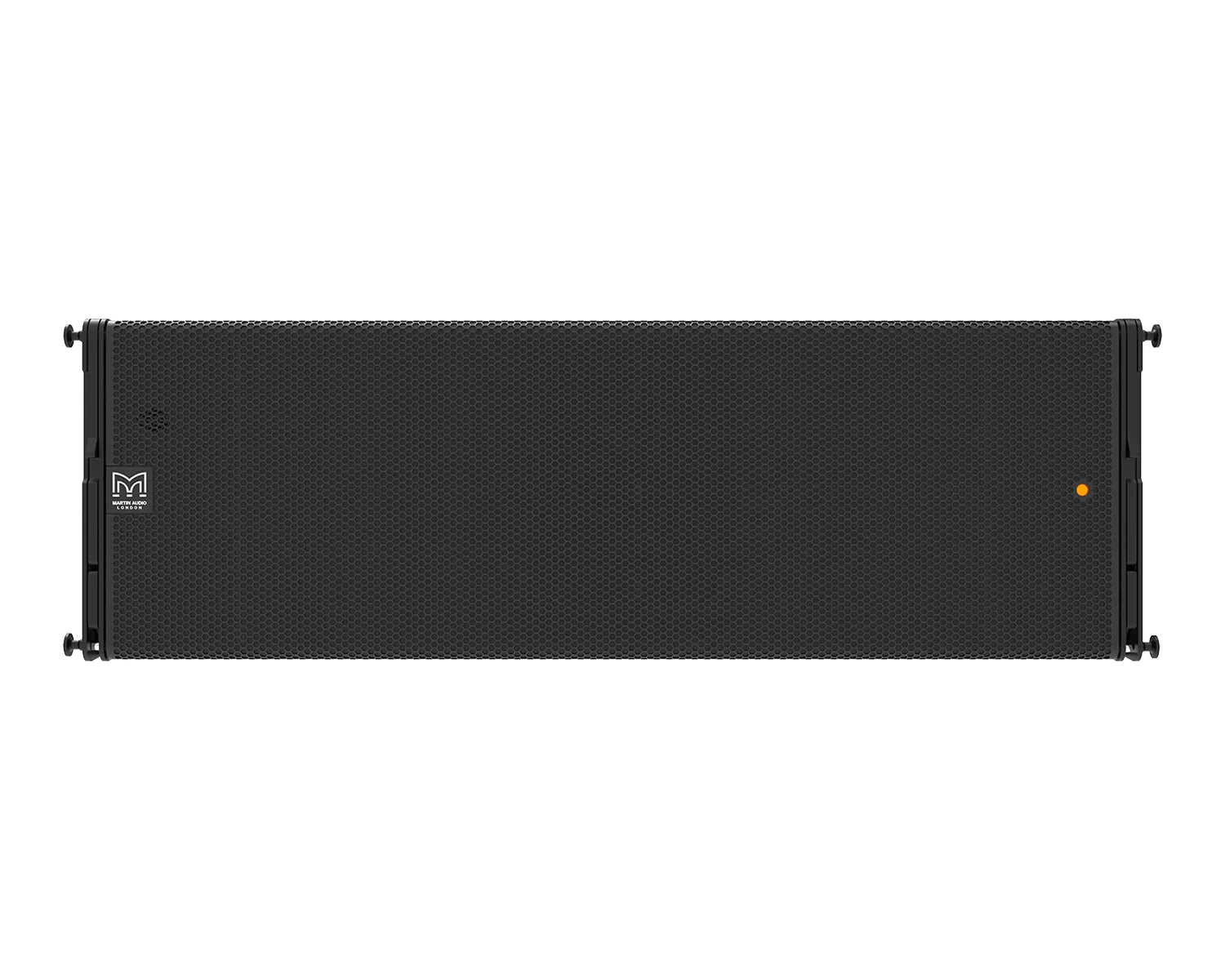

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 2

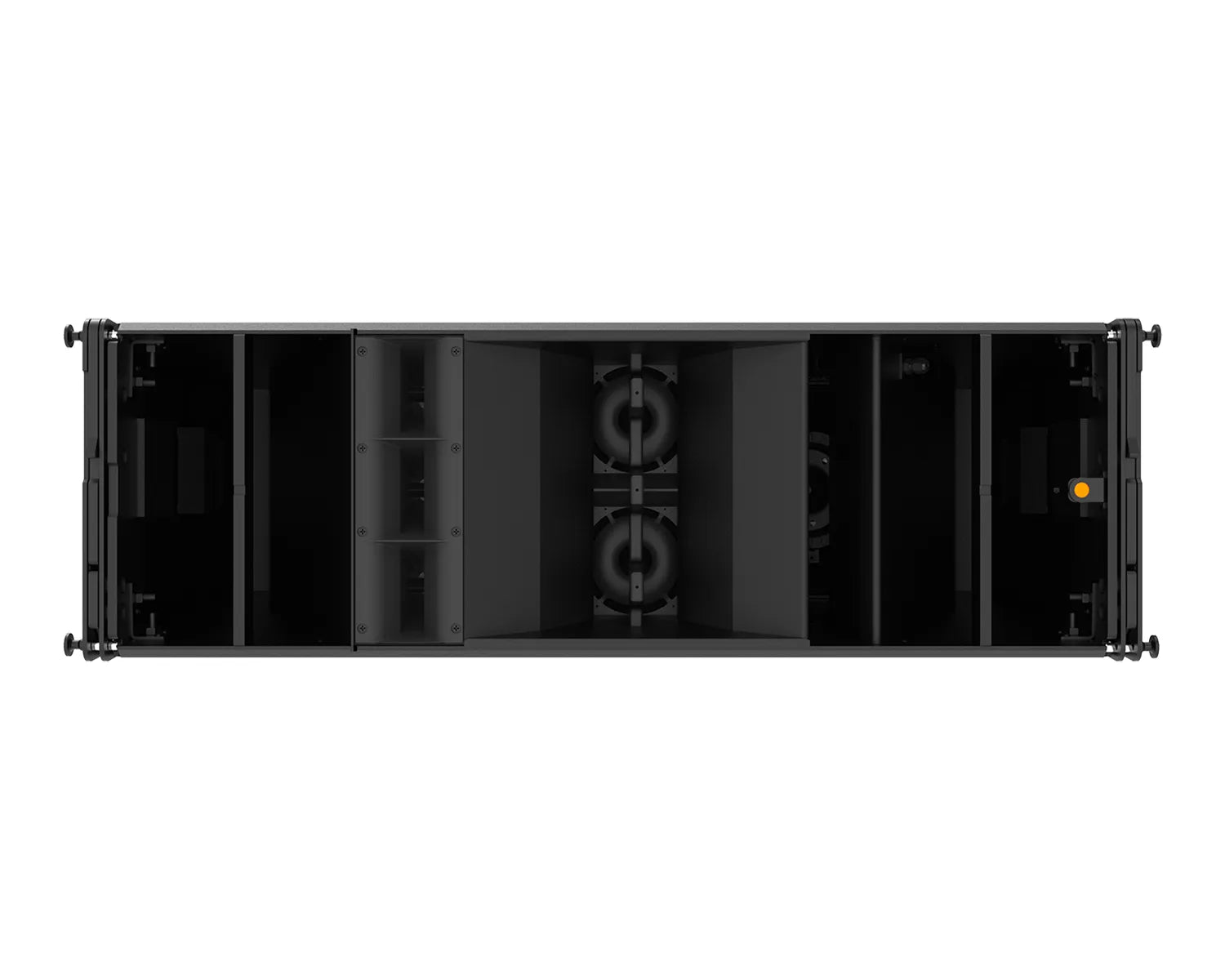

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 3

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 4

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 5

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 6

MAUWPL - Martin Audio WPL 3 Way Biamp 2x12inch LF Drivers Line Array Element Black Image 7

With the launch of the Wavefront Precision™ Series (WPM and WPC) the concept of scalable resolution was born — harnessing the research and technology behind Martin Audio’s self-powered MLA® Series systems in a new line array format with external amplification.

Delivering unmatched sound quality, coverage consistency and control in an affordable package, this uniquely flexible and upgradeable approach has been rapidly adopted by sound rental and installation companies worldwide to become the company’s fastest ever selling line array series.

Wavefront Precision Longbow (WPL) now brings this high performance, control and flexibility to large-scale touring and install applications. Designed as a complete system with external iKON® multi-channel amplifiers, automated DISPLAY™ optimisation software and VU-NET™ control platform, WPL provides financial accessibility to the top echelons of touring and install sound — from prestigious stadium concert and outdoor festivals, to high-specification arena and House of Worship installations.

The complete system philosophy guarantees that WPL arrays perform predictably and effortlessly to their design maximum, as well as ensuring that they are compatible with other WPL systems throughout the world.

Product Features

High-performance large format line array

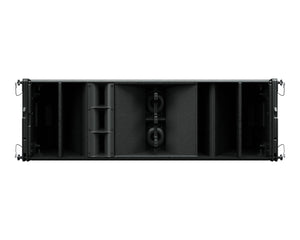

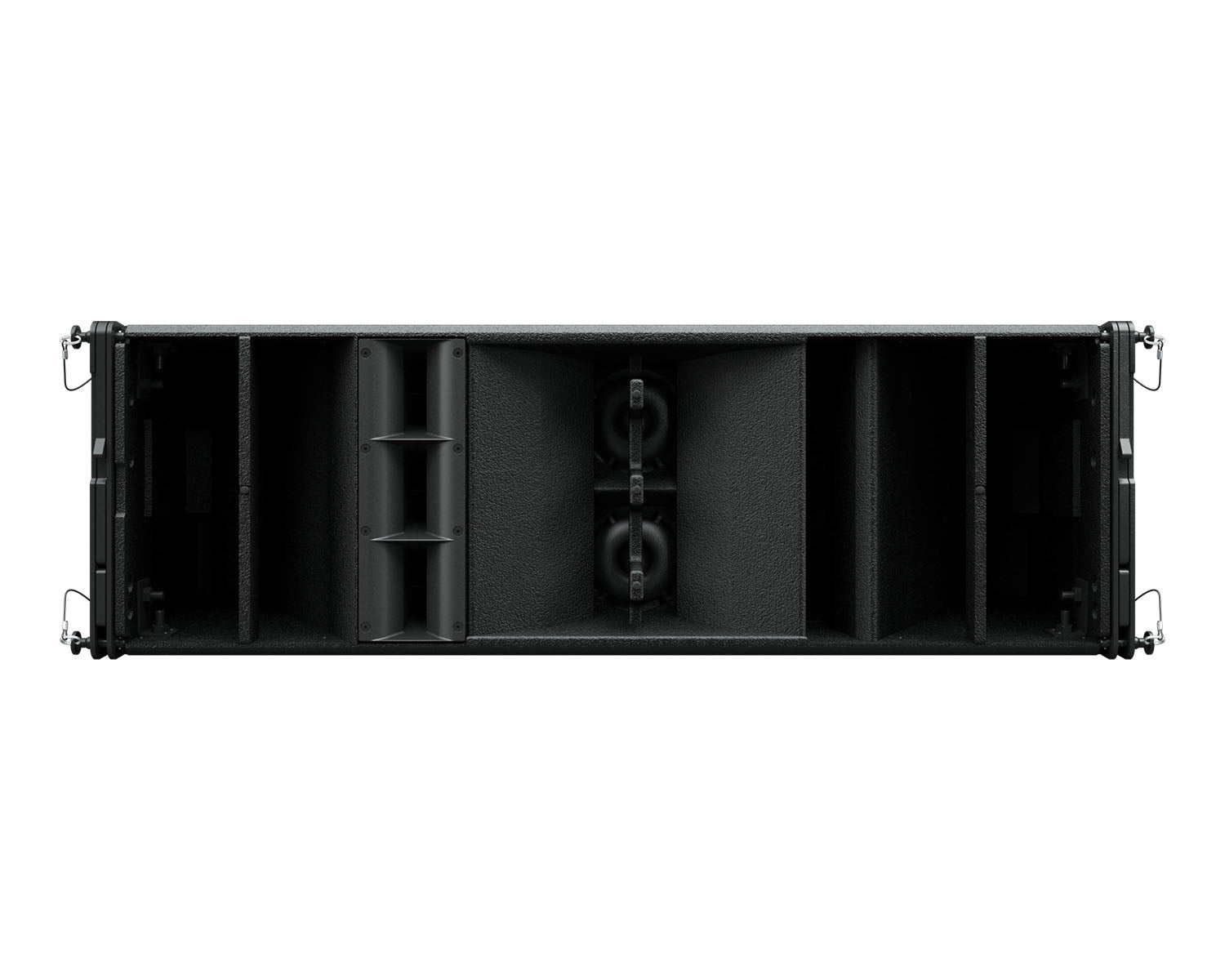

All-horn, maximum-efficiency design
Exceptional signature sonic performance
Exemplary 90° horizontal constant directivity pattern control
External, dedicated, multi-channel Class D amplification
Scalable resolution for flexible optimisation of coverage, consistency and control
Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
Fast, integral 3-point rigging for up to 24 enclosures
Compact and light weight design with discreet side handles for ease of handling

Benefits

Consistent coverage achieved ‘straight-out-of-the-box’
DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
Improved audience coverage with reduced sound-spill

Applications

Touring sound reinforcement for festivals, stadiums and arenas
Sports stadium and arena installations
Concert hall and HoW installations

Product Specifications

TYPE: Three-way, bi-amp line array element
FREQUENCY RESPONSE: 52Hz-18kHz ± 3dB

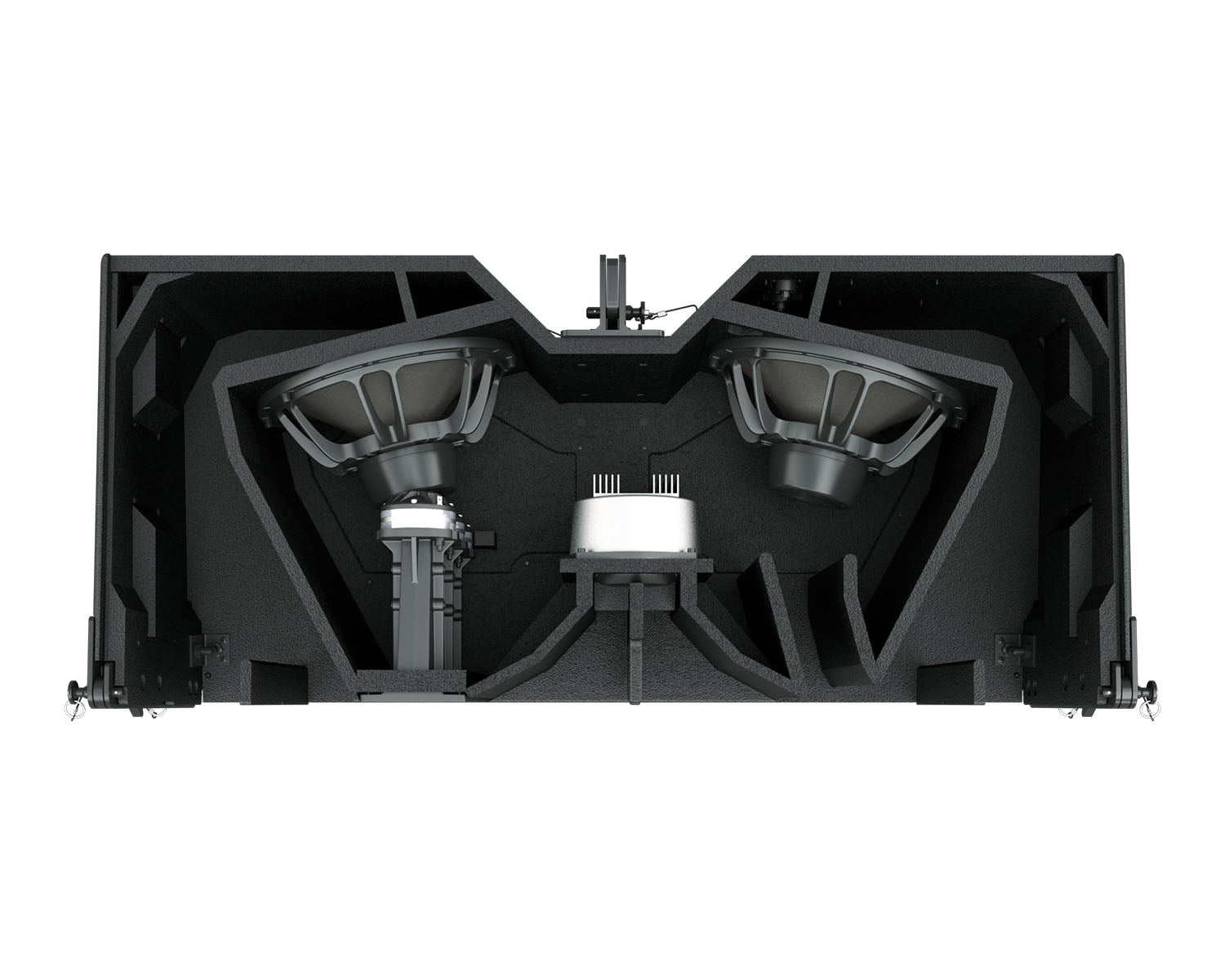

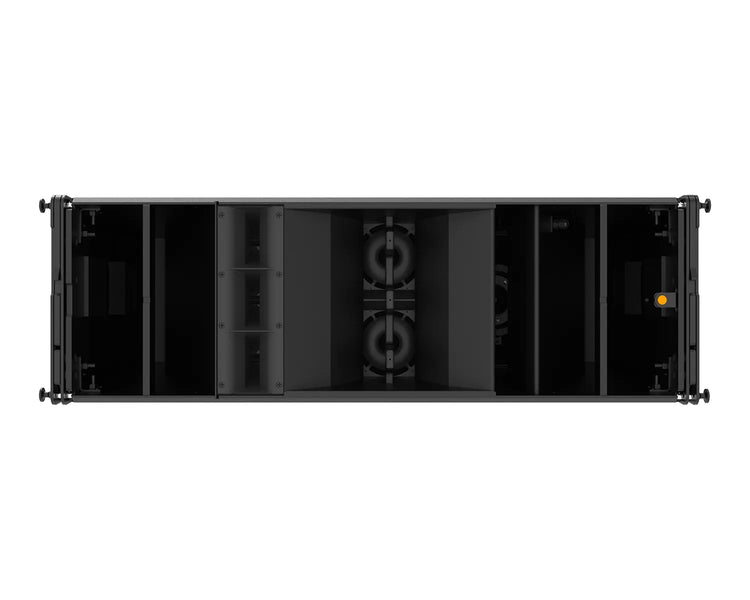

DRIVERS
- LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded
- MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded
- HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded
SYSTEM AMPLIFIER: iKON iK42
SYSTEM RESOLUTION: 1 or 2 enclosures per pair of amplifier channels (Bi-amp)
MAXIMUM SPL
- LF: 139dB
- MF: 140dB
- HF: 145dB
NOMINAL IMPEDANCE: LF: 8 ohms, MF + HF: 8 ohms
DISPERSION
- 90º horizontal (-6dB), 120º horizontal (-10dB)
- 7.5° vertical
CROSSOVER: 320Hz active, 4kHz internal passive
ENCLOSURE: Vertical trapezoid with 3.75º wall angle, multi-laminate birch and poplar-ply construction
FINISH: Black textured paint

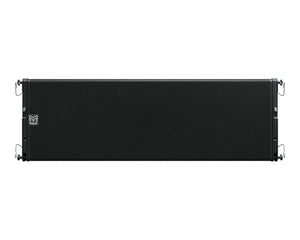

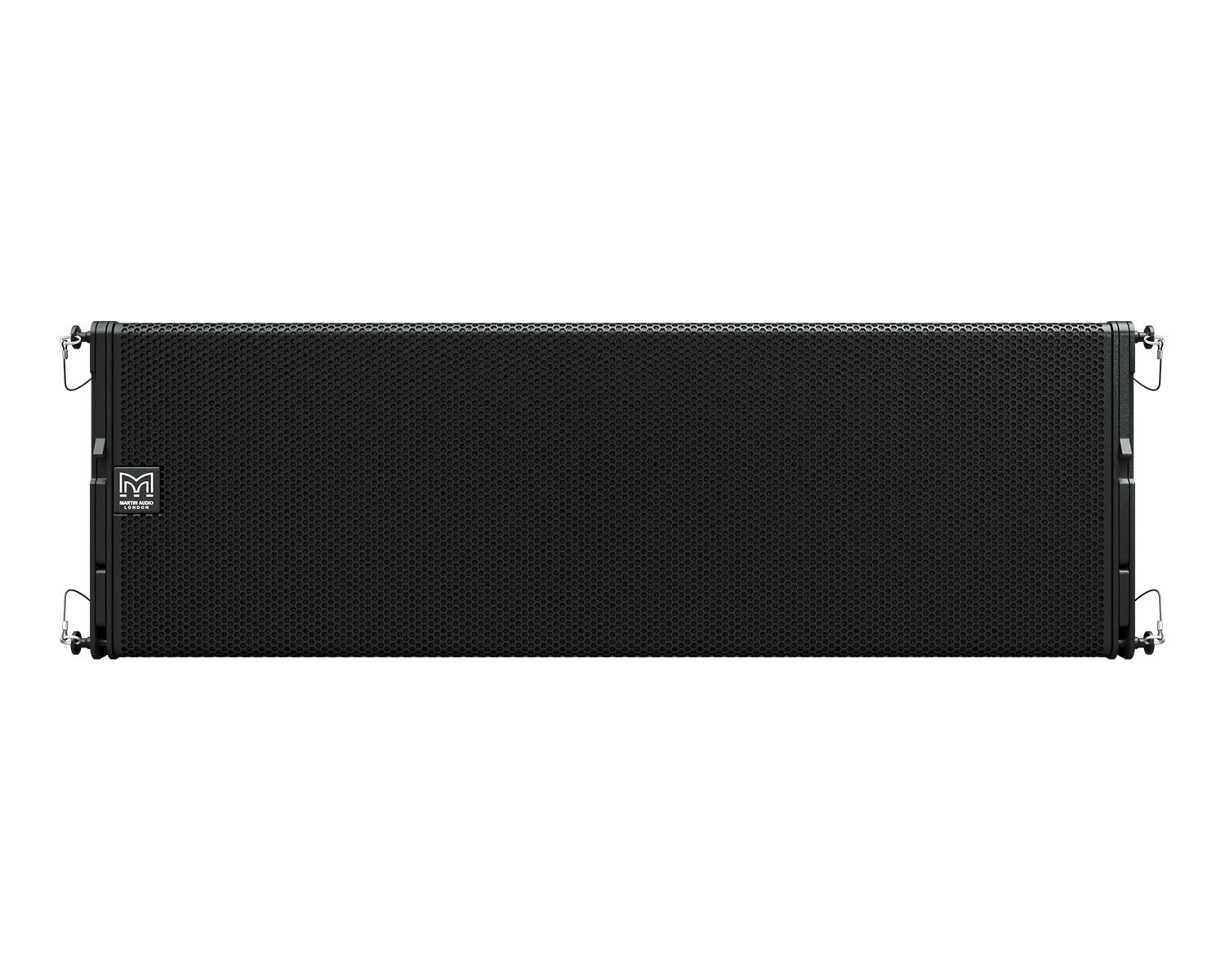

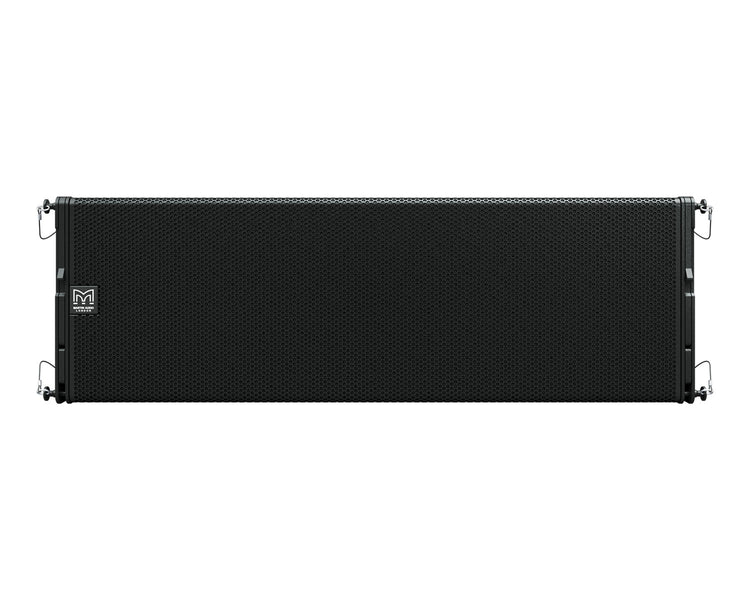

PROTECTIVE GRILLE: Black HEX perforated steel
CONECTORS: 2 x NL4 type
PIN CONNECTIONS: LF: 1+/1-, MF + HF: 2+/2-
FITTINGS

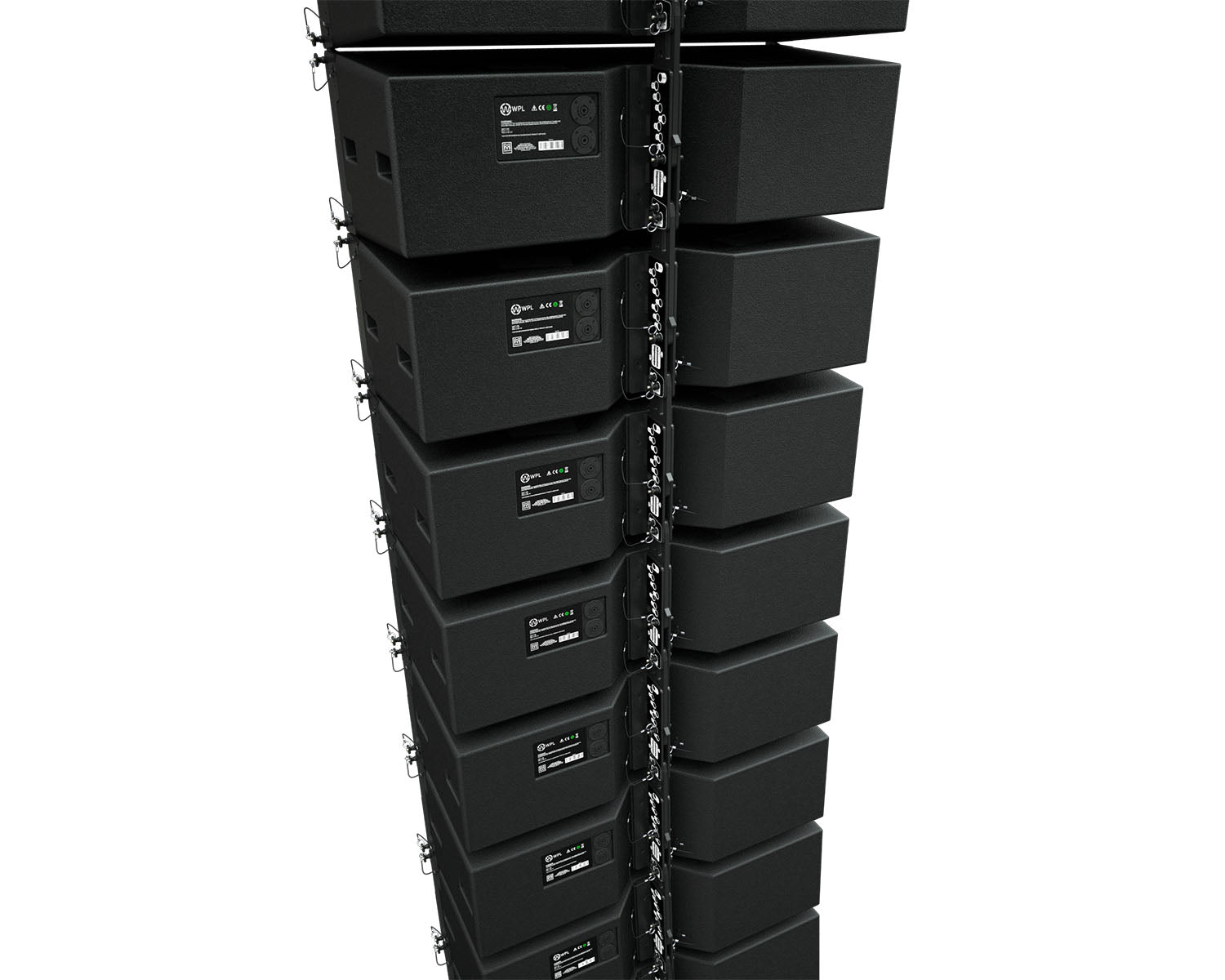

- 3-point rigging system
- 4 x side pocket handles

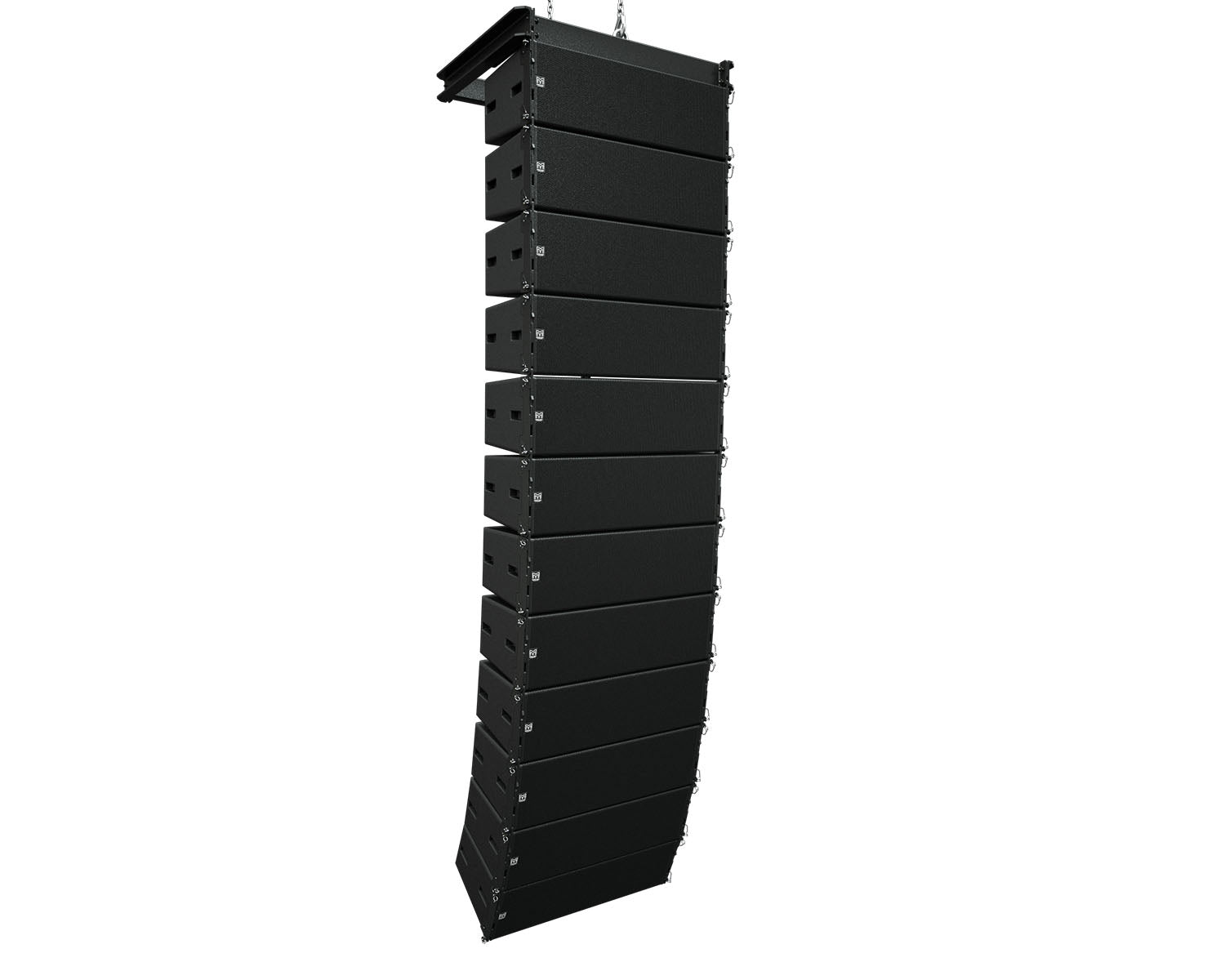

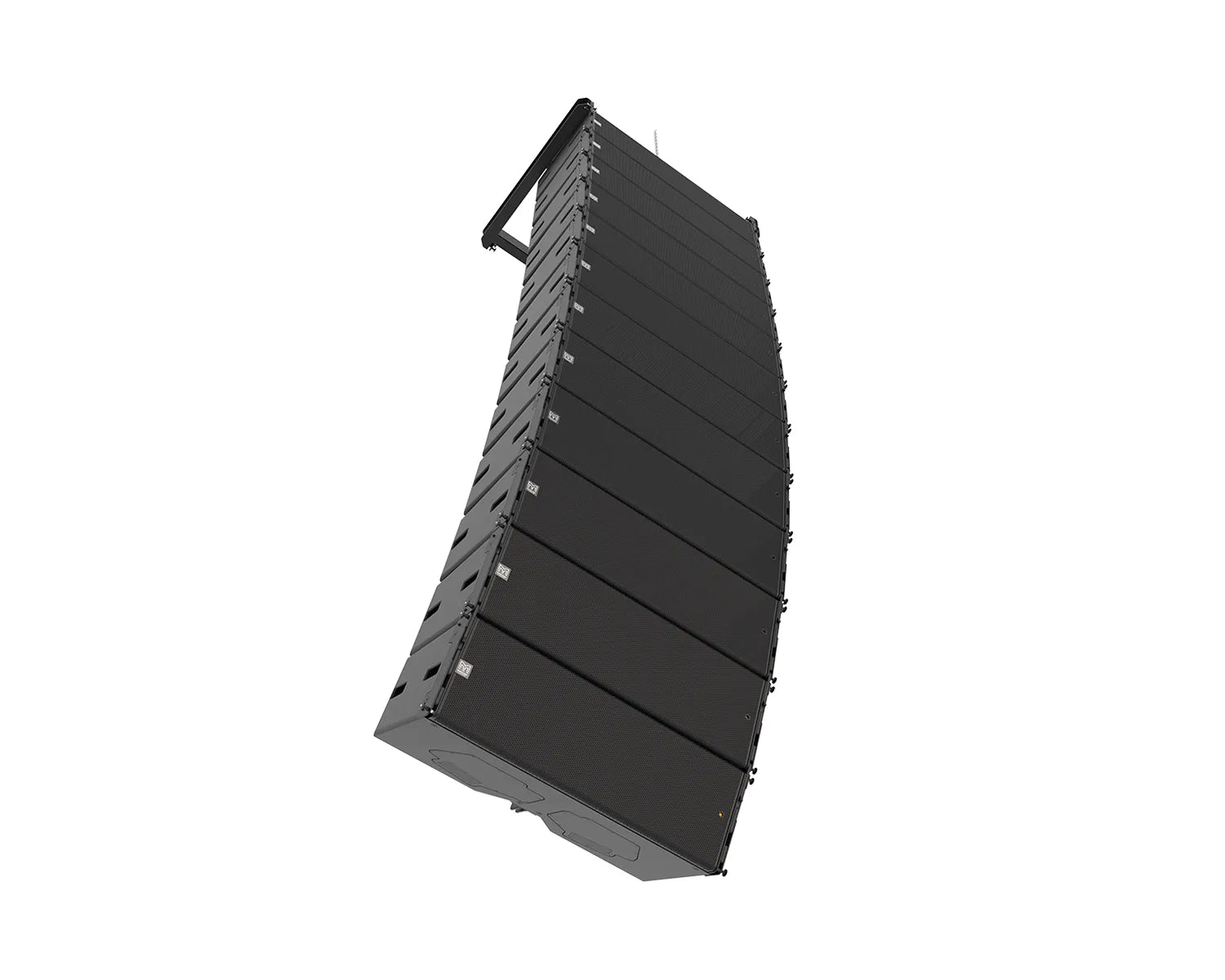

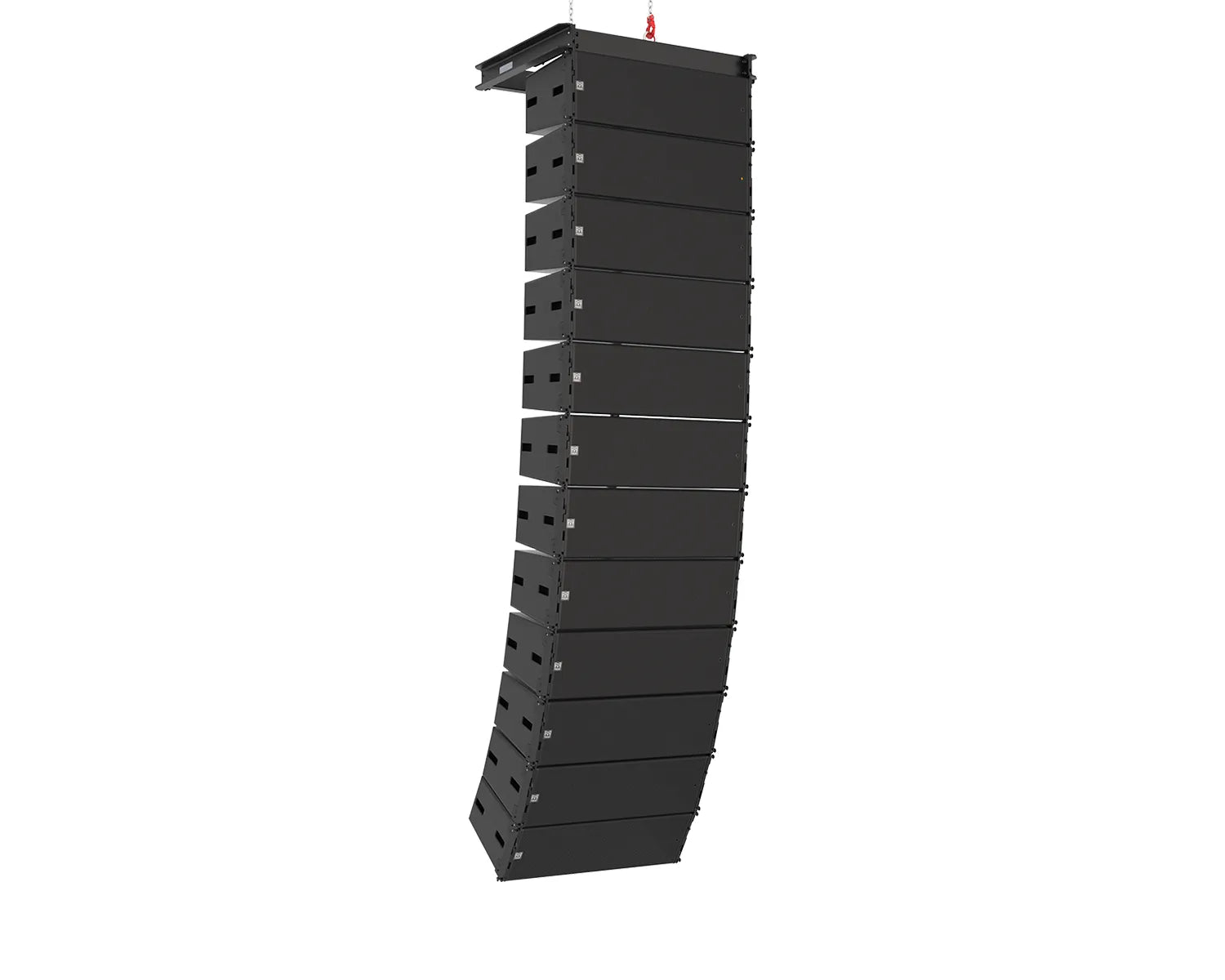

FLOWN ARRAY MAXIMUM: 24 enclosures in single array
DIMENSIONS (ex. pins)
- (W) 1136mm x (H) 371mm x (D) 526mm
- (W) 44.7in x (H) 14.6in x (D) 20.7in
WEIGHT: 64kg (141lbs)
