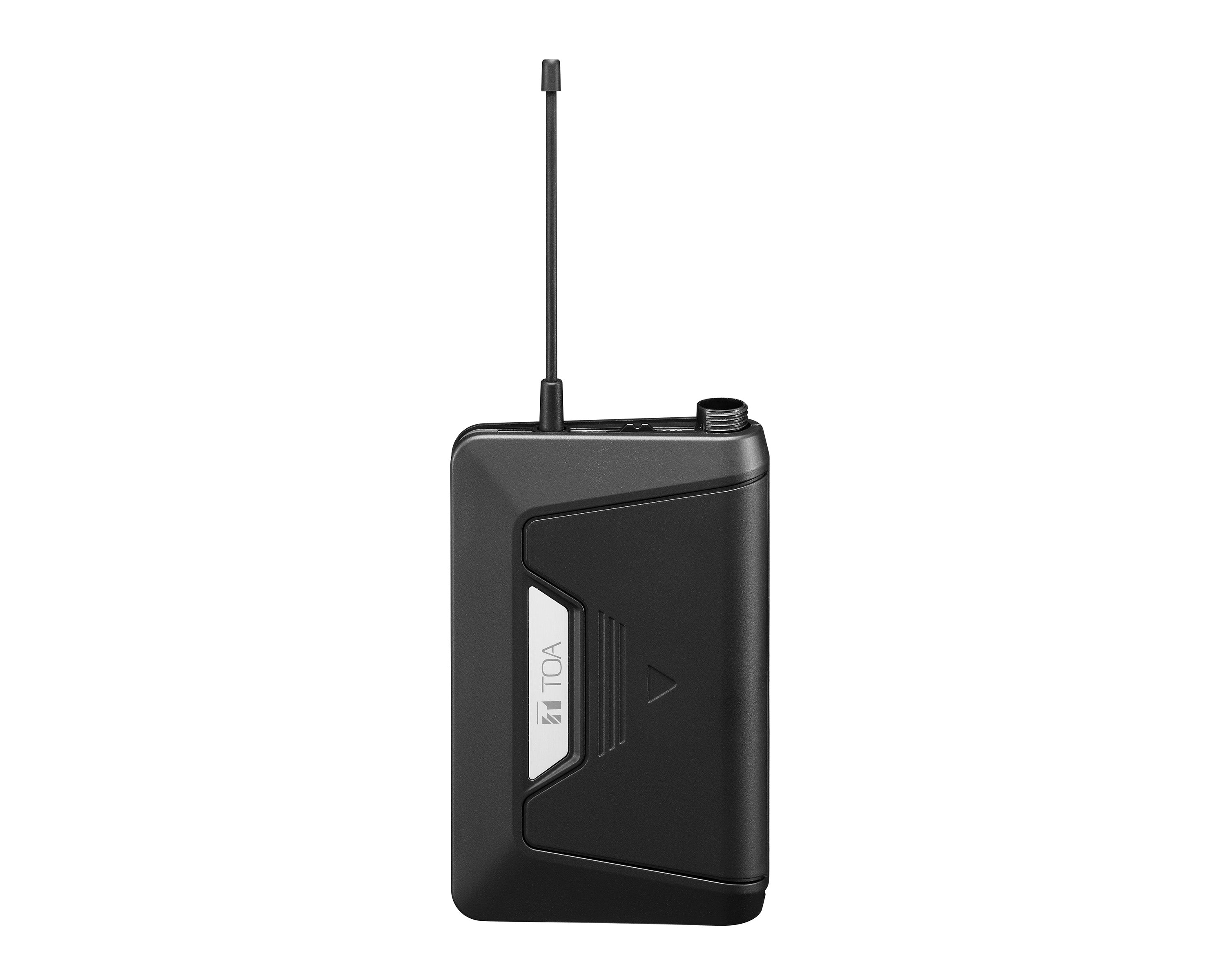

The WM-D5300 Digital wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. This wireless transmitter employs a digital transmission system that is effectively immune to interference. Further, not only does TOA unique information concealment technology (Encryption Setting function) ensure high confidentiality and security against eavesdropping, but their code setting and transmission output selection functions ensure that this transmitter is also compatible with a wide range of operating conditions, such as use of the same transmission channel between adjacent areas.

Product Features

• Manufactured for use with a UHF system
• Suitable for use in speech reinforcement applications
• This wireless transmitter employs a digital transmission system that is effectively immune to interference
• Information concealment technology (Encryption Setting function) ensures high confidentiality and security against eavesdropping
• Code setting and transmission output selection functions ensure that this transmitter is also compatible with a wide range of operating conditions
• Suitable for use of the same transmission channel between adjacent areas

Product Specifications

General

• Frequency Range: C4/C7 ver.: 794 - 832 MHz, G1 ver.: 606 - 636 MHz
• Modulation type: FSK
• Channel Selectable: 160 channels (The number of channels may differ from country to country.)
• RF Carrier Power: Less than 50 mW
• Maximum Input Level: -18 dB (*1) (Sensitivity: L)/-28 dB (*1) (Sensitivity: H)
• Audio Frequency Response: 100 Hz - 12 kHz
• Antenna: Lamda/4 whip antenna
• ID Selectable: 10 patterns
• Battery: WB-2000 rechargeable battery (option) or AA Alkaline dry cell battery
• Battery Life: Approx. 8 hours
• Operating Temperature: -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
• Operating Humidity: 30 % to 85 %RH (no condensation)
• Finish: ABS resin, black, paint

Physical & Dimensions

• Height: 171mm
• Width: 62mm
• Depth: 19mm
• Weight: 90g (with battery)

What's in the Box?

• Storage case
• Screw driver (for setting)
