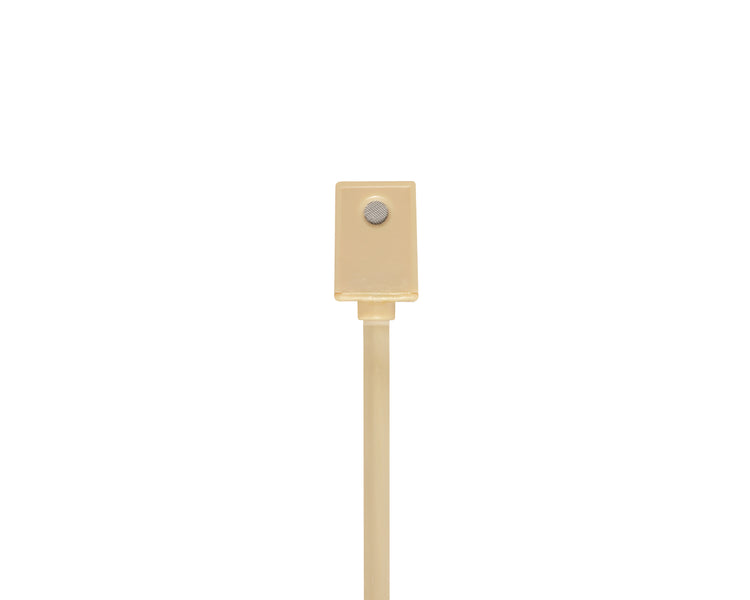

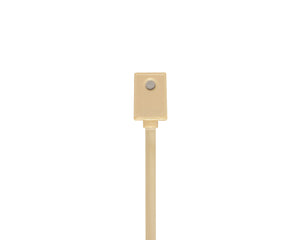

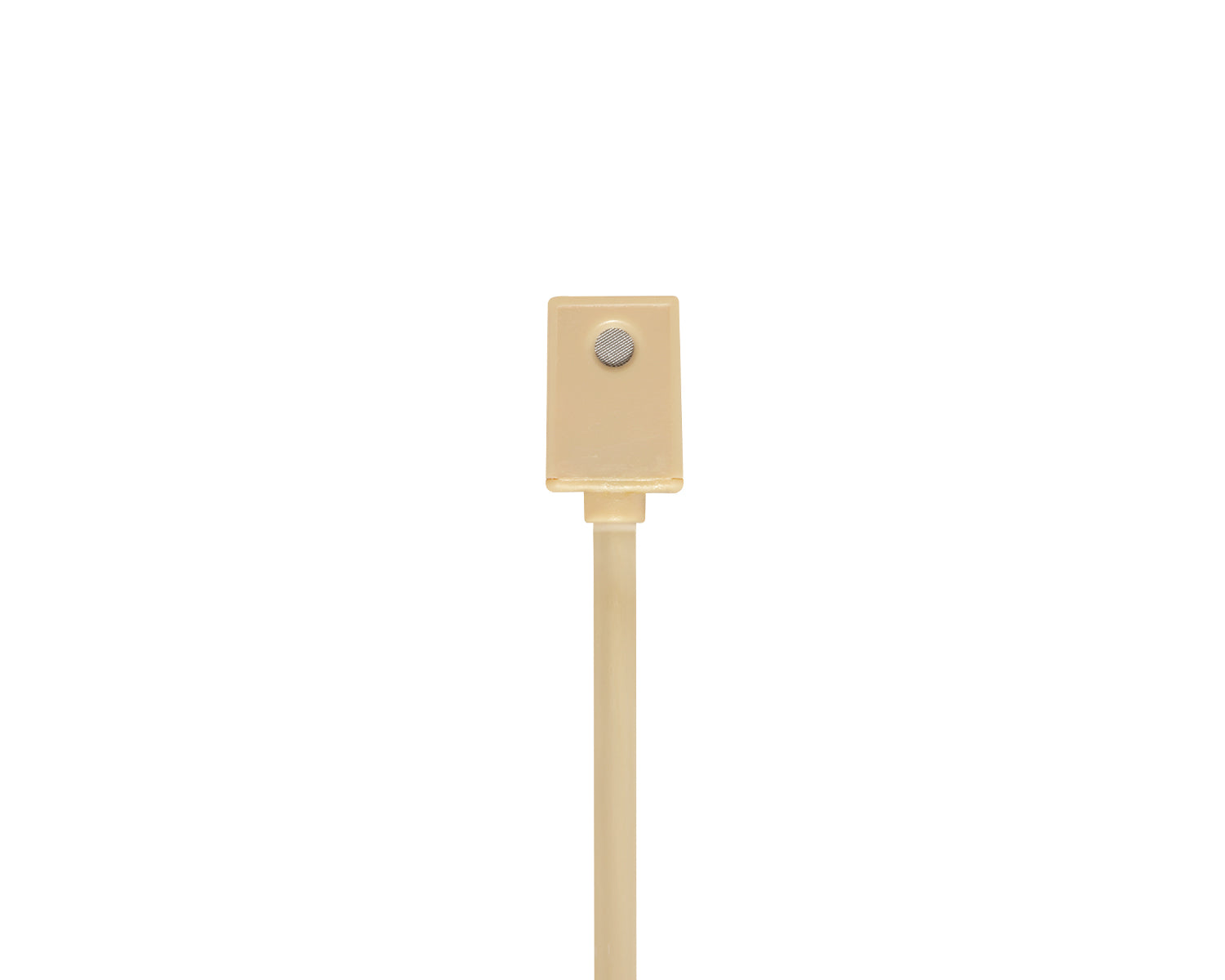

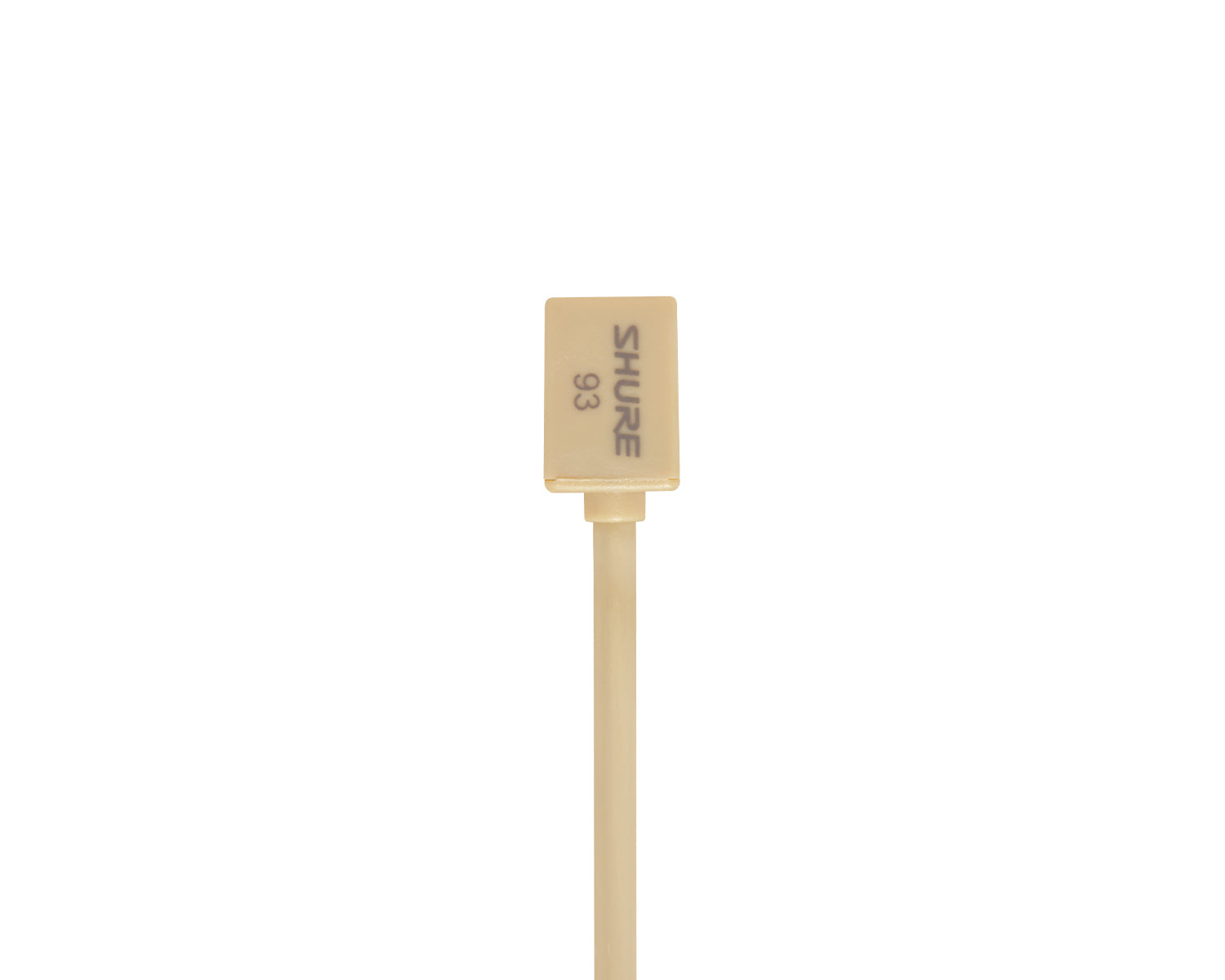

The Shure Model WL93 Microphone is an omnidirectional, subminiature, lavalier electret condenser microphone. Its visually unobtrusive design and tailored frequency response make them ideal for body-worn applications in TV broadcasting, theatre, and sound reinforcement. It features a small microphone element that provides full, clear sound comparable to that of much larger microphones. The WL93, intended for wireless use, connects directly to a Shure wireless body-pack transmitter.

The WL93 omnidirectional miniature lavalier condenser microphone is designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.

The WL93 is supplied with a sew-on mounting bracket, a mounting block with attached tie bar, and an acoustic windscreen to minimize wind noise in outdoor applications. It is also supplied with a dual mounting block with attached tie bar.

Product Features

• Intended for wireless use, connects directly to a Shure wireless body-pack transmitter
• Subminiature lavalier design; ideal size for theatre, television broadcasting, video, film, and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency rolloff reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern

Product Specifications

• Type: Condenser (electret bias)
• Frequency Response: 50 to 20,000 Hz
• Polar Pattern: Omnidirectional , uniform with frequency
• Output Impedance: 3000 Ω
• Sensitivity: open circuit voltage: −38 dBV/Pa(13 mV)
• Clipping Level at 1 kHz: 0.25 V at 120 dB
• Maximum SPL: 120 dB
• Dynamic Range (Maximum SPL, A-weighted): 102 dB
• Self Noise: 18 dB typical , A-Weighted
• Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
• Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)
• Power Requirements: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4);Current Drain 40 µA typical
• Environmental Conditions:
  • Operating Temperature: −18 to 57°C (0 to 135°F)
  • Storage Temperature: −29 to 74°C (−20 to 165°F))
• Cable: 1.27 m (4.17 ft), attached , two-conductor , shielded , terminated by miniature Connector Type TA4F
• Housing: Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
• Weight: Microphone: 16 g (0.57 oz.)
