The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

Product Features

• A fully realised kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Control over RDM, CRMX, or RF
• Easy connection to WELL CONNECT for app control
• USB-C port for convenient software updates
• Pressure equalizing M6 Gore valve
• Adjustable front foot for adjusting fixture angle
• Kensington lock position
• Built-in safety cable attachment point

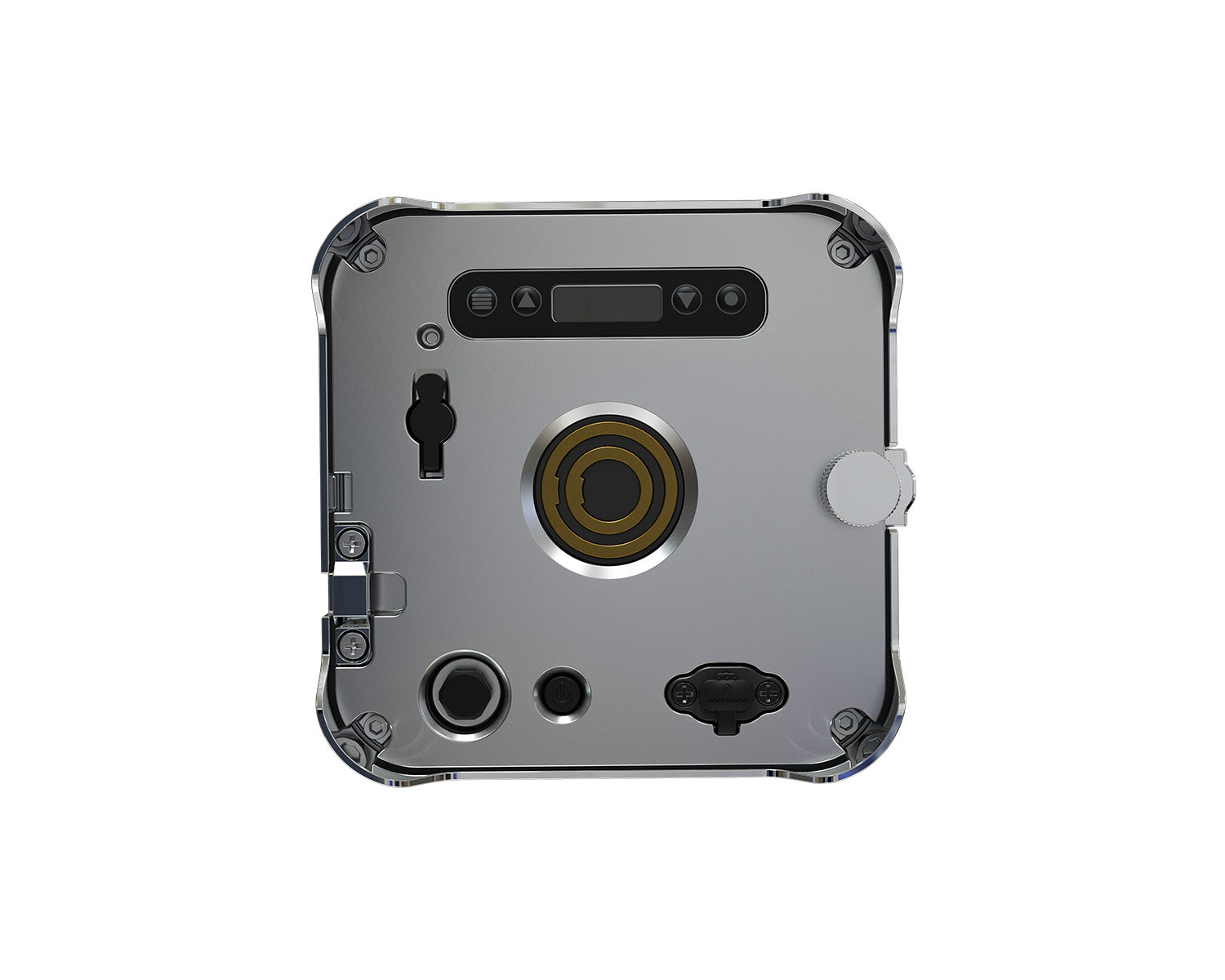

• Easy-to-read OLED display
• Built-in theft alarm (audio and visual notification)
• Built-in PWM adjustment
• Included RF remote

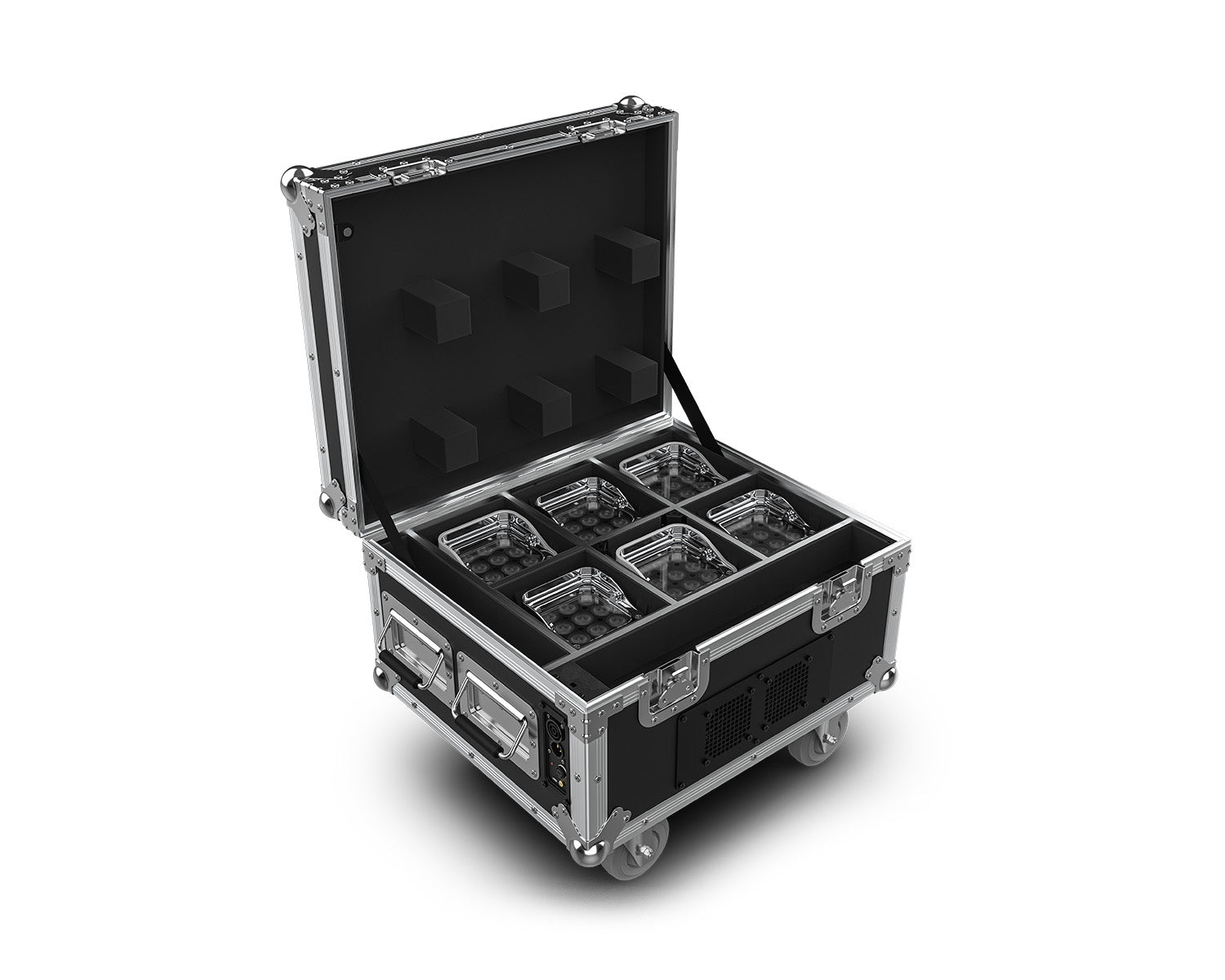

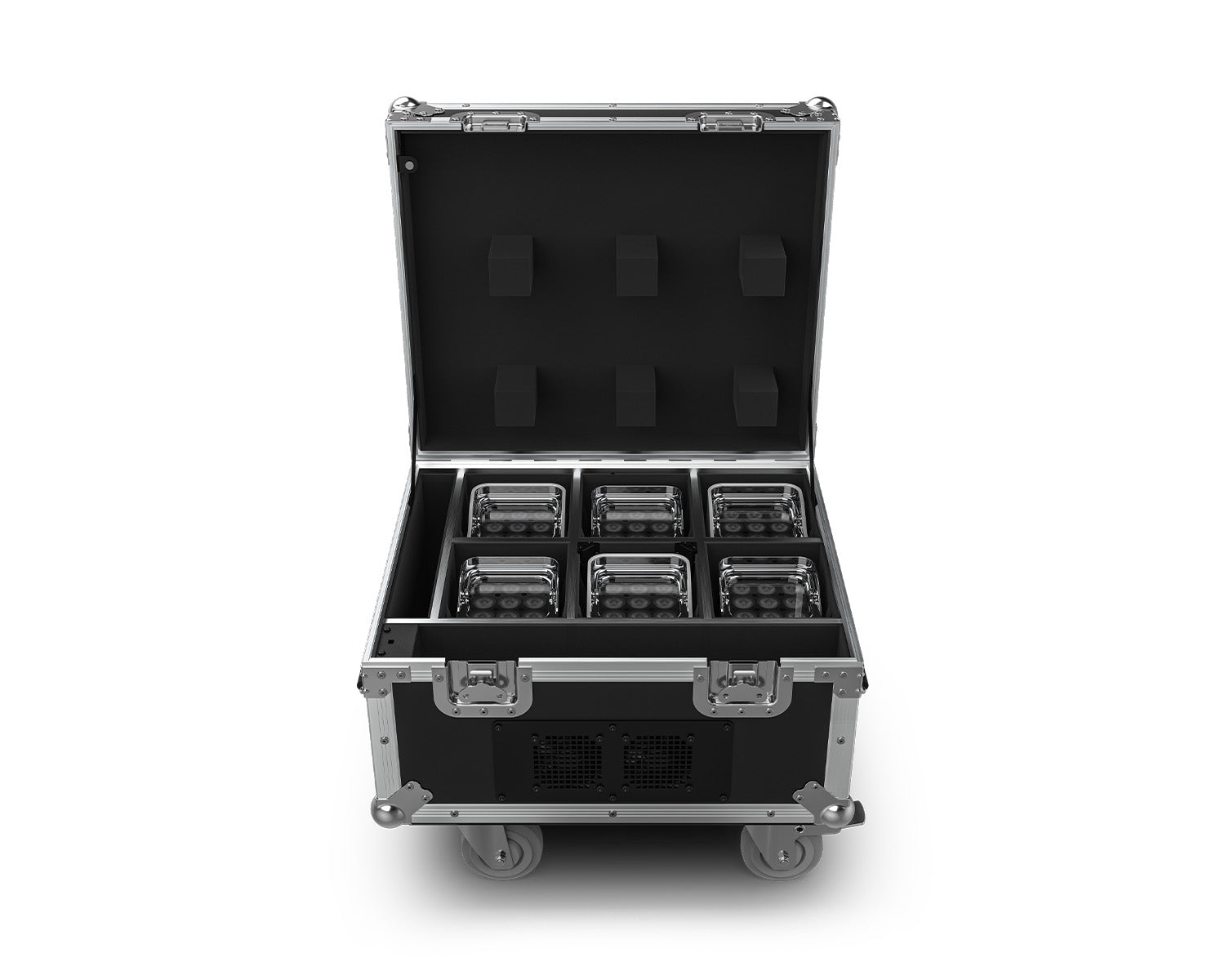

• Included 6 pack charging case

Product Specifications

Optical

• Light Source:  9 LEDs (RGBW) 7.5 W, (556 mA), 50,000 hours life expectancy
• Colour Temperature (range):  2600 to 10,000K
• Beam Angle:  11.5°
• Field Angle:  21.1°
• Lumens:  1762 lm (OFF battery setting)
• Illuminance:  1087 lux @ 5 m (OFF battery setting)
• Lumens:  1944 lm (5-hour battery setting)
• Illuminance:  1205 lux @ 5 m (5-hour battery setting)
• Lumens:  1233 lm (8-hour battery setting)
• Illuminance:  764 lux @ 5 m (8-hour battery setting)
• Lumens:  821 lm (12-hour battery setting)
• Illuminance:  507 lux @ 5 m (12-hour battery setting)
• Lumens:  550 lm (18-hour battery setting)
• Illuminance:  339 lux @ 5 m (18-hour battery setting)
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 30 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  4
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customisable Programs:  No

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Single unit
  • Power and Current (single unit charging):  57 W, 0.95 A @ 100 V, 60 Hz
  • Power and Current (single unit charging):  58 W, 0.79 A @ 120 V, 60 Hz
  • Power and Current (single unit charging):  56 W, 0.47 A @ 208 V, 60 Hz
  • Power and Current (single unit charging):  55 W, 0.44 A @ 230 V, 50 Hz
  • Power and Current (single unit charging):  55 W, 0.421 A @ 240 V, 50 Hz
• 6 Pack case
  • 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
  • Power and Current:253W, 4.33A @ 100V
  • Power and Current:  251W, 3.68A @ 120V
  • Power and Current:  254W, 2.52A @ 208V
  • Power and Current:  254W, 2.3A @ 230V
  • Power and Current:  255W, 2.15A @ 240V

Battery

• Battery type:  Lithium Ion
• Rechargeable:  Yes
• Battery Charge Time:  1.6 hours
• Battery Life:  3hr, 5hr, 8hr, 12hr
• Battery Power:  25.9 V, 4.4 Ah

Connections

• Power Connection:  5.5mm right-angle barrel jack
• Cable Length (charger):  8.5 ft (2.6m) (sold separately)
• Power Input (charging case):  Seetronic TRUE1 IP65
• Power Output (charging case):  Seetronic TRUE1 IP65
• Software Connection:  USB-C

Control

• Control Protocol:  RDM, CRMX, NFC, RF
• DMX Channels:  5, 8, or 12
• Modes/Personalities:  3 personalities (5Ch, 8Ch, 12Ch)
• Wireless WDMX “G” Compatibility:  G4S
• Wireless Lumen Radio Compatibility:  CRMX

Certifications / Qualifications

• CE, FCC, UKCA
• IP Rating:  IP65, temporary outdoor/ wet use (fixture)
• IP Rating:  IP20 (case)
• Temperature (startup):  -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating):  -22 °F to 113 °F (-30 °C to 45 °C)

Construction / Physical

• Dimensions - Fixture:  4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
• Dimensions – 6 pack case:  21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
• Weight (single unit) 7.0 LB (3.2 kg)
• Exterior Colour:  Chrome
• Housing Material:  Aluminium diecast

What's in the Box?

• 6 x WELL FIT 2
• 1 x 6 slot charging case
• 1 x basic RF controller
• 1 x True 1 power cable
• 1 x QRG
