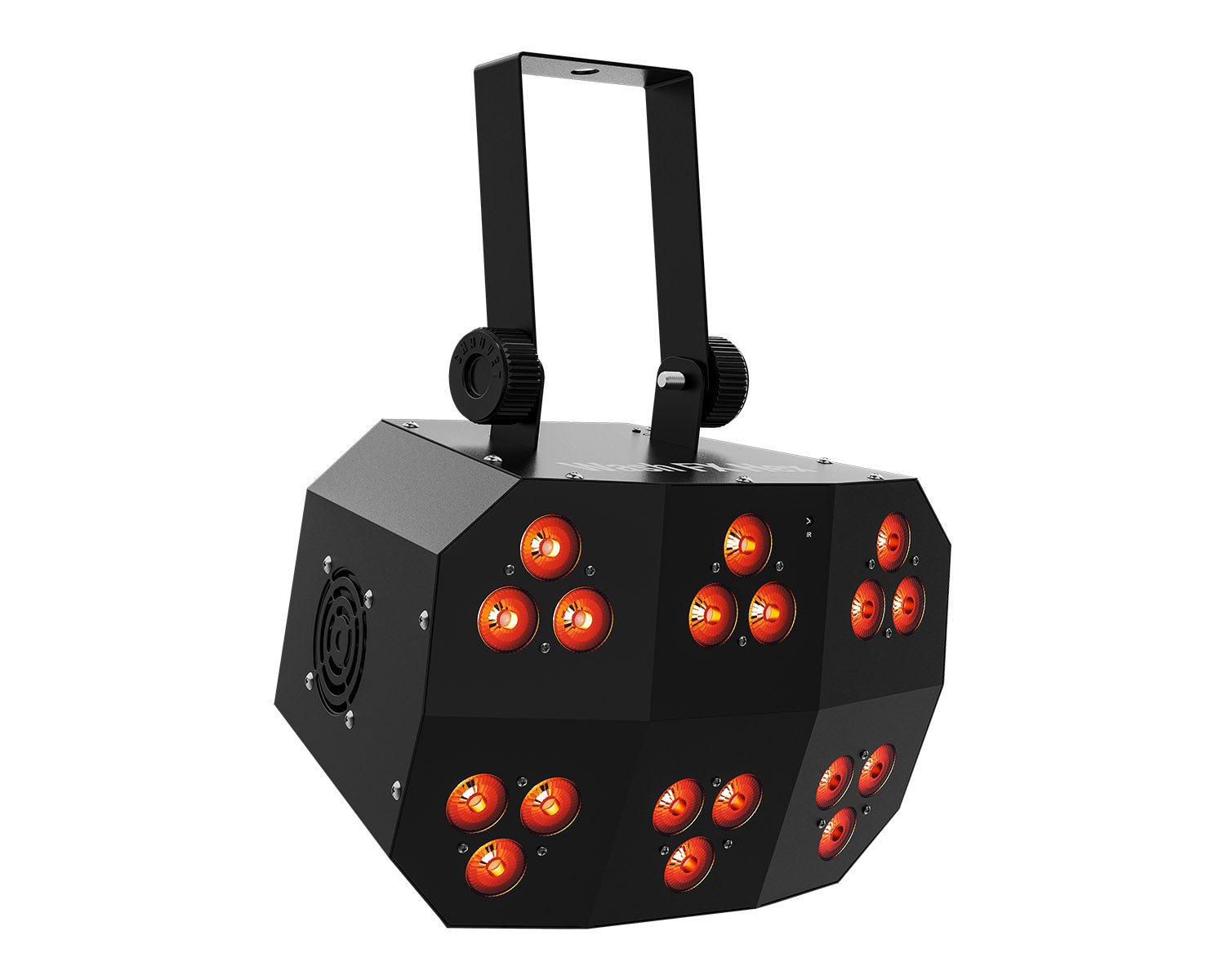

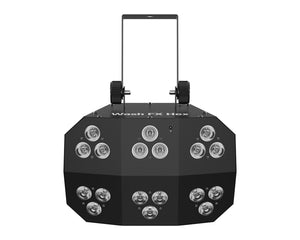

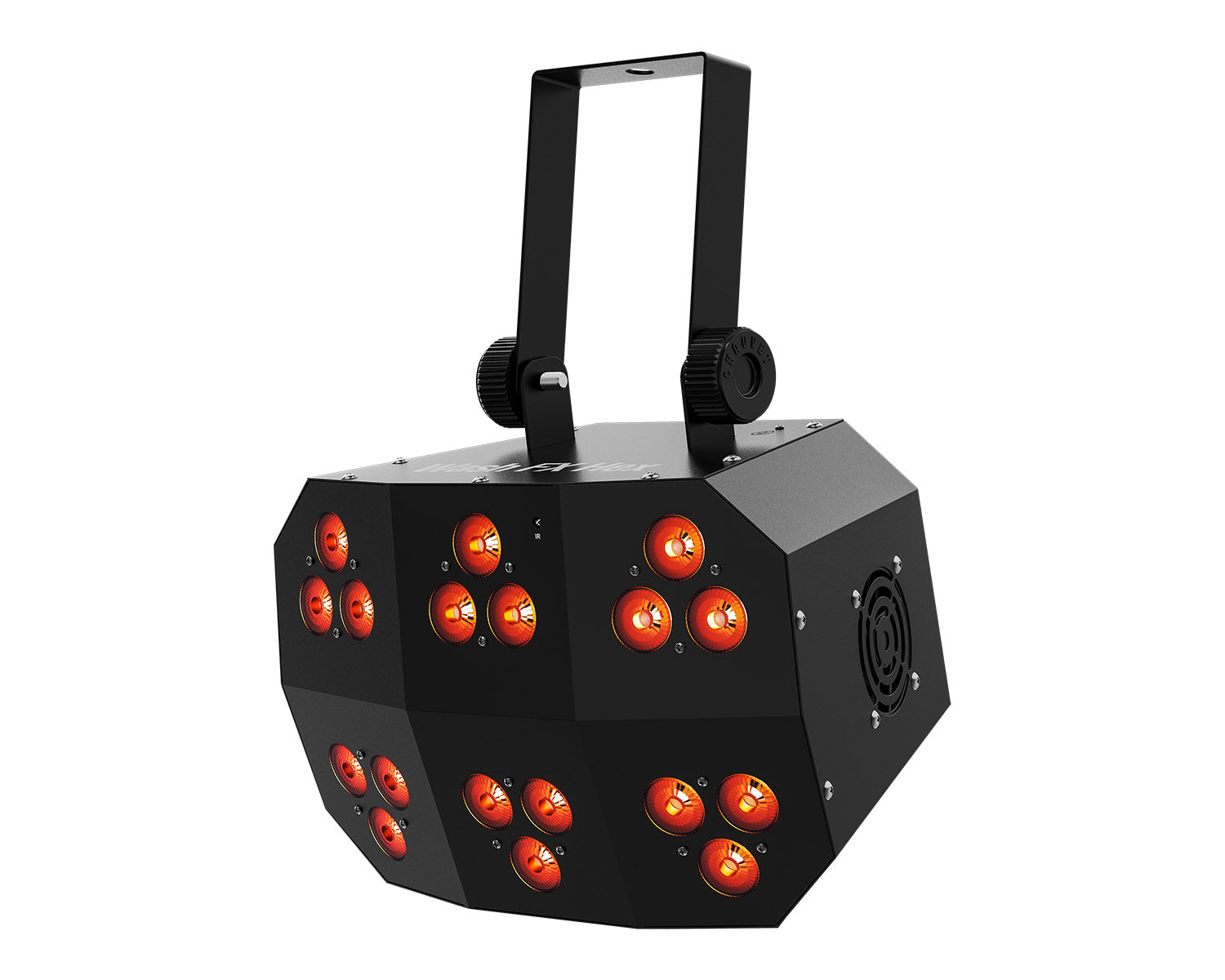

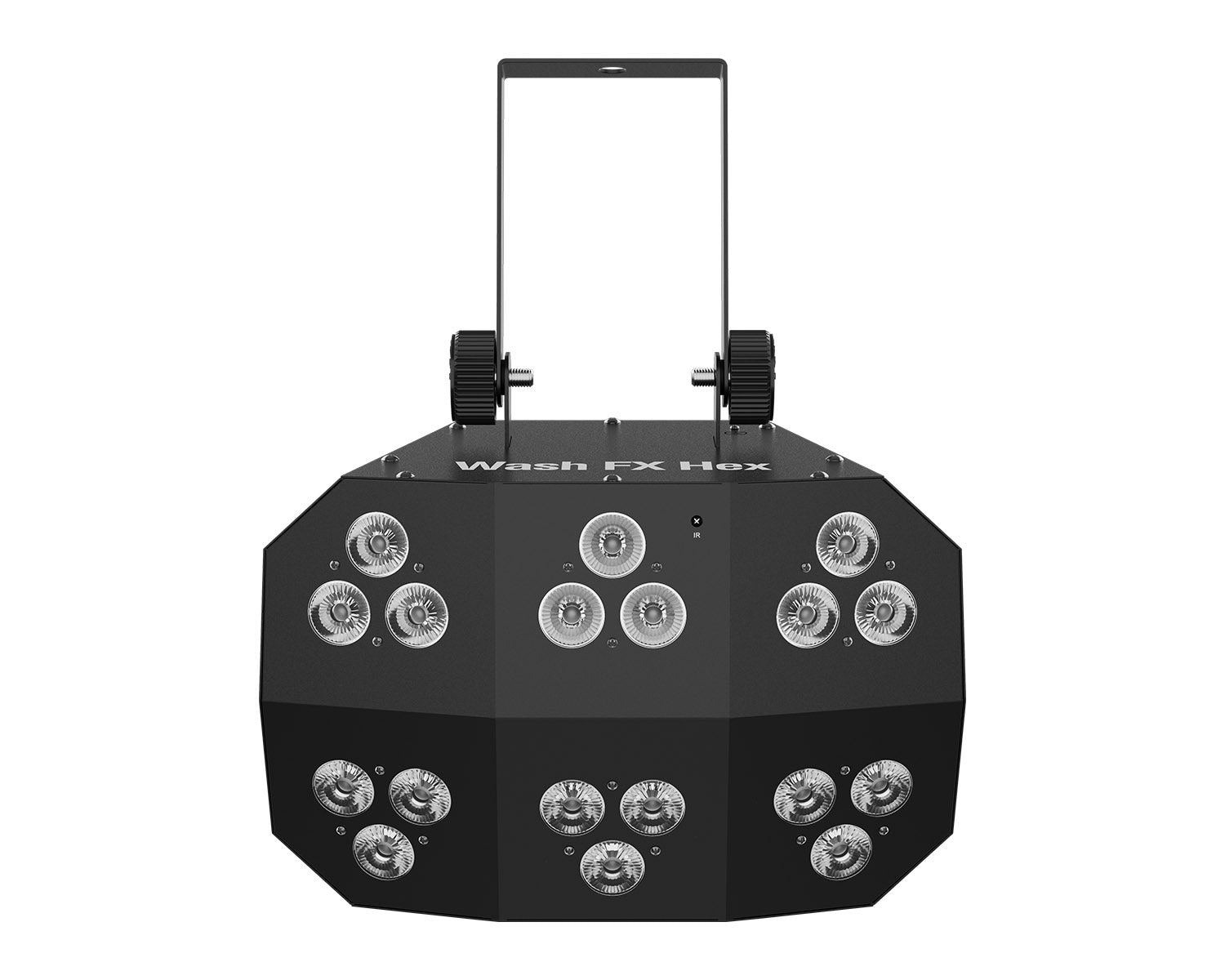

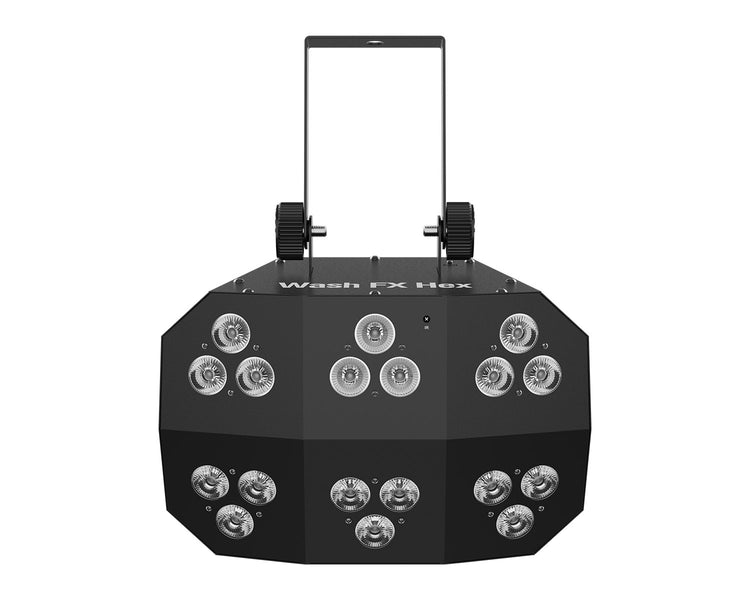

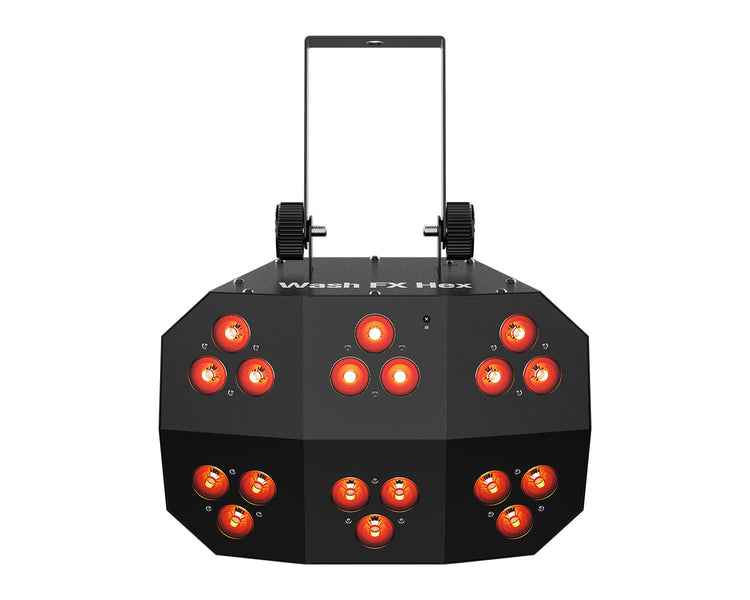

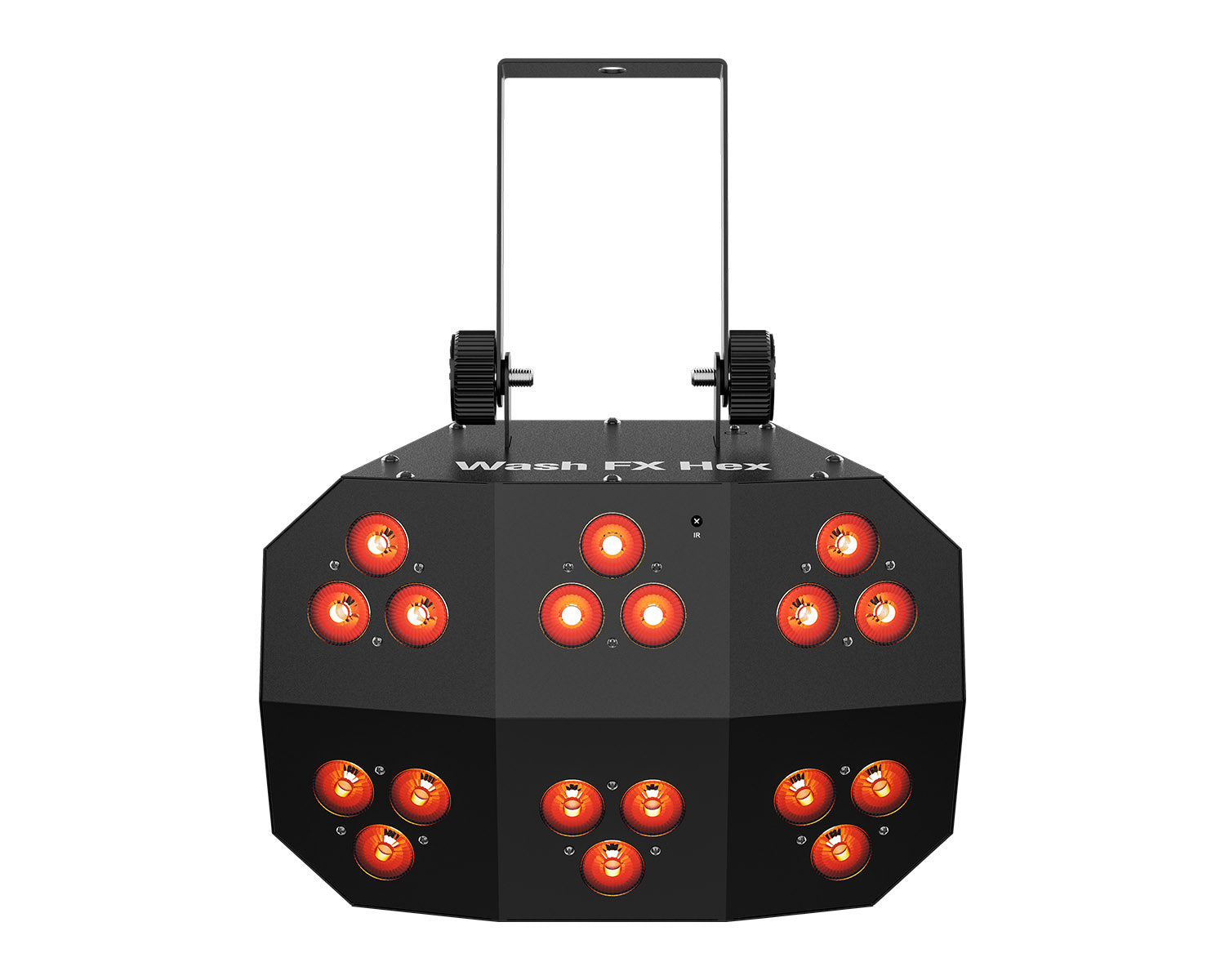

Brilliance, brightness and versatility are packed inside this powerhouse multi-purpose effect light that packs a punch with hex colour (RGBAW+UV) LEDs. Wash FX Hex functions as a chase effect, blinder, or a wash light. 6 chasing zones mean Wash FX Hex can be used as a regular wash light or eye-candy effect and an advanced master/slave feature that allows you to mirror effects between units. Multiple control options include stand-alone mode, DMX, and IR as Wash FX Hex is compatible with an optional IRC-6 wireless remote for wireless triggering. Power linking saves time running cables.

Product Features

• Multi-purpose effect light functions as chase effect, blinder, or a wash light
• Generate a broad spectrum of colours and achieve natural-looking colour temperatures with Hex colour LEDs
• Advanced master/slave feature allows you to mirror effect between units
• Use as a regular wash light or eye-candy effect with 6 chasing zones
• Multiple control options include stand-alone, DMX, IR, or master/slave
• Compatible with the IRC6 wireless remote for wireless triggering
• Power linking saves time running cables
• Fits best in the CHS-40 VIP gear bag

Product Specifications

General

• DMX Channels: 3, 6, 11 or 40
• DMX Connectors: 3-pin XLR
• Light Source: 18 LEDs (hex-color RGBAW+UV) 8 W, 2.8 A, 50,000 hours life expectancy
• Strobe Rate: 0 to 24 Hz
• Beam Angle: 41°
• Field Angle: 68°
• Illuminance: 2,422 lux @ 2 m
• Power Linking: 3 units @ 120 V; 5 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 200 W, 2.5 A @ 120 V, 60 Hz
  • 194 W, 1.5 A @ 230 V, 50 Hz
• Approvals: CE

Physical

• Weight: 7.0 lbs (3.2 kg)
• Size: 11.2 x 6.3 x 13 in (285 x 160x 330 mm)
• Optional Controllers: IRC-6

What's in the Box?

• Wash FX Hex
• Power Cable
• Quick Reference Guide
