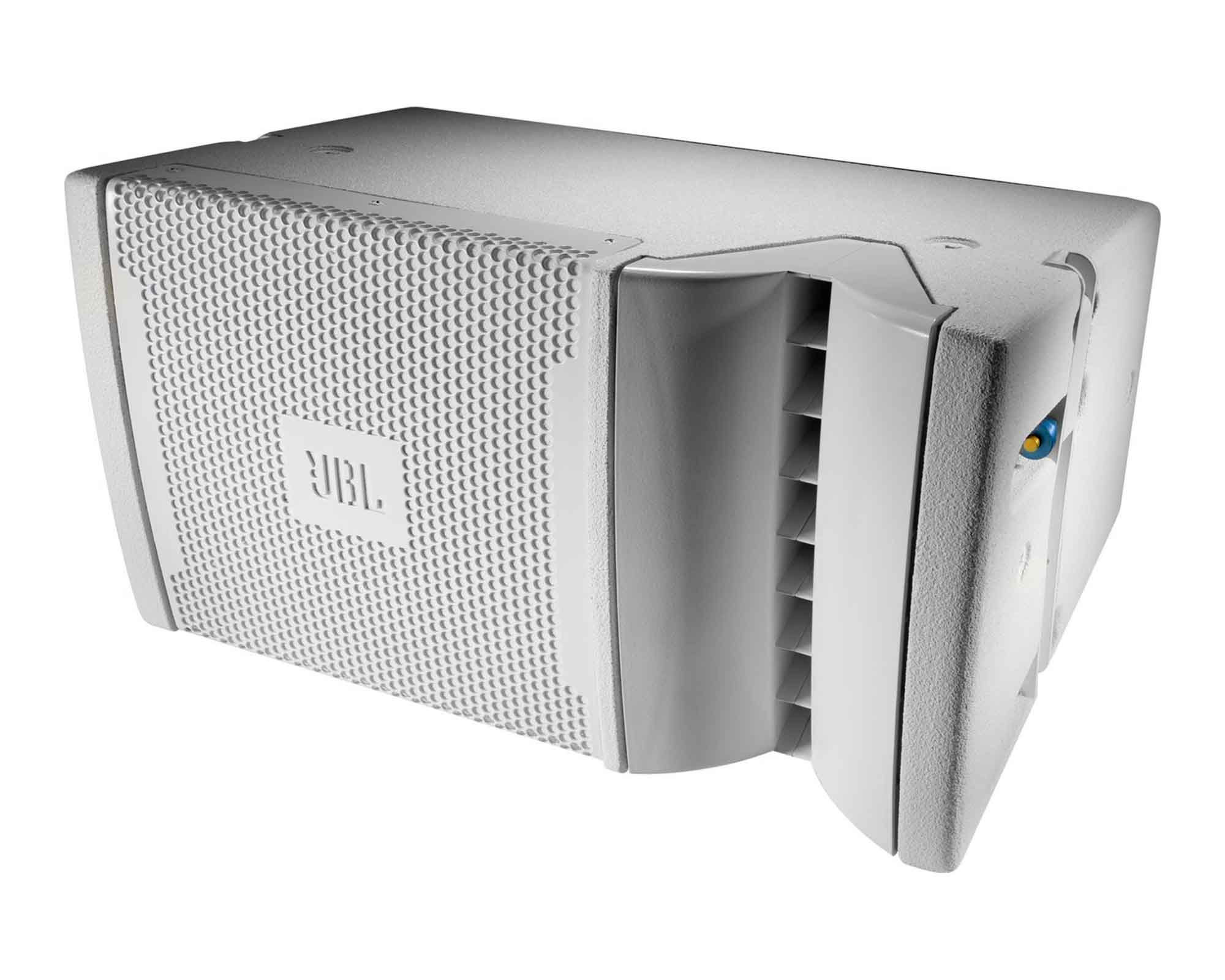

The VRX928LA-WH is a lightweight (13 kg/28 lb) compact 8" two-way line array speaker system designed for use in arrays of up to six units. VRX928LA-WH is the ideal choice when line-array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line-arrays such as JBL’s VERTEC or VRX932LA-1WH.

The Constant Curvature waveguide mounts two compression drivers on a continuous arc. When additional VRX928LA-WH speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are two HF drivers in each VRX928LA-WH, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

VRX928LA-WH uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area. The integral rigging hardware is used to securely lock the array together.

As many as six VRX928LA-WH speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX-SMAF array frame (available separately). For applications in which the array must be aimed sharply down, a second Array Frame may be installed to the bottom of the array serving as a pull-back.

The VRX928LA-WH was designed for compatibility with VRX915S-WH subwoofer.

Product Features

• Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
• Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
• Suspension and Rigging.
• Dual Angle Pole Socket - JBL dual angle pole sockets allow great flexibility in aiming the enclosure
• (not on - WH version)
• Differential Drive® Woofer.

Product Specifications

General

• Power Rating: 400 W / 800 W / 1600W
• Frequency Range: 70 Hz - 20 kHz (-10 dB)
• Coverage Pattern: 100 x 15 nominal
• Frequency Response: 85 Hz - 19 Hz (+/-3db)
• Crossover Modes: Bi-amp / passive,
• Crossover Frequency: 2.0 kHz

Physical & Dimensions

• Height: 230mm
• Width: 420mm
• Depth: 270mm
• Weight: 12.7kg
