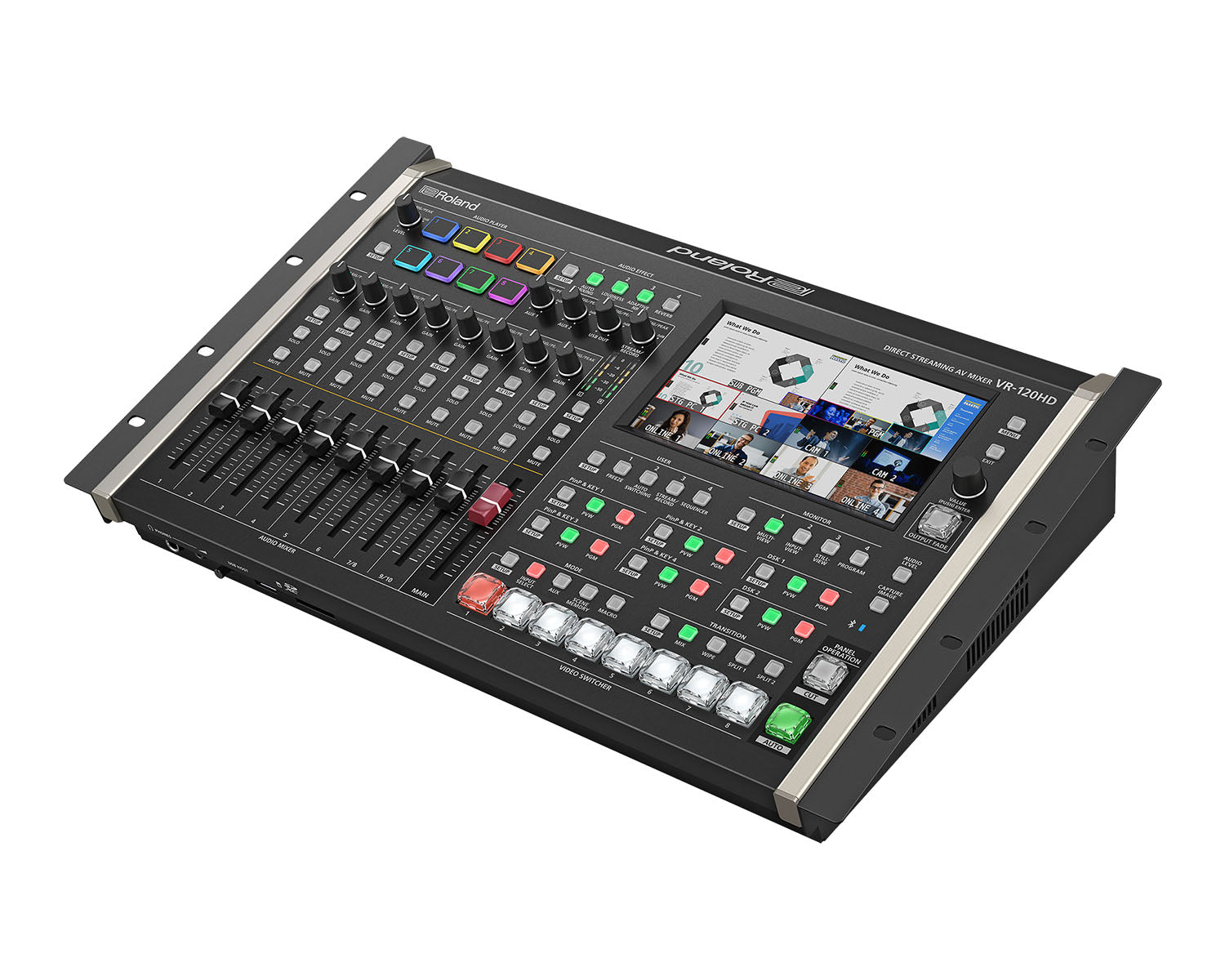

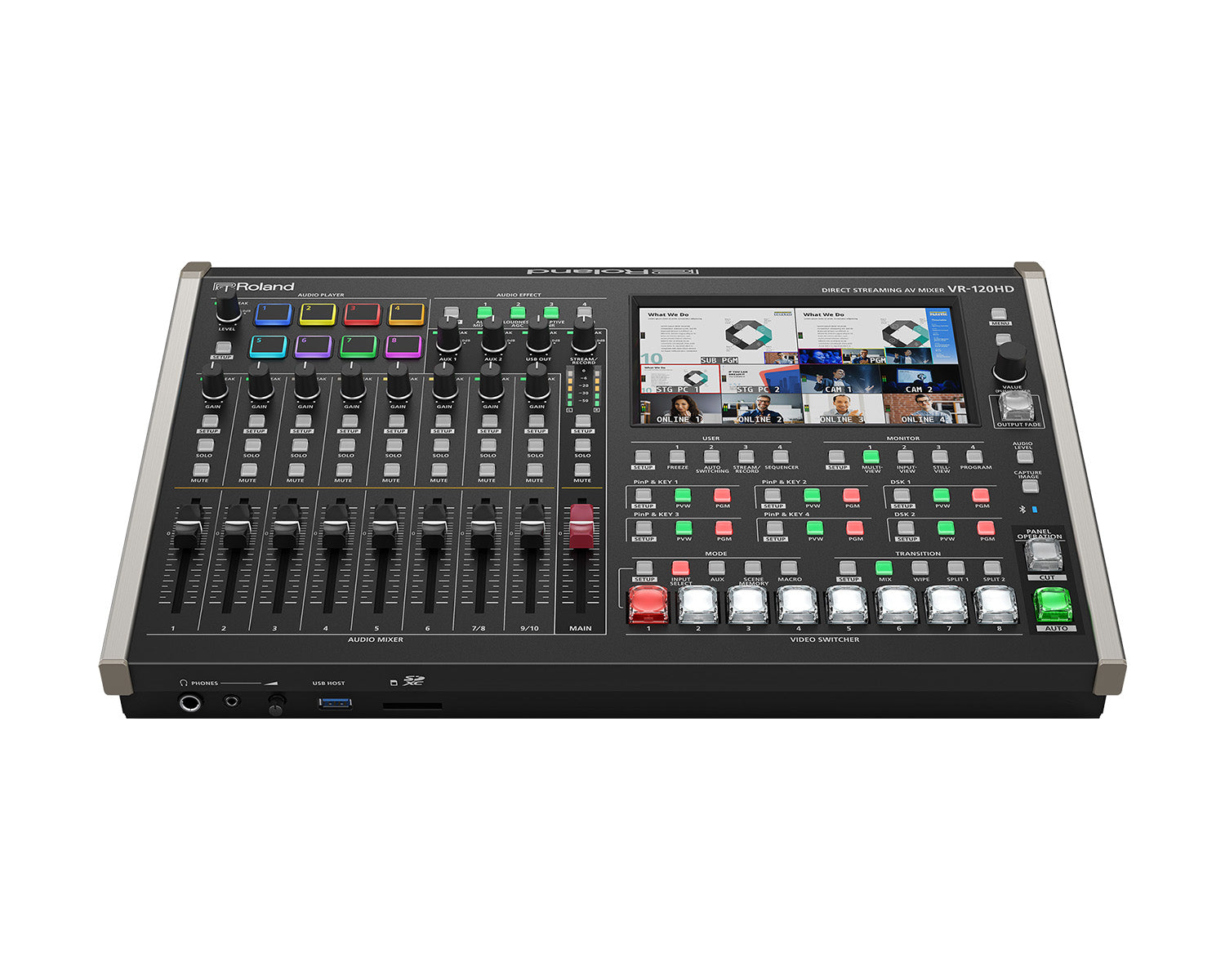

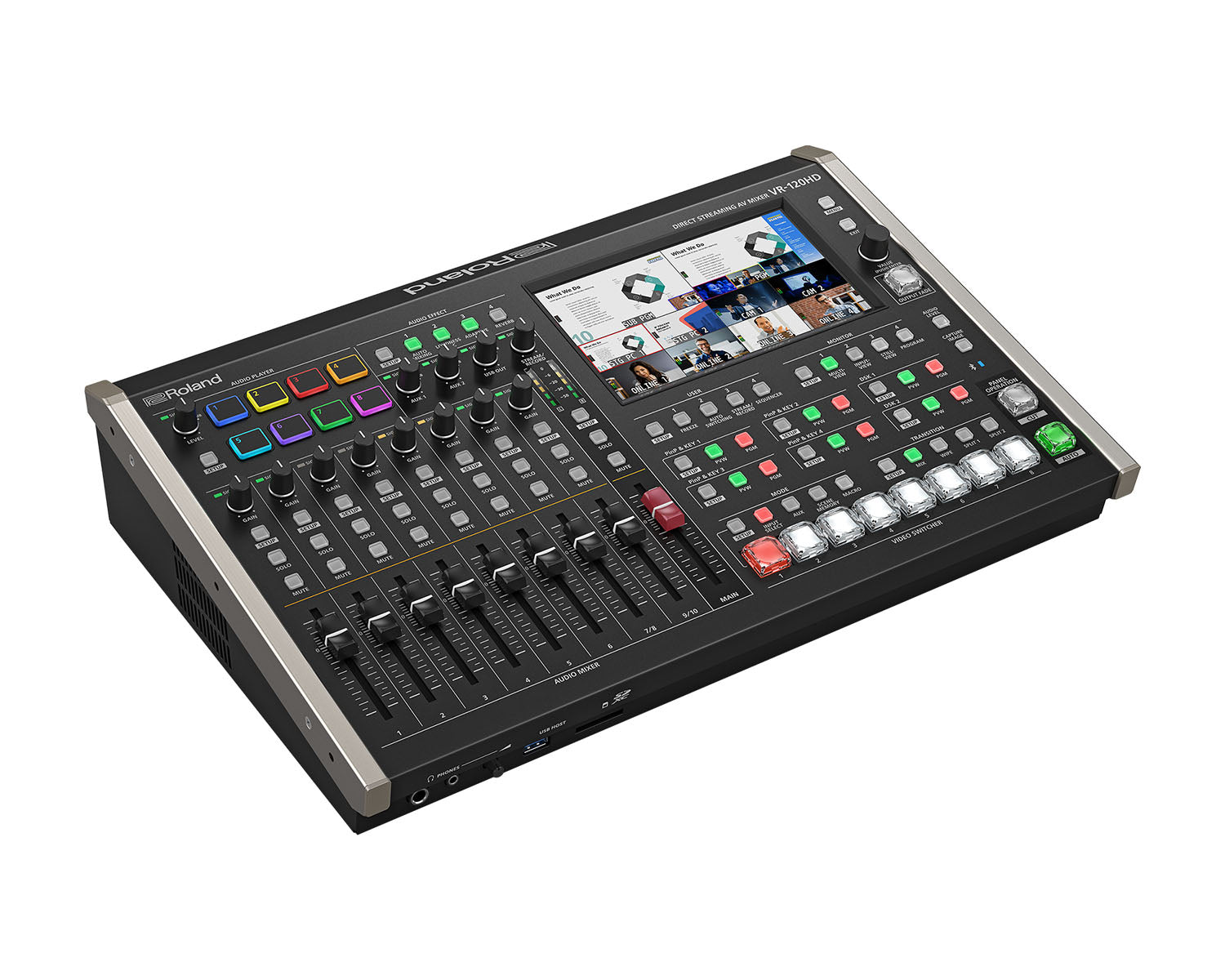

Pro hybrid event mixer with six SDI and six HDMI inputs, three SDI and three HDMI outputs, 42-channel audio mixing, direct LAN and USB-C webcam streaming outputs, advanced automation features, and more.

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.

Product Features

• Portable hybrid event audio/video mixer with direct streaming encoders
• Powerful live production automation with sequencing, macros, and scene memories
• Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Six 3G SDI inputs with frame rate converters
• Six 1080p HDMI inputs with frame rate converters and real-time scalers
• Support for cinema and broadcast frame rates
• Eight-layer video effects engine
• Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output
• Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
• 42-channel digital audio mixer with advanced effects and processing
• 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
• Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
• Audio Player function with eight trigger pads and onboard storage for 16 audio files
• PTZ control for 12 cameras with support for multiple brands and mixed protocols
• Large seven-inch touch screen with graphical menu
• Extensive device control with Bluetooth, USB, RS-232, and LAN
• Remote control software available for iPad, macOS, and Windows
• Wireless and wired camera tally support

Version 2 Features

• Graphics Presenter Support—This free, easy-to-use software for Windows computers elevates your live productions with stunning graphics.
• New Chroma Key Engine—Upgraded keyer algorithms allow for more precise composition in real time.
• SRT Input and Output—Enables secure video and audio transmission over LAN/internet connections.
• Additional Aux Buses—There are now three total Aux buses for both video and audio, providing more flexibility in system configurations.
• iPad Video Monitoring and Switching—Full control is now available using the iPad Remote app and many of the latest iPad models with USB-C.
• External PTZ Control Enhancements—You can now adjust pan, tilt, and zoom for each camera and assign/recall presets from a USB numeric keypad.
• VenuSet Support—VenuSet is a customizable control panel app that streamlines operation for users of any skill level (Version 2.1 or later).

Product Specifications

Video

• Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
• Number of Video Channels: 12 channels
• Video Input Formats:
  • HDMI IN 1--6
  • 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
  • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
  • 1080/23.98p, 1080/24p
  • VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
  • WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
  • FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
  • UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • * The refresh rate is the maximum value of each resolution.
  • * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
  • * 1920 x 1200/60 Hz: Reduced blanking
  • * The input interlaced video signal is converted to progressive video signal by internal processing.
  • *1 Frame Rate = 59.94 Hz, 60 Hz
  • *2 Frame Rate = 50 Hz
• SDI IN 1--6
  • 720/59.94p *1, *3
  • 720/50p *1, *4
  • 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
  • 1080/50i, 1080/50p, 1080/25p *2, *4
  • 1080/23.98p, 1080/24p *2
  • * The input interlaced video signal is converted to progressive video signal by internal processing.
  • *1 Output Format = 720p
  • *2 Output Format = 1080i or 1080p
  • *3 Frame Rate = 59.94 Hz, 60 Hz
  • *4 Frame Rate = 50 Hz
• Video Output Formats
  • HDMI OUT 1--3, SDI OUT 1--3:
  • 720/59.94p *1, *4
  • 720/60p *1, *5
  • 720/50p *1, *8
  • 1080/59.94i *2, *4
  • 1080/60i *2, *5
  • 1080/50i *2, *8
  • 1080/59.94p *3, *4
  • 1080/60p *3, *5
  • 1080/29.97p *3, *6
  • 1080/30p *3, *7
  • 1080/50p *3, *8
  • 1080/25p *3, *9
  • 1080/23.98p *3, *10
  • 1080/24p *3, *11
  • *1 Output Format = 720p
  • *2 Output Format = 1080i
  • *3 Output Format = 1080p
  • *4 Frame Rate = 59.94 Hz
  • *5 Frame Rate = 60 Hz
  • *6 Frame Rate = 29.97 Hz
  • *7 Frame Rate = 30 Hz
  • *8 Frame Rate = 50 Hz
  • *9 Frame Rate = 25 Hz
  • *10 Frame Rate = 23.98 Hz
  • *11 Frame Rate = 24 Hz
• USB STREAM:
  • 1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
  • 1080/60p, 720/60p, 640 x 480/60p *2
  • 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
  • 1080/30p, 720/30p, 640 x 480/30p *4
  • 1080/50p, 720/50p, 640 x 480/50p *5
  • 1080/25p, 720/25p､640 x 480/25p *6
  • 1080/23.98p, 720/23.98p､640 x 480/23.98p *7
  • 1080/24p, 720/24p､640 x 480/24p *8
  • *Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
  • *1 Frame Rate(USB Out) = 59.94 Hz
  • *2 Frame Rate(USB Out) = 60 Hz
  • *3 Frame Rate(USB Out) = 29.97 Hz
  • *4 Frame Rate(USB Out) = 30 Hz
  • *5 Frame Rate(USB Out) = 50 Hz
  • *6 Frame Rate(USB Out) = 25 Hz
  • *7 Frame Rate(USB Out) = 23.98 Hz
  • *8 Frame Rate(USB Out) = 24 Hz
• Stream and Record formats:
  • 720/59.94p *1, *3
  • 720/60p *1, *4
  • 720/50p *1, *7
  • 1080/59.94p *2, *3
  • 1080/60p *2, *4
  • 1080/29.97p *2, *5
  • 1080/30p *2, *6
  • 1080/50p *2, *7
  • 1080/25p *2, *8
  • 1080/23.98p *2, *9
  • 1080/24p *2, *10
  • *1 Output Format = 720p
  • *2 Output Format = 1080p
  • *3 Frame Rate (Stream/Record) = 59.94 Hz
  • *4 Frame Rate (Stream/Record) = 60 Hz
  • *5 Frame Rate (Stream/Record) = 29.97 Hz
  • *6 Frame Rate (Stream/Record) = 30 Hz
  • *7 Frame Rate (Stream/Record) = 50 Hz
  • *8 Frame Rate (Stream/Record) = 25 Hz
  • *9 Frame Rate (Stream/Record) = 23.98 Hz
  • *10 Frame Rate (Stream/Record) = 24 Hz
• File Format: MP4
  • Codec:
    • H.264, target bitrate up to 20,000 kbps
    • AAC LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
• File Format: WAV
  • Codec: Linear PCM, 16 bits, 48 kHz, stereo
• Video Player: File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Maximum 1080p60
• Still Image:
  • Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
  • PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
  • JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
  • * It can be stored up to 16 files in the internal memory.
  • * It can be exported in the SD Card and USB flash drive.
  • * PNG alpha channel supported.
• Video Effects
  • Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types)
  • Composition: PinP x 4 (Square, Circle, Diamond), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
  • Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay

Audio

• Audio Processing: Sample rate: 24 bits, 48 kHz
• Number of Audio Channels: 42 channels
• Audio Formats:
  • USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch
  • Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
  • HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
  • HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
  • SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
  • SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
• Audio Player:
  • File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
  • * It can be stored up to 16 tracks in the internal memory.
  • Audio Effects:
  • Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
  • Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
  • Others: Output fade, Test tone output

Common Section

• Recording Media:
  • SDHC/SDXC card (sold separately)
  • USB Memory (sold separately)
  • * SDXC card is required for video recording.
• Other Functions:
  • Scene Memory (32 types)
  • Macro Control (100 types)
  • Sequencer Control
  • Panel lock function
  • EDID Emulator
  • Auto Switching
  • Auto Input Detect
  • Smart Tally
  • Remote Camera Control (Up to 12 units)
  • External Rec Control

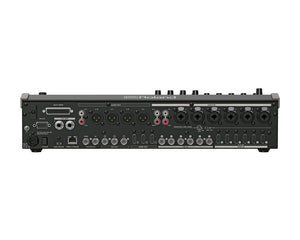

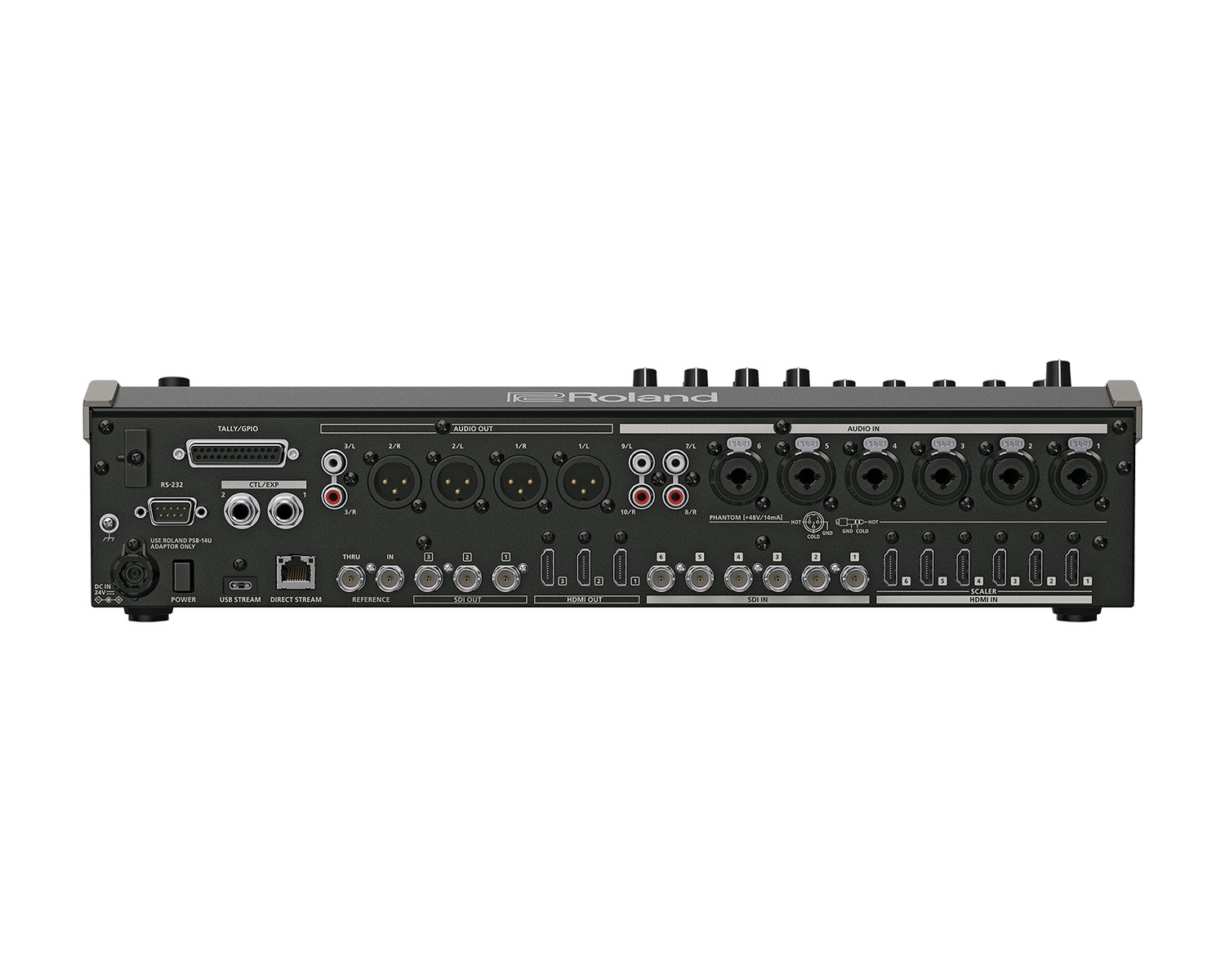

Connectors

• Video Input Connectors:
  • HDMI IN 1--6: HDMI type A x 6
  • * HDCP Supported
  • * Multi-format Supported
  • SDI IN 1--6: BNC type x 6
  • * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• Video Output Connectors:
  • HDMI OUT 1--3: HDMI type A x 3
  • * HDCP Supported
  • SDI OUT 1--3: BNC type x 3
  • * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• USB STREAM: USB Type-C (TM)
• Audio Input Connectors:
  • Analog:
    • AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
    • AUDIO IN 7/L, 8/R: RCA phono type
  • Digital:
    • USB STREAM: USB Type-C (TM)
    • Bluetooth
    • HDMI IN 1--6: HDMI type A x 6
    • SDI IN 1--6: BNC type x 6
• Audio Output Connectors
  • Analog:
    • AUDIO OUT 1--4: XLR type
    • AUDIO OUT 5--6: RCA phono type

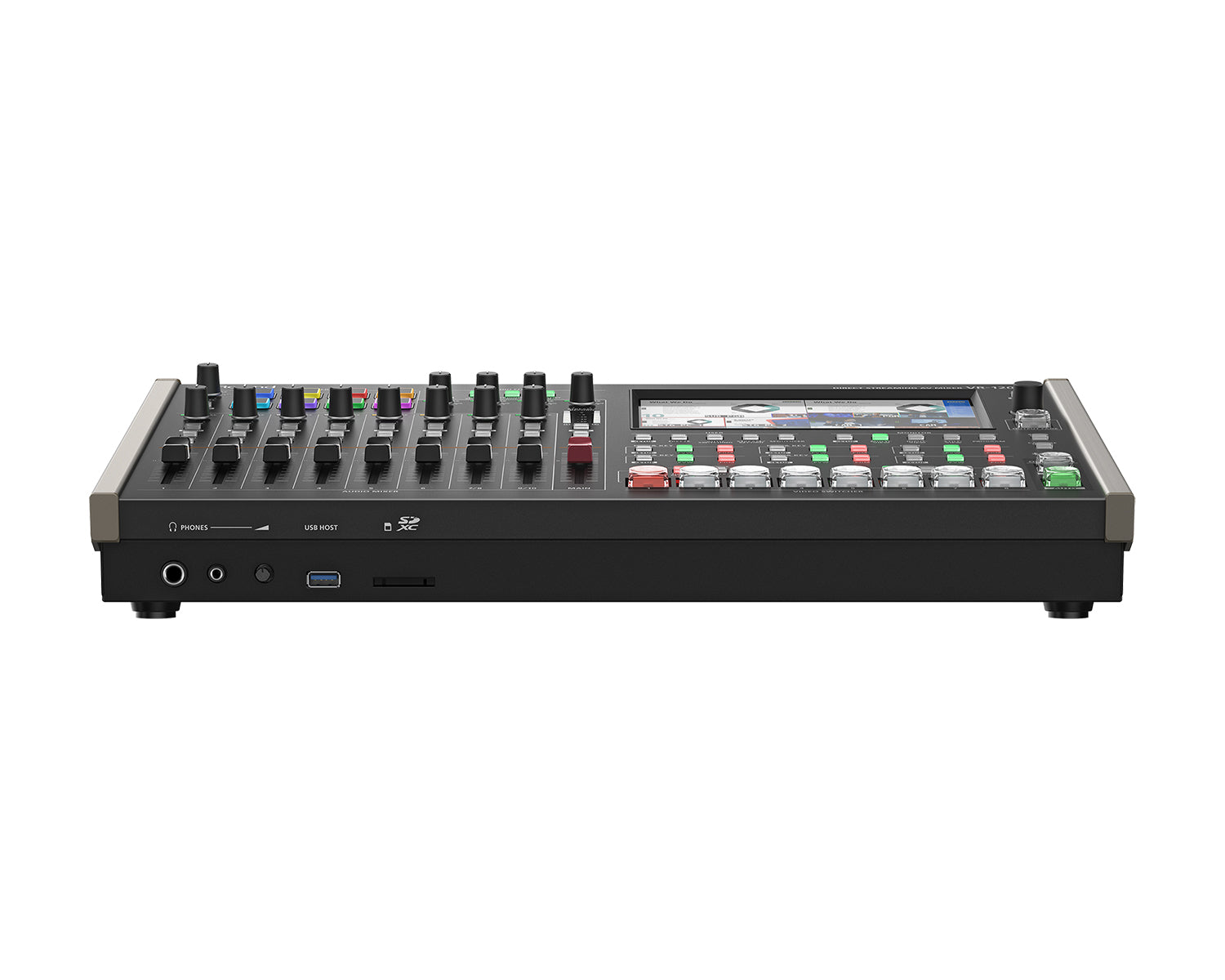

    • PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type
  • Digital:
    • USB STREAM: USB Type-C (TM)
    • HDMI OUT 1--3: HDMI type A x 3
    • SDI OUT 1--3: BNC type x 3
• Other Connectors:
  • USB HOST: USB A type (for USB flash drive)
  • USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
  • Bluetooth: for remote control from iPad
  • CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
  • TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
  • RS-232: DB-9 type (Male) (for Remote Control)
  • DIRECT STREAM: RJ45, 1000BASE-TX (for Live Streaming and Remote Control)
  • Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level

Audio Input/Output Characteristics

• Input Level:
  • AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu)
  • AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu)
• Input Impedance:
  • AUDIO IN 1--6: 30 k ohms
  • AUDIO IN 7/L, 8/R: 7 k ohms
• Output Level:
  • AUDIO OUT 1--4 (XLR): +4 dBu (Maximum: +24 dBu)
  • AUDIO OUT 5--6 (RCA): -10 dBu (Maximum: +10 dBu)
  • PHONES: 92 mW + 92 mW (32 ohms)
• Output Impedance:
  • AUDIO OUT (XLR): 600 ohms
  • AUDIO OUT (RCA): 1 k ohm
  • PHONES: 56 ohms
• Residual Noise Level (IHF-A, typ.):
• -92 dBu (All faders: Min)
• -89 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Min)
• -62 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Max)
• * Input 150 ohms terminate
• * Output Connector: AUDIO OUT 1--4 Connectors (XLR)
• -101 dBu (All faders: Min)
• -100 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Min)
• -75 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Max)
• * Input 150 ohms terminate
• * Output Connector: AUDIO OUT (RCA) Connectors

Physical & Dimensions

• Bluetooth
  • Ver 4.2
  • Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
  • Codec: SBC (Support to the content protection of the SCMS-T method)
• Display: Graphic Type, 7\", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen)
• Power Supply: AC Adaptor
• Current Draw: 3.0 A
• Power Consumption: 69 W
• Operation Temperature: +0 to +40 degrees Celsius, +32 to +104 degrees Fahrenheit
• Dimensions:
  • 437 (W) x 304 (D) x 109 (H) mm, 17-1/4 (W) x 12 (D) x 4-5/16 (H) inches
  • 482 (W) x 304 (D) x 109 (H) mm, 19 (W) x 10 (D) x 4-1/16 (H) inches * When rack mount angles are fitted.
• Weight (excluding AC adaptor): 5.3 kg, 11 lbs 11 oz

What's in the Box?

• Startup Guide
• Leaflet "USING THE UNIT SAFELY"
• AC adaptor
• Power cord
• Rack-mount angle x 2
• Rack-mount angle mounting screw x 6
