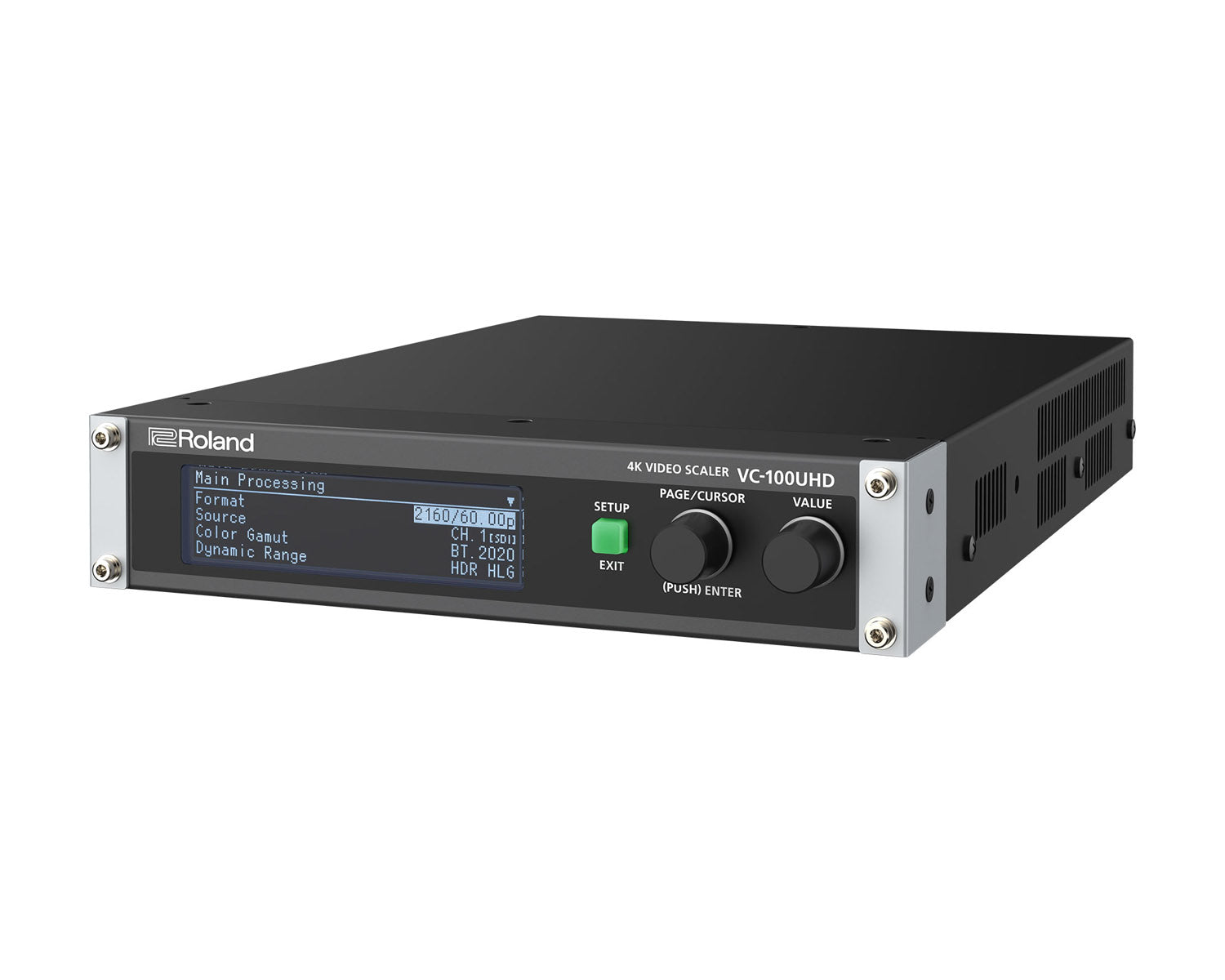

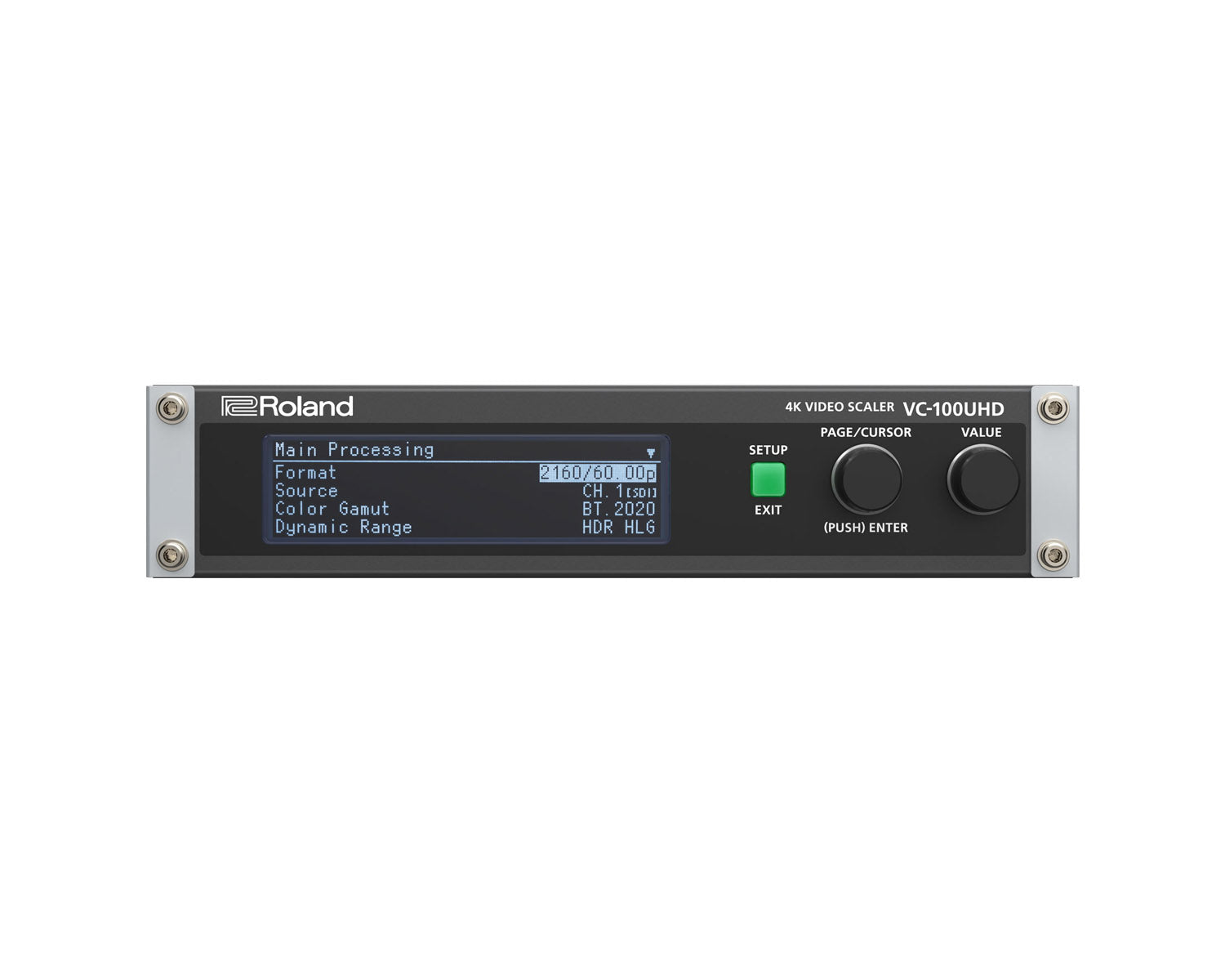

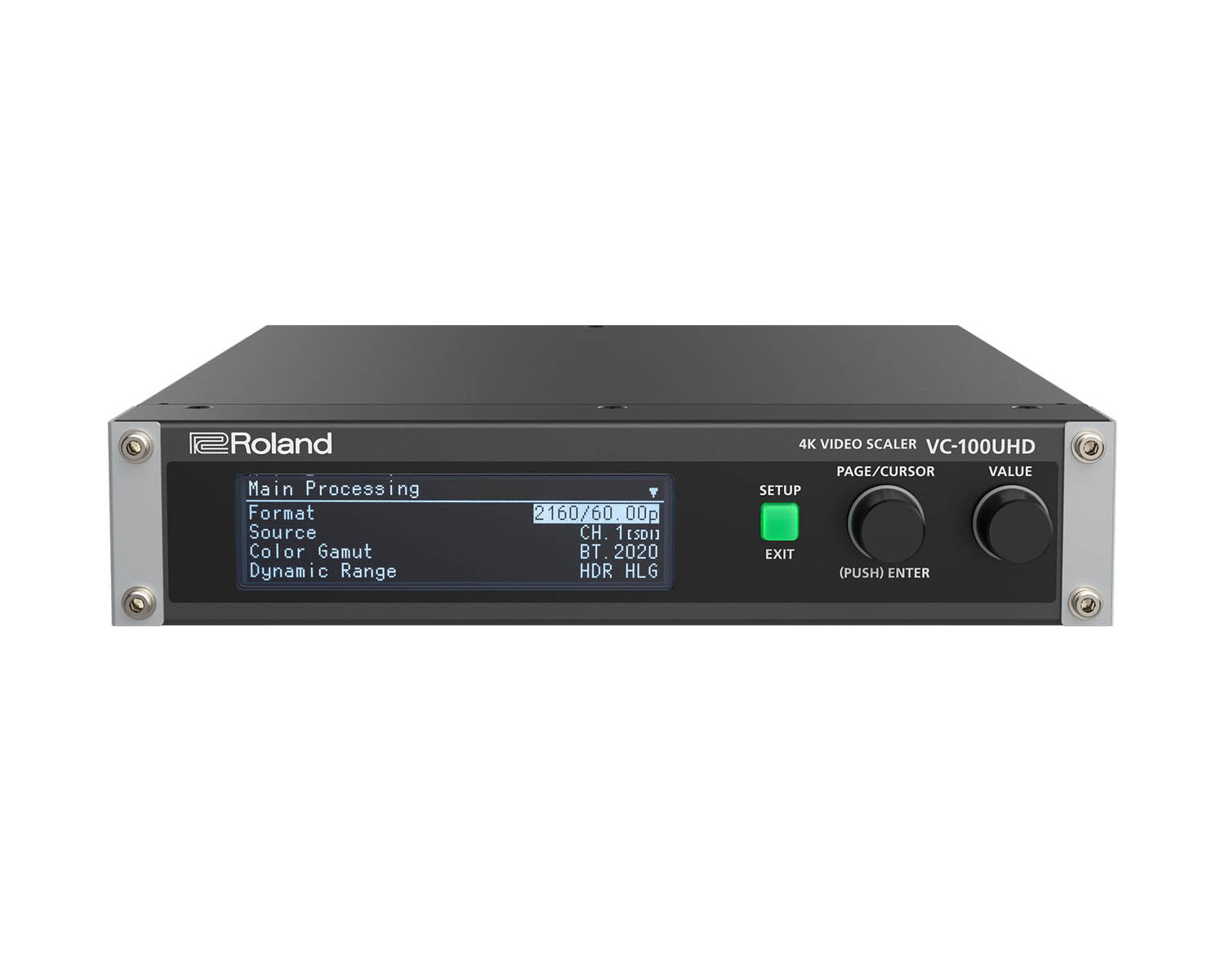

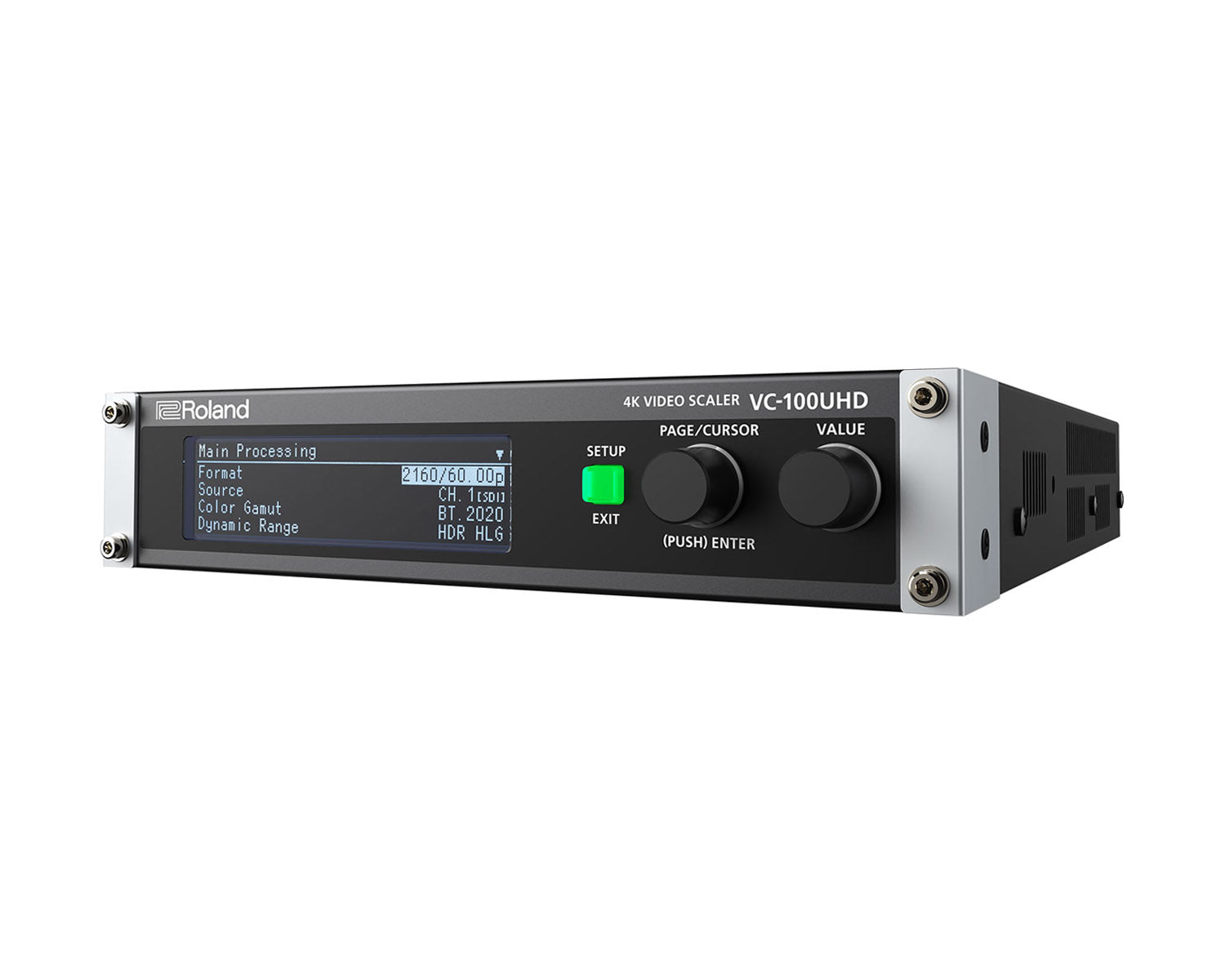

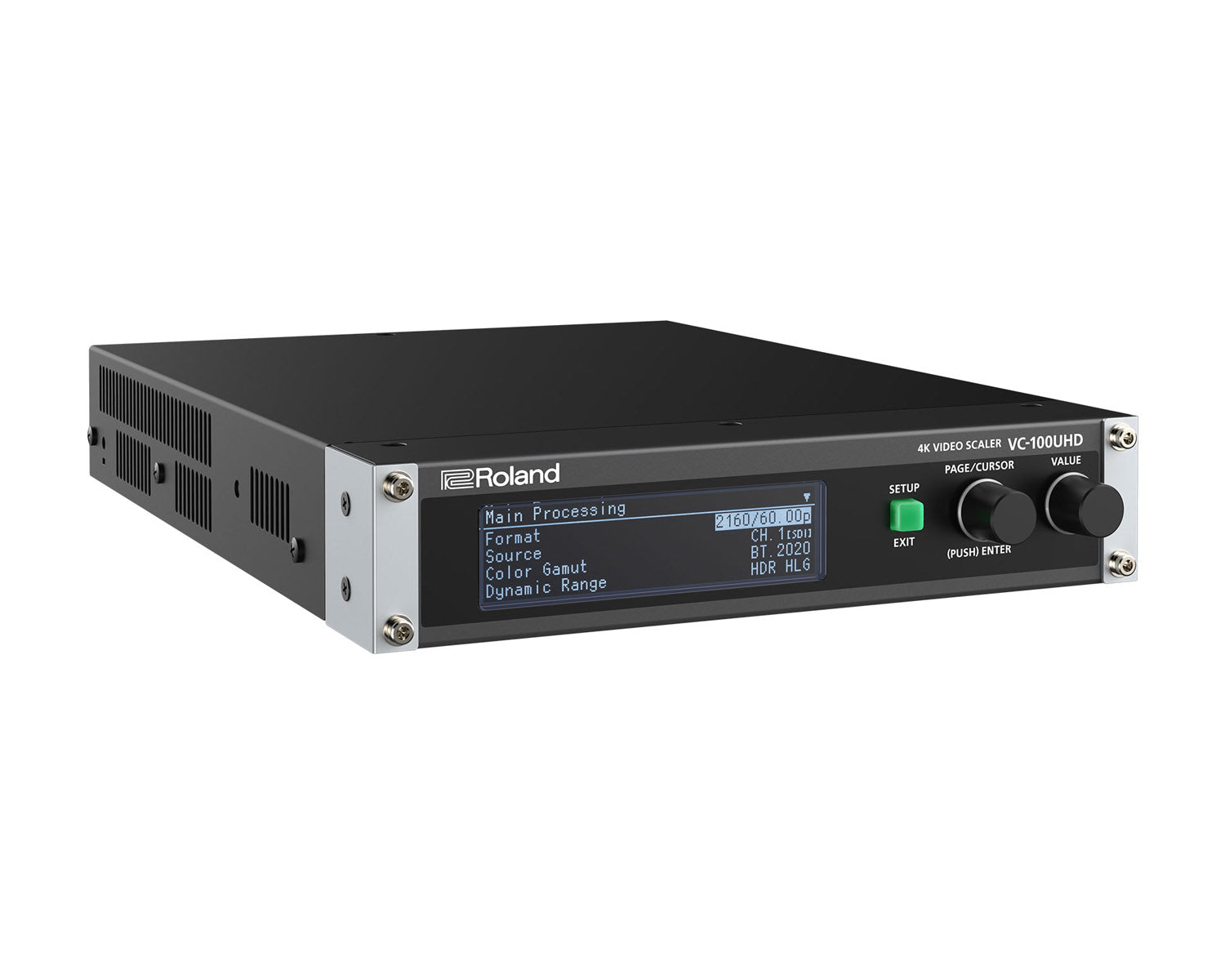

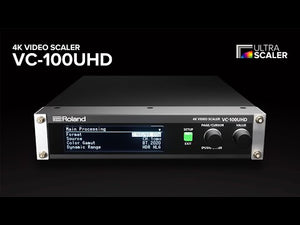

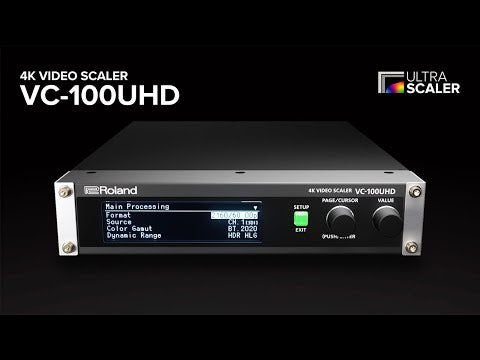

The Roland VC-100UHD is a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland’s Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.

Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

Product Features

General

• Professional A/V signal management in a compact and robust unit
• Features 12G-SDI and HDMI 2.0 I/O with Roland’s Ultra Scaler video processing technology
• Display processing for multiple audiences: 4K, HD, and web streaming
• High frame rate support at 120, 144, and 240 Hz
• Advanced visual effects and image processing
• Professional audio processing with flexible patching
• USB 3.0 webcam output for livestreaming broadcasts

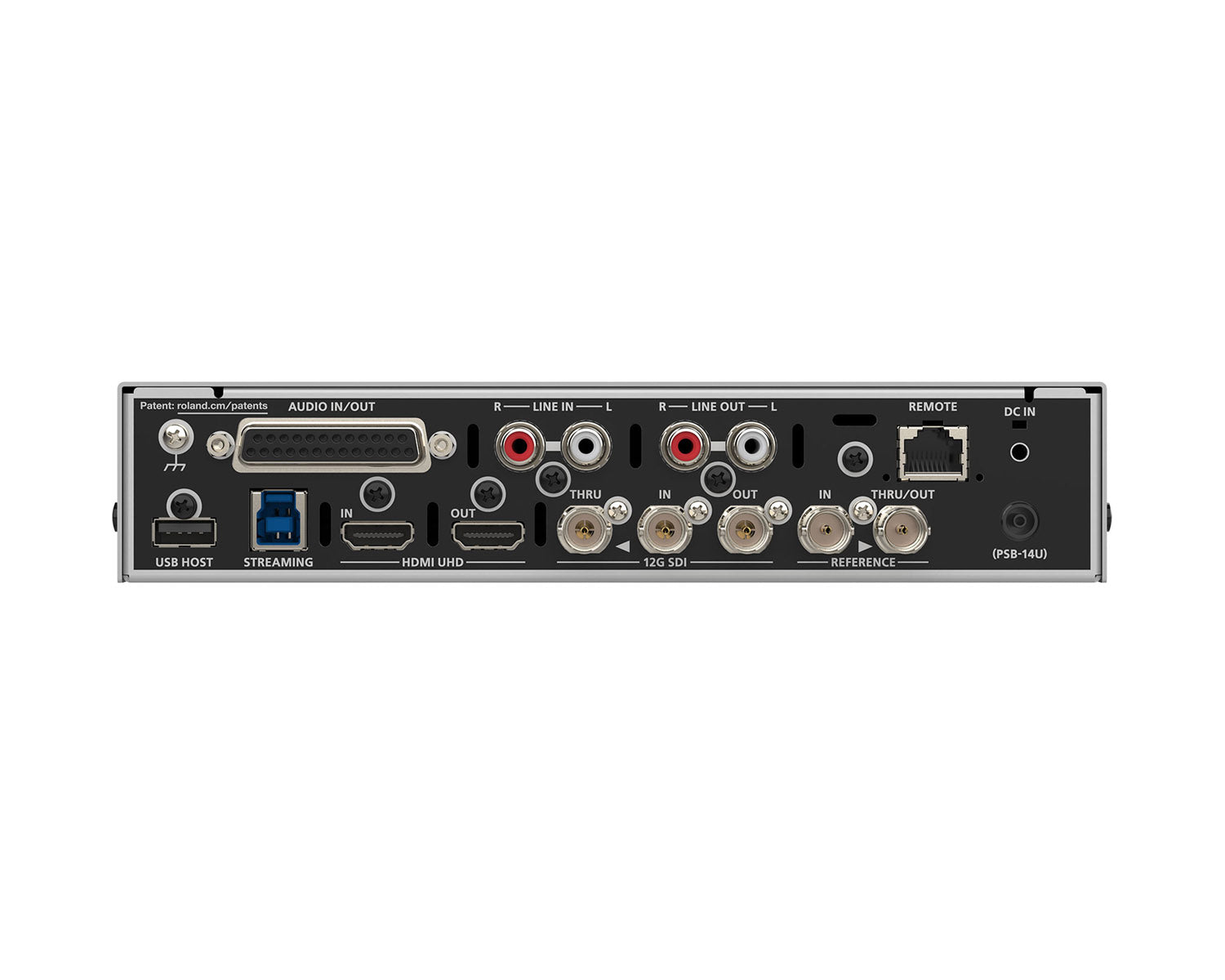

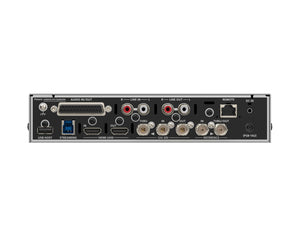

Rear Pannel Features

• 12G-SDI IN, OUT, THRU
• HDMI IN, OUT (THRU)
• REFERENCE IN, OUT/THRU
• Balanced AUDIO IN/OUT
• LINE IN, OUT (L/R)
• REMOTE (LAN)
• DC IN (24V)
• USB

Roland Ultra Scaler supports

• 10-bit 4:4:4 pixel-accurate color
• Rec. 2020 wide color gamut
• High dynamic range (HDR-10) processing and conversion
• 1080p high frame rate (HFR) video at 120, 144, and 240 Hz
• Native DCI Digital Cinema System 4K (4096) resolution

Application Examples

• LED Walls
• Esports
• Livestreaming

Product Specifications

VIDEO

• Processing: 4:4:4 (Y/Pb/Pr), 10-bit
• Formats
  • SDI:
    • 2160p(DCI)/59.94 Hz, 50 Hz (SMPTE ST2048)
    • 2160p(UHD)/59.94 Hz, 50 Hz (SMPTE ST2036)
    • 1080p/59.94 Hz, 50 Hz (SMPTE ST274)
    • 1080i/59.94 Hz, 50 Hz (SMPTE ST274)
  • HDMI: *1
    • 2160p(DCI)/59.94 Hz, 50 Hz (CEA-861-F)
    • 2160p(UHD)/59.94 Hz, 50 Hz (CEA-861-F)
    • 1080p/59.94 Hz, 50 Hz (CEA-861-F)
    • 1080i/59.94 Hz, 50 Hz (CEA-861-F)
    • 4096 x 2160/60 Hz (CEA-861-F)
    • 3840 x 2160/60 Hz (CEA-861-F)
    • 2560 x 1440/60 Hz (VESA CVT Reduced blanking)
    • 1920 x 1200/60 Hz (VESA CVT Reduced blanking)
    • 1920 x 1080/240 Hz (Pixel Clock 556.8 MHz) *2
    • 1920 x 1080/144 Hz (Pixel Clock 346.54 MHz) *2
    • 1920 x 1080/120 Hz (VESA CVT Reduced blanking) *2
    • 1920 x 1080/60 Hz (CEA-861-F)
    • *1 HDCP 1.4, 2.2 supported.
    • *2 Input and through output.
  • USB Streaming: *3 *4 *5
    • 1080p, 720p, 480p/576p
    • *3 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Pb/Pr), 8-bit
    • *3 The video signal frame rate can be selected Full or Half.
    • *4 Colour Gamut: Rec.601, Rec.709, Dynamic Range: SDR
    • * Colour Gamut: Rec.601, Rec.709, Rec.2020
    • * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
  • Functions
    • 4K Scaler
    • FHD Down Scaler
    • Output Fade
    • Output Freeze
    • Test Pattern Generator
    • Rotation *6
    • Flip H, V
    • Edge Enhancer
    • Motion Adaptive Deinterlacer
    • Colour Correction
    • Dynamic Range Conversion

^{*6 Require to disable Sub Processing to use.}

AUDIO

• Processing: 24 bits/48 kHz
• Formats:
  • 12G-SDI: Linear PCM, 24 bits/48 kHz, 16 ch (SMPTE 299M)
  • HDMI 4K: Linear PCM, 24 bits/48 kHz, 8 ch
  • STREAMING: Linear PCM, 16 bits/48 kHz, 2 ch (UAC (USB Audio Class))
• Input Level:
  • LINE IN: -10 dBu (Maximum: +8 dBu)
  • AUDIO IN: +4 dBu (Maximum: +24 dBu)
• Input Impedance:
  • LINE IN: 38 k ohms
  • AUDIO IN: 15 k ohms
• Output Level:
  • LINE OUT: -10 dBu (Maximum: +8 dBu)
  • AUDIO OUT: +4 dBu (Maximum: +24 dBu)
• Output Impedance:
  • LINE OUT: 1 k ohm
  • AUDIO OUT: 600 ohms
• Functions
  • Output Level
  • Patchbay
  • Delay
  • Mastering
  • Test Tone Generator

CONNECTORS

• Input Connectors:
  • 12G-SDI IN: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M)
  • HDMI 4K IN: HDMI type A
  • STREAMING: USB type B (USB3.0)
  • LINE IN: RCA phono type
  • AUDIO IN: DB-25 female type (Balanced audio 2 ch)
  • REFERENCE IN: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level)
• Output Connectors:
  • 12G-SDI OUT: BNC type (SMPTE ST2082, ST2081, 424M(SMPTE 425M-AB), 292M, 259M)
  • 12G-SDI THRU: BNC type
  • HDMI 4K OUT: HDMI type A
  • STREAMING: USB type B (USB3.0)
  • LINE OUT: RCA phono type
  • AUDIO OUT: DB-25 female type (Balanced audio 2 ch)
  • REFERENCE THRU/OUT: BNC type (Black Burst)
• Other Connectors:
  • USB HOST: USB A type (USB2.0) (for USB flash drive)
  • REMOTE: RJ45 type, 100BASE-TX

OTHERS

• Functions
  • EDID Emulator
  • Genlock
  • Preset Memory x 8
• Display: Graphic LCD 256 x 64 dots
• Power Supply: AC Adaptor
• Current Draw: 2.3 A (DC 24V)
• Power Consumption: 55 W
• Operation Temperature:
  • +0 to +40 degrees Celsius
  • +32 to +104 degrees Fahrenheit
• Dimensions:
  • 210 (W) x 284.5 (D) x 43 (H) mm
  • 8-5/16 (W) x 11-1/4 (D) x 1-3/4 (H) inches
• Weight (excluding Accessories): 2.2 kg / 4 lbs 14 oz
• Accessories
  • Owner Manual
  • Leaflet “USING THE UNIT SAFELY”
  • AC adaptor
  • Power cord
  • Rubber feet (4 pcs.)

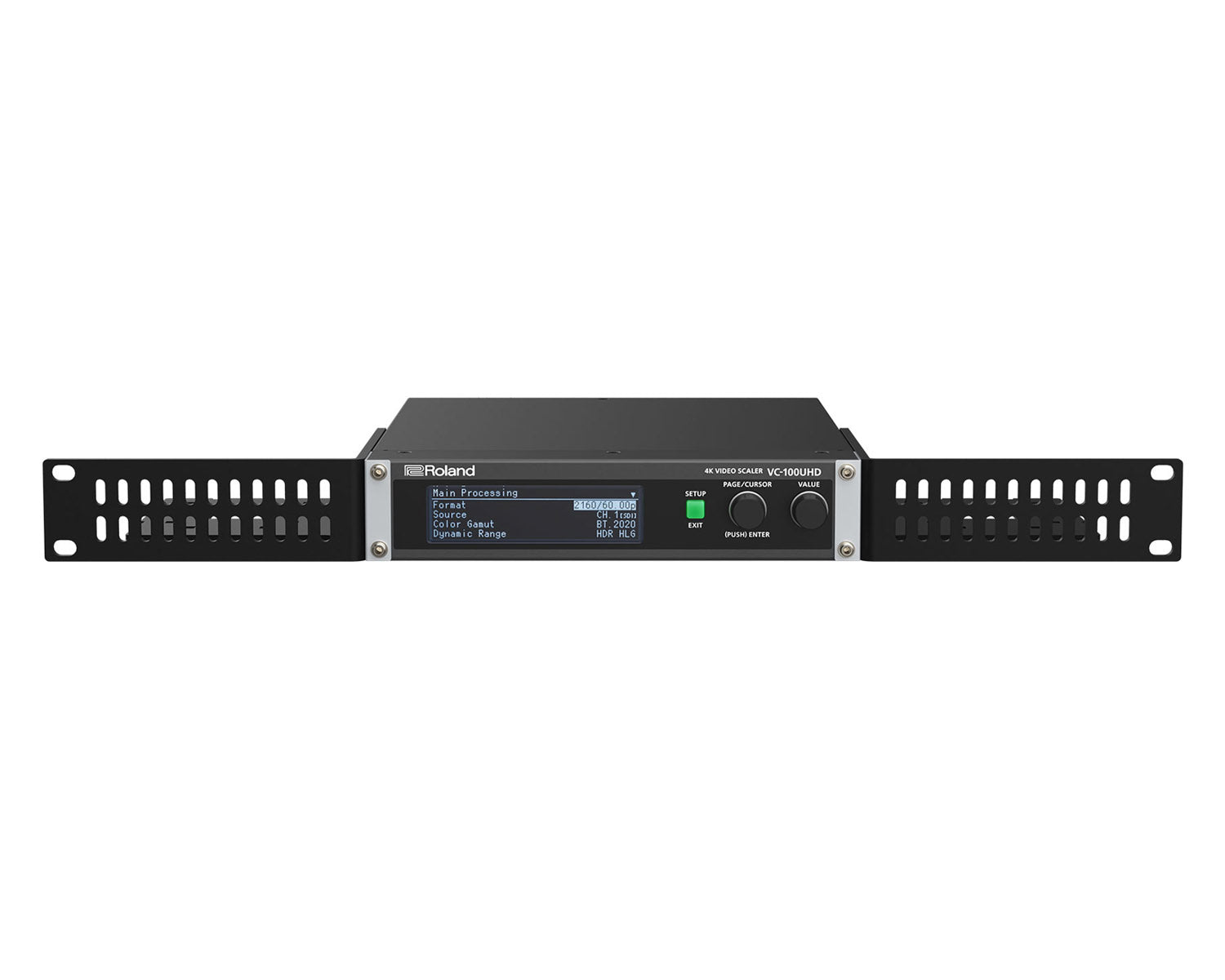

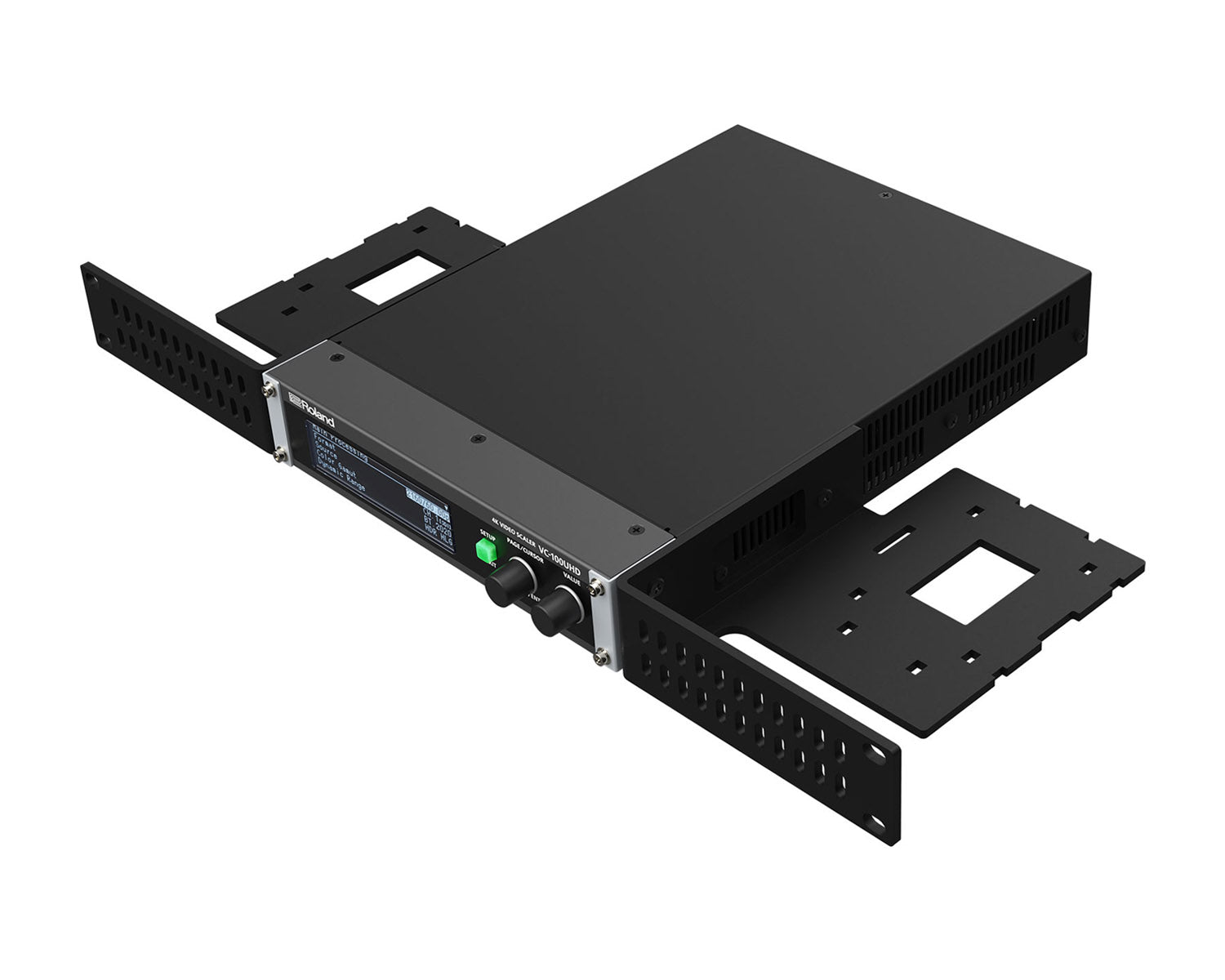

  • Rack mount angle set
  • DC Plug Stopper

^{*0 dBu = 0.775 Vrms}
