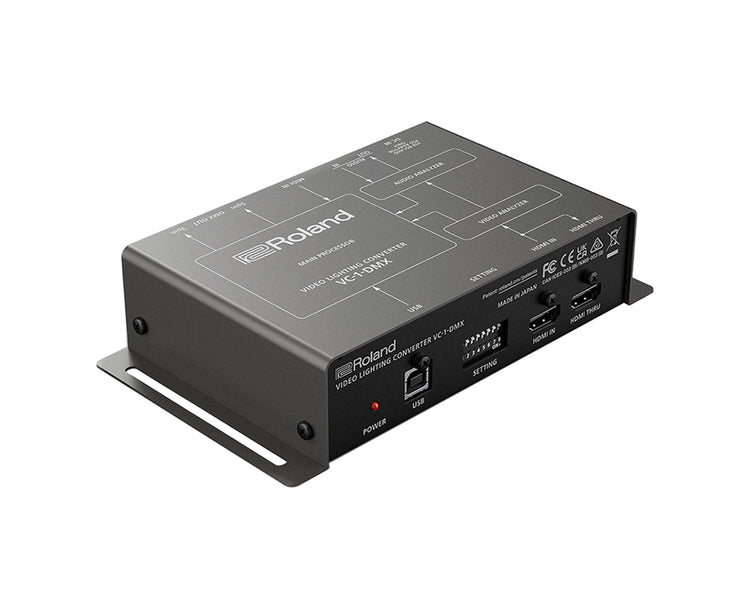

Dynamic lighting elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it’s never been easier to bring the impact of a pro light show to any event you put on.

The VC-1-DMX automatically generates control commands for your DMX lighting setup based on input from video and audio sources, eliminating the need for a dedicated lighting operator. Color and brightness change based on the current video image, and lights and mirror balls operate in sync with the music tempo. And if you want to dive deeper, the VC-1-DMX supports external MIDI operation from hardware control surfaces, electronic musical instruments, and computer-based production software.

Product Features

• Automatically generates dynamic lighting effects to enhance any event
• Outputs a DMX signal synchronized with incoming video and audio signals
• Real-time analysis and lightning-fast processing with advanced Roland technology
• Connect your A/V source to the HDMI input for analysis and distribute the unprocessed signal to a monitor or switcher via HDMI thru
• Analog audio also supported with stereo I/O
• Supports external MIDI control via dedicated MIDI input and USB MIDI
• Customize DMX settings with dedicated software for macOS and Windows
• Select channel maps for various DMX lighting fixtures with dip switches on the side panel

Product Specifications

Video

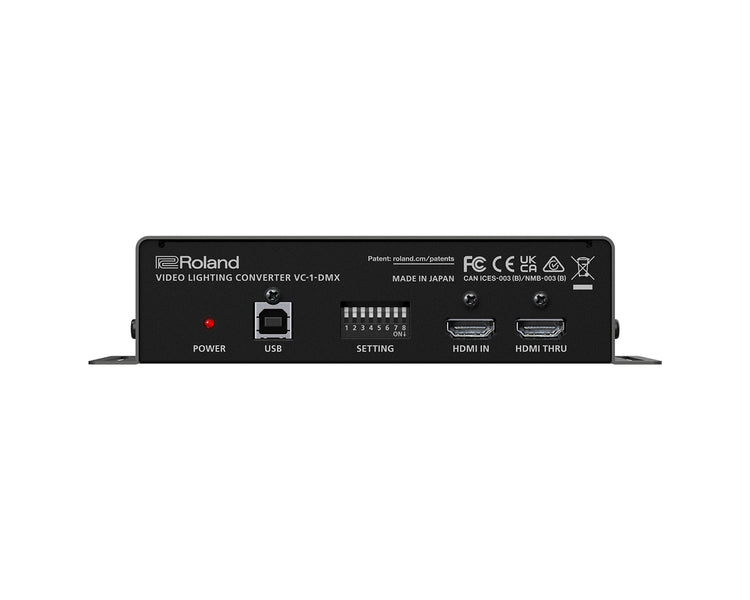

• Input Connector
  • HDMI IN connector : HDMI type A
  • * HDCP Supported
  • * Multi-format Supported
• Output Connector
  • HDMI THRU connector : HDMI type A
• Video Formats
  • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,
  • 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
  • VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz),
  • HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz),
  • FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz),
  • UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
  • * The refresh rate is the maximum value of each resolution.
  • * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.

Audio

• Input Connectors
  • AUDIO IN jacks: RCA phono type
  • HDMI IN connector: HDMI type A
• Output Connectors
  • AUDIO OUT jacks: RCA phono type
  • HDMI THRU connector: HDMI type A
• Digital Audio Format: Linear PCM, 48 kHz, 24 bits, stereo
• Audio Processing: Sample rate: 48 kHz, 24 bits
• Nominal Input Level: AUDIO IN jacks: -10 dBu (Maximum input level : +8 dBu)
• Nominal Output Level: AUDIO OUT jacks: -10 dBu (Maximum input level : +8 dBu)
• Input Impedance: AUDIO IN jacks: 15 k ohms
• Output Impedance: AUDIO OUT jacks: 1 k ohms

DMX

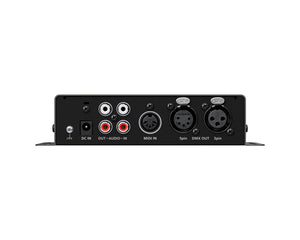

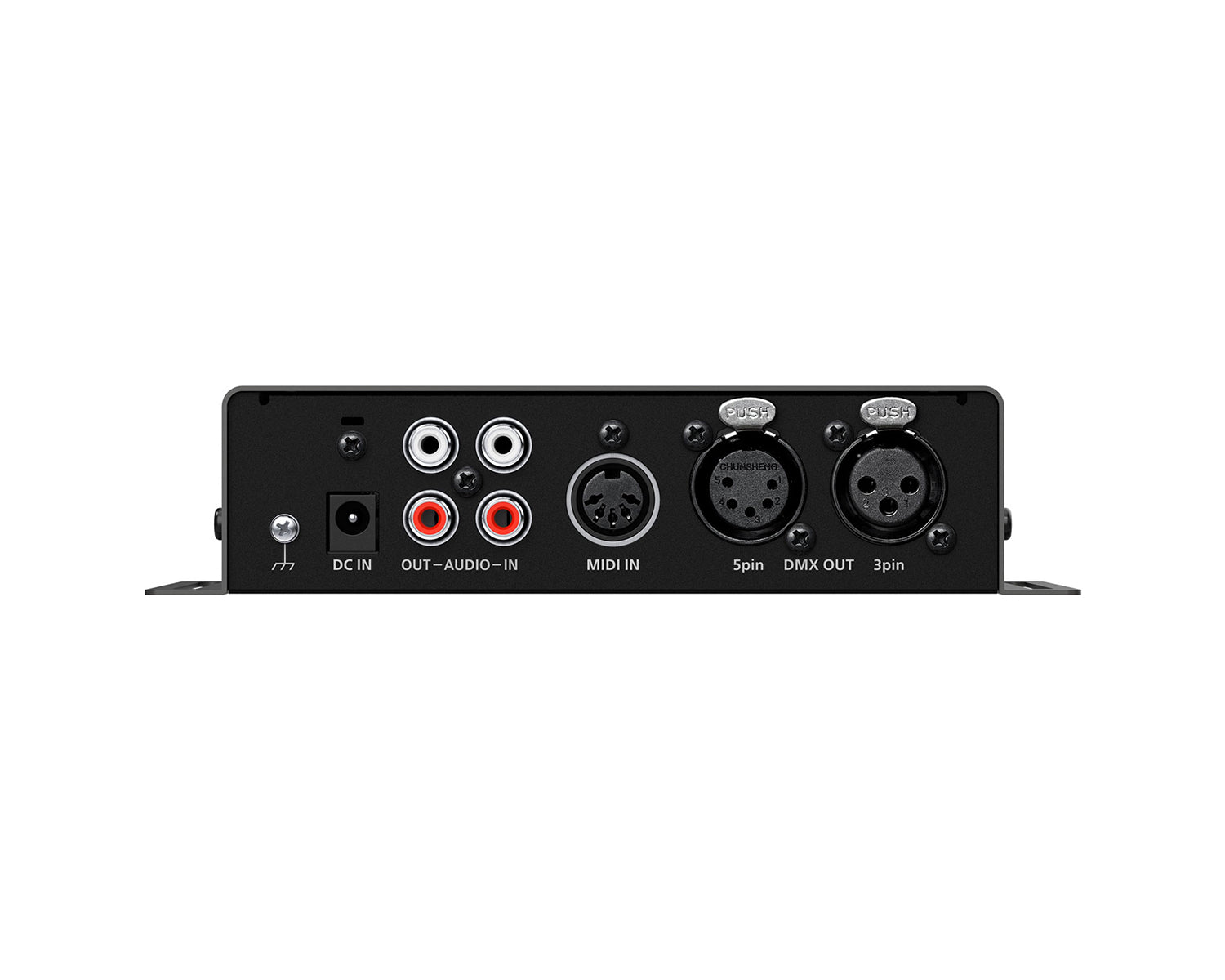

• Output Connectors
  • DMX OUT 3 pin jack: XLR type (3 pins)
  • DMX OUT 5 pin jack: XLR type (5 pins)
• DMX channel: 512 channels (1 universe)

Other

• Control Terminal
  • MIDI IN jack
  • USB port
• Switches: SETTING switch : 8 terminals
• Indicator: POWER indicator
• Functions
  • Video Synchronized Lighting Control
  • Audio Synchronized Lighting Control
  • MIDI Synchronized Lighting Control
  • Lighting Speed Control
  • HDMI Audio De-embedder
• Power Supply: AC Adaptor
• Current Draw: 1,000 mA
• Current Consumption: 5.7 W
• Operation Temperature
  • +0 to +40 degrees Celsius
  • +32 to +104 degrees Fahrenheit
• Dimensions: 180 (W) x 115 (D) x 41 (H) mm
• Weight (excluding AC adaptor): 570 g
• Accessories
  • Leaflet "USING THE UNIT SAFELY"
  • Owner Manual
  • AC Adaptor
  • Plug Holder
  • Rubber Feet
