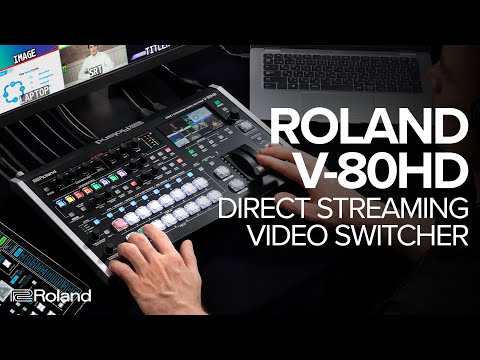

The all-in-one design is easy to carry and set up, while flexible I/O features support 3G SDI, HDMI, USB 3.0, and LAN (RTMP/SRT) connections. The V-80HD also includes multi-channel audio mixing and effects, integrated control for PTZ cameras, and remote operation with video monitoring via dedicated control apps. And with the companion Graphics Presenter software, you can easily enhance productions with impressive titles, motion graphics, and more.
Seamless Control Integration with the Yamaha DM3 Series
The Yamaha DM3 is a next-generation digital audio mixer series used by many professionals. The V-80HD (Version 1.1 or later) supports control integration with these products, enabling more efficient operation by a small team or a single user.
DM3 scene memories can be operated from the V-80HD, streamlining video and audio operations. In addition, DM3 channels can be assigned on the V-80HD for bi-directional control, linking audio faders, channel on/off, and mute controls between both products. Configuration is easy, requiring only IP address settings on each device. No DM3 firmware update is needed for this functionality.
VenuSet Customisable Control Panel App
In today’s interconnected world, professional audio and visual communication has become essential in venues where people gather. To meet this moment, AV systems must be simple for anyone to operate, including the most inexperienced users.
The VenuSet app addresses this need, offering a friendly, customisable solution that makes it easier to operate the V-80HD and other Roland video products. This configurable app allows system integrators to create unique panels with essential functions for different applications, enabling fluid remote control of video switching, audio levels, scene memories, Graphics Presenter software, GPO, and more.
Product Features
- Professional eight-channel switcher with a compact footprint and comprehensive features
- Supports a variety of applications, including in-person events, conferences, web streaming, houses of worship, and studio production setups
- Four 3G SDI inputs with frame rate converters
- Four 1080p HDMI inputs, including two 4K inputs with HD downscalers and through outputs
- Seven total outputs include SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
- Two 3G SDI and three HDMI outputs plus 10 assignable buses
- 28-channel digital audio mixer and three output buses with effects and processing
- Five-layer video effects engine, including two PinP windows with key composition and DSK
- Easily create stunning titles and motion graphics with the companion Graphics Presenter software for Windows
- 32-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
- Powerful live production automation with sequencing, macros, and scene memories
- Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
- Eight assignable pads for controlling up to 64 discreet functions
- Extensive device control with Bluetooth, USB, RS-232, and LAN
- Wireless and wired camera tally support
- Remote control software available for iPad, macOS, and Windows
- Seamless Control Integration with the Yamaha DM3 Series
Product Specifications
VIDEO
- Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
- Number of Video Channels: 8 channels
Video Input Formats:
- HDMI IN 1--4
- 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
- 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
- 1080/23.98p, 1080/24p
- 2160/59.94p, 2160/60p, 2160/29.97p, 2160/30p *1, *3
- 2160/50p, 2160/25p *2, *3
- 2160/23.98p, 2160/24p *3
- VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
- WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
- FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
- UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
- * The refresh rate is the maximum value of each resolution.
- * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
- * 1920 x 1200/60 Hz: Reduced blanking
- * The input interlaced video signal is converted to progressive video signal by internal processing.
- * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit frame rate setting is 50 Hz.
- * HDMI IN 1 support Roland FILL+KEY signal
- *1 Frame Rate = 59.94 Hz, 60 Hz
- *2 Frame Rate = 50 Hz
- *3 Only for HDMI IN 3, 4
- SDI IN 1--4
- 720/59.94p *1, *3
- 720/50p *1, *4
- 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
- 1080/50i, 1080/50p, 1080/25p *2, *4
- 1080/23.98p, 1080/24p *2
- * The input interlaced video signal is converted to progressive video signal by internal processing.
- *1 System Format = 720p
- *2 System Format = 1080i or 1080p
- *3 Frame Rate = 29.97 Hz, 30 Hz, 59.94 Hz, 60 Hz
- *4 Frame Rate = 25 Hz, 50 Hz
Video Output Formats
- HDMI OUT 1--3, SDI OUT 1--2:
- 720/59.94p *1, *4
- 720/60p *1, *5
- 720/50p *1, *8
- 1080/59.94i *2, *4
- 1080/60i *2, *5
- 1080/50i *2, *8
- 1080/59.94p *3, *4
- 1080/60p *3, *5
- 1080/29.97p *3, *6
- 1080/30p *3, *7
- 1080/50p *3, *8
- 1080/25p *3, *9
- 1080/23.98p *3, *10
- 1080/24p *3, *11
- *1 System Format = 720p
- *2 System Format = 1080i
- *3 System Format = 1080p
- *4 Frame Rate = 59.94 Hz
- *5 Frame Rate = 60 Hz
- *6 Frame Rate = 29.97 Hz
- *7 Frame Rate = 30 Hz
- *8 Frame Rate = 50 Hz
- *9 Frame Rate = 25 Hz
- *10 Frame Rate = 23.98 Hz
- *11 Frame Rate = 24 Hz
- USB STREAM:
- 1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
- 1080/60p, 720/60p, 640 x 480/60p *2
- 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
- 1080/30p, 720/30p, 640 x 480/30p *4
- 1080/50p, 720/50p, 640 x 480/50p *5
- 1080/25p, 720/25p､640 x 480/25p *6
- 1080/23.98p, 720/23.98p､640 x 480/23.98p *7
- 1080/24p, 720/24p､640 x 480/24p *8
- * Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
- *1 Frame Rate(USB Out) = 59.94 Hz
- *2 Frame Rate(USB Out) = 60 Hz
- *3 Frame Rate(USB Out) = 29.97 Hz
- *4 Frame Rate(USB Out) = 30 Hz
- *5 Frame Rate(USB Out) = 50 Hz
- *6 Frame Rate(USB Out) = 25 Hz
- *7 Frame Rate(USB Out) = 23.98 Hz
- *8 Frame Rate(USB Out) = 24 Hz
- DIRECT STREAM:
- 720/59.94p *1, *3
- 720/60p *1, *4
- 720/29.97p *1, *5
- 720/30p *1, *6
- 720/50p *1, *7
- 720/25p *1, *8
- 1080/59.94p *2, *3
- 1080/60p *2, *4
- 1080/29.97p *2, *5
- 1080/30p *2, *6
- 1080/50p *2, *7
- 1080/25p *2, *8
- 1080/23.98p *2, *9
- 1080/24p *2, *10
- *1 System Format = 720p
- *2 System Format = 1080p
- *3 Frame Rate (Stream&Record) = 59.94 Hz
- *4 Frame Rate (Stream&Record) = 60 Hz
- *5 Frame Rate (Stream&Record) = 29.97 Hz
- *6 Frame Rate (Stream&Record) = 30 Hz
- *7 Frame Rate (Stream&Record) = 50 Hz
- *8 Frame Rate (Stream&Record) = 25 Hz
- *9 Frame Rate (Stream&Record) = 23.98 Hz
- *10 Frame Rate (Stream&Record) = 24 Hz
Stream and Record formats
- Audio Video
- Protocols: RTMP, RTMPS, SRT (Caller, Listener)
- Container: FLV (RTMP, RTMPS), MPEG2-TS (SRT)
- Recording File Format: MP4
- Codec:
- H.264, target bitrate up to 20,000 kbps
- AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
- * When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
- * When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
- Audio
- Recording File Format: WAV
- Codec: Linear PCM, 16 bits, 48 kHz, stereo
Video Player
- Video Player
- File Format: MP4
- Codec: H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p AAC-LC, 16 bits, 48 kHz, stereo
- SRT In
- Protocol: SRT (Caller, Listener)
- Container: MPEG2-TS
- Codec:
- H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
- AAC-LC, 16 bits, 48 kHz, stereo
- * When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
- * When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
Still Image
- Bitmap File (.bmp) Up to 1920 x 1080 pixels, 24-bit color, uncompressed.
- PNG File (.png) Up to 1920 x 1080 pixels, 24-bit color
- JPEG File (.jpg, .jpeg) Up to 1920 x 1080 pixels, 24-bit color
- * It can be stored up to 32 files in the internal memory.
- * It can be exported to the SD Card and USB flash drive.
- * PNG alpha channel supported.
Video Effects
- Transition: Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
- Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
- Other: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
AUDIO
- Audio Processing: Sample rate: 24 bits, 48 kHz
- Number of Audio Channels: 28 channels
Audio Formats
- USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
- Bluetooth (input): Linear PCM, 16 bits, 48 kHz, 2 ch
- HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
- HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
- SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
- SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Player
- File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
- * It can be stored up to 64 tracks in the internal memory.
Audio Effects
- Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
- Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
- Other: Output fade, Test tone output
COMMON SECTION
Recording Media
- SDHC/SDXC card (commercially available)
- USB flash drive (commercially available)
- * SDXC card is required for video recording.
Other Functions
- Scene Memory (32 types)
- Macro Control (100 types)
- Sequencer Control (1,000 steps)
- Panel lock function
- EDID Emulator
- Auto Switching
- Auto Input Detect
- Smart Tally
- Remote Camera Control (Up to 8 units)
- External Rec Control
- Menu language (English, Japanese, Simplified Chinese)
CONNECTORS
Video Input Connectors
- HDMI IN 1--4: HDMI type A x 4
- * HDCP Supported
- * Multi-format Supported
- SDI IN 1--4: BNC type x 4
- * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Video Output Connectors
- HDMI OUT 1--3: HDMI type A x 3
- * HDCP Supported
- HDMI IN 3--4 THRU: HDMI type A x 2
- * HDCP Supported
- SDI OUT 1--3: BNC type x 2
- * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
- •USB STREAM: USB Type-C (R)
Audio Input Connectors
- Analog:
- AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 10 mA (maximum load)
- AUDIO IN 3/L, 4/R: RCA phono type
- Digital:
- USB STREAM: USB Type-C (R)
- Bluetooth
- HDMI IN 1--4: HDMI type A x 4
- SDI IN 1--4: BNC type x 4
Audio Output Connectors
- Analog:
- AUDIO OUT 1--2: XLR type
- PHONES: Stereo 1/4-inch phone type
- Digital:
- USB STREAM: USB Type-C (R)
- Bluetooth
- HDMI OUT 1--3: HDMI type A x 3
- HDMI IN 3--4 THRU: HDMI type A x 2
- SDI OUT 1--2: BNC type x 2
Other Connectors
- USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad)
- USB STREAM: USB Type-C (R) (for remote control from PC and iPad, Graphics Presenter)
- Bluetooth: for remote control from iPad
- CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
- TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
- RS-232: DB-9 type (Male) (for Remote Control)
- DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control)
AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level
- AUDIO IN 1, 2: -64--+4 dBu (Maximum: +24 dBu)
- AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance
- AUDIO IN 1, 2: 8.4 k ohms
- AUDIO IN 3/L, 4/R: 10 k ohms
Output Level
- AUDIO OUT 1, 2: +4 dBu (Maximum: +24 dBu)
- PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
- AUDIO OUT 1, 2: 600 ohms
- PHONES: 33 ohms
OTHERS
- Bluetooth:
- Ver 5.0
- Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
- Codec: SBC (Support to the content protection of the SCMS-T method)
- Display: 4.3 inches TFT Color LCD: 480 x 272 dots
- Power Supply: AC adaptor
- Current Draw: 2.1 A
- Power Consumption: 51 W
- Operation Temperature:
- +0 to +40 degrees Celsius
- +32 to +104 degrees Fahrenheit
- Dimensions:
- 396 (W) x 254 (D) x 103 (H) mm
- 15-5/8 (W) x 10 (D) x 4-1/16 (H) inches
- Weight (excluding AC adaptor)
