Accessible and quality video performance and web streaming. The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.
Product Features
- 3 Input (SD HDMI/Composite) + 1 Input (Up to 1080p HDMI/RGB/Component/Composite)
- PGM Output (Up to 1080p HDMI + RGB/Component + Composite) + PVW Output (PVW/Multiviewer)
- 480p/576p Progressive internal processing
- Built-in multiviewer with touch control
- Built-in frame synchronizers on all inputs
- Scalers on CH 4 and Output
- 259 Transitions 148 Effects
- HDCP compliant
- Audio Embedding
- Audio Mixer & Delay -up to 4 frames
- USB Streaming Out for webstreaming
More about the V-4EX
The Roland V-4EX advances the industry-standard Roland V-4 four channel video mixer by incorporating HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer, and audio embedding. These features are added to the strong primary feature set including built-in effects and unique user interface that has made the V-4 one of the besting selling video mixers of all time. See the current VR-3EX Streaming Software Compatibility list for more information on streaming software compatibility.
The Roland V-4EX versatility and unique features make it suitable for many applications, including clubs, concerts, worship, events, meetings, trainings, weddings, education, and sporting events. The V-4EX’s sleek and compact design lends itself to portable applications as well as permanent installations when size and space are considerations.

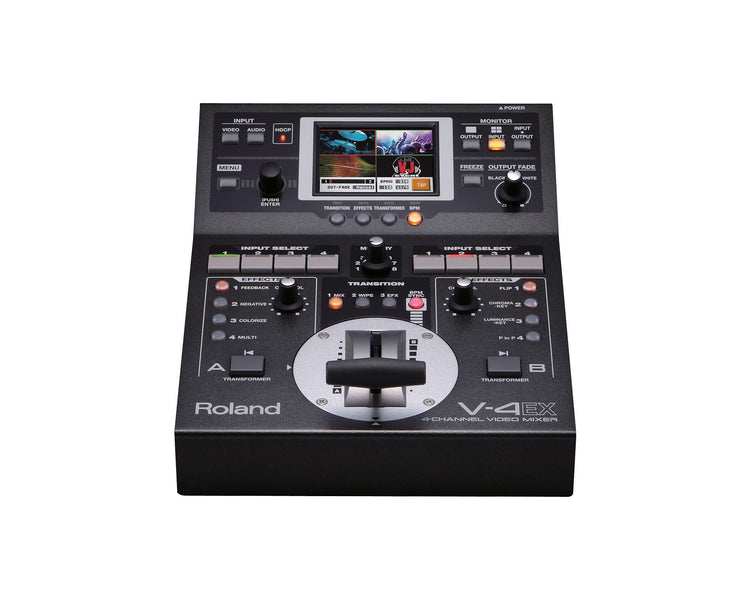

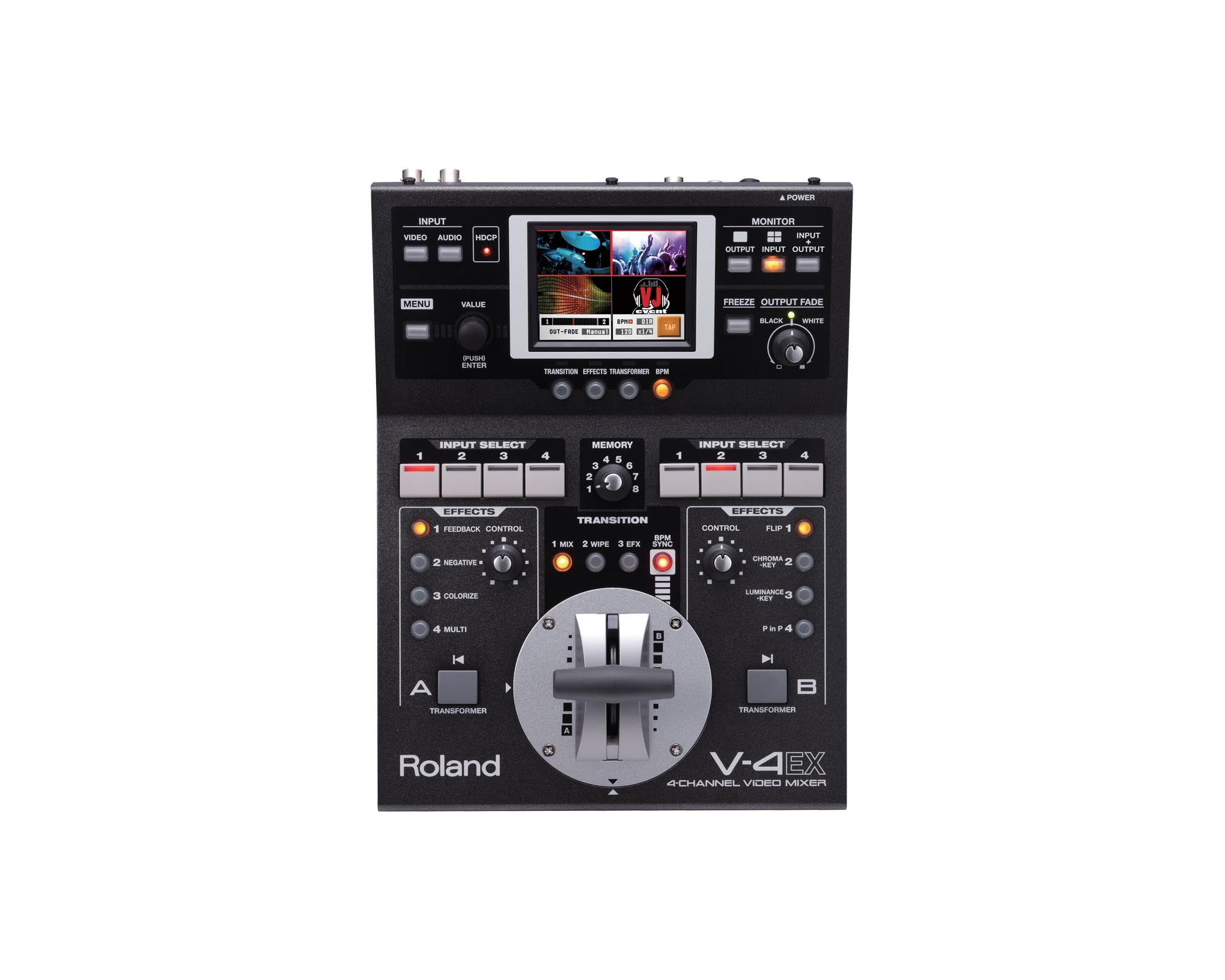

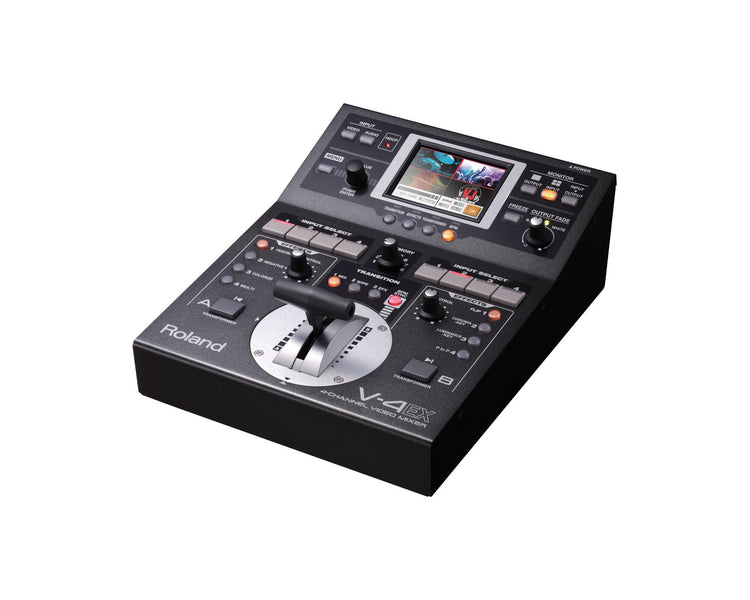

In addition to a number of powerful video effects, the user interface incorporates dial controls for effects on each bus and master output dial. The innovative design incorporates a video switcher, audio embedding, preview monitor and streaming-ready USB output all in a single unit. Inputs one to three feature composite (BNC) or HDMI while input four accepts HDMI, RGB/Component or S-video.
The output features scaled-up HDMI, RGB/component, or SD composite with an additional HDMI output for external preview monitor. The Roland V-4EX features a stereo RCA audio input allowing you to embed audio into the HDMI outputs and USB stream, which are especially useful for web streaming and recording applications. As a USB Video/Audio class device, web streaming is effortless by simply connecting to a computer running a live streaming service. You can also record the output using Roland’s free Video Capture for Windows software or by using Quicktime on a Mac.
Designed to be a live production switcher and web streaming device, the Roland V-4EX features audio embedding, built-in audio mixer with up to 4 frames delay to “lipsync” your video source. It supports HDCP video allowing you to mix copyright protected material such as game consoles and Blu-ray content in your live production. HDMI inputs one to three accept video resolutions up to 480p/576p and HDMI input four accepts resolutions up to 1080p and RGB up to WUXGA (1920x1200). Although internal processing is SD-based, the output can be scaled up to 1080p or 1920x1200.
Product Specifications
PROCESSING
- Video Processing: 4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)
- Audio Processing: Sampling Rate : 24 bits/48 kHz, 2 ch
INPUT FORMATS
- HDMI Video: (INPUT 1 -- 3): requires 720x480/59.94p (when set to NTSC), 576/50p (when set to PAL)
- HDMI and Component Video (INPUT 4): 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC), 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)
- HDMI Audio (INPUT 1 -- 4) : Linear PCM, 24 bits/48 kHz, 2 ch
- RGB (INPUT 4) :
- 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blanking
- Composite Video (INPUT 1 -- 4) : NTSC, PAL
- S-Video (INPUT 4) : NTSC, PAL
OUTPUT FORMATS
- HDMI and RGB/Component Video (OUTPUT):
- 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
- 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
- When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector.
- When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
- HDMI Audio (OUTPUT): Linear PCM, 24 bits/48 kHz, 2 ch
- Composite Video: NTSC, PAL
- Preview Video (PVW OUT) : 480/59.94p when set to NTSC, 576/50p when set to PAL
- Preview Audio (PVW OUT) : Linear PCM, 24 bits/48 kHz, 2 ch
- USB Video: 720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEG
- USB Audio: Linear PCM, 16 bits/48 kHz, 2 ch
* The output format of HDMI and RGB/Component is always the same.
* The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)
* RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blanking

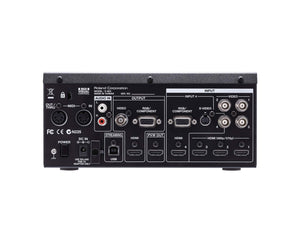

INPUT CONNECTORS
- Video:
- HDMI : Type A (19 pins) x 4 (INPUT 1 -- 4)
- RGB/Component : HD DB-15 type x 1(INPUT 4)
- Composite : BNC type x 4 (INPUT 1 -- 4)
- S-Video : 4-pin mini DIN type x 1 (INPUT 4)
- Audio: RCA-pin type x 1pair (AUDIO IN)
OUTPUT CONNECTORS
- Final Output:
- HDMI : Type A (19 pins) x 1 (OUTPUT)
- RGB/Component : HD DB-15 type x 1 (OUTPUT)
- Composite : BNC type x 1 (OUTPUT)
- Preview Output: HDMI : Type A (19 pins) x 1 (PVW OUT)
- Other Connectors
- MIDI : 5 pins DIN type x 2 (IN, OUT/THRU)
- USB : B type x 1 (for streaming and remote control)
SIGNAL LEVEL IMPEDANCE
- RGB/Component:
- Signal Level : 1.0 Vp-p (luminance), 0.7 Vp-p (chroma)
- Impedance : 75 ohms
- Composite:
- Signal Level: 1.0 Vp-p
- Impedance : 75 ohms
- S-Video:
- Signal Level: 1.0 Vp-p
- Impedance : 75 ohms
- Analog Audio:
- Nominal Input Level : - 10 dBu
- Maximum Input Level : + 8 dBu
- Impedance : 15 k ohms
OTHER
- Display: Graphic Colour LCD, 320 x 240 dots, touch panel
- Video Effects Transition : Mix, Cut, Wipe (259 patterns)
- Composition/Filter : Picture in Picture, Luminance Key, Chroma Key, Strobe, Negative, Colorize, Feedback, Emboss, Multi, Mirror etc. (148 types)
- Others : Output Fade, Freeze
- Power Supply: AC adaptor
- Current Draw: 2.0 A
- Accessories:
- AC adaptor
- Power Cord
- RCA - BNC conversion plug x 2
- Owner Manual
PHYSICAL & DIMENSIONS
- Width: (W) 225 mm (8-7/8 inches)
- Depth: (D) 296 mm (11-11/16 inches)
- Height: (H) 105 mm (4-3/16 inches)
- Weight: 2.6 kg (5 lbs. 12 oz.)
What's in the Box?
- V-4EX
- AC adaptor
- Power Cord
- RCA - BNC conversion plug x 2
- Owner Manual
