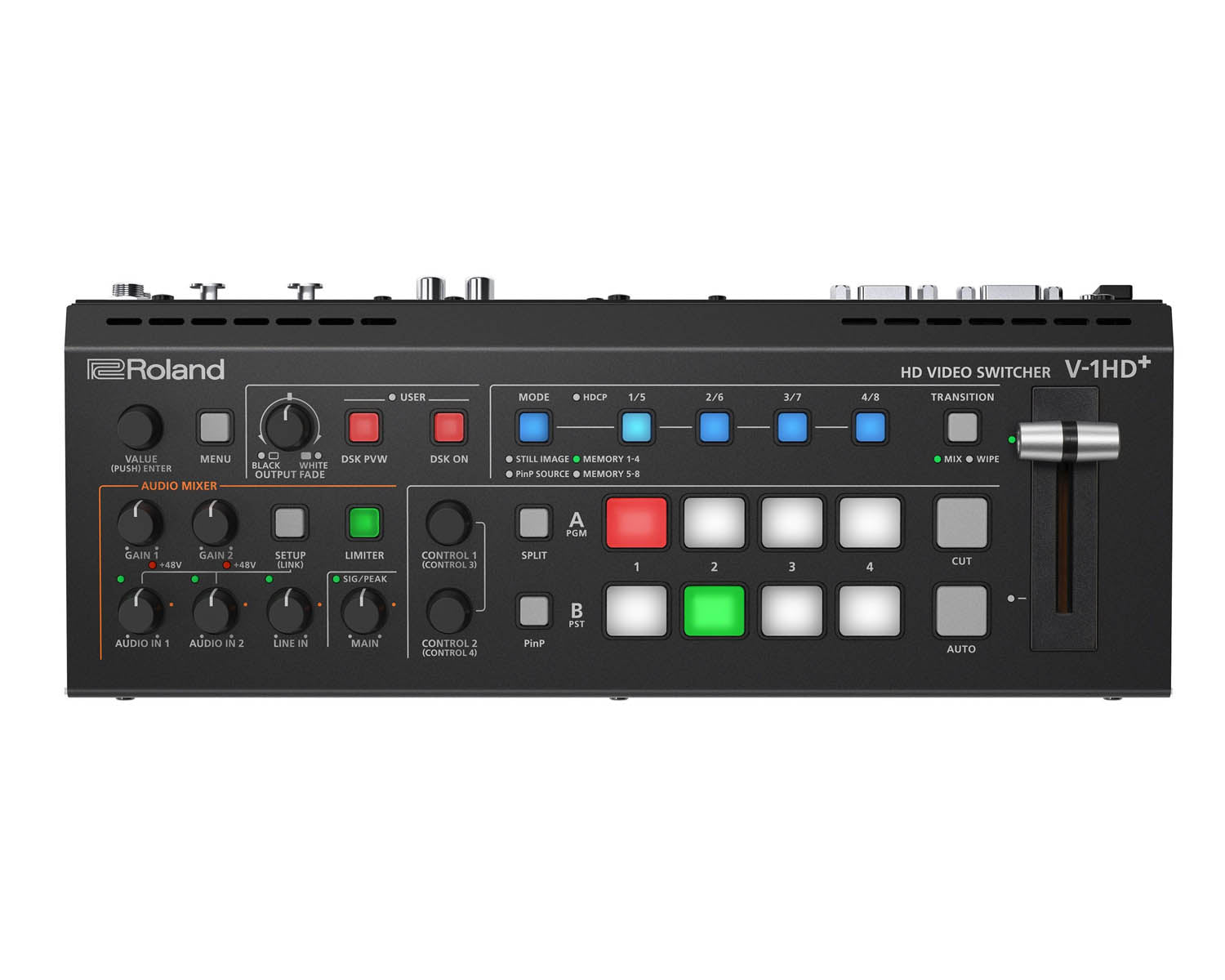

The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.

Experience the plus advantage—upgrade your productions with the V-1HD+ today!

Product Features

• Professional HD switching solution for live events, livestreaming, or both at once
• Standalone video switcher and 14-channel audio mixer for single operators
• Compact and portable for fast set up
• Familiar interface that’s quick to learn and easy to use
• Technology-assisted automatic video switching
• Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
• Pro audio I/O with legendary Roland sound quality
• Eight memory presets to recall visual layouts on cue

Product Specifications

VIDEO

• Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit

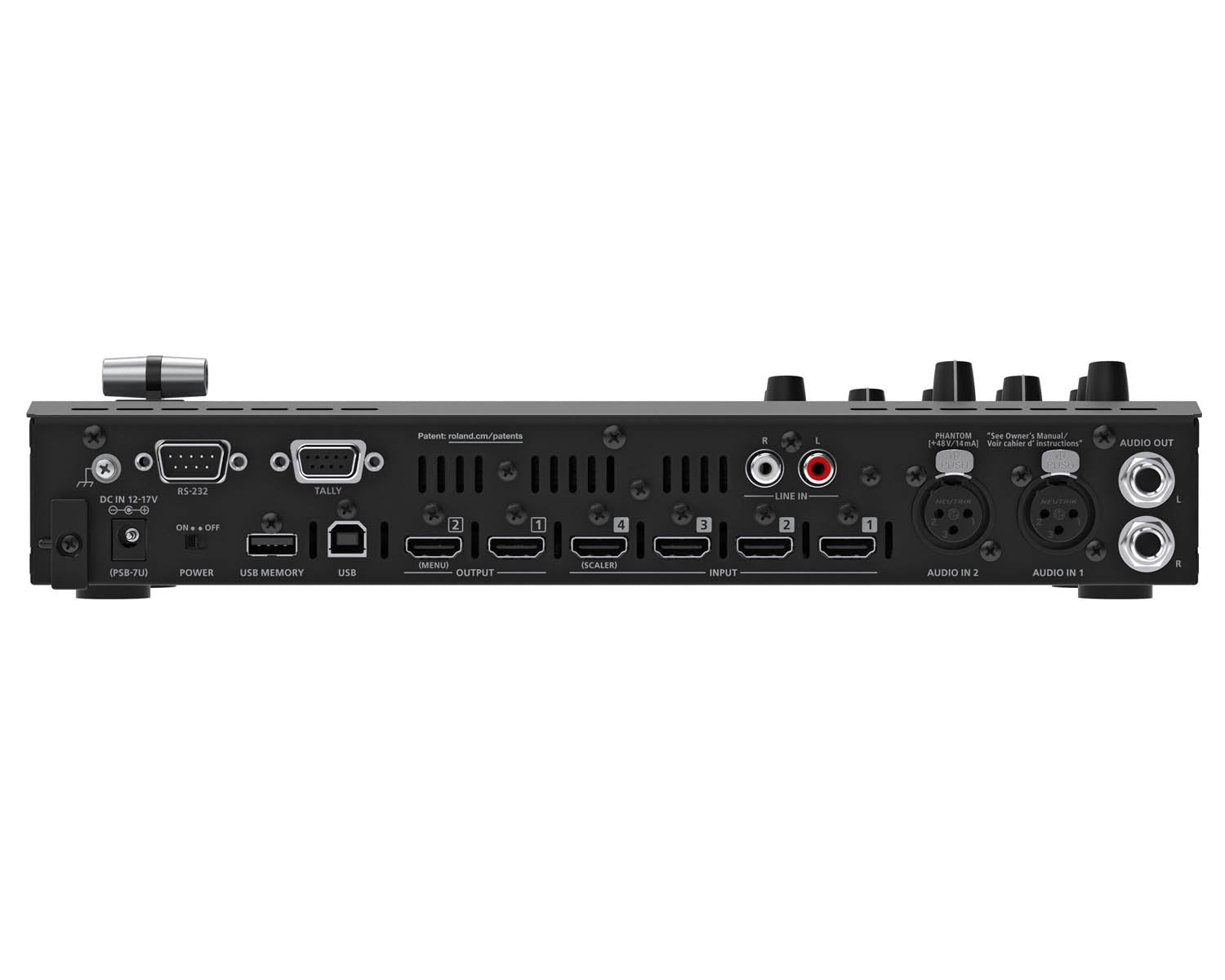

• Input Connectors
  • INPUT 1--3: HDMI type A x 3
  • INPUT 4: HDMI type A
• Output Connectors: OUTPUT 1--2: HDMI type A x 2
• Input Formats
  • INPUT 1--3
    • 720/59.94p, 720/60p 1, 3
    • 720/50p 1, 4
    • 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p 2, 3
    • 1080/50i, 1080/50p, 1080/25p 2, 4
    • 1080/23.98p, 1080/24p 2
  • INPUT 4
    • 480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p 1
    • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p 2
    • 1080/23.98p, 1080/24p
    • VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
    • WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
    • FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
    • UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • Still Image:
    • Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit colour, uncompressed.
    • PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit colour
• Output Formats
  • OUTPUT 1--2:
    • 720/59.94p 1, 4
    • 720/50p 1, 5
    • 1080/59.94i 2, 4
    • 1080/50i 2, 5
    • 1080/59.94p 3, 4
    • 1080/50p 3, 5
• Video Effects
  • Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
  • Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
  • Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

AUDIO

• Audio Processing: Sample rate: 24 bits/48 kHz
• Audio formats: Linear PCM, 24 bits/48 kHz, 2 ch
• Input Connectors
  • INPUT 1--4: HDMI Type A x 4
  • AUDIO IN 1--2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
  • LINE IN: RCA phono type

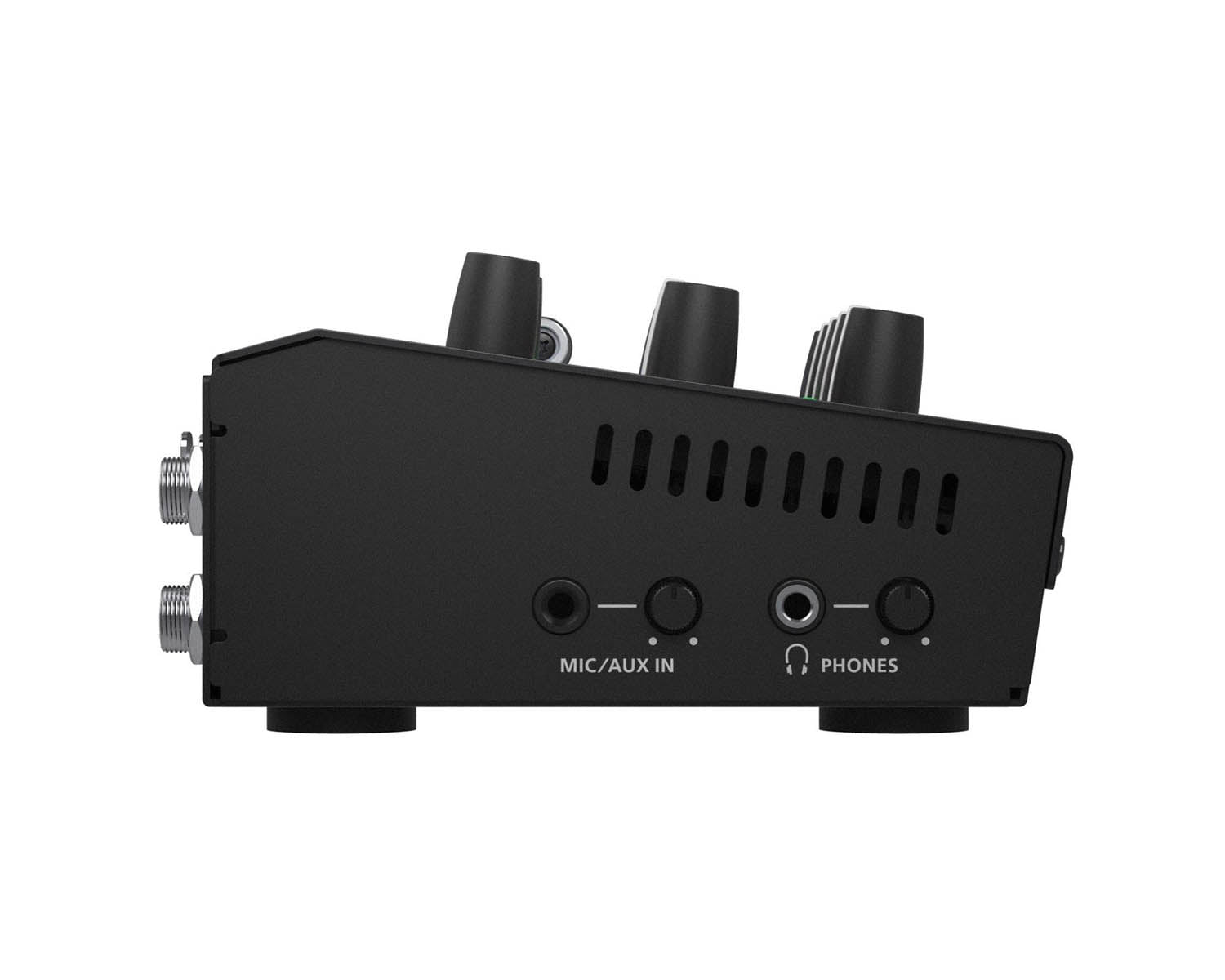

  • MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
• Output Connectors
  • OUTPUT 1--3: HDMI Type A x 2
  • AUDIO OUT L, R: 1/4-inch TRS phone type
  • PHONES: Stereo miniature phone type
• Nominal Input Level
  • AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
  • LINE IN: -10 dBu (Maximum input level: +10 dBu)
  • MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
• Input Impedance
  • AUDIO IN 1--2: 10 k ohms
  • LINE IN: 15 k ohms
  • MIC/AUX IN: 10 k ohms
• Nominal Output Level
  • AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
  • PHONES: 72 mW + 72 mW (32 ohms load)
• Output Impedance
  • AUDIO OUT L, R: 600 ohms
  • PHONES: 10 ohms
• Audio Effects: Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output

OTHERS

• Other Connectors
  • USB MEMORY: USB A type (for USB flash drive)
  • REMOTE: USB B type (for remote control)
  • RS-232: DB-9 type (male, for remote control)
  • TALLY: DB-9 type (female, for TALLY output)
• Other Functions
  • Preset memory (8 types)
  • Panel lock function
  • EDID emulator
  • Auto switching
  • Auto input detect
• Power Supply: AC adaptor
• Current Draw: 2.1 A
• Power Consumption: 25.2 W
• Operation Temperature
  • +0 to +40 degrees Celsius
  • +32 to +104 degrees Fahrenheit

PHYSICAL

• Dimensions
  • 316 (W) x 121 (D) x 65 (H) mm
  • 12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches
• Weight (excluding AC adaptor)
  • 1.4 kg
  • 3 lbs 2 oz

What's in the Box?

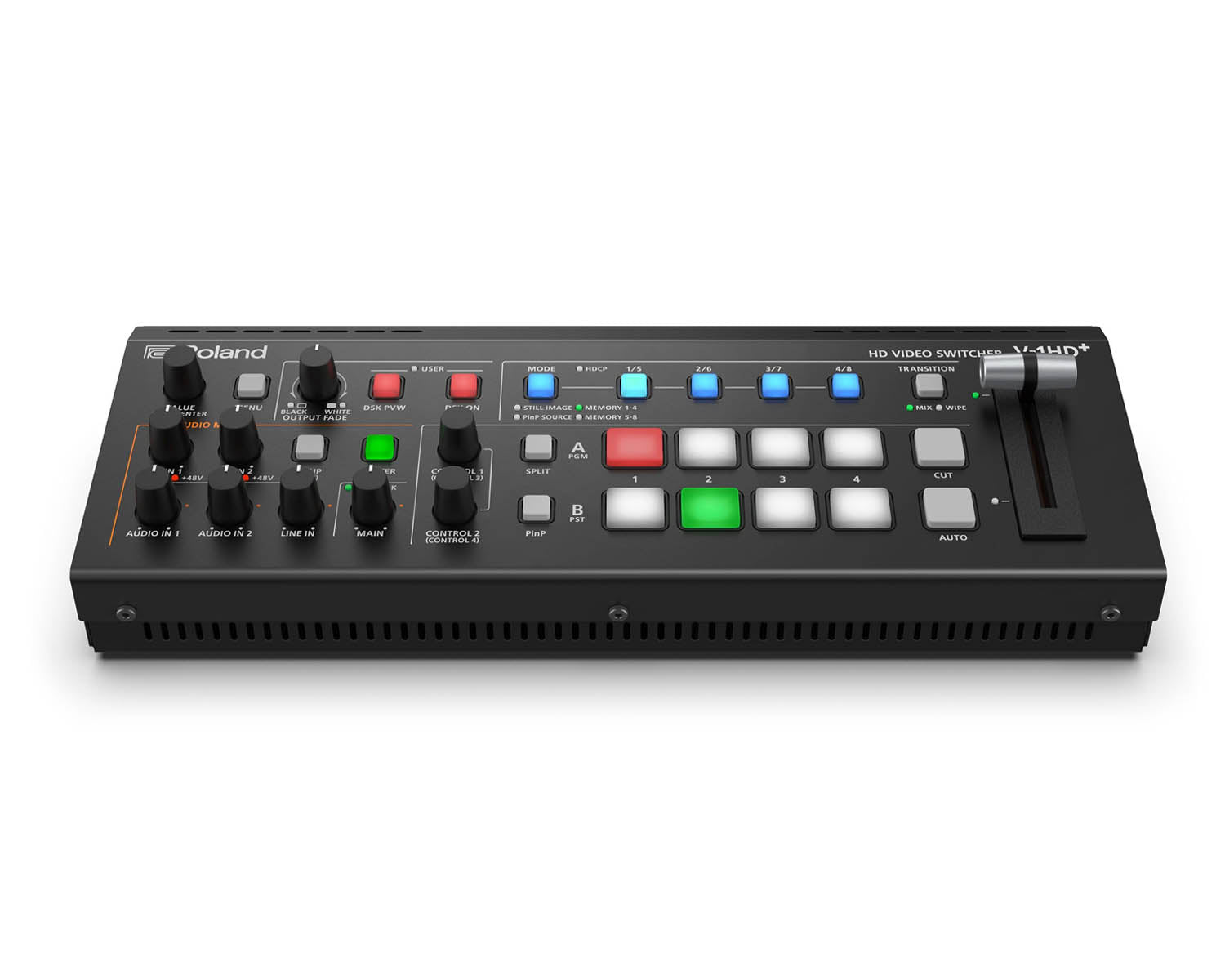

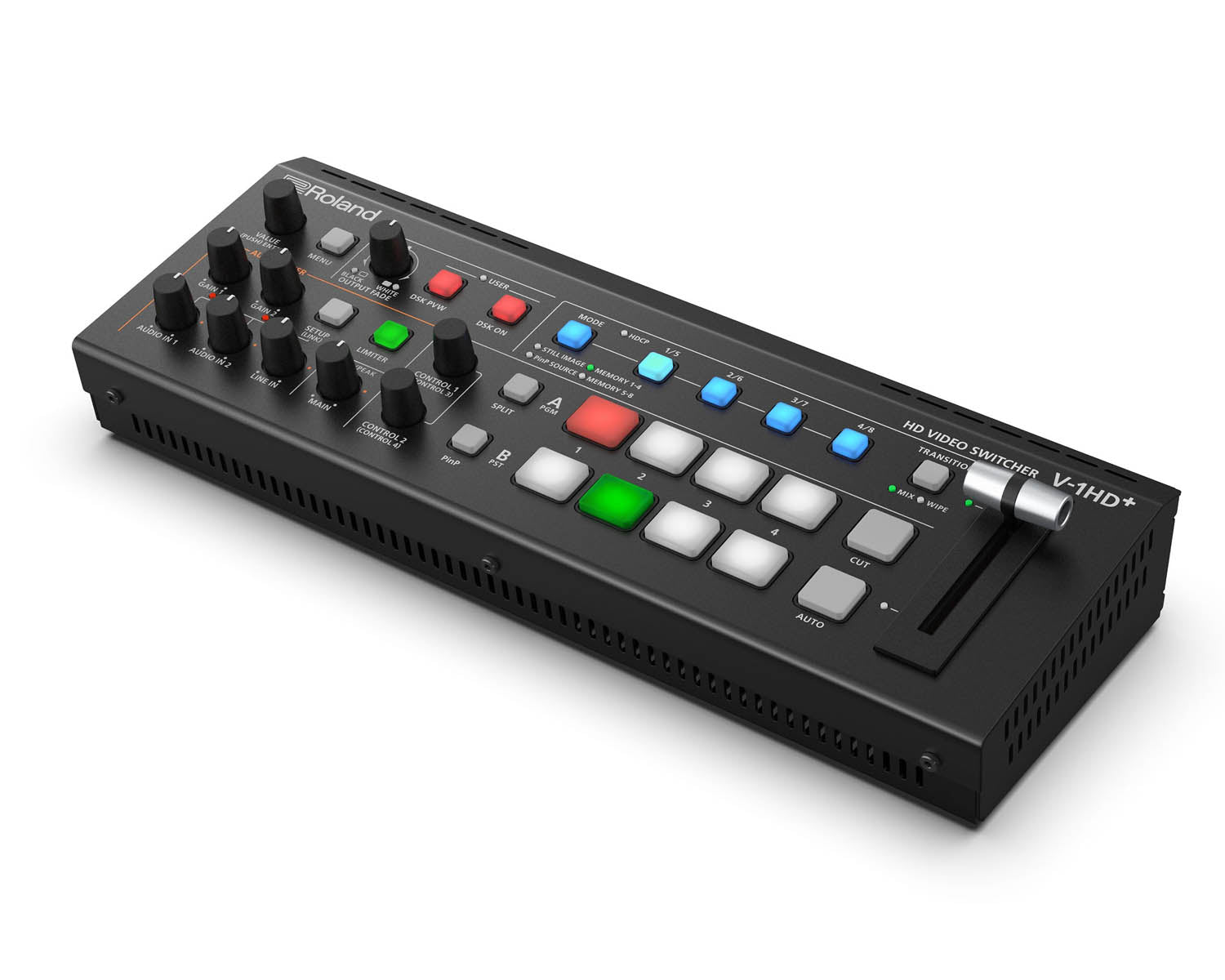

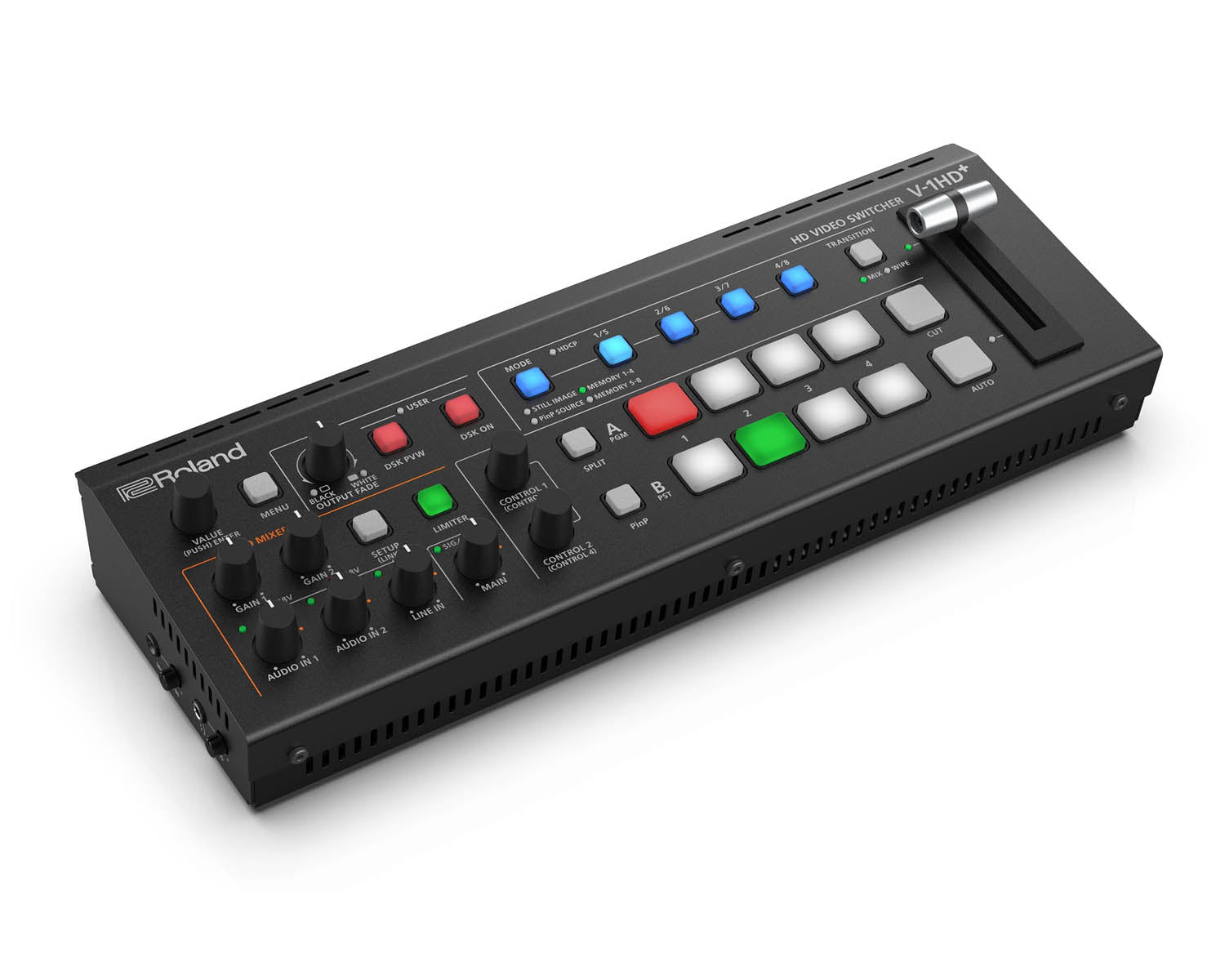

• V-1HD+ Advanced Compact HD Video Switcher
• Startup Guide
• Leaflet "USING THE UNIT SAFELY"
• AC adaptor
• Power cord
