NOT JUST A WEB-PRESENTATION DOCK!

The advanced alternative for the Roland UVC-01 for converting your professional HDMI and audio sources into an uncompressed USB AV stream for livestreaming and recording.

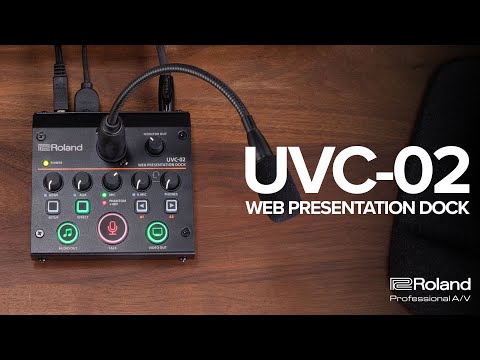

The UVC-02 is a compact broadcast control centre that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.

Product Features

• Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
• Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
• HDMI video input supports embedded sound and features automatic scaling for different video resolutions
• Studio-grade sound with Roland’s acclaimed digital audio technology
• Plug and play operation—automatically appears as a webcam and audio source in your favourite streaming software
• Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect
• Hands-on control of volume levels plus audio and video muting
• Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows
• Optional CGM-30 high-quality gooseneck microphone
• Optional use of the free AeroCaster Switcher app for iPad which allows you to create a wireless multi-camera streaming setup with mobile devices.

Product Specifications

Video

• Input Connector
  • HDMI IN : HDMI type A
  • * HDCP not Supported
  • * Multi-format Supported
• Input Formats
  • 480/59.94p, 576/50p, 720/59.94p, 720/50p,
  • 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
  • SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
  • WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
  • SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
  • SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
  • FHD (1920 x 1080) 60 Hz
  • * The refresh rate is the maximum value of each resolution.
  • * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
• Output Connectors: USB STREAM : USB 3.0 Type-B
• USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
• USB Video Output Resolution
  • 1920 x 1080, 1280 x 720, 640 x 480
  • * Maximum frame rate is 60 fps.

Audio

• Audio Processing: Sample Rate 48 kHz, 24 bits
• Analog Connectors
  • MIC: XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
  • HEADSET: Stereo miniature phone type (CTIA, PLUG-IN power)
  • AUX IN: Stereo miniature phone type
  • MONITOR OUT: Stereo miniature phone type
• Digital Connectors
  • HDMI IN: HDMI Type A
  • USB STREAM: USB 3.0 Type-B
• Nominal Input Level
  • MIC IN: -54 to -14 dBu (Maximum input level : +4 dBu)
  • HEADSET: -20 dBu (Maximum input level : -2 dBu)
  • AUX IN: -10 dBu (Maximum input level : +8 dBu)
• Nominal Output Level
  • MONITOR OUT: -10 dBu
  • HEADSET: 9 mW + 9 mW (32 ohms load)
• Input Impedance
  • MIC IN: 5.8 k ohms
  • AUX IN: 10 k ohms
  • HEADSET: 1 k ohms
• Output Impedance
  • MONITOR OUT: 1 k ohms
  • HEADSET: 22 ohms
• Digital Audio Format
  • HDMI IN: Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
  • USB STREAM: Linear PCM, 48 kHz, 16 bits, Stereo
• Audio Effects
  • Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
• Audio File Player
  • Number of tracks: 2
  • Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
  • Maximum Time: 5 seconds / track
