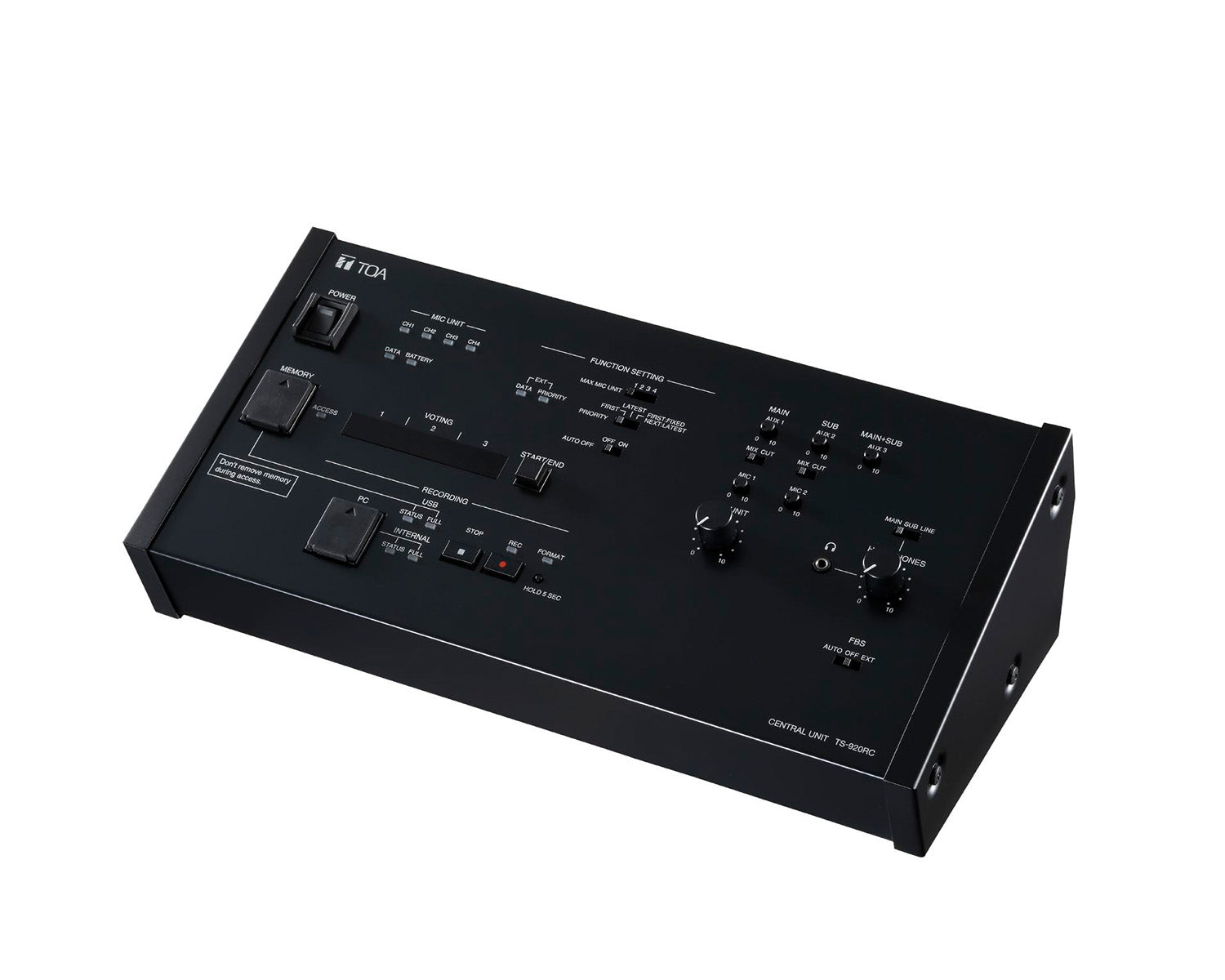

The TS-920RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-920RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified, and the voting function. The TS-920RC is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition, the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. The system can be controlled by PC (*1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).(*1) Relevant control software is supplied on a custom-made basis.

Product Features

• Main unit of the system
• Up to 192 conference units controllable
• 2 x Mic In (Main/Sub), 3 x AUX In (Main/Sub/Main and Sub) Line Out, Rec Out, Headphone monitor out, EQ in/out
• Function setting – Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor
• Recording capability to USB and internal memory
• Voting result indicator
• Rack-mountable with MB-TS920 optional bracket
• Finish: Black

Product Specifications

• Applicable model: TS-921/922
• Power source: 100 - 240 V AC, 50 / 60 Hz (use of the supplied AC adapter)
• Power consumption: 72 W
• Current consumption: 3 A DC (when 24 V DC is supplied from the accessory AC adapter)
• Indicator:
• LED: Voting result indicators 1-3 (7-segment LED, 3 digits), short-circuit indicator Audio signal receiving indicators 1-4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/delegate unit`s battery nears complete discharge), recording status indicator, format in-progress indicator, access indicator, internal memory status indicator, USB memory status indicator, remaining internal memory capacity warning indicator, remaining USB memory capacity warning indicator
• Operating humidity: 90% RH or less (no condensation)
• Operating temperature: 0°C to +40°C (32°F to 104°F)
• Finish: Steel plate, surface-treated, paint, 30% gloss, black
• Dimensions: 361 x 122.6 x 184.2 mm (W x H x D)
• Weight: 2.8 kg
• Accessory (included): EU AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)

What's in the Box?

• EU AC adapter (Cord length: 1.8 m (5.91 ft) DC cord
• 2 m (6.56 ft) detachable AC cord)
