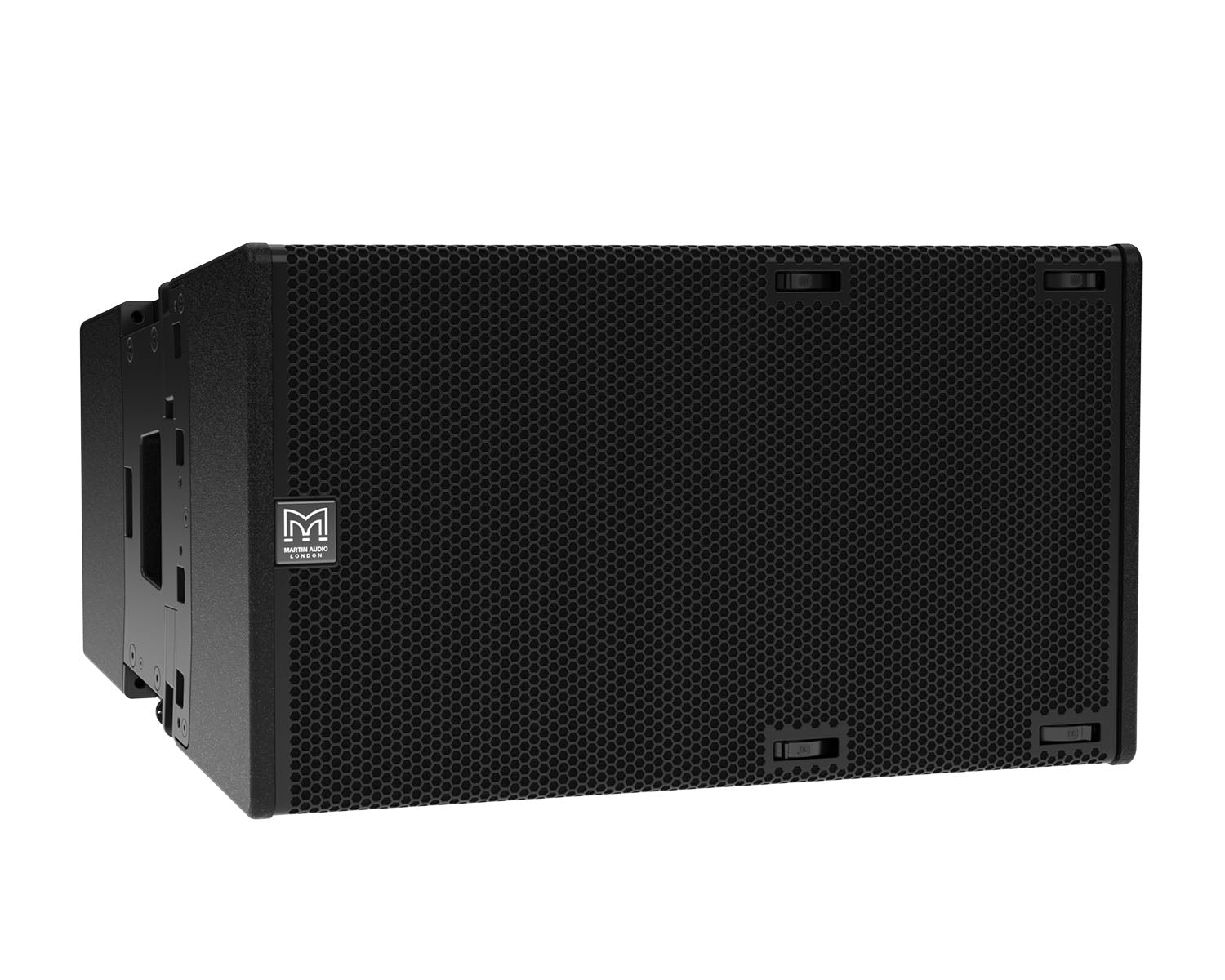

MAUT1215B - Martin Audio TORUS T1215 12inch Passive 15degree Array 60 or 90 or 75degree Adjustable Horn Blk Image 1

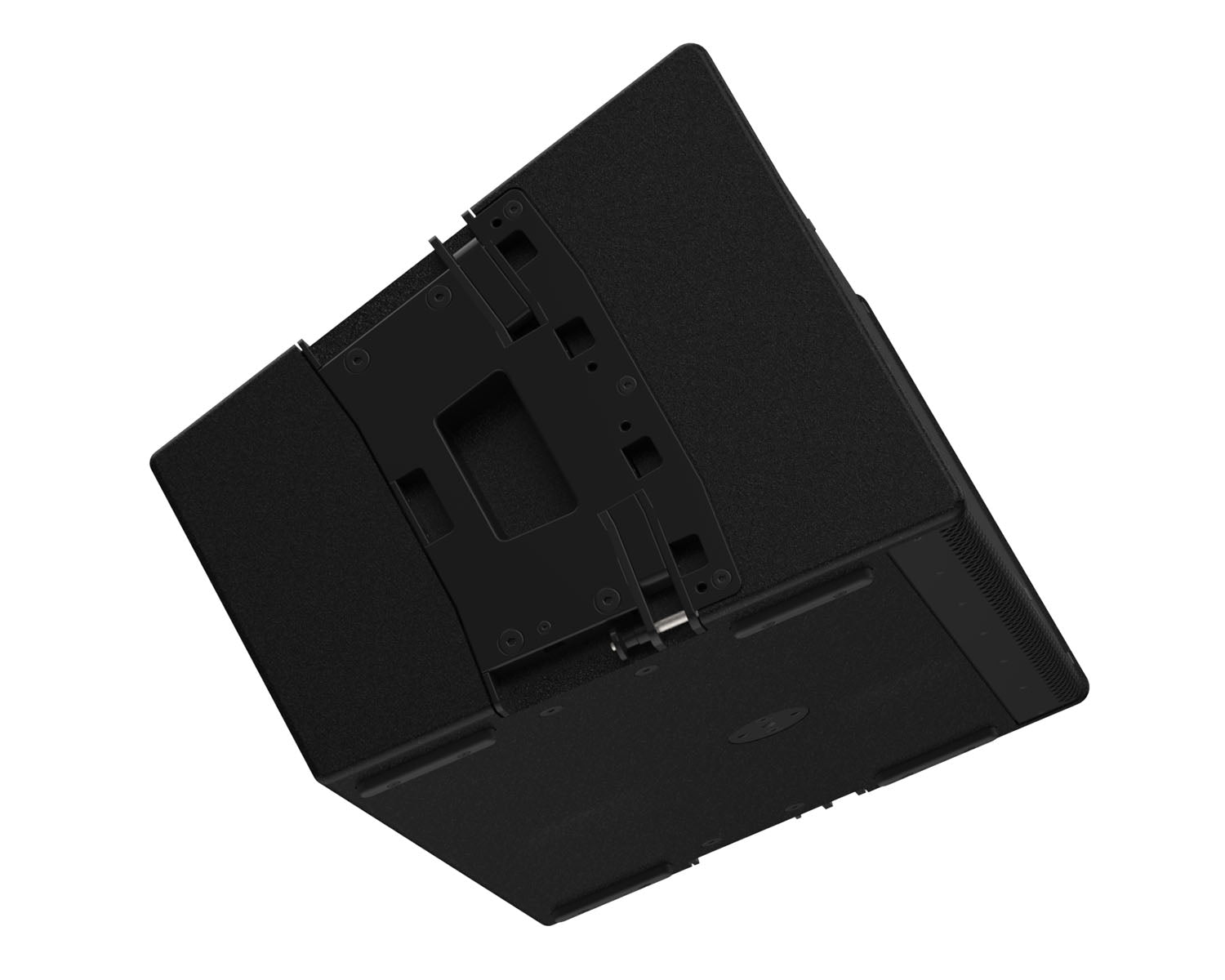

MAUT1215B - Martin Audio TORUS T1215 12inch Passive 15degree Array 60 or 90 or 75degree Adjustable Horn Blk Image 2

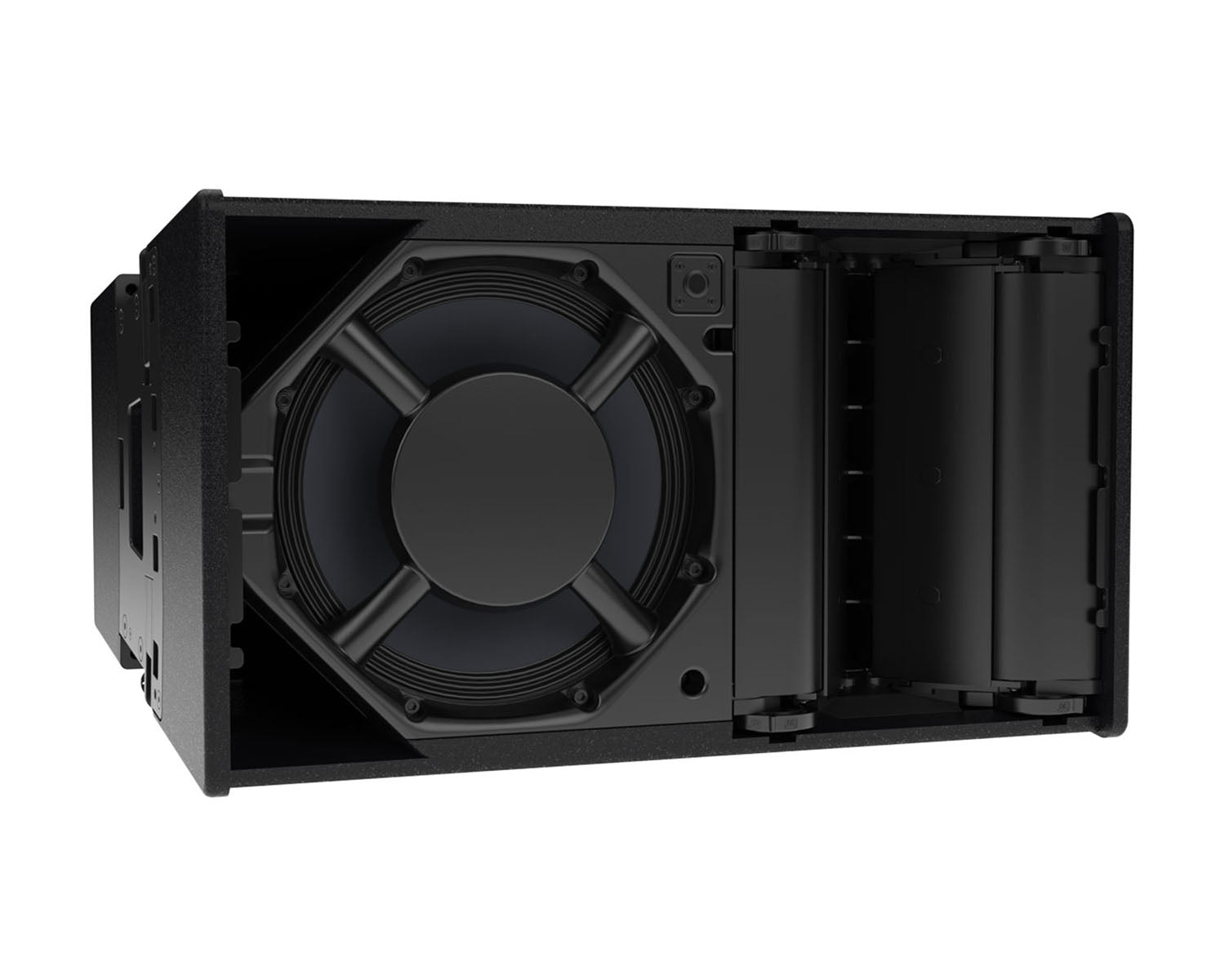

MAUT1215B - Martin Audio TORUS T1215 12inch Passive 15degree Array 60 or 90 or 75degree Adjustable Horn Blk Image 3

For applications that typically require a throw between 15-30m, a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL. TORUS is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency.

T1215 offers a narrow vertical pattern of 15° with a flexible horizontal pattern that can be manually adjusted between 90°, 60° or 75° (Asymmetrical) via the Dynamic Horn Flare™.

T1215 features a 12” (300mm) LF driver and three 1.4” (35mm) HF drivers and includes two NL4 connectors with passive configuration using pins 1+ 1- or 2+ 2- selected via rear-mounted switch. The plywood cabinets are finished in hardwearing Warnex paint with well positioned handles for easy installation and deployment. The integrated rigging is suitable for install and touring applications and supports horizontal array configurations of up to 180° with a flying frame that can support up to 6 cabinets in vertical orientation. The cabinets also feature a fixing for an external pole-mount accessory, increasing the flexibility to the max. In addition, T1215 can be supplemented by SX subwoofers and designed to fully integrate with the cardioid subwoofer, SXCF118, for flown and ground-stack configurations.

Powered by Martin Audio iKON amplifiers, which support VU-NET and Dante®, T1215 can be modelled in 3D and optimised using DISPLAY 3, allowing different box resolutions as well as automatically optimising filtering to deliver consistent and defined coverage.

Product Features

1 x 12” (300mm) LF driver & 3 x 1.4” (35mm) HF drivers
Passive fixed angle array cabinet of 15° for a narrow vertical dispersion pattern
Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern
Phase plug for increased mid-band sensitivity
Optimised coverage via DISPLAY 3 and powered by iKON amplifiers
Plug-and-play system, quick set-up and easy rigging

Applications

Optimised for short to medium-throw live sound and installation applications
Fills, distributed systems, and centre clusters

Product Specifications

General

TYPE: Passive 2-way Constant Curvature 15° enclosure
FREQUENCY RESPONSE (WITH IKON SETTINGS): 65Hz – 18kHz ± 3dB, -10dB @ 50Hz
DRIVERS:
- LF: 12”, 3” Voice Coil, Neodymium
- HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver
SENSITIVITY: (2.83V 1m free-field) 100dB
NOMINAL IMPEDANCE: 8 ohms
RATED POWER: AES 400W, PEAK 1600W
MAXIMUM SPL (SYSTEM): 128dB continuous, 134 dB peak*
DISPERSION: 60-75-90° horizontal, 15° vertical
PIN CONNECTIONS (INPUT): 1+/- or 2+/-
PIN CONNECTIONS (LINK): 1+/- and 2+/-

Physical

DIMENSIONS:
- (W) 650mm, (H) 369mm, (D) 452mm
- (W) 25.59ins, (H) 14.51ins, (D) 17.80ins
WEIGHT: 31kg (68.34 lbs)

*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak.
