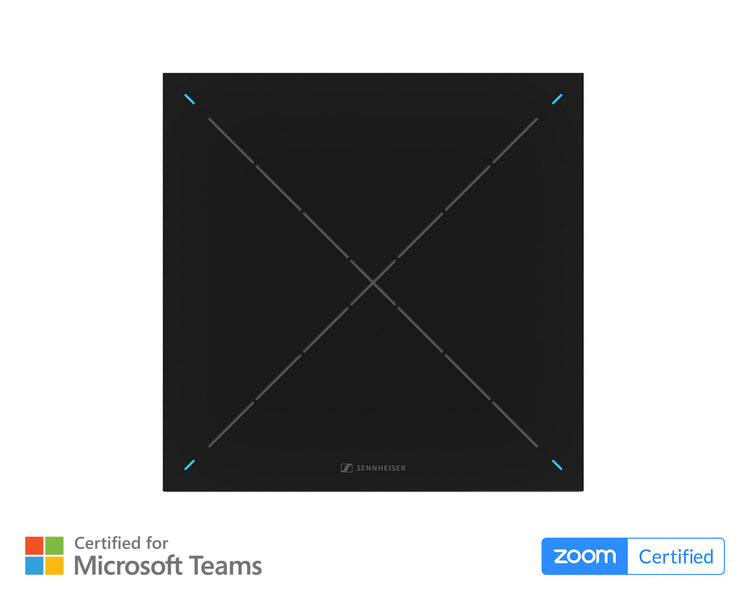

Sennheiser have perfected their ceiling microphone TeamConnect Ceiling to give you an unprecedented meeting experience. The result is TeamConnect Ceiling 2 with patented beamforming technology and other outstanding features. Experience excellent Sennheiser audio quality and use the entire meeting room in a way that suits your personal meeting culture: During the meeting, participants can move freely and flexibly in the room, sit at the table or give presentations.

Clear speech intelligibility has become an essential part of modern work styles, especially when conferencing with remote participants. Unlike other ceiling microphones on the market or device-integrated microphone solutions like those in laptops, TeamConnect Ceiling 2 unmistakable technology transmits your voice crystal clear to remote participants as if they were on the spot.

Whether for conferencing, presentation or collaboration with remote participants: TeamConnect Ceiling 2 is designed to automatically adapt to every imaginable use case and is the perfect fit for every mid to large-sized meeting room. Thanks to the patented dynamic beamforming technology, you will now experience meetings and conferences that are as flexible as you are: A single TeamConnect Ceiling 2 captures your voice easily within a radius of up to 60 sqm – no matter what you do in the room. And once TeamConnect Ceiling 2 is installed, you will never have to worry about further configuration again.

Product Features

Speak freely: Thanks to the unique patented automatic beamforming technology, your messages are clearly transmitted to external meeting participants from anywhere in the meeting room.

Everything under control: Optimize your digital workflows with Sennheiser’s Control Cockpit software. The microphone can be easily controlled and monitored from anywhere in the corporate network.

Perfect integration: For 100% connectivity - Connect the microphone via analogue or digital DANTE™ audio outputs to any conference system.

Easy to install: Power-over-Ethernet (PoE) makes integration of the ceiling microphone very easy. An open media control protocol (API) allows you to make individual adjustments.

DDM Ready: TeamConnect Ceiling 2 uses the latest Audinate chip set to make the day-to-day business of IT managers and integrators even easier. The ceiling microphone is therefore fully compatible with the Dante Domain Manager™ and benefits from the numerous advantages.

Custom RAL Colours: Customisation of the housing in other RAL colours is available upon request from the factory. Contact us on 01525 850085 to discuss your custom requirements.

Installation

Flush-Mounted: The Ceiling Mic can be easily flush mounted into standard false ceilings and captivates meeting rooms with its unobtrusive and aesthetically pleasing design.

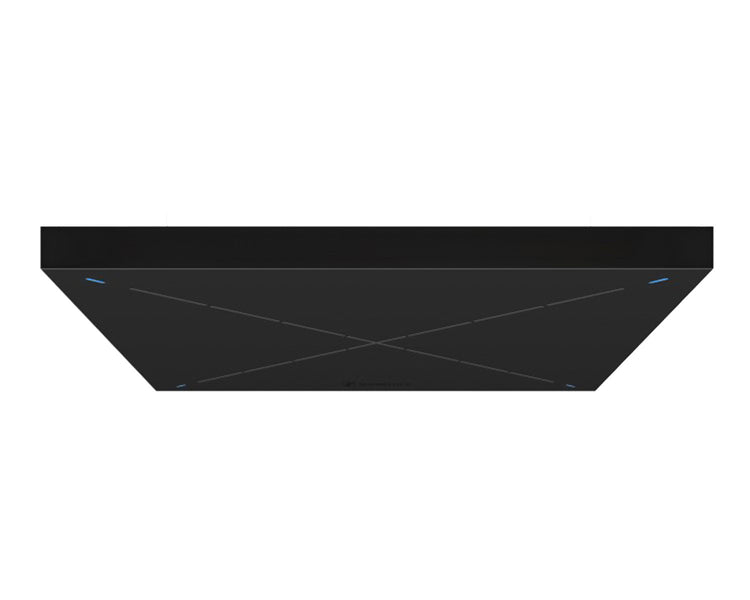

Suspended: The suspended construction of the TeamConnect Ceiling 2 fits perfectly for particularly high ceilings. The microphone is simply hung from the ceiling thanks to the 5m steel cord included in delivery.

Ceiling Mounted: The TeamConnect Ceiling 2 can be installed onto the ceiling with an optional ceiling mount bracket.

Examples of all installation methods are illustrated in the product images above.

Product Specifications

• Dimensions: 590 x 590 x 43 mm
• Microphone: 28 x Sennheiser KE10 pre-polarized condenser capsule
• Sound pressure level (SPL): max. 104 dB SPL
• Weight: 5670 g (12.5 lbs)
• Audio output: 1 x 3-pin terminals (Phoenix contact MCVW 1.5-3-ST-3.81); 2 x Digital Dante Network Audio (RJ45)
• Dynamic range: 93 dB(A)
• Voltage: 44 – 57 V DC (via PoE IEEE 802.3af Class 3)
• Temperature Range:
  • Operation: 0 to 40 °C (32 to 104 °F)
  • Storage: -10 to 60 °C (14 to 140 °F)

What's in the Box?

• TeamConnect Ceiling 2 ceiling microphone array
• 3-pin Phoenix Connector (3.81 mm)
• 8 self-adhesive rubber feet
• 2 eye bolts (M4x10)
• Instruction manual
• Supplement sheet with manufacturer declarations

Optional Mounting Accessories

• SL CM FB Surface Mount Bracket for TeamConnect Ceiling 2 Mic
• SL CM SK Suspension Kit for TeamConnect Ceiling 2 Mic
• SL CM EB 625 Ceiling Mic Extension Brackets (4 Pack)
• SL CM VB VESA Bracket for Teamconnect Ceiling 2 Mic
