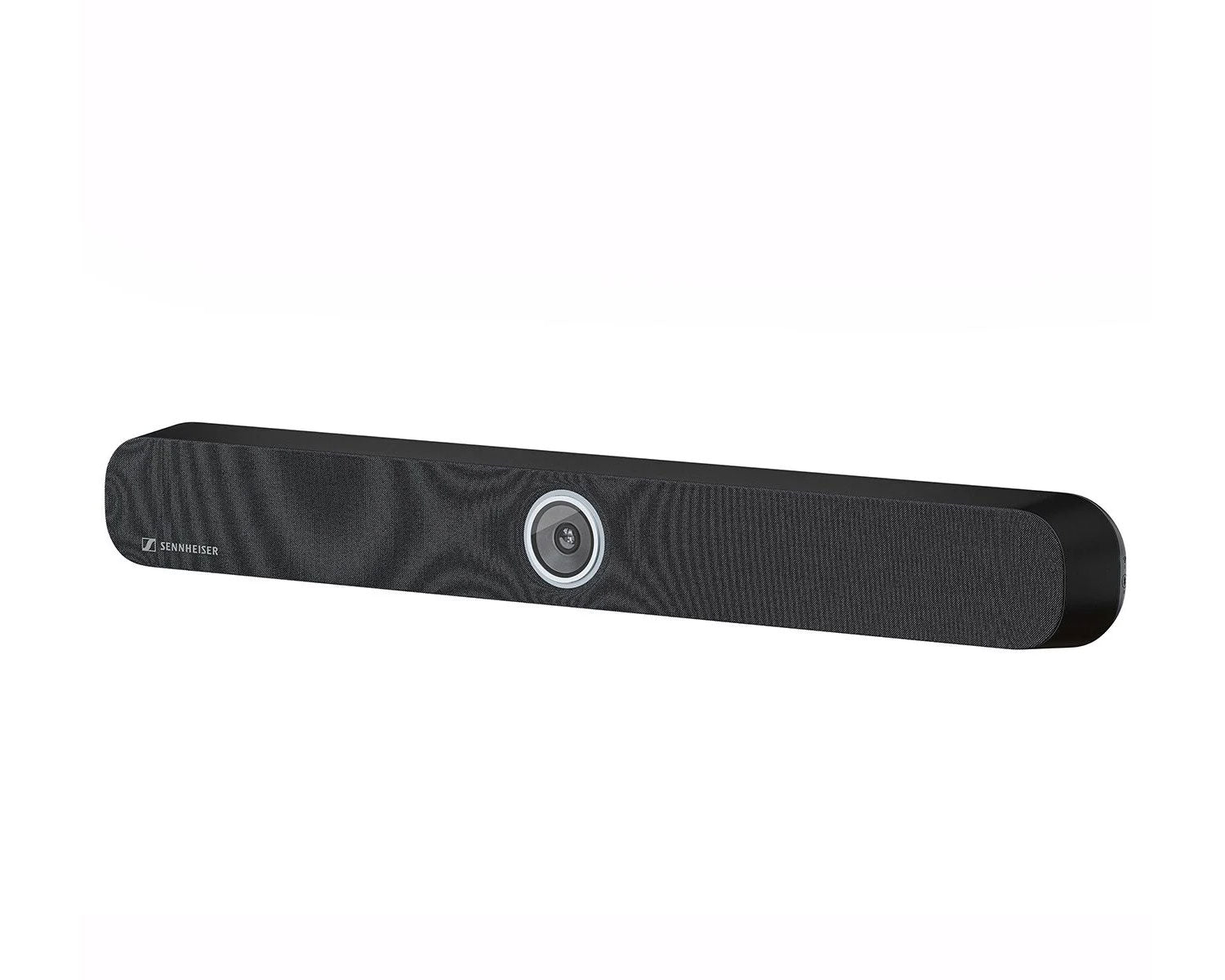

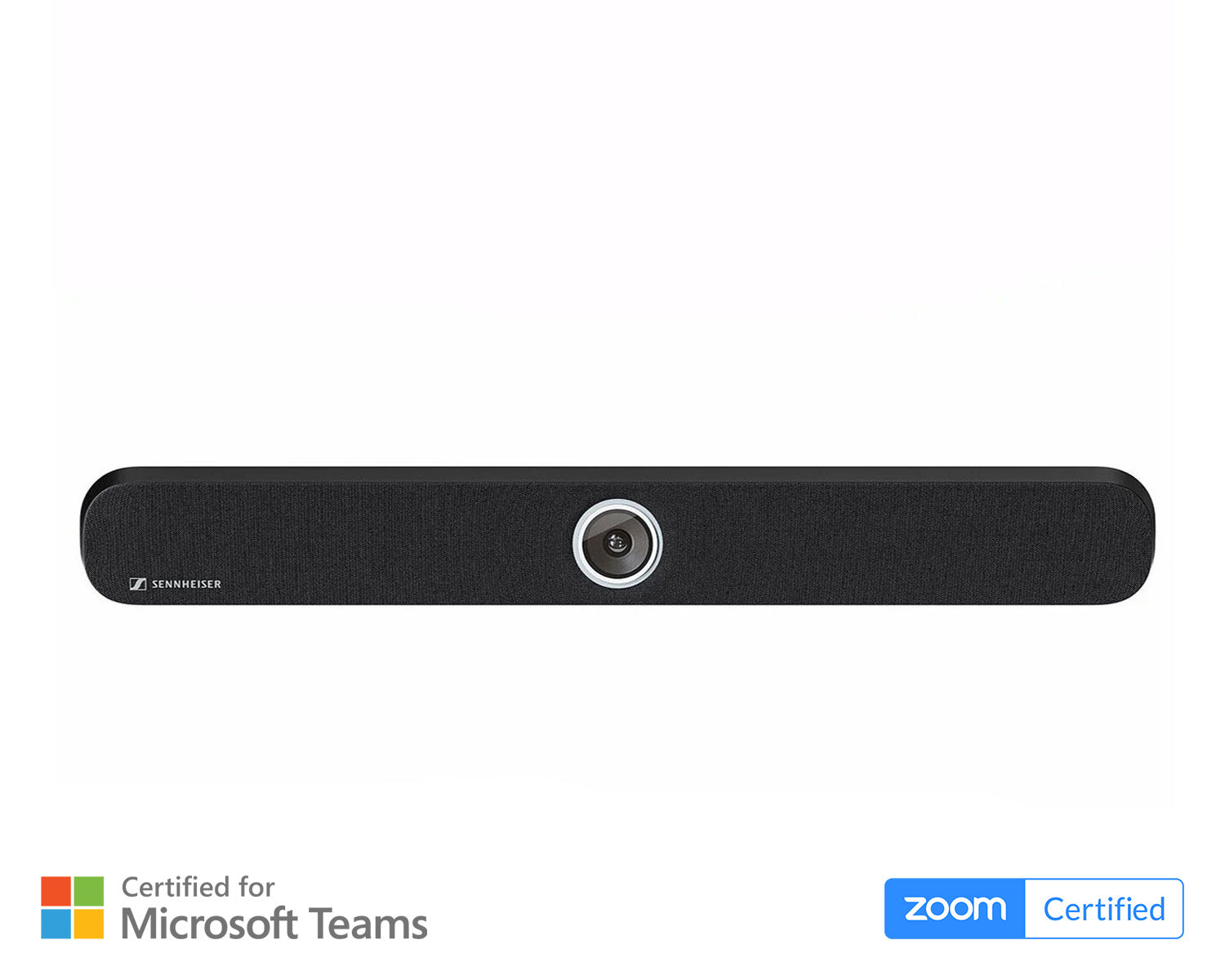

The TeamConnect Bar M is the most flexible all-in-one device for mid-sized meeting rooms and collaboration spaces. The TC Bar M features 6 microphones and 4 speakers to deliver Trusted Sennheiser Audio Quality to every meeting. The TC Bar M is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.

Product Features

• Quick start via USB cable
• Freedom of movement and seamless transition among presenters
• Flexible Extensions using Dante for adding extension mics and/or a 2nd external USB camera
• 4K Ultra HD camera equipped with advanced AI features
• Full-Range Stereo Speakers
• Built-In DSP automatically optimizes room acoustics
• Multiple Mounting Options
• Autoframing and Person Tiling features to clearly see everyone in the room
• Full remote-control access via Sennheiser Control Cockpit
• Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
• Encrypted control communication and password protected by default for secure content transmission

Product Specifications

General

• Dimensions (L x B x H): 750 x 71 x 95 mm
• Weight: 2.5 kg
• Operating temperature: 0 °C to 40 °C | 32 °F to 104 °F
• Storage temperature: -25 °C to 70 °C | -13 °F to 158 °F
• Relative humidity operation: 0 to 75 %, non-condensing
• Relative humidity storage: 0 to 95 %, non-condensing
• DC IN: 18 V ⎓, max. 4 A
• Max. power consumption: 72 W

Loudspeaker

• Total number of speakers: 4 with passive radiator
• Type: fullrange
• Diameter: 50 mm (2")
• Amplifier: Class-D
• Max. SPL (output): 84 dB SPL
• Total Audio Power (RMS/PEAK): 20 W / 40 W
• Frequency response: 100 Hz - 18 kHz
• THD at max. output: <5 %

Microphones

• Transducer principle: MEMS
• Pick-up pattern: Beamforming Array
• Number of microphone capsules: 6
• Frequency range: 100 Hz to 14.5 kHz
• Pickup range: 4.5 m
• Dynamic range: 69 dB (A)

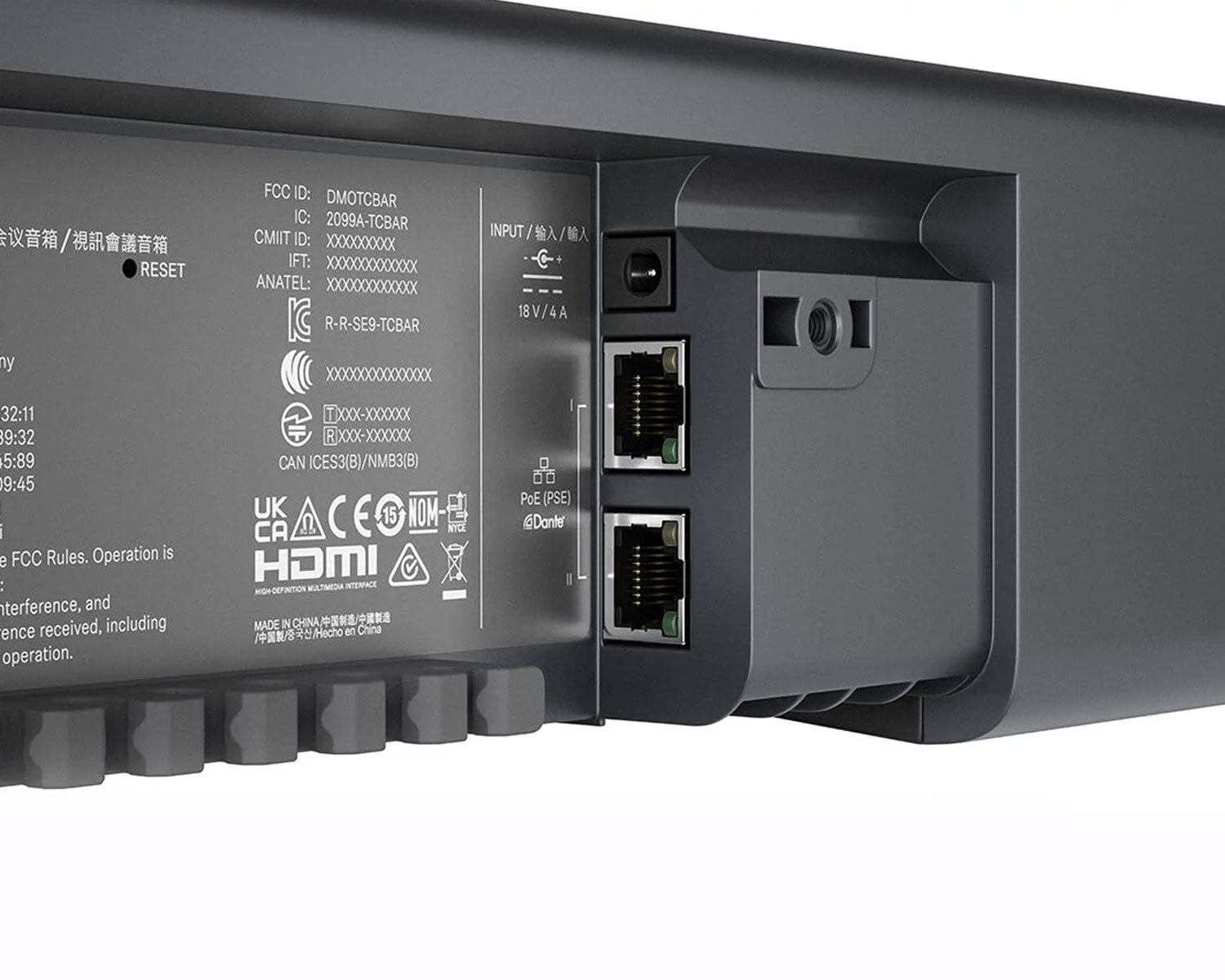

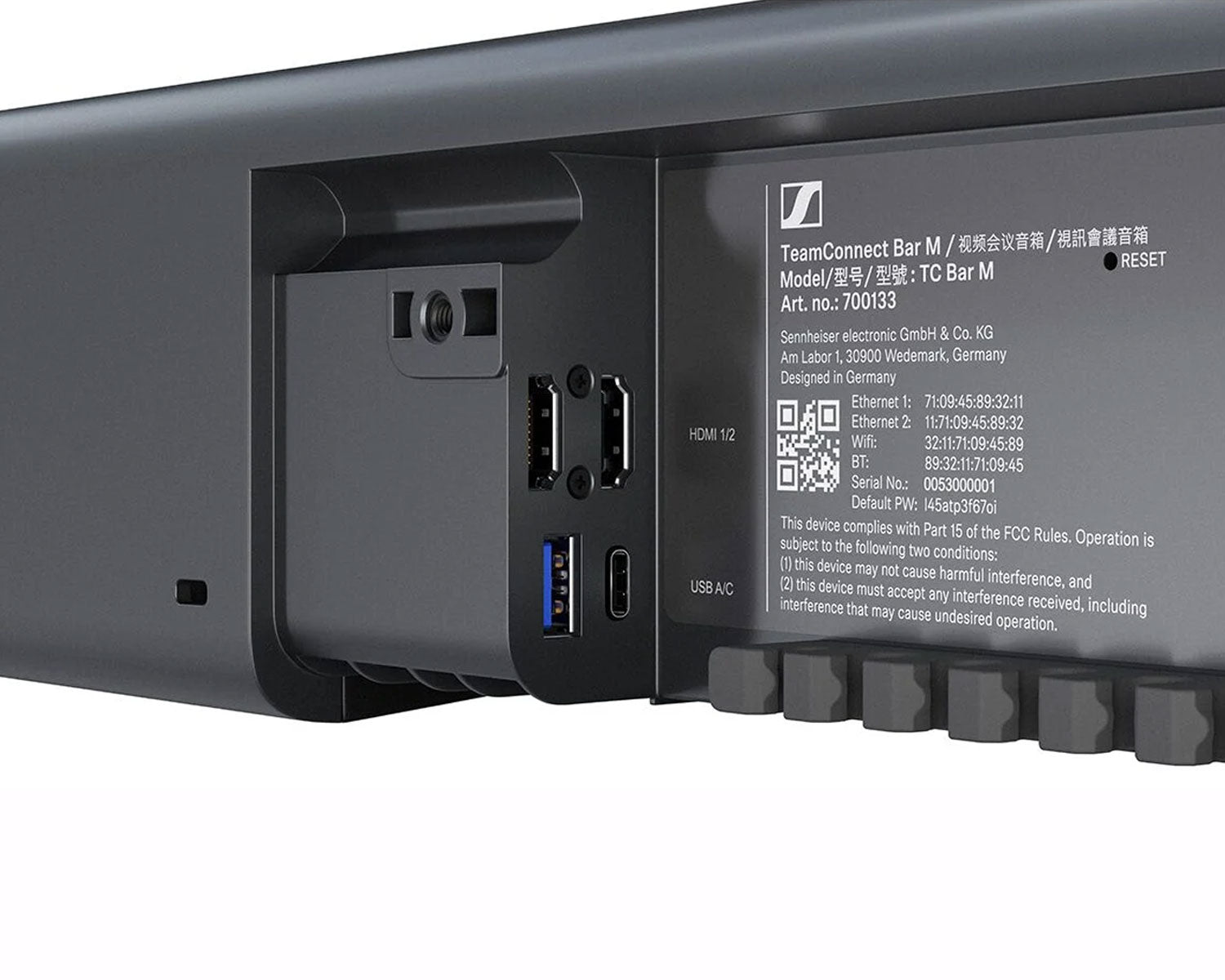

Interfaces

• HDMI out: 2x HDMI 2.0
• USB-C: USB 3.1 (Gen 1)
• USB-A power output: USB 3.1 (Gen1); 5 V ⎓, max. 900 mA
• DC IN dimension: 5.5 x 2.1 x 10.5 mm
• Ethernet: 2 x 1000/100/10 Mbit/s (RJ45) Note: Only use network cables with the standard CAT5e (F/STP) or better.
• Note: Only use network cables with the standard CAT5e (F/STP) or better.

Camera

• Technology: ePTZ
• Diagonal field of view: 120°
• Horizontal field of view: 115°
• Resolution: UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240
• Zoom: 5x digital zoom

Whats in the box

• TC Bar M
• Mounting Bracket + Drilling Template
• Power Supply Unit (E096-1A180500B3)

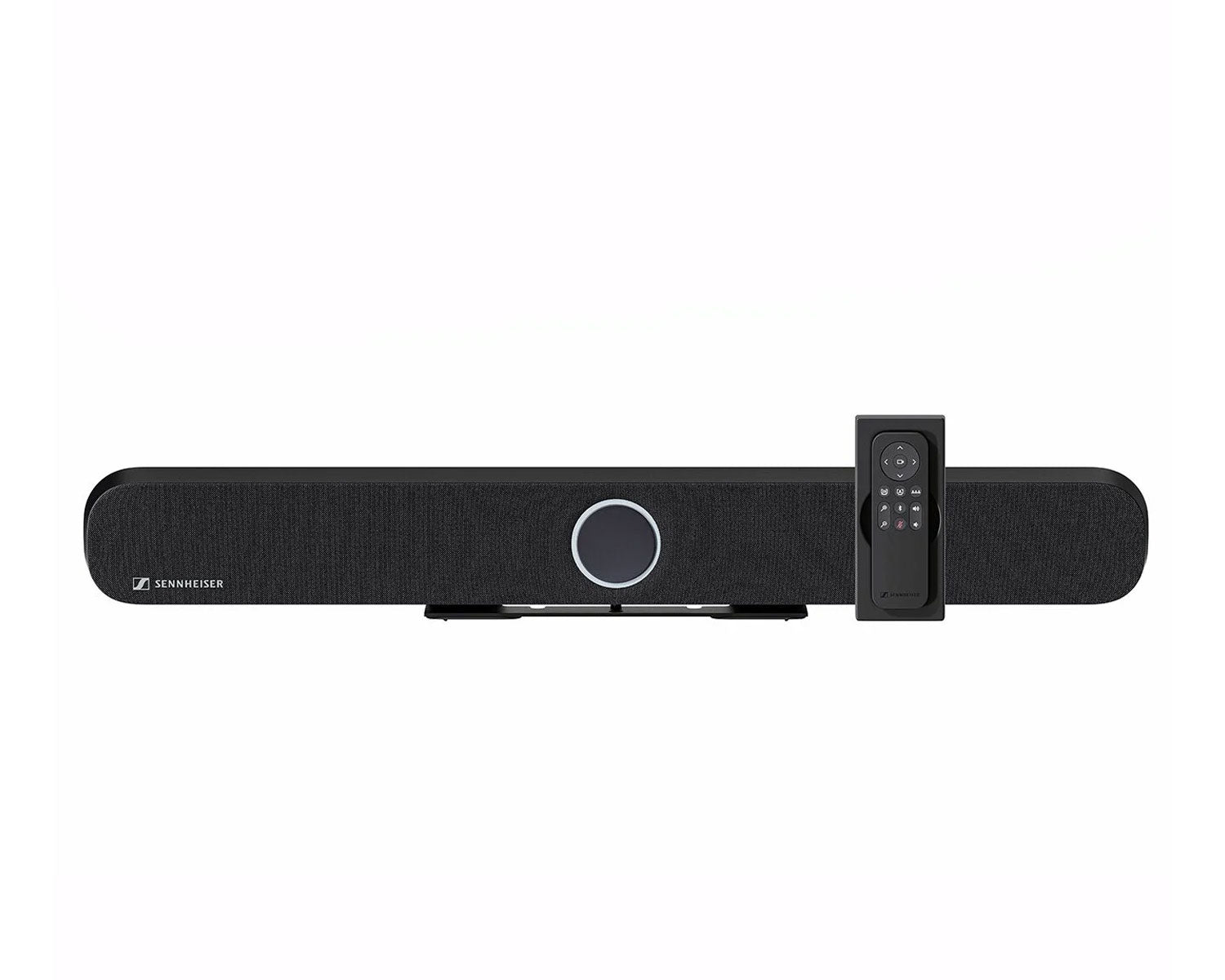

• RC TC Bar
• Bracket & Storage
• Magenetic Lens Cap
• HDMI Cable
• USB-C/USB-A Cable
• Screws
• 2 x AAA 1,5 V Batteries
• Manual
