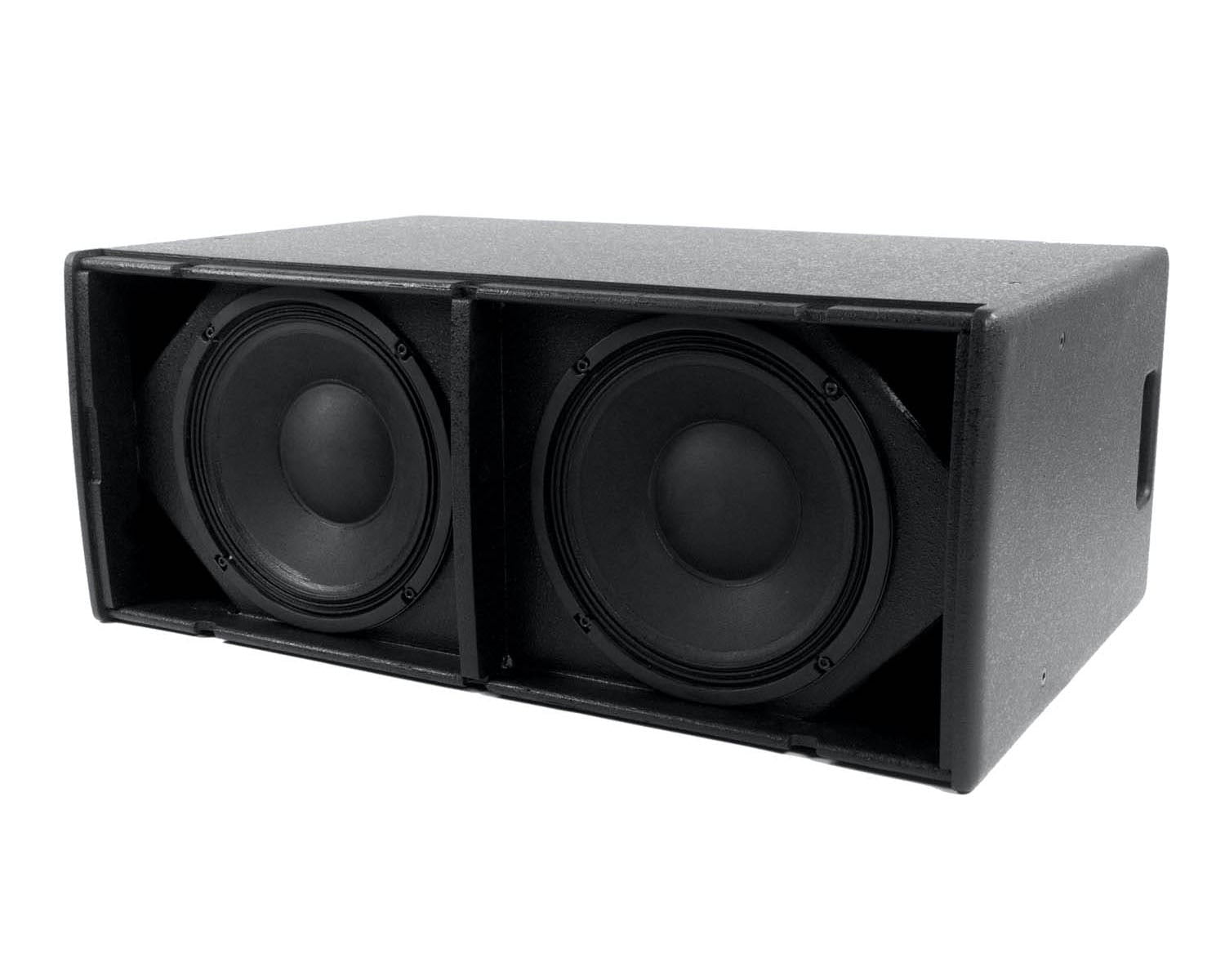

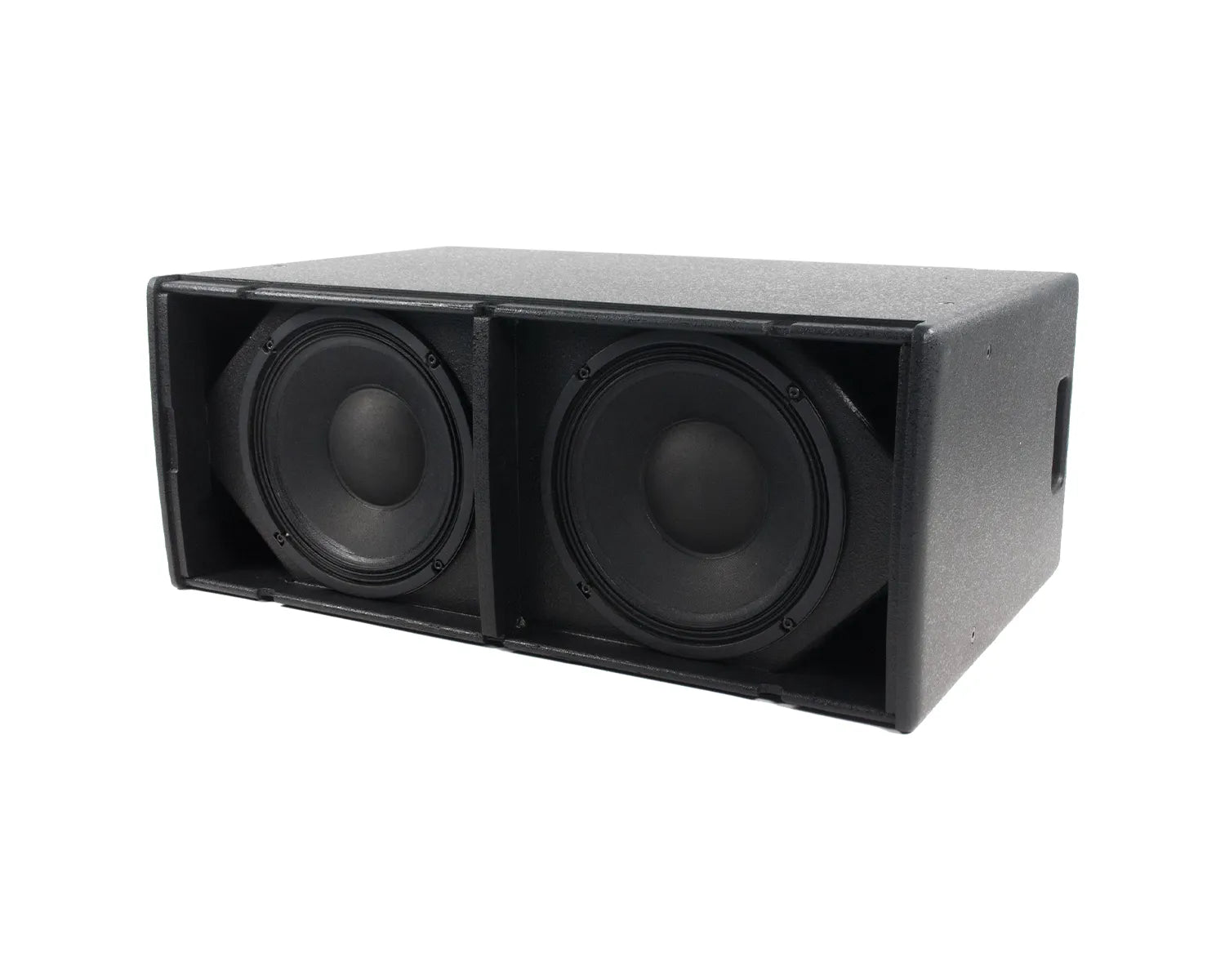

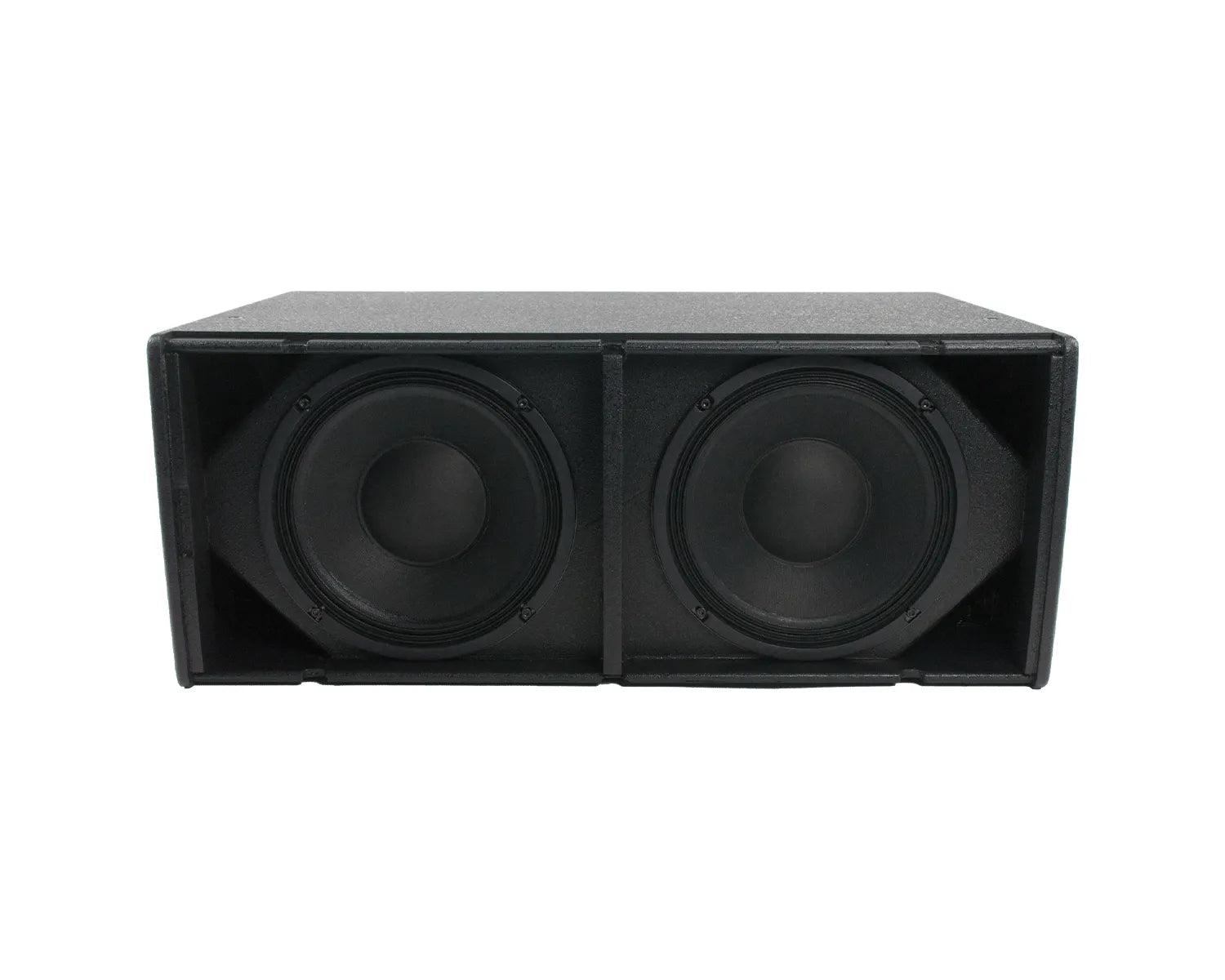

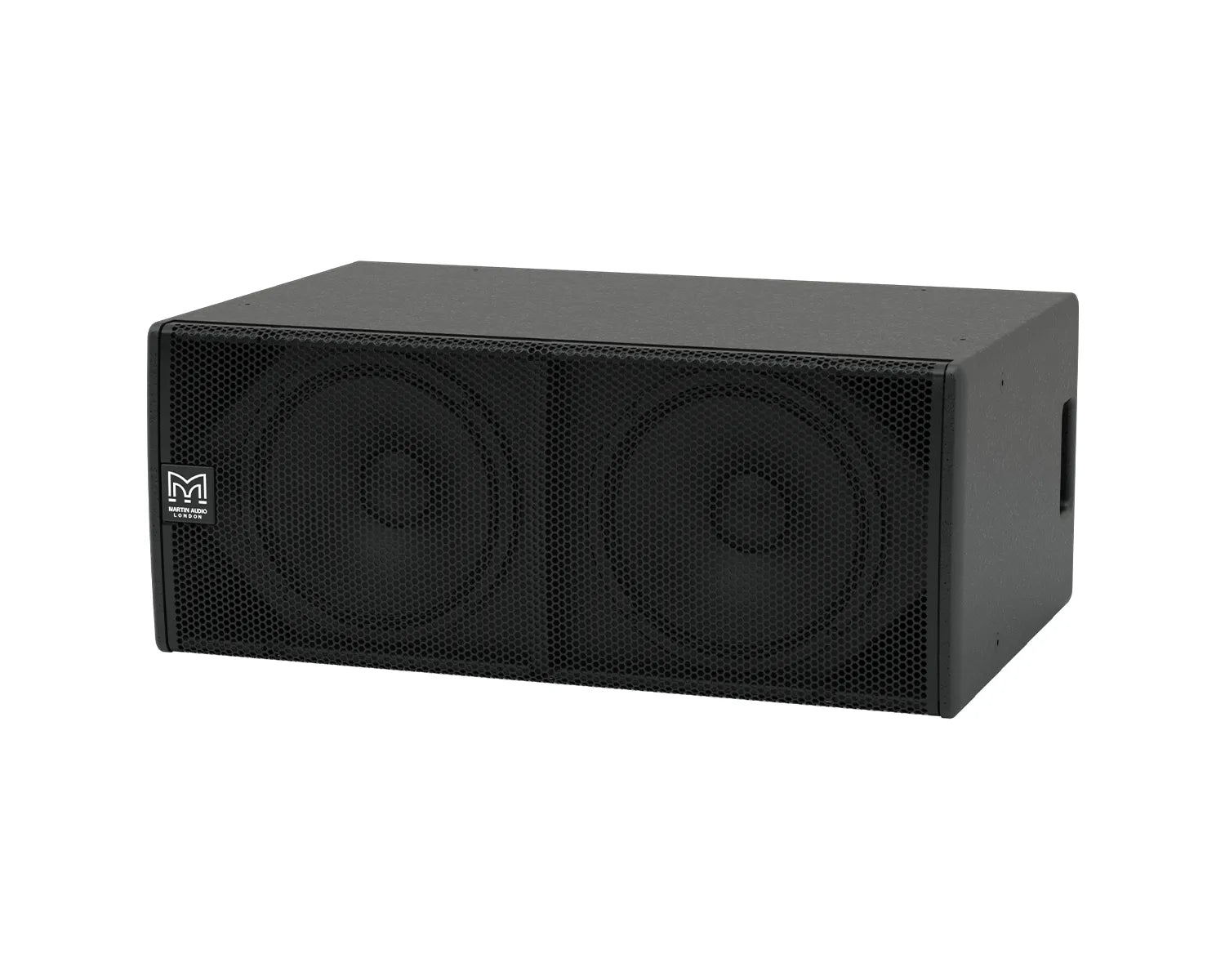

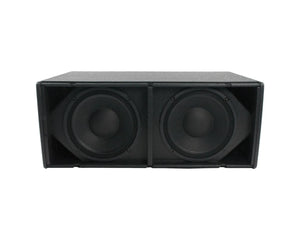

The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M10 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.

The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handling. Rubber feet on the base resist movement and align with recesses in the top surface to assist stacking.

Product Features

• Slimline direct-radiator subwoofer
• 2 x 10” (250mm) drivers with 2” (50mm) voice coils
• Large ports for reduced air noise
• Perforated steel grille
• 4Ω nominal impedance
• M10 flying inserts

Practical Applications

• Portable sound reinforcement
• Live music clubs
• Bars and restaurants
• Nightclubs
• Corporate AV events and conferences
• Weddings and parties
• Secondary stages at festivals
• HoW, leisure centres and retail outlets

Product Specifications

• TYPE: Slimline dual, direct radiating subwoofer
• FREQUENCY RESPONSE: 50Hz-150Hz ± 3dB, -10dB @ 42Hz
• DRIVER: 2 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet
• RATED POWER: 500W AES, 2000W peak
• SENSITIVITY: 103dB
• MAXIMUM SPL: 127dB continuous, 133dB peak (half space)
• NOMINAL IMPEDANCE: 4Ω
• DISPERSION (-6DB): Omnidirectional
• CROSSOVER: 80-120Hz active (with DSP)
• ENCLOSURE: Birch/poplar ply
• FINISH: Black textured paint
• PROTECTIVE GRILLE: Black perforated steel
• CONNECTORS: 4 x NL4 type
• PIN CONNECTIONS (INPUT): 1+/1-
• PIN CONNECTIONS (LINK): 1+/- to 1+/-
• FITTINGS: 16 x M8 inserts, 2 x bar handles
• DIMENSIONS:
  • (W) 718mm x (H) 295mm x (D) 465mm
  • (W) 28.3ins x (H) 11.4ins x (D) 18.3ins
• WEIGHT: 20kg (44.1lbs)
